JL Audio MVi-HUB JLid Network Bridge for MVi Amplifiers 010-03342-00 (98652)

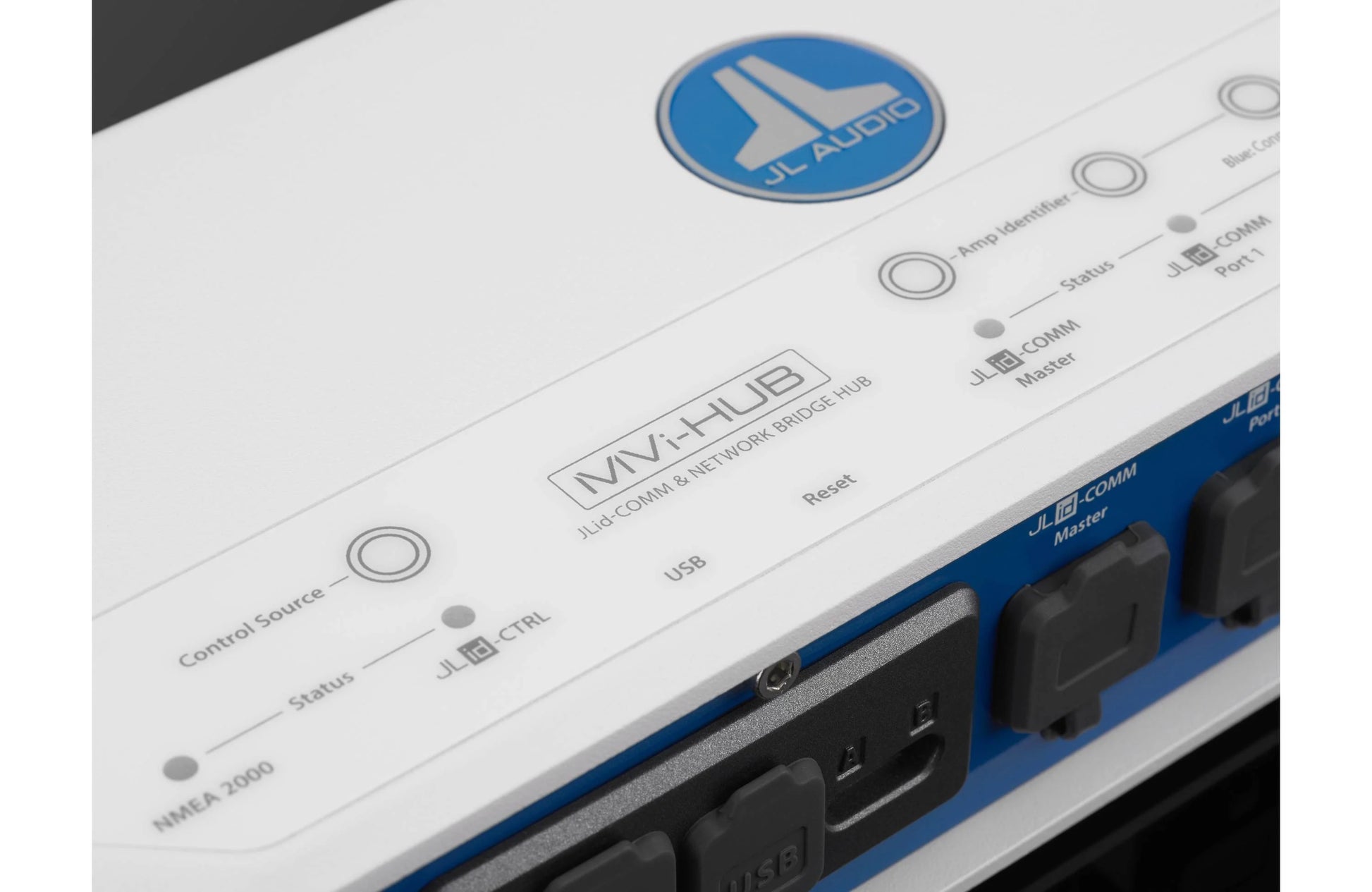

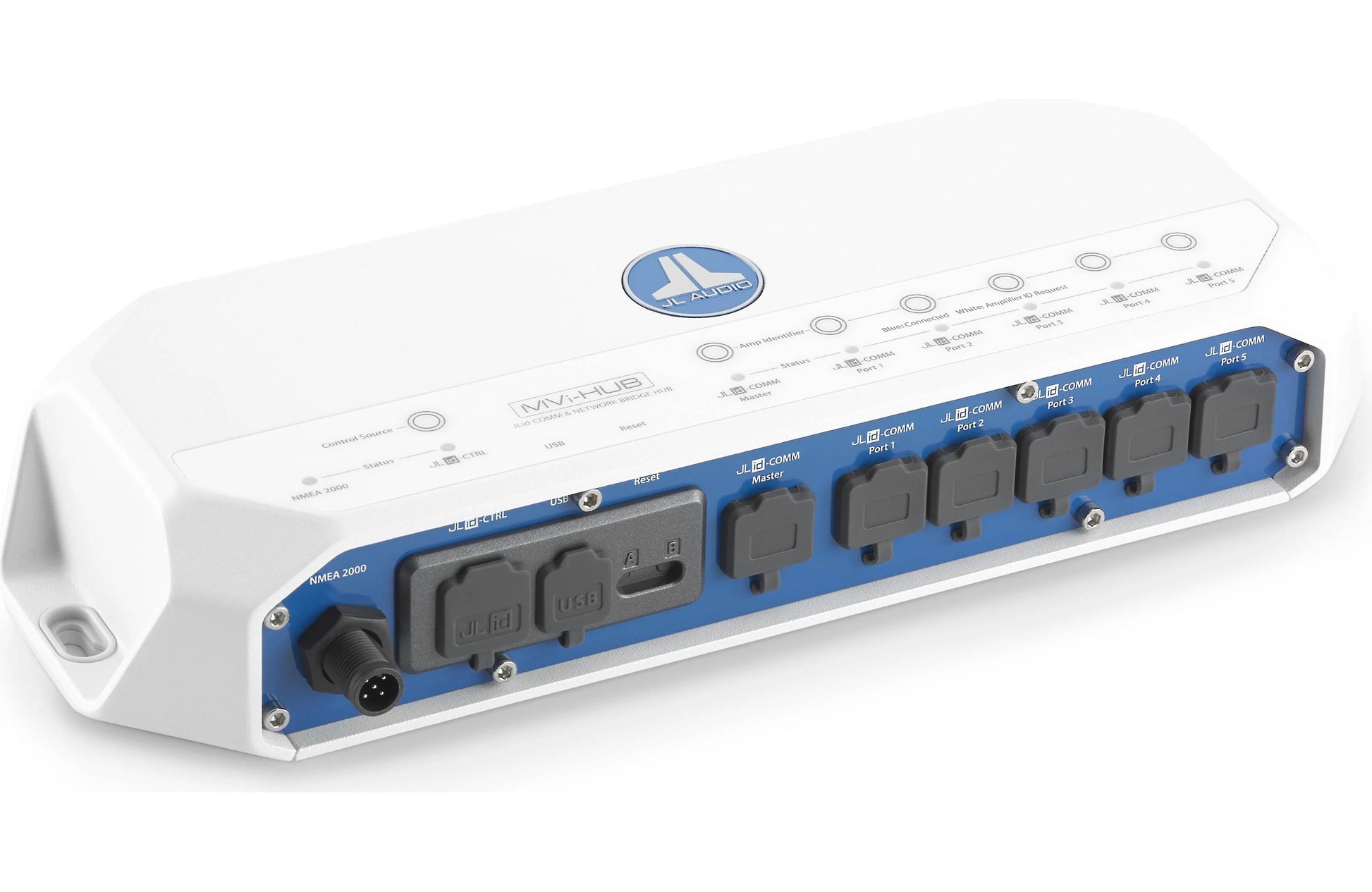

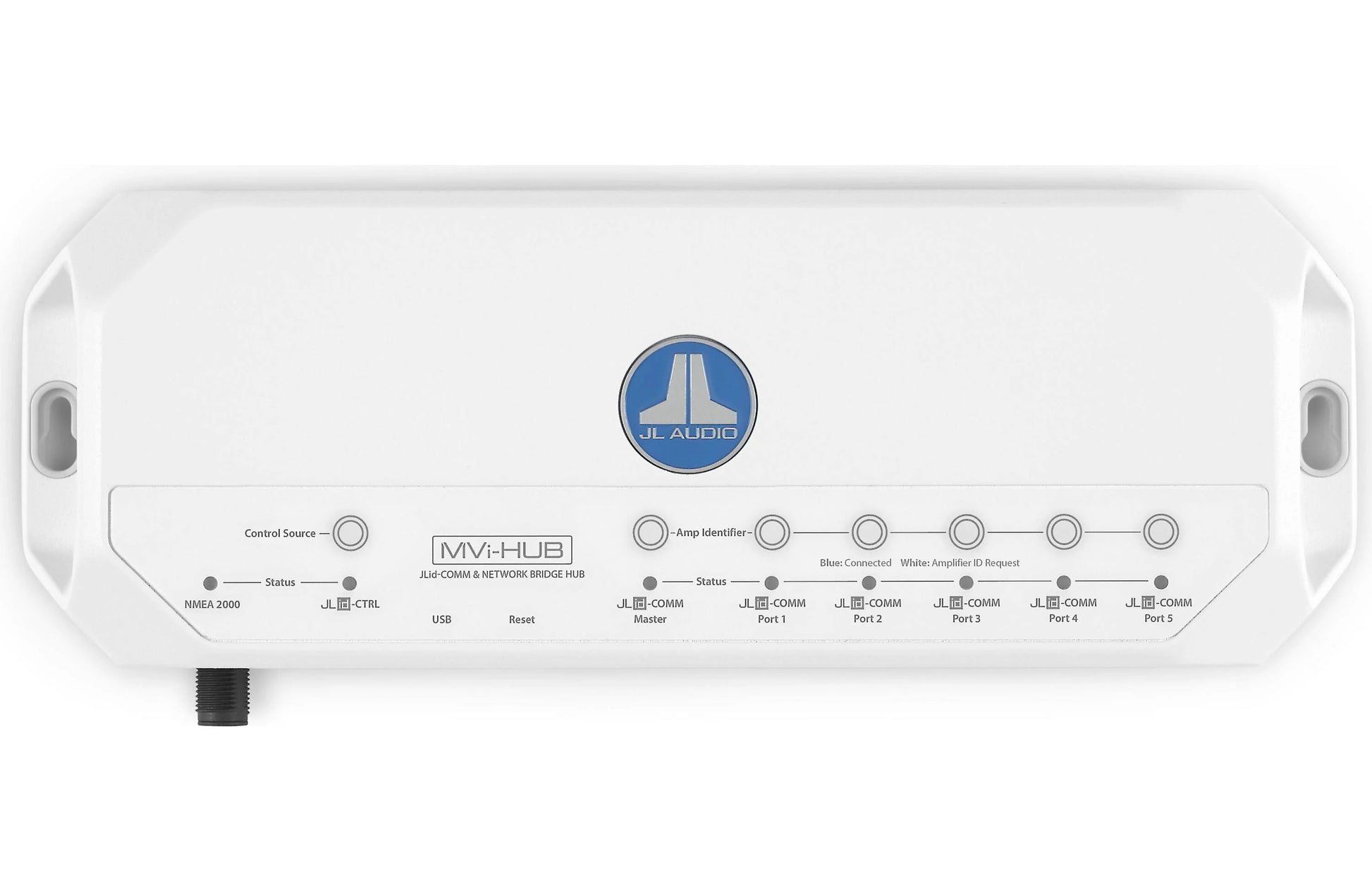

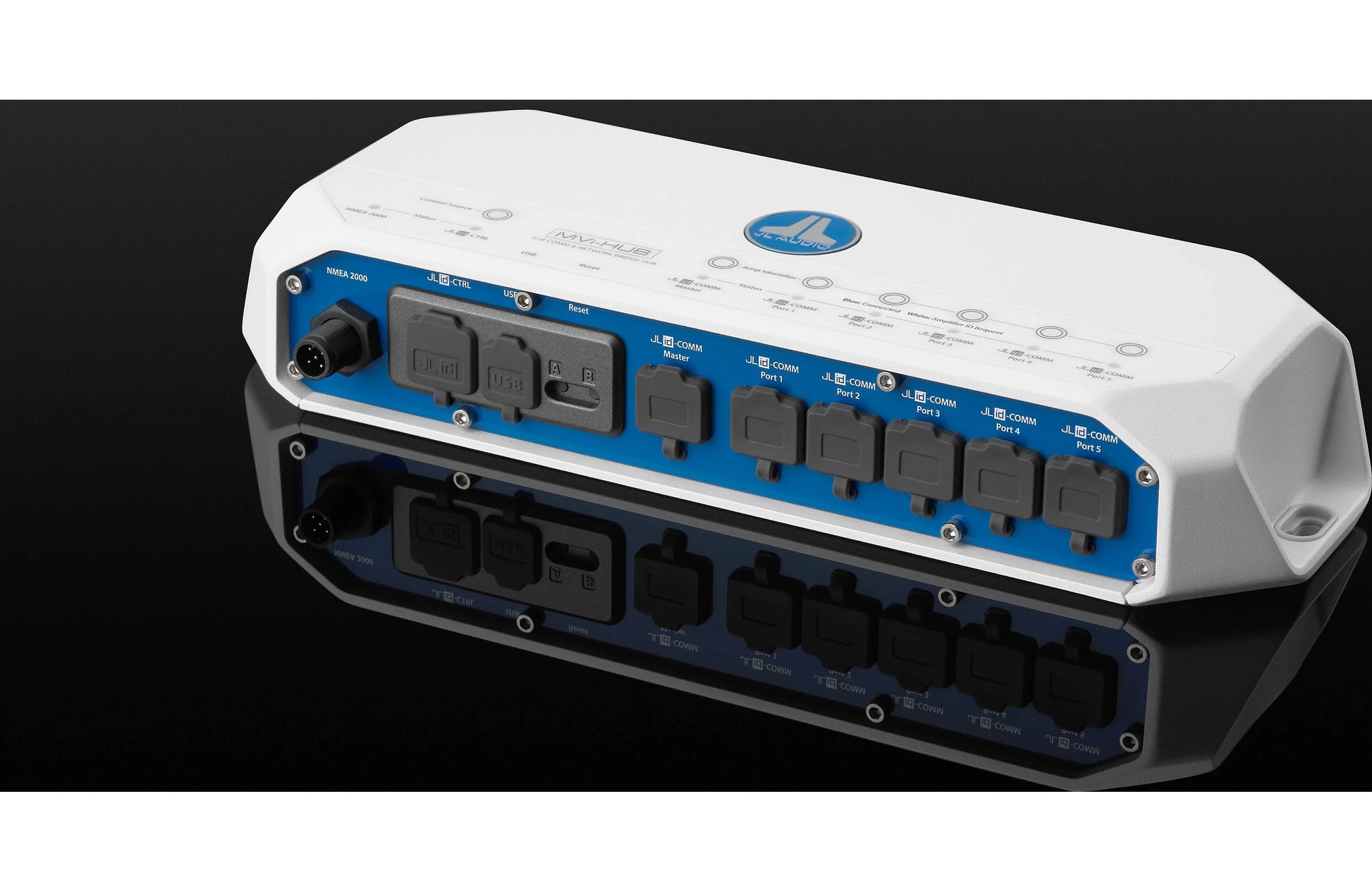

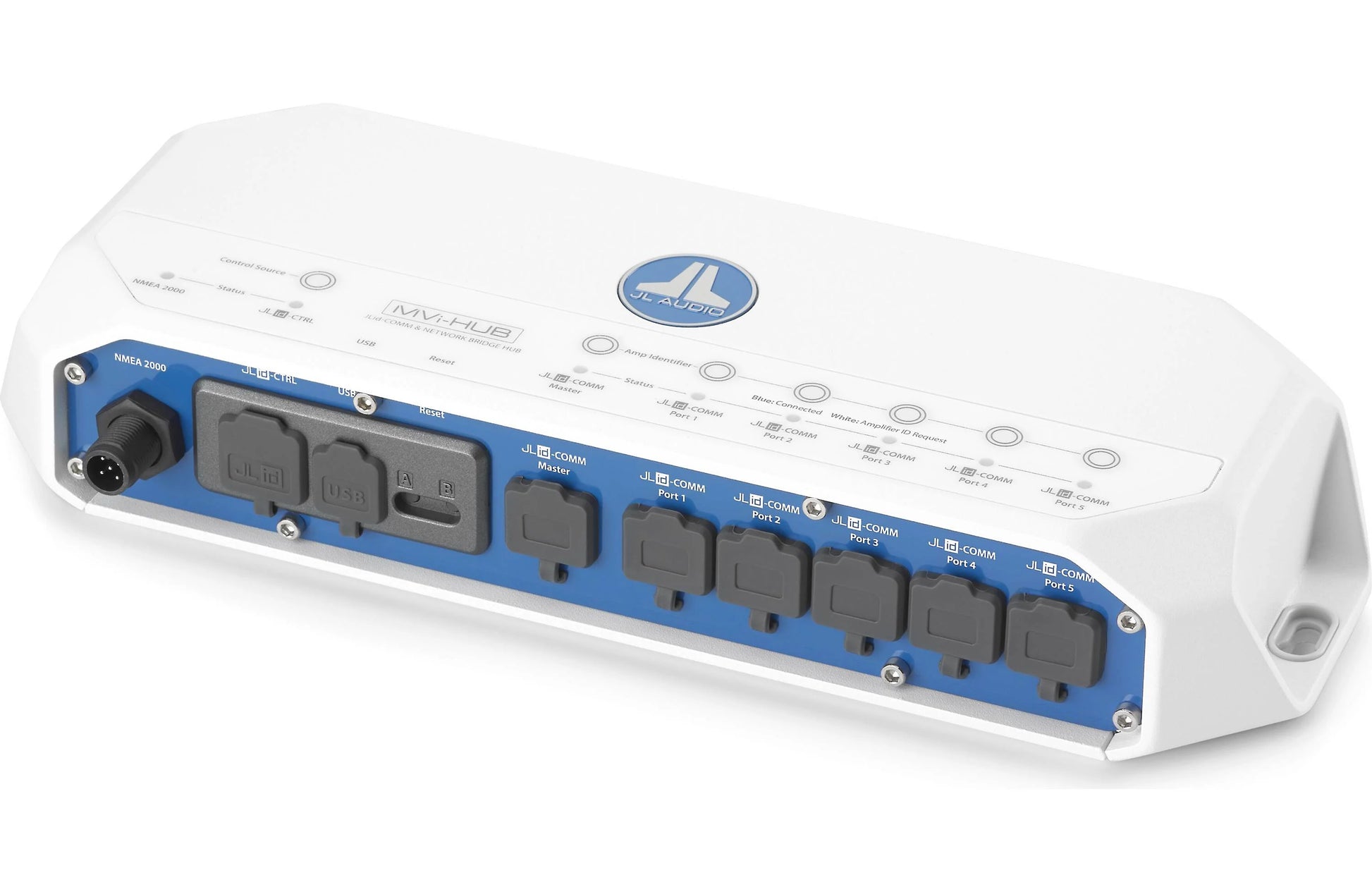

JL Audio MVi-HUB is a dedicated JLid™ communication and network bridge designed for the JL Audio MVi and MV Series marine amplifiers. It provides a centralized network interface that lets multiple amplifiers operate as a single, coordinated system under JL Audio’s TüN™ DSP control architecture, simplifying configuration and tuning.

The hub connects one “master” MVi amplifier and up to five “slave” MVi or MV amplifiers using standard CAT5e cabling, allowing them to appear in one TüN™ software session. This network architecture synchronizes DSP presets and control commands such as master volume, subwoofer level, fade/balance, and preset selection across the entire amplifier ecosystem. The unit draws power through the connected amplifiers and requires no separate power or turn-on wiring.

Key Features

• JLid™ communication and network bridge for MVi/MV Series amplifiers

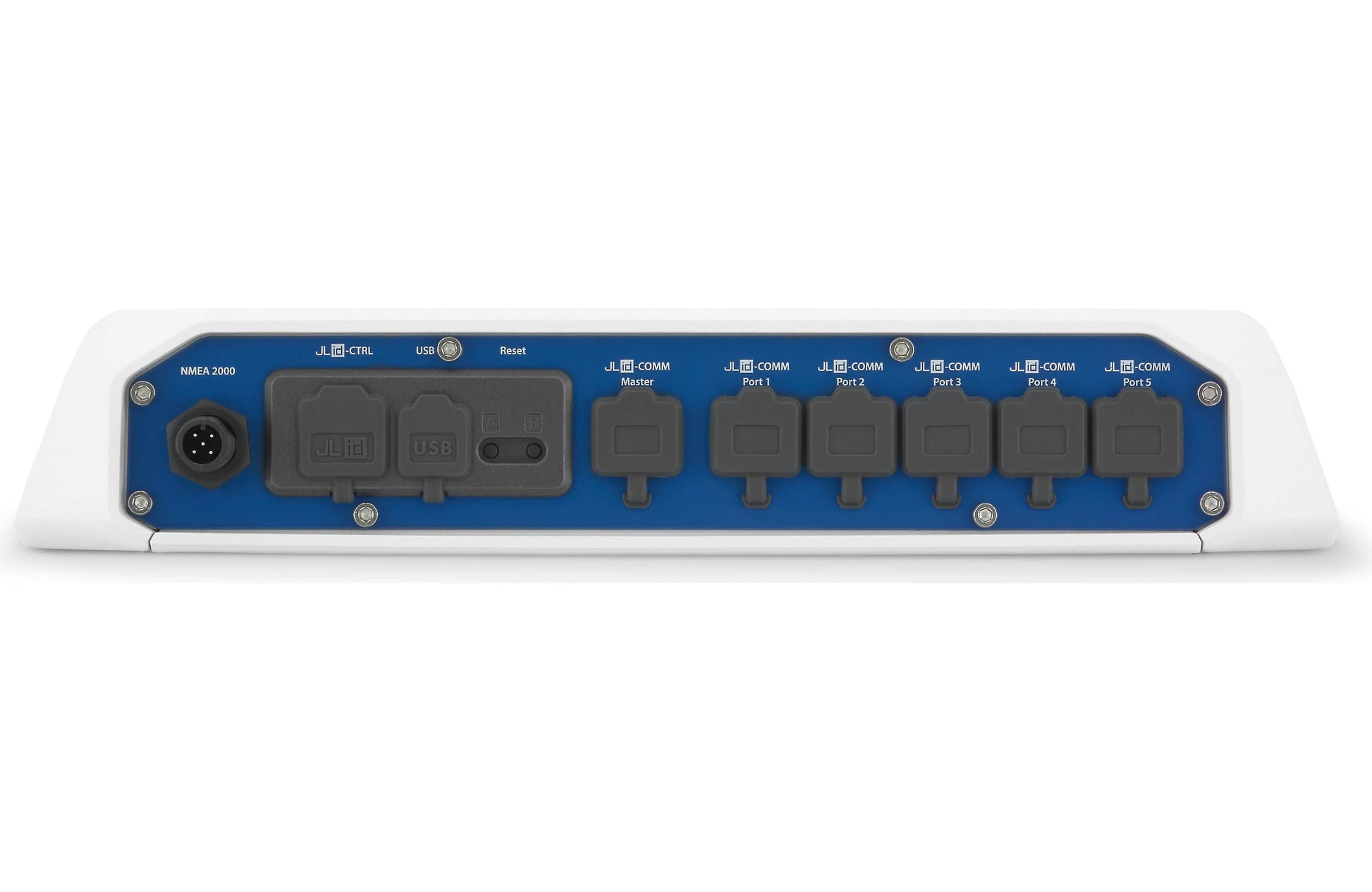

• Connects up to 6 amplifiers (1 master + 5 secondary) with CAT5e cable
• Synchronizes DSP presets and control across the network
• JLid-CTRL accessory port for optional wired/BT remotes (sold separately)
• No separate power or turn-on wiring required (powered via amplifier connections)
• Compact marine-quality construction

Technical Specifications

Ideal Applications

• Marine audio systems using multiple JL Audio MVi/MV Series amplifiers
• Large multi-zone amplifier networks requiring synchronized control
• DSP tuning environments managed via JL Audio TüN™ software

What’s Included

• JL Audio MVi-HUB network bridge
• Mounting hardware
• Documentation
