JL Audio
JL Audio MMR-5N2K Marine Volume Controller for MediaMaster, NMEA 2000 010-03134-00 (99948)
JL Audio MMR-5N2K Marine Volume Controller for MediaMaster, NMEA 2000 010-03134-00 (99948)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

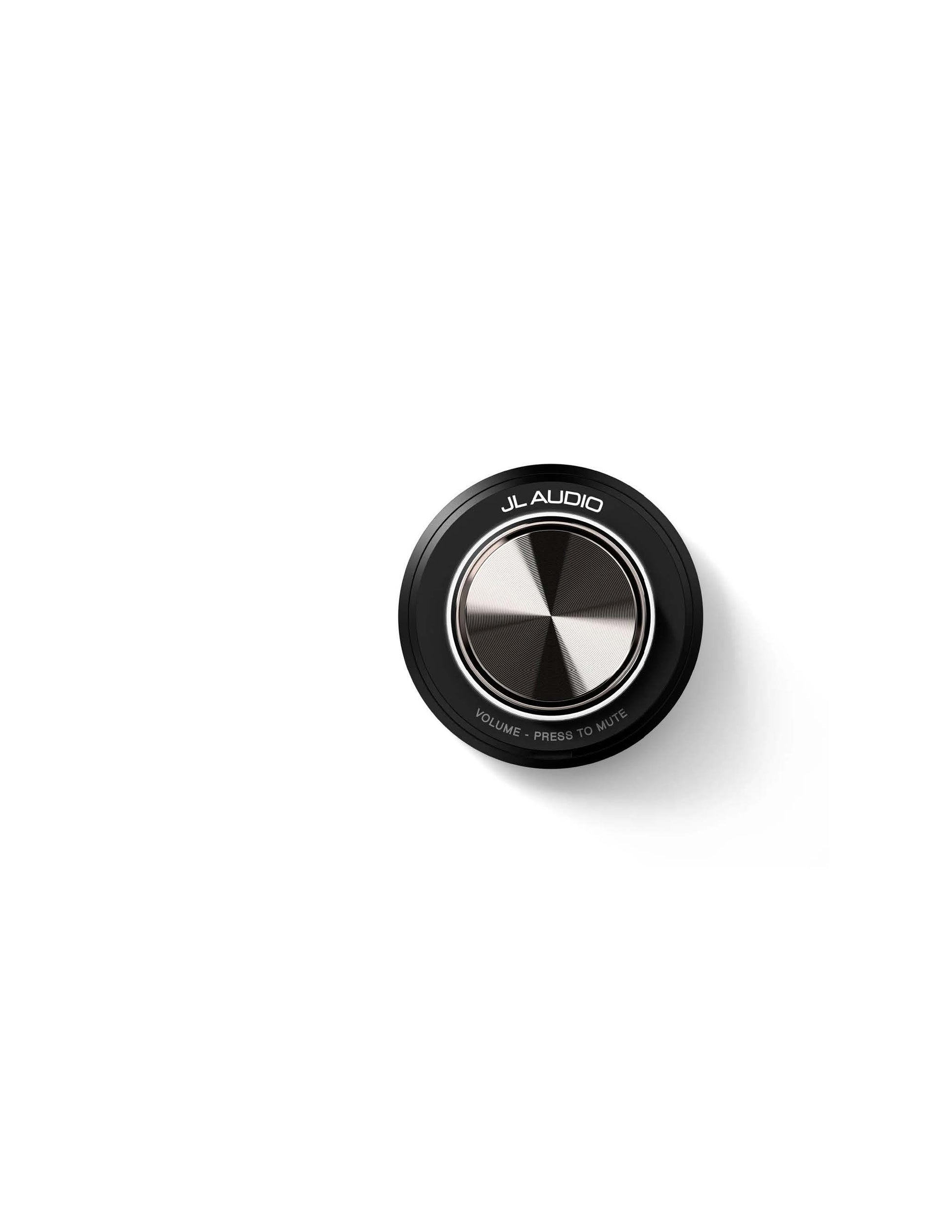

JL Audio MMR-5N2K puts auxiliary volume control within easy reach without adding another stereo. This wired marine controller connects to a compatible MediaMaster source unit through NMEA 2000 and adjusts all of that source unit’s audio zones together.
Choose the correct network connection. Install it on the vessel’s NMEA 2000 network with the appropriate cables and connectors, or use an optional MMC-PN2K powered network cable to create an isolated connection to one compatible MediaMaster. Network components and powered cables are sold separately.
Key Features
- Wired auxiliary volume control for compatible JL Audio MediaMaster source units
- NMEA 2000 Micro-C connector
- All connected source-unit audio zones adjust simultaneously
- IPX7-rated weatherproof design for marine and outdoor installations
- Supports an existing vessel network or an appropriately configured isolated powered network
Technical Specifications
| Model | MMR-5N2K |
| Garmin Part Number | 010-03134-00 |
| Legacy JL Part Number | 99948 |
| UPC | 699440999489 |
| Connection | NMEA 2000 Micro-C |
| Ingress Rating | IPX7 |
| Zone Behavior | Simultaneous adjustment of all zones on one host source unit |
Installation & System Requirements
Use with a single compatible MediaMaster source unit. Set each host audio zone’s level-control mode to Relative or Variable. Available functionality depends on the host source unit. This controller is not an amplifier, audio source, or independent zone selector. Required NMEA 2000 cabling/connectors or MMC-PN2K powered network cables are separate.
What’s Included
One MMR-5N2K wired volume controller. The host stereo and network installation components are not included.
Why Buy From MCOR Automotive
MCOR is an authorized JL Audio / Garmin retailer. Contact us before ordering if you need help confirming the source unit, network connection or installation components for your system. Applicable manufacturer warranty coverage is subject to manufacturer guidelines.
