JL Audio M7-12IB-S-GwGw-4 12" Infinite-Baffle Marine Subwoofer, White Sport, 600W RMS, 4Ω 010-03286-00
JL Audio M7-12IB-S-GwGw-4 12" Infinite-Baffle Marine Subwoofer, White Sport, 600W RMS, 4Ω 010-03286-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

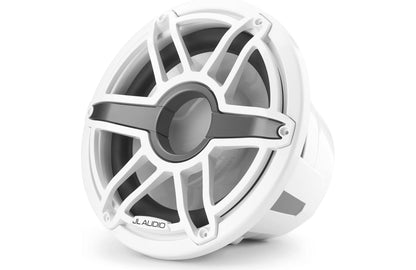

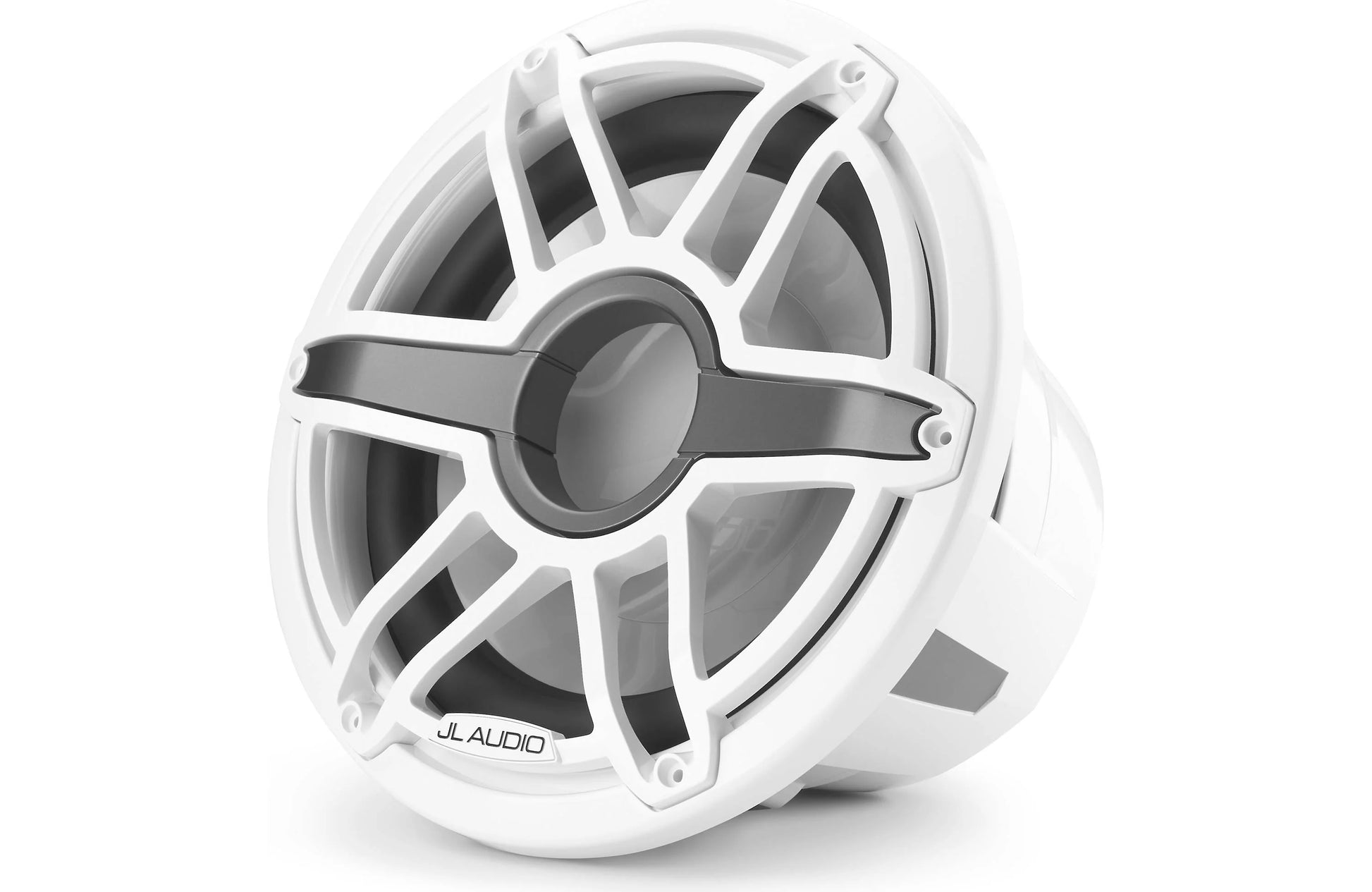

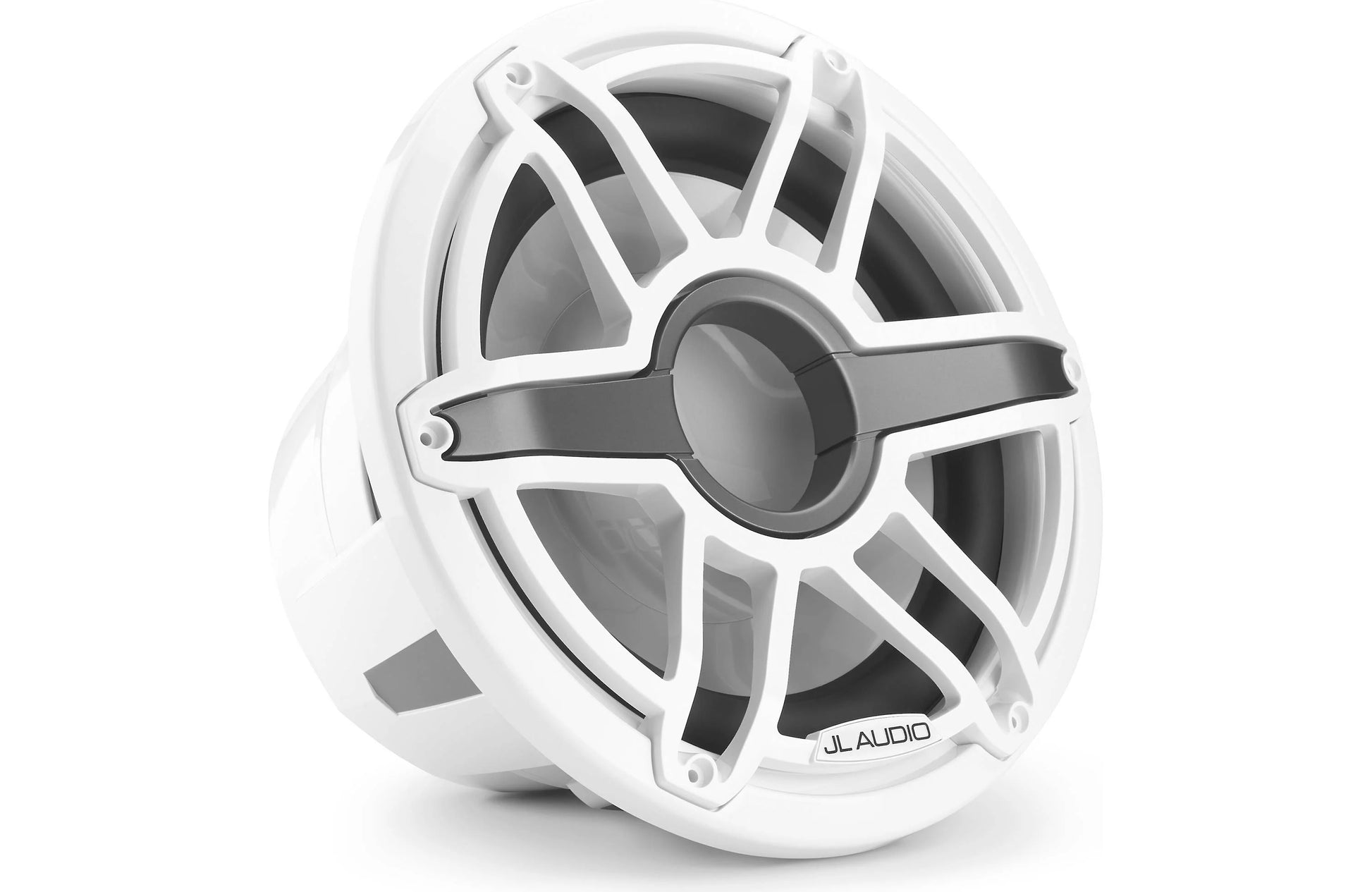

JL Audio M7-12IB-S-GwGw-4 is a 12-inch, 600 W RMS marine subwoofer with a White Sport grille, 4-ohm impedance and no LED lighting. Its infinite-baffle design delivers dedicated bass without requiring a compact subwoofer box.

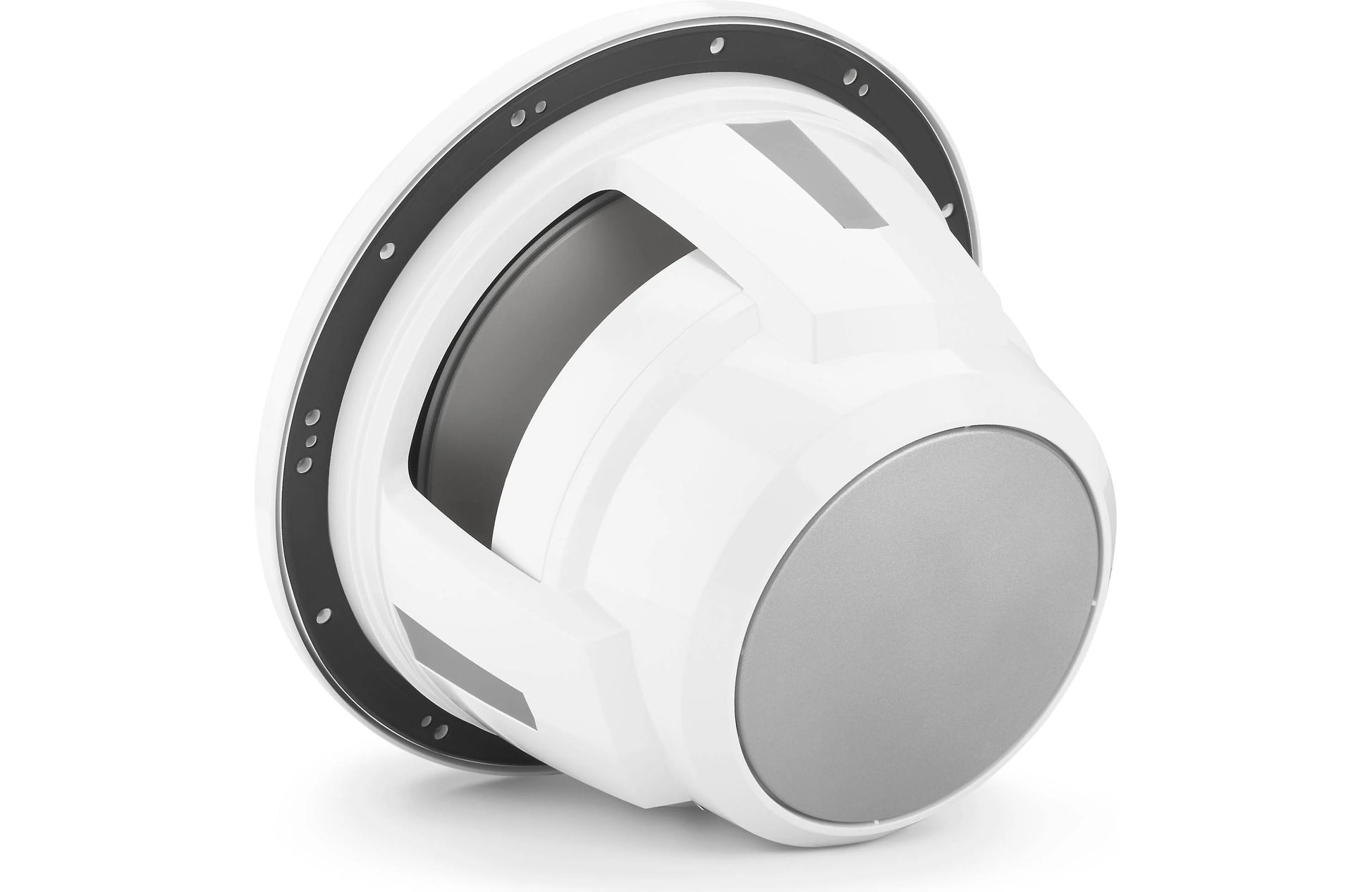

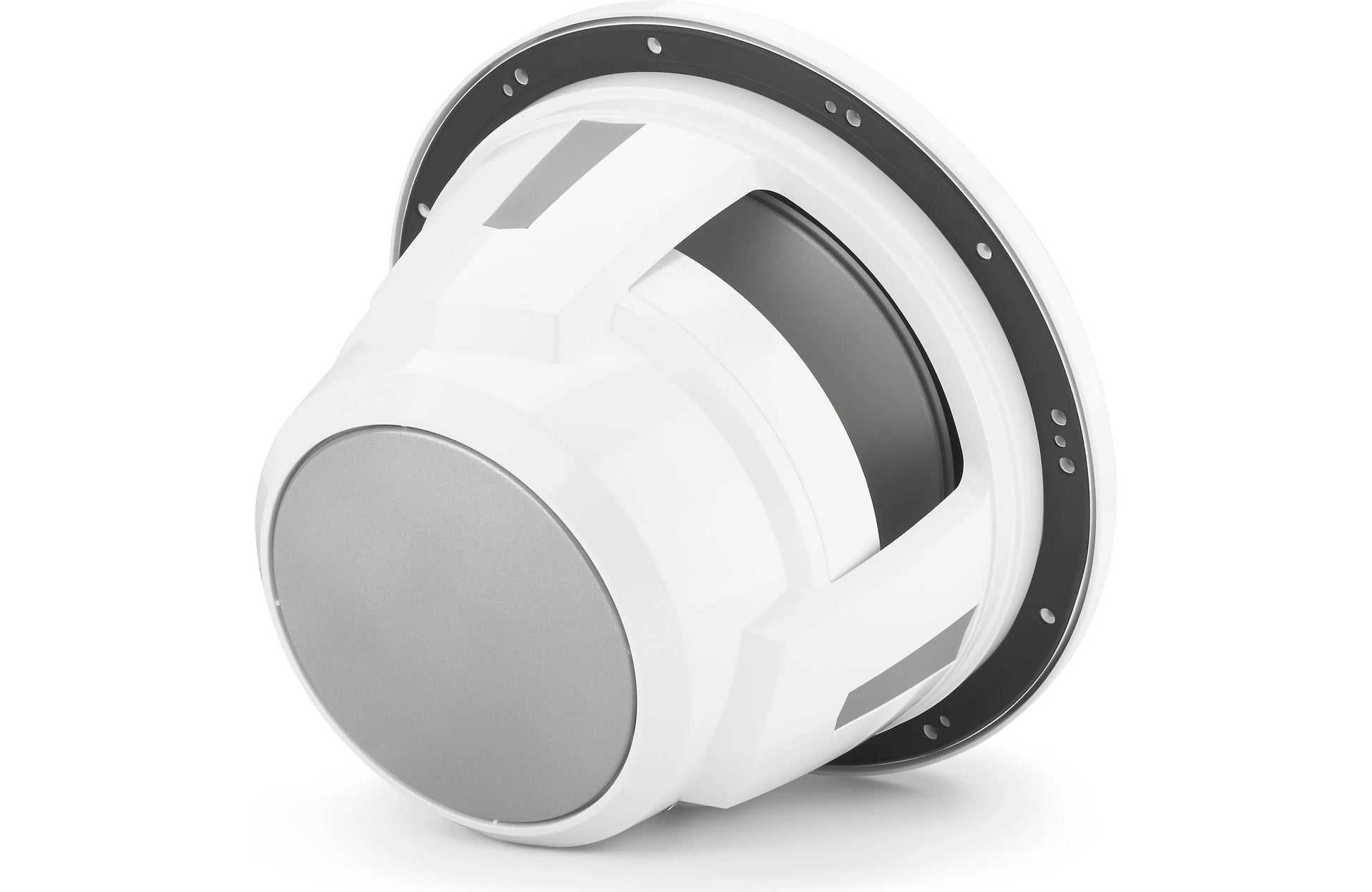

The large cone, long-excursion suspension and 4-inch voice coil give the M7 substantial displacement for open-air marine bass. JL Audio’s DMA-optimized motor design helps control distortion and transient response when driven by a properly matched amplifier.
Key Features
- 12-inch M7 marine subwoofer; sold individually
- 600 W continuous RMS power handling; 4 Ω nominal impedance

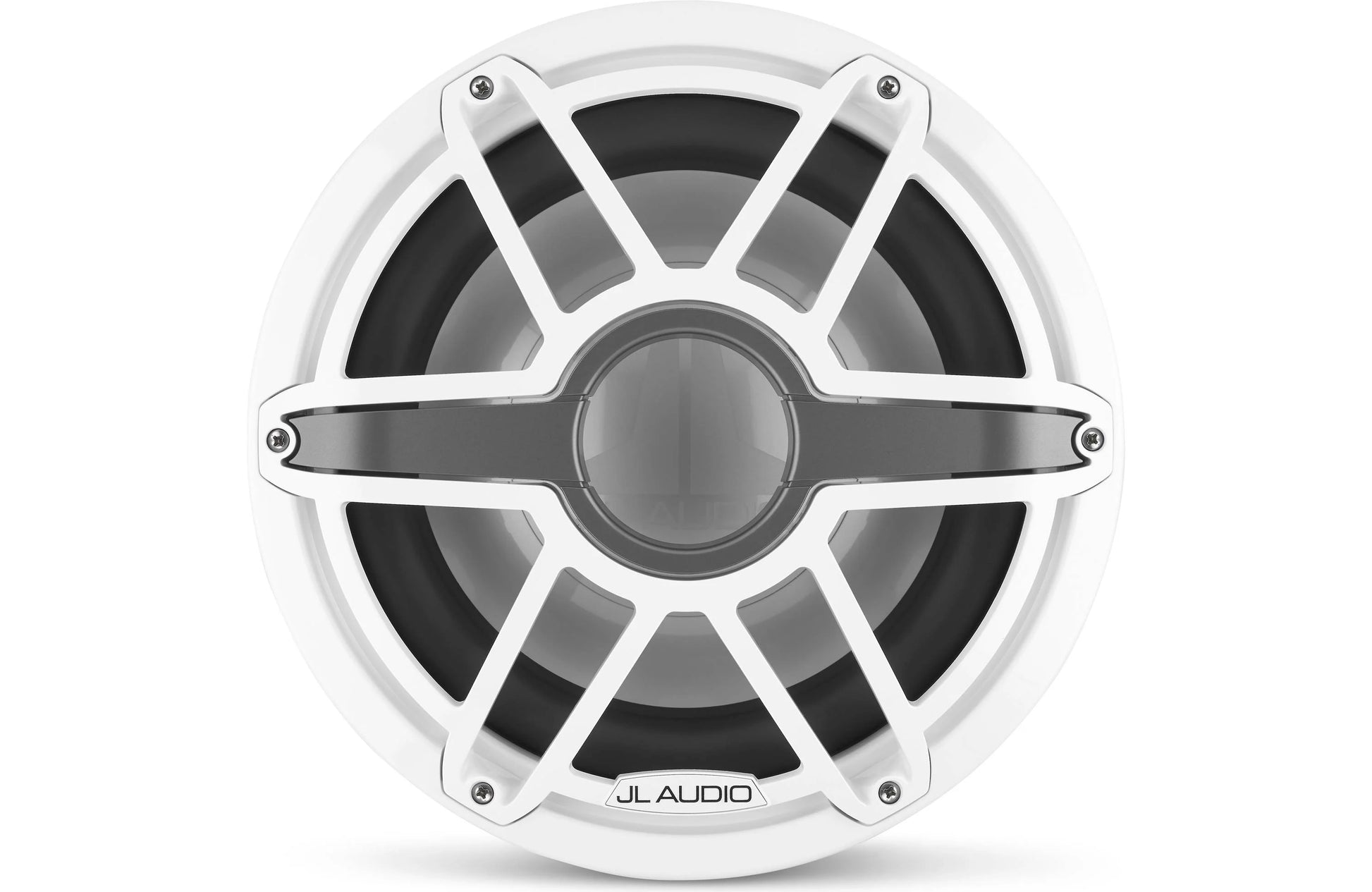

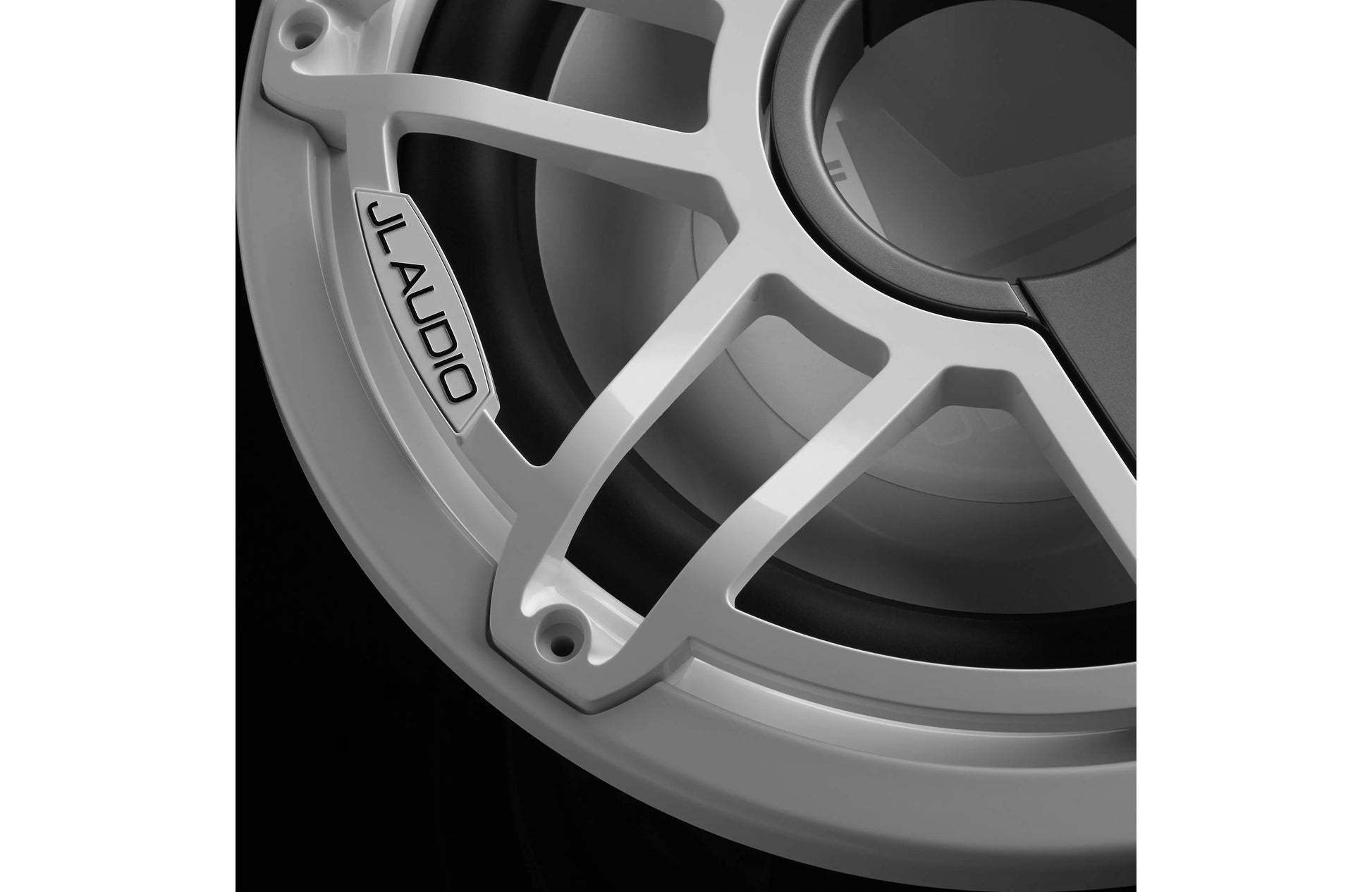

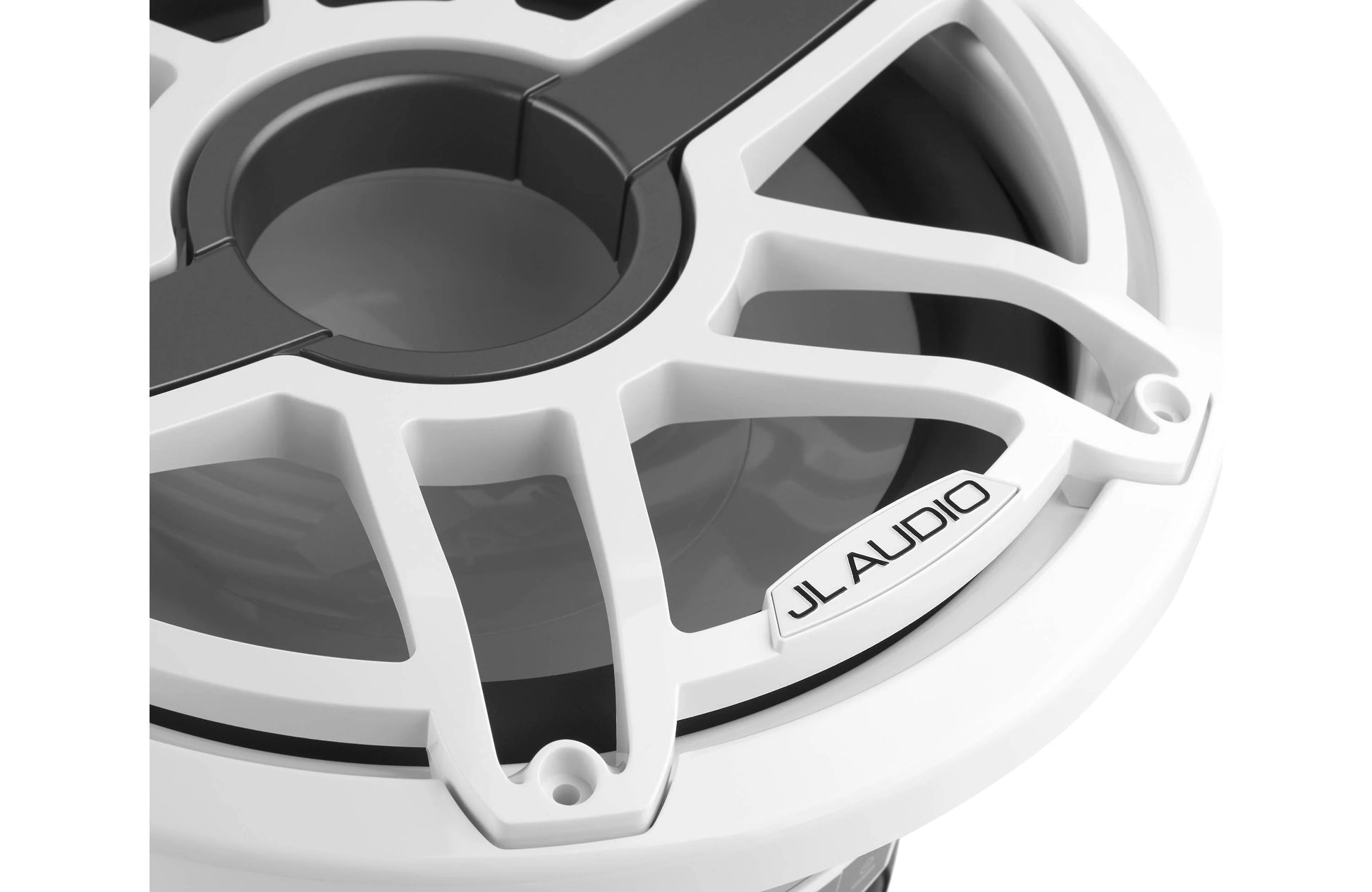

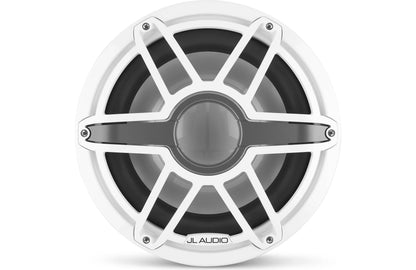

- White Sport grille; non-lighted version
- Purpose-built for infinite-baffle mounting with a large rear air volume
- Injection-molded, mica-filled polypropylene cone
- Removable grille and trim ring
Technical Specifications
| Model | M7-12IB-S-GwGw-4 |
| Garmin Part Number | 010-03286-00 |
| UPC | 699440936712 |
| Installation Type | Infinite baffle |
| Power Handling | 600 W RMS |
| Nominal Impedance | 4 Ω |
| Recommended Amplifier Power | 200–600 W RMS |
| Grille / Lighting | White Sport / No LEDs |
| Selling Quantity | One subwoofer |
| Sensitivity | 86.7 dB @ 1 W / 1 m |
| Overall Diameter | 14" (356 mm) |
| Mounting Cutout | 12.0625" (306 mm) |

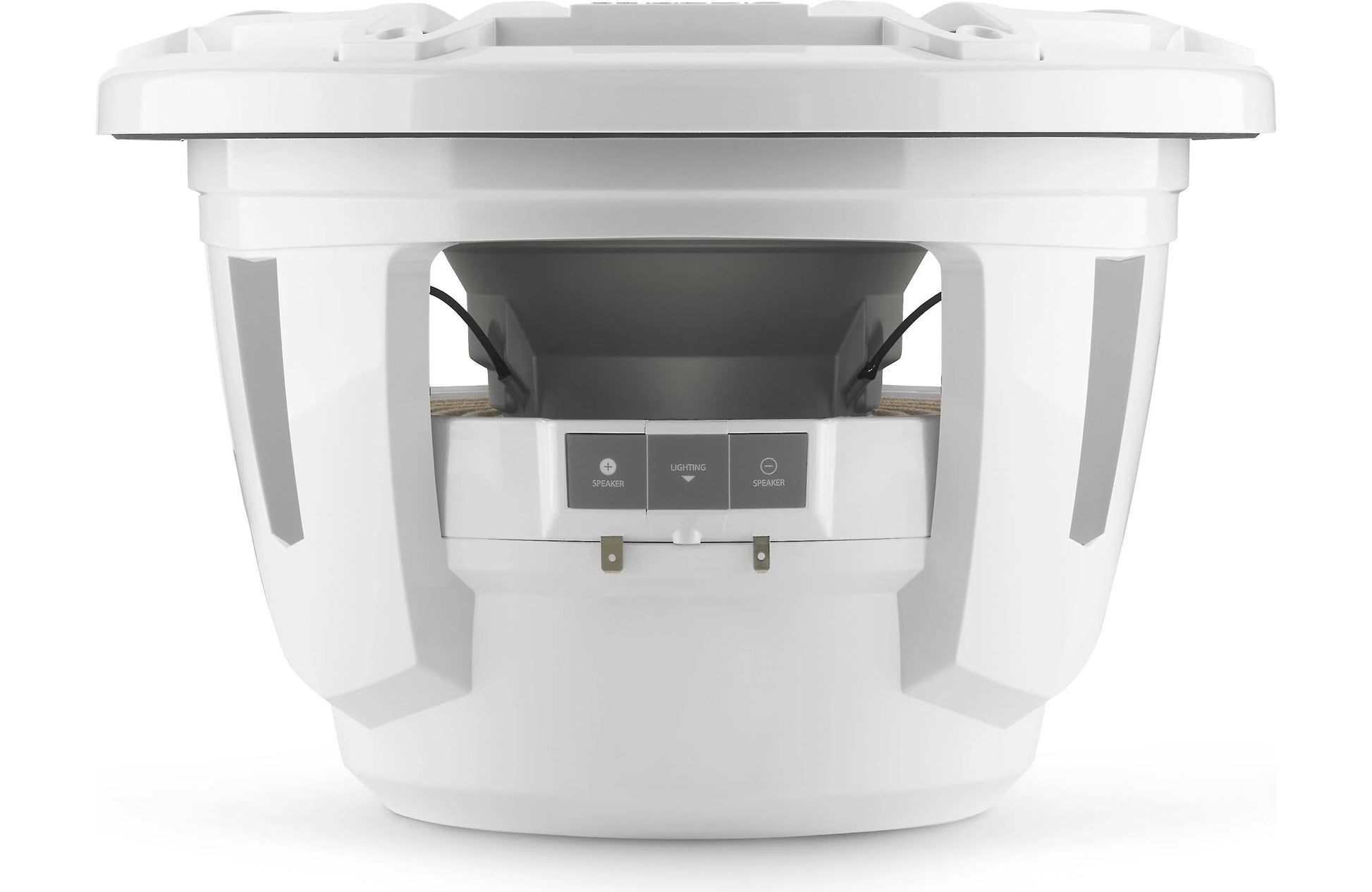

| Mounting Depth Clearance | 7.94" (202 mm) |
| Voice Coil Diameter | 4" (102 mm) |
Installation & System Matching
Mount in a rigid baffle that isolates the front and rear sound waves, with a sufficiently large air volume behind the driver. Infinite-baffle does not mean the rear wave can leak around the speaker into the listening area. Confirm mounting depth, cutout, fastener access and clearance before cutting.
Use a subwoofer amplifier appropriate for a single 4-ohm load and set its gain, low-pass filtering and protection to suit the 600 W RMS driver. Amplifier, power wiring and enclosure or baffle construction are not included.
What’s Included
- One JL Audio M7-12IB-S-GwGw-4 marine subwoofer
- White Sport grille
- Six stainless steel mounting screws and six washers
Why Buy From MCOR Automotive
MCOR is an authorized JL Audio / Garmin retailer. Our team can help match speakers, amplifiers and installation hardware before you order, with support after the sale.
Fitment & Installation Help
Use our Vehicle Fit Guide for application-specific information, or contact MCOR through chat to verify your installation. A speaker size or power rating alone does not confirm fit.
Authorized Retailer & Warranty
Applicable manufacturer warranty coverage is subject to manufacturer installation and use requirements.
