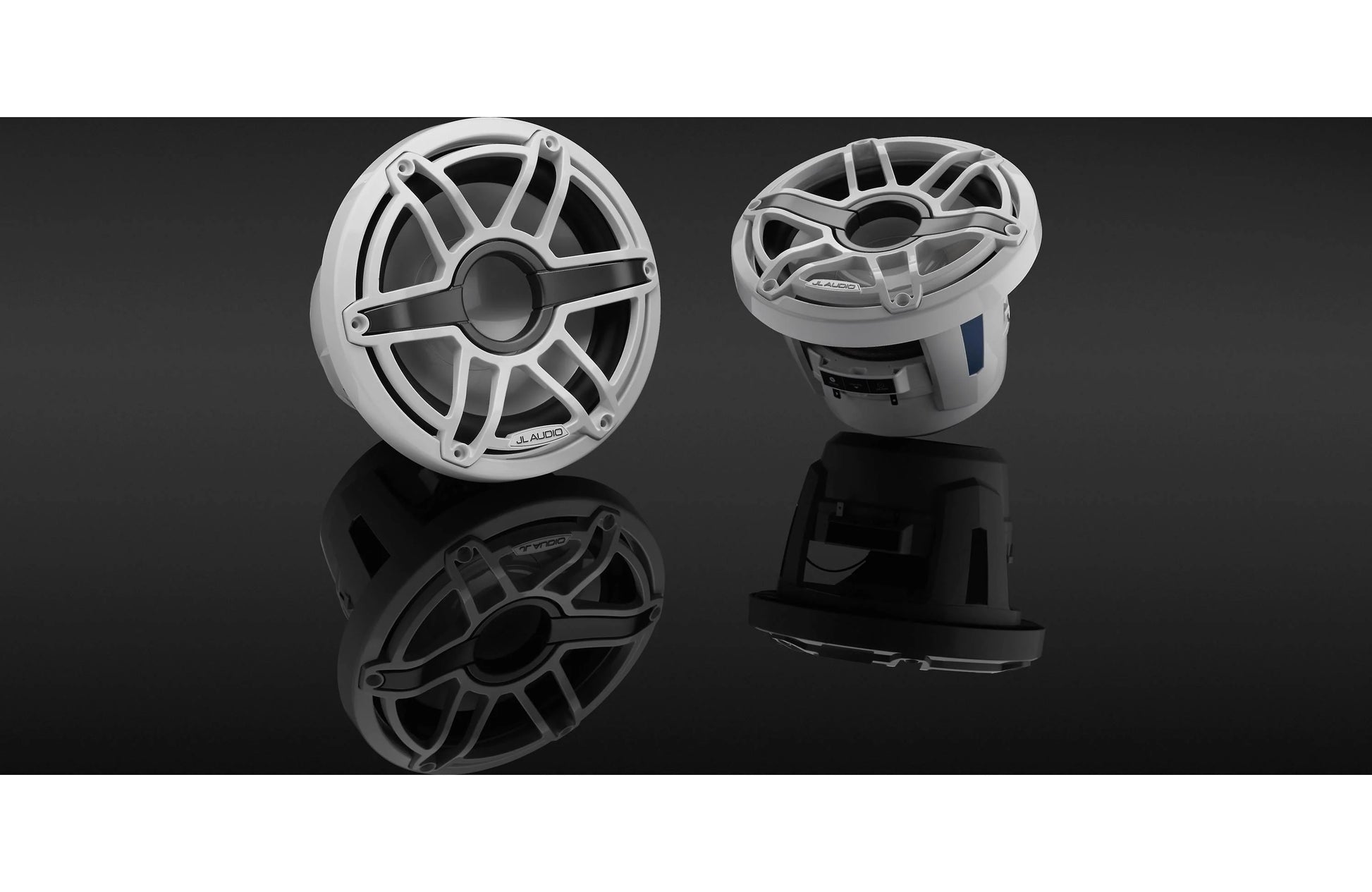

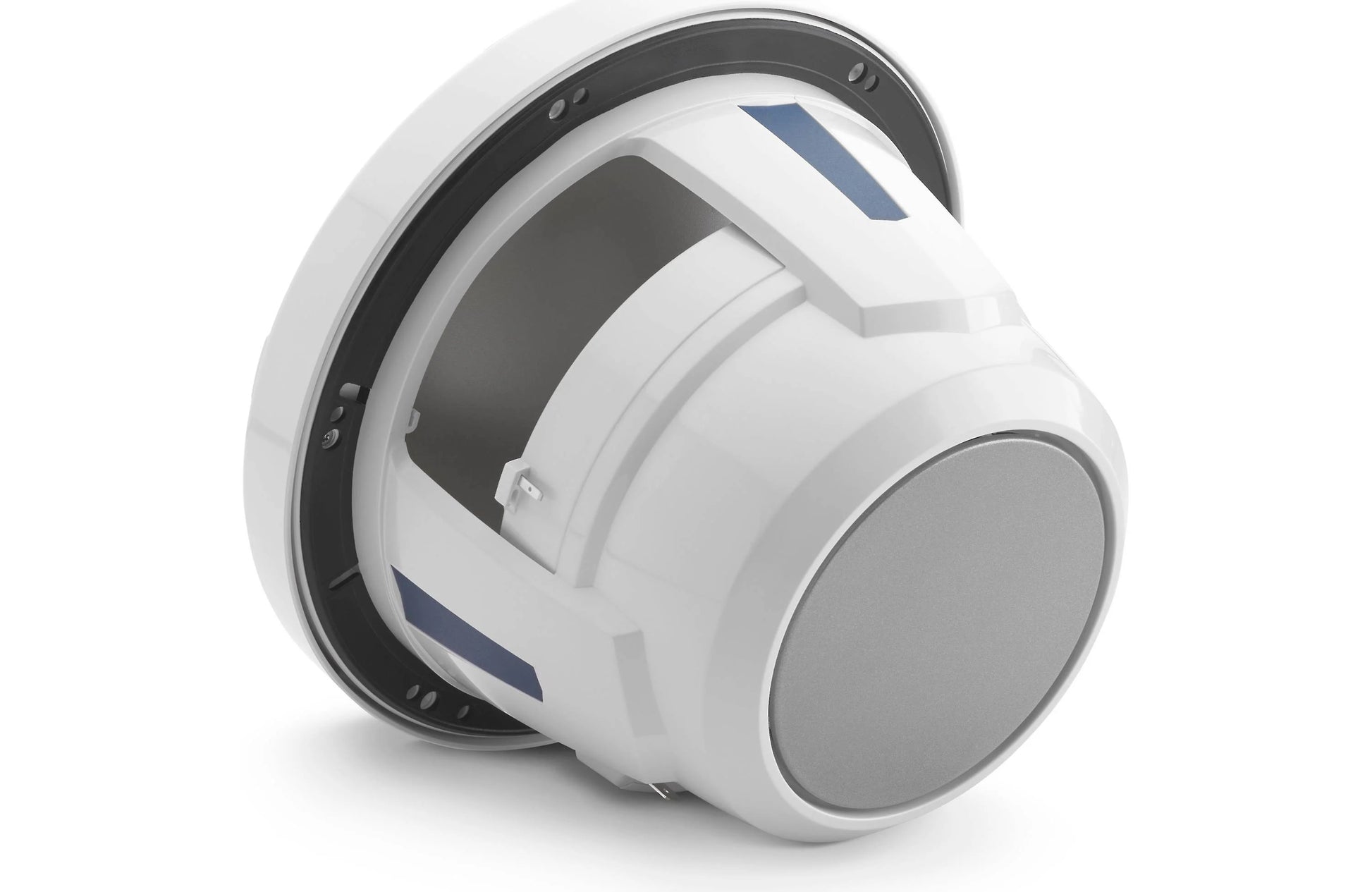

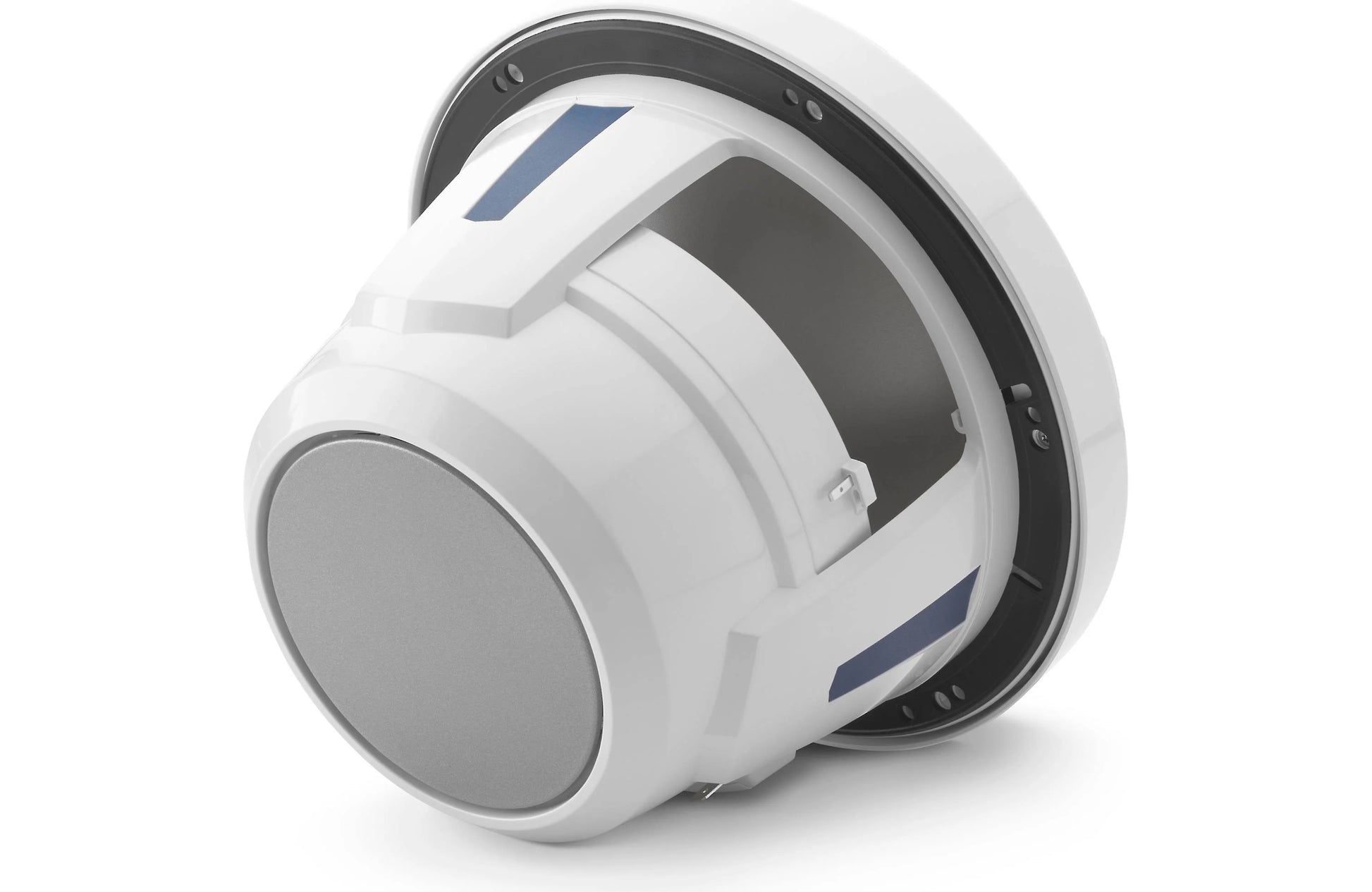

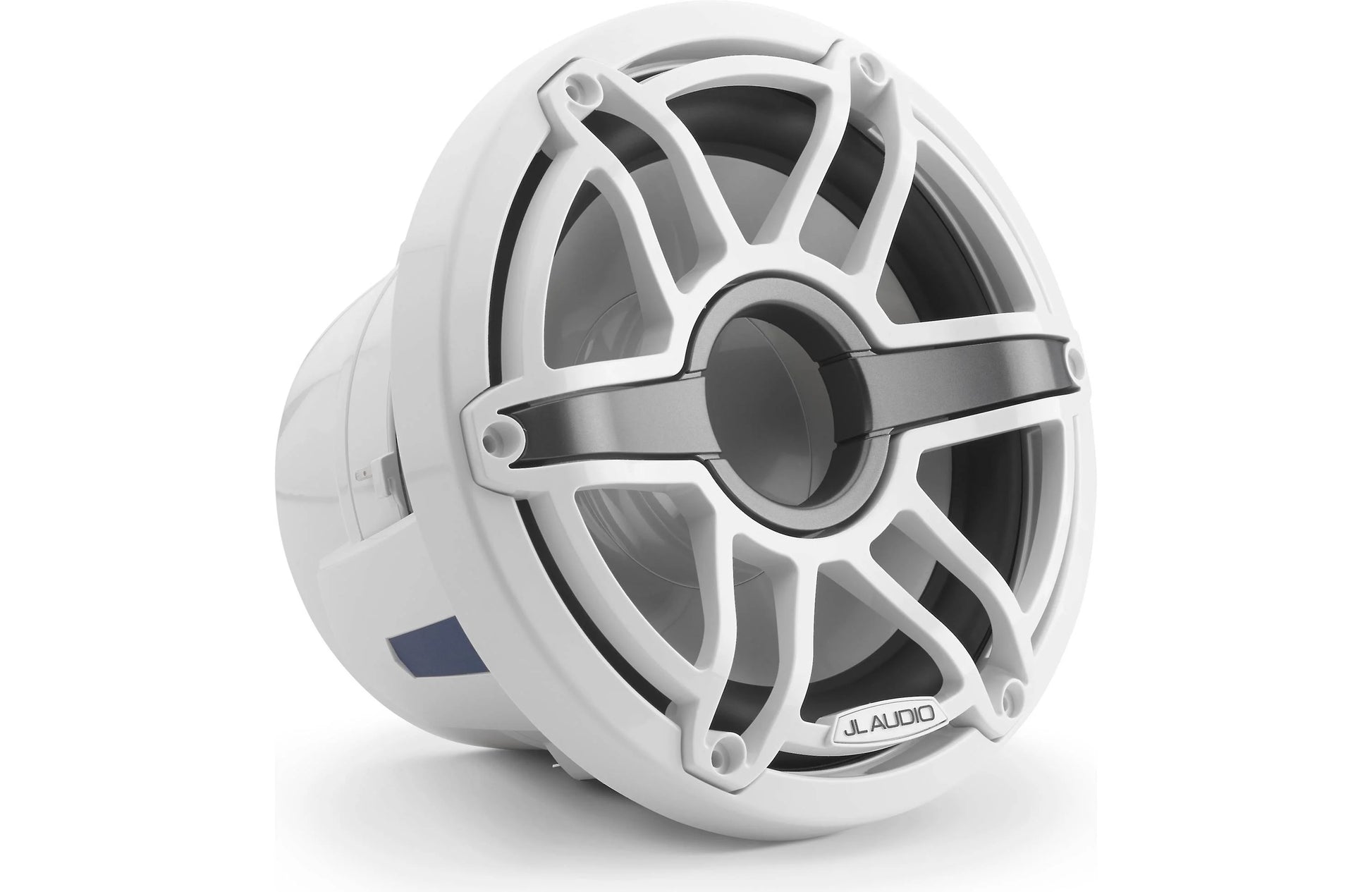

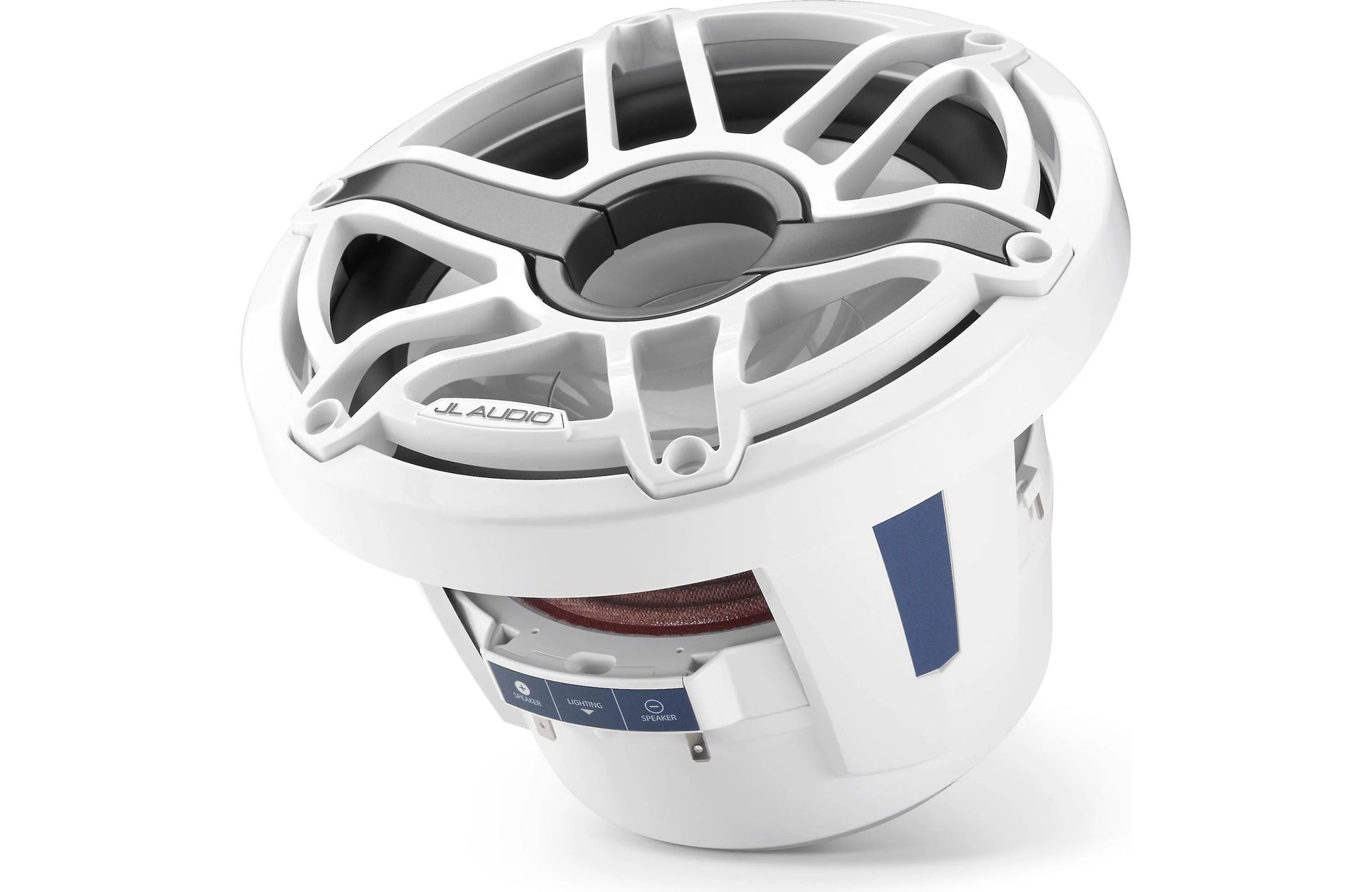

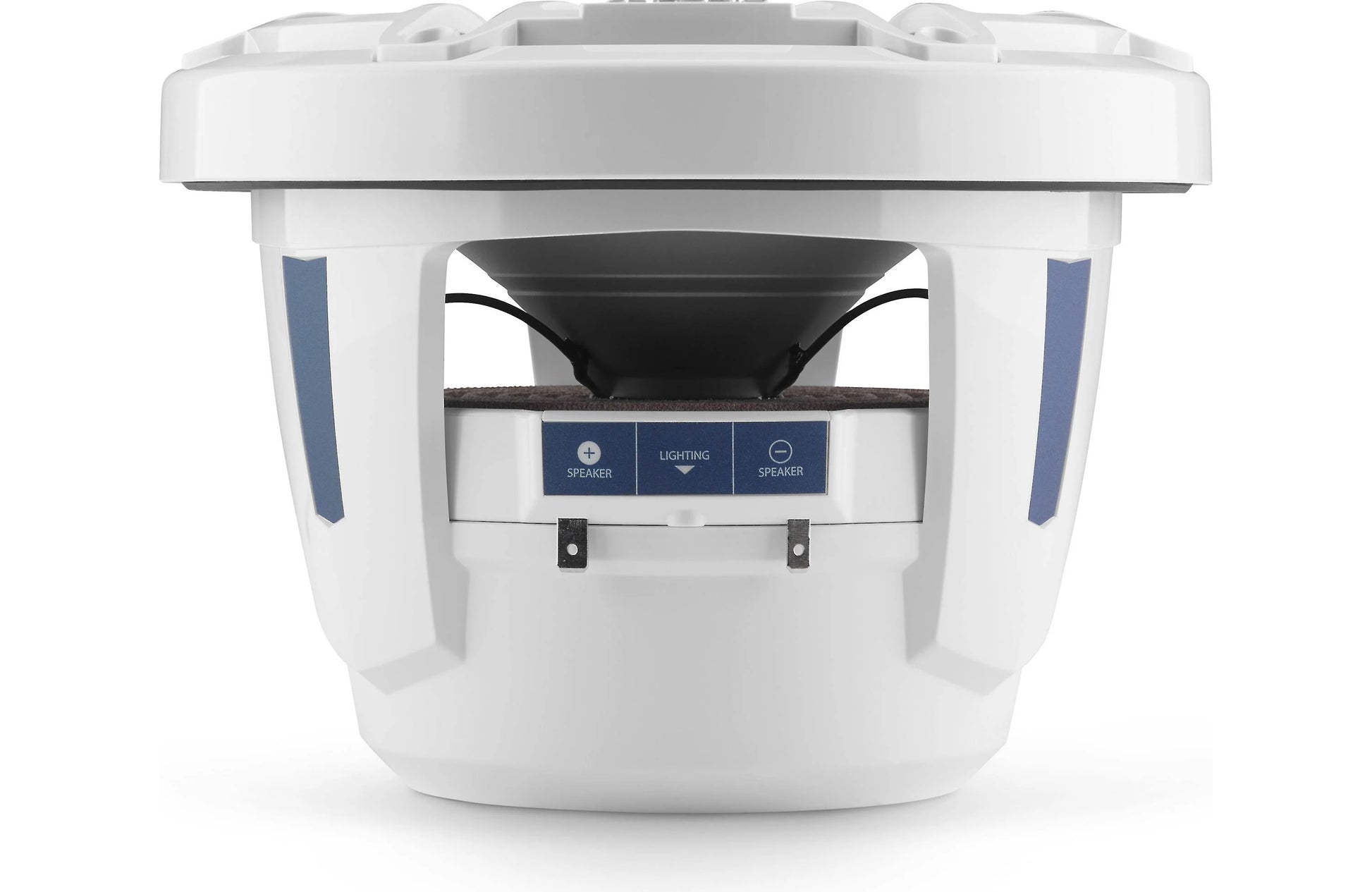

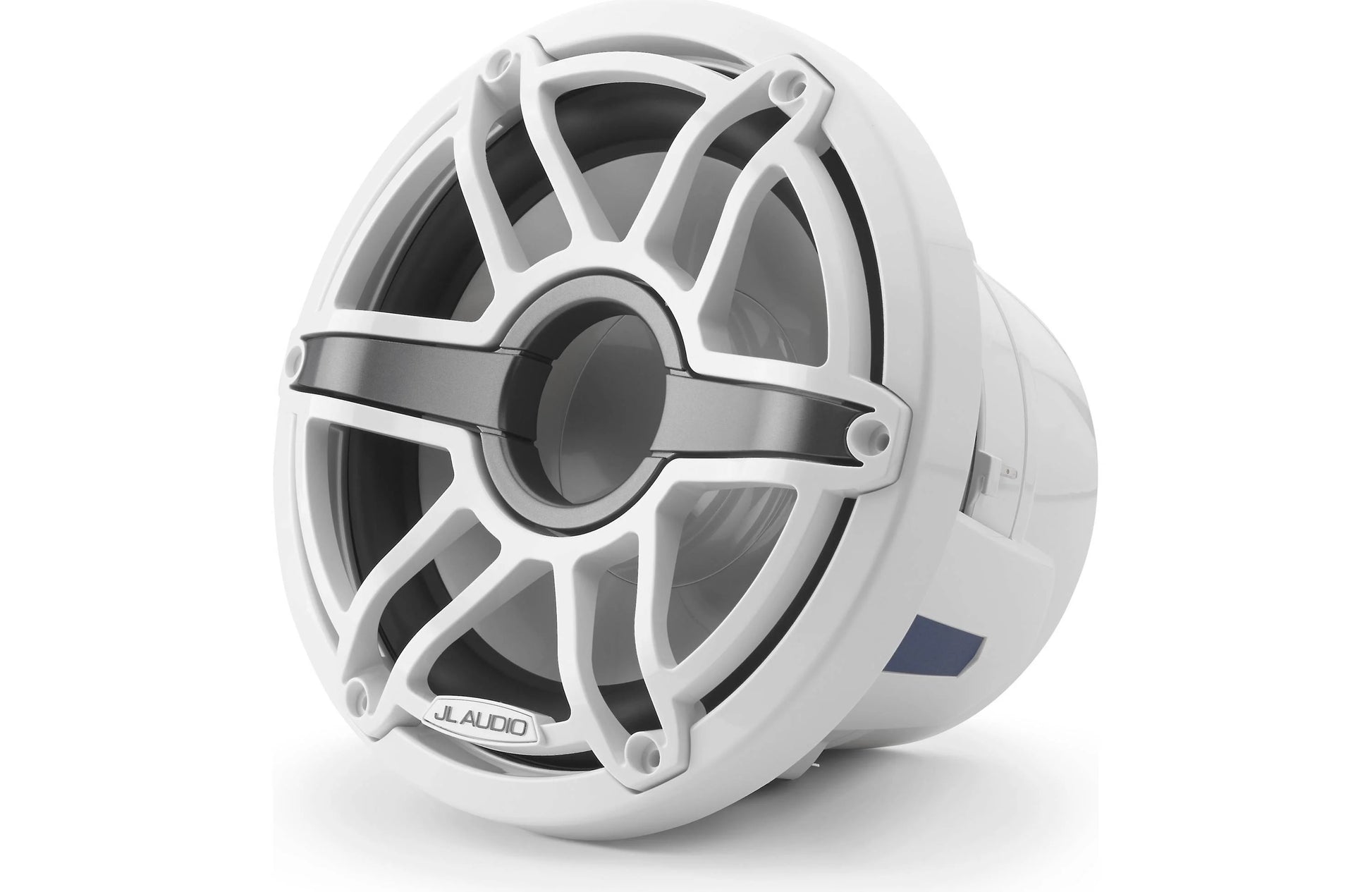

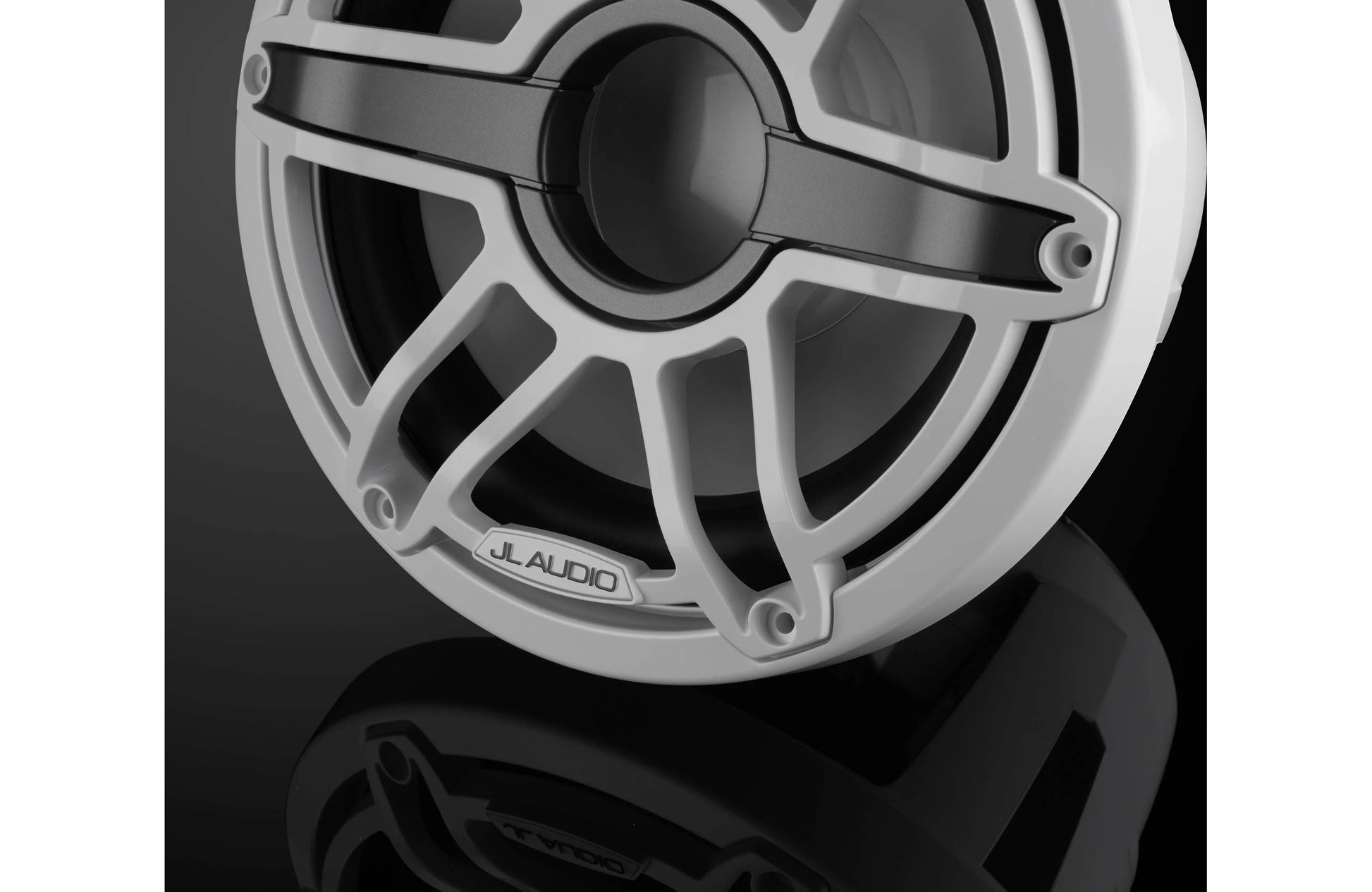

JL Audio M6-8IB-S-GwGw-4 8" Marine Infinite-Baffle Subwoofer is an 8-inch marine subwoofer engineered for infinite-baffle (free-air) installations where dedicated enclosures aren’t practical. Built on JL Audio’s high-performance M6 platform with a Gloss White Sport grille, it delivers deep, controlled bass and stands up to real marine environments.
Rated for 200 W RMS at a nominal 4 Ω, this driver is optimized for free-air subwoofer use and pairs well with 50–200 W of clean amplifier power. The injection-molded mica-filled polypropylene cone, synthetic rubber surround, and marine-grade construction provide excellent performance in saltwater, humidity, and UV exposure. This sub takes the deep-bass workload off your main speakers so your entire system can play louder and cleaner.
Key Features
- 8" JL Audio M6 marine infinite-baffle subwoofer (free-air)

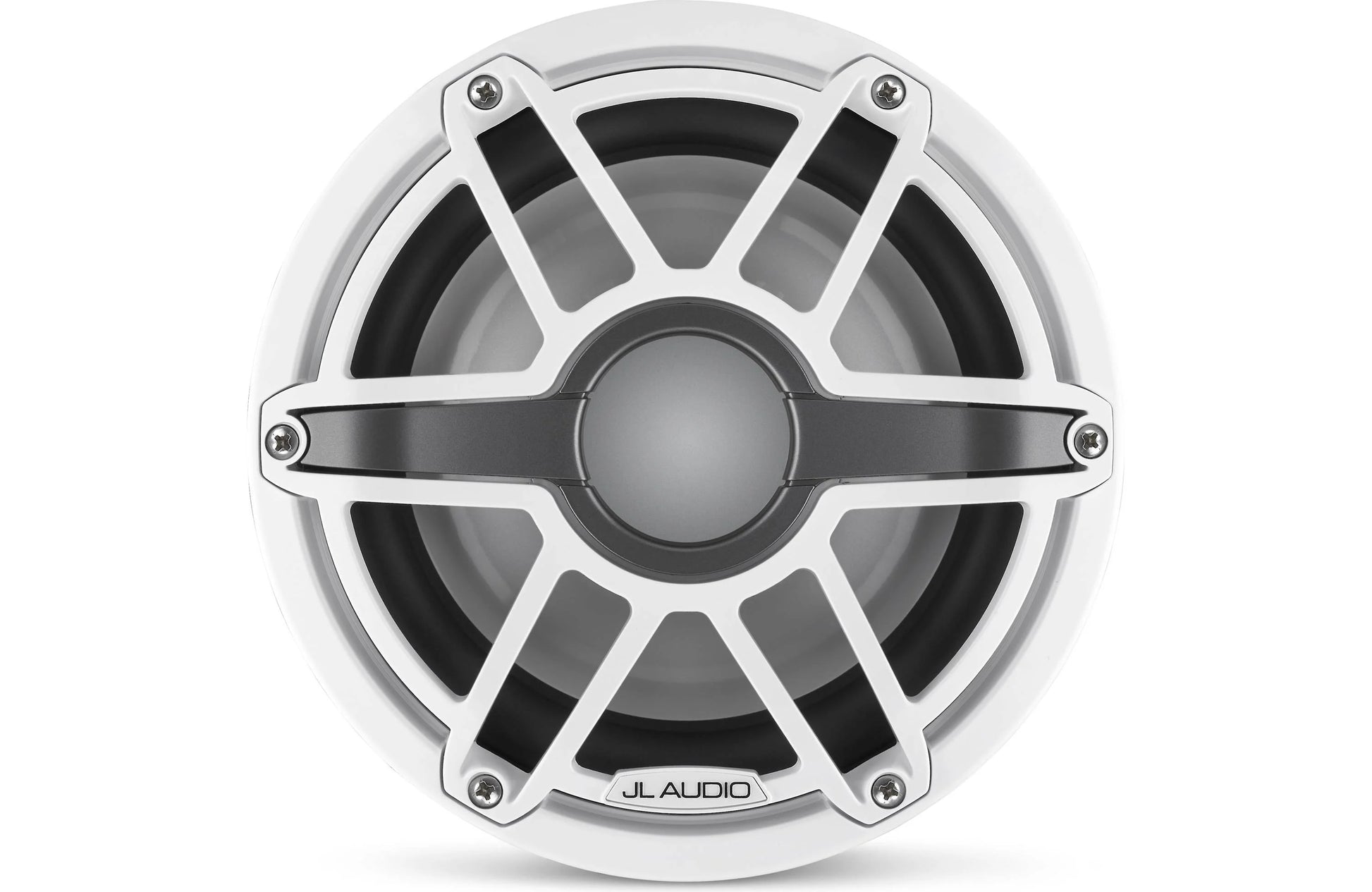

- Gloss White Sport grille with marine-grade polymer and hardware
- Continuous power handling: 200 W RMS
- Nominal impedance: 4 Ω
- Injection-molded, mica-filled polypropylene woofer with rubber surround
- Saltwater-ready construction for UV, moisture, and corrosion resistance
- Works in free-air, sealed, or ported enclosures if desired
Technical Specifications
| Model | M6-8IB-S-GwGw-4 |
| Garmin PN | 010-03274-00 |
| JL Legacy PN | 93617 |
| UPC | 699440936170 |
| Size | 8" (200 mm) |
| Continuous Power (RMS) | 200 W |
| Recommended Amp Power | 50–200 W |
| Nominal Impedance | 4 Ω |
| Application | Infinite-baffle / free-air (no enclosure required) |
| Grille Style | Gloss White Sport |
| Mounting Hole Diameter | 7.28" (~185 mm) |
| Top Mount Depth | ~5.07" (~128.8 mm) |
| Sensitivity | ~86.8 dB SPL @ 1 W/1 m |
Ideal Applications
- Center consoles, pontoons, cruisers, and wake/towboats
- Marine systems needing strong low-frequency output without a box
- Upgrades from bass-lite OEM audio packages
- Free-air subwoofer locations and multi-zone marine audio
What’s Included
- JL Audio M6-8IB-S-GwGw-4 8" marine subwoofer
- Gloss White Sport grille
- Mounting hardware (as supplied by JL Audio)
- Documentation / warranty information
