JL Audio M6-770ETXv3-Gw-C-3Gw 7.7" Marine Tower Coaxial Pair 100W 4Ω, 100W RMS, Single 010-03856-00 (93690)
JL Audio M6-770ETXv3-Gw-C-3Gw 7.7" Marine Tower Coaxial Pair 100W 4Ω, 100W RMS, Single 010-03856-00 (93690)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

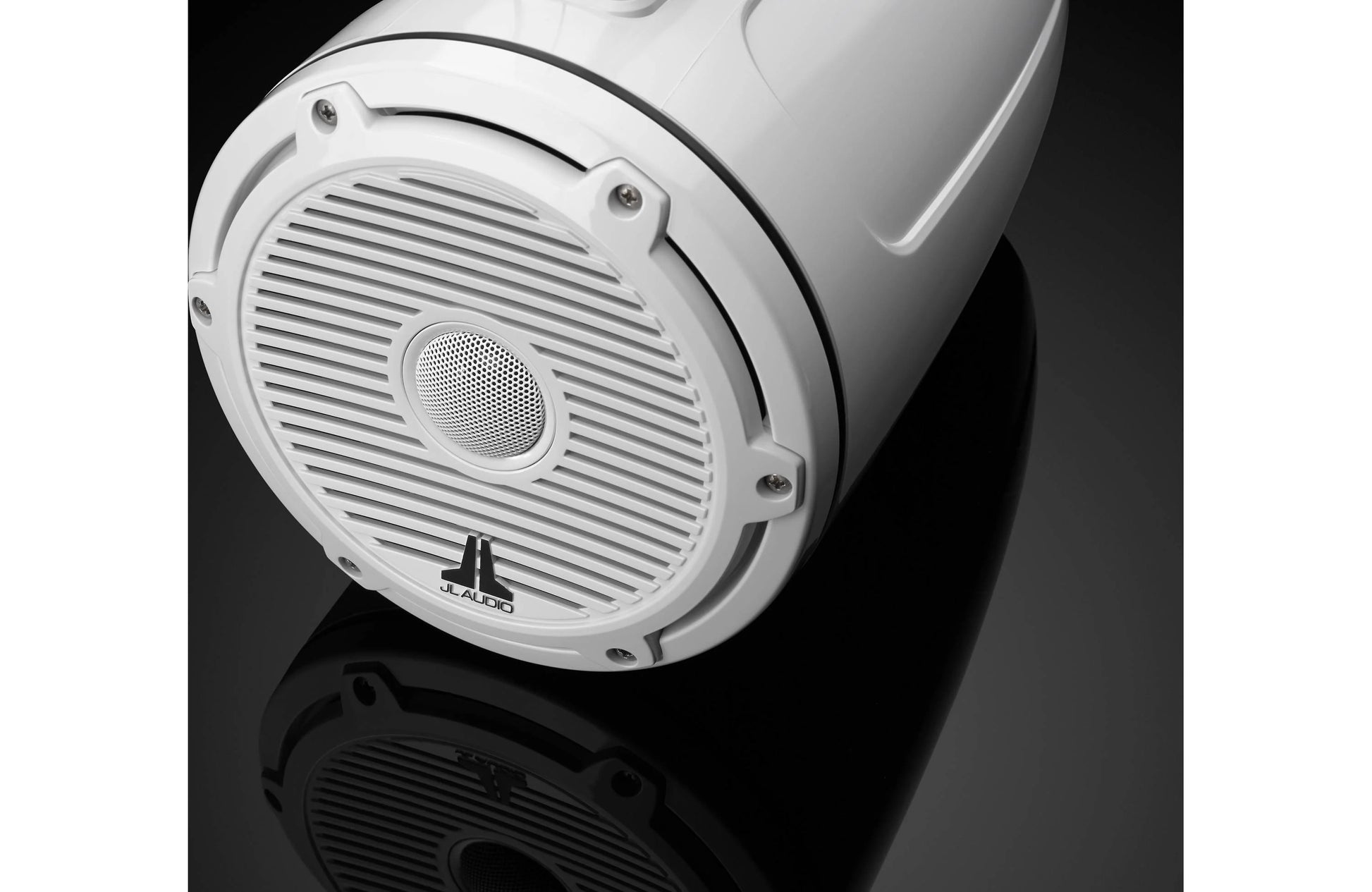

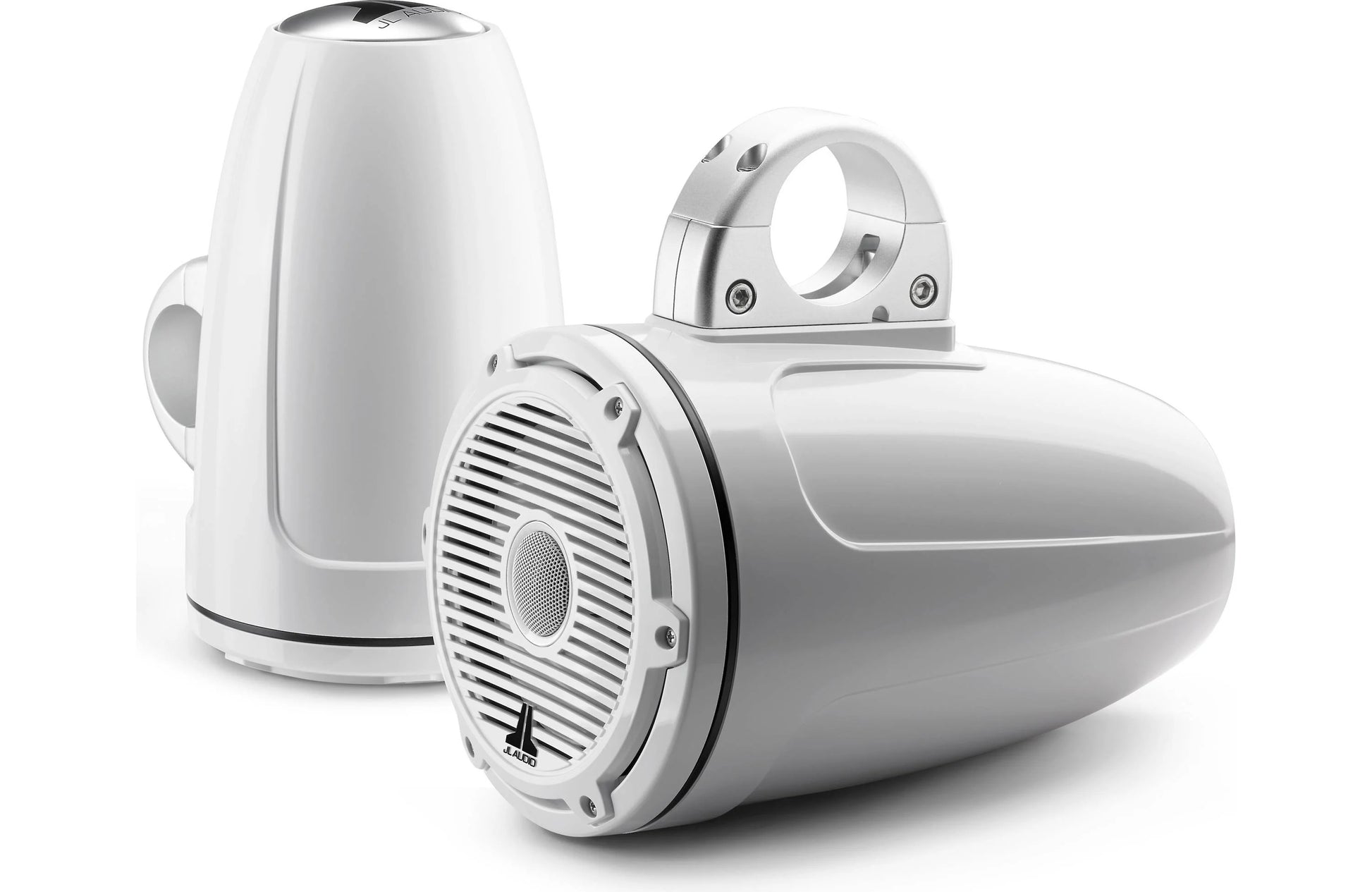

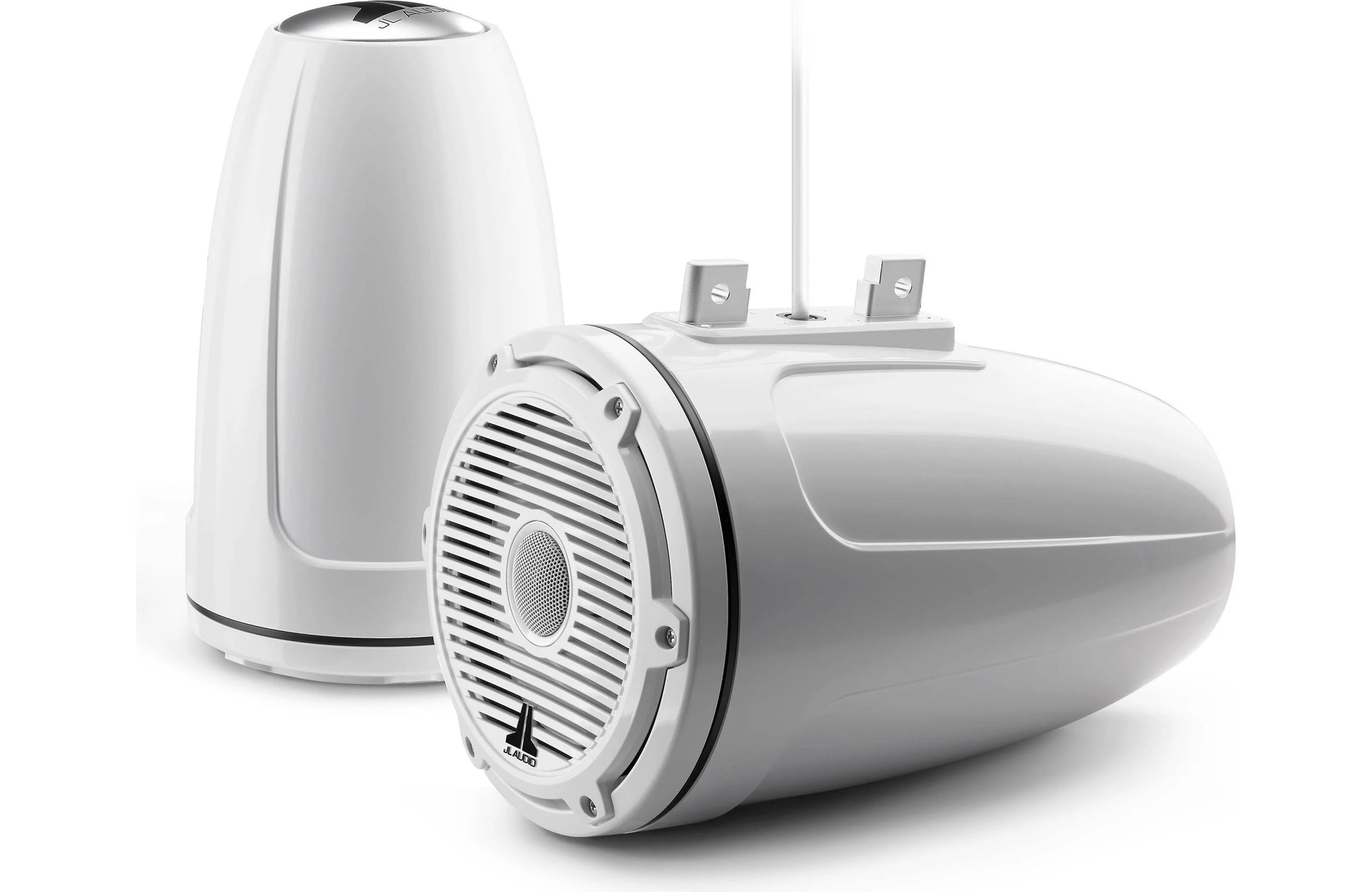

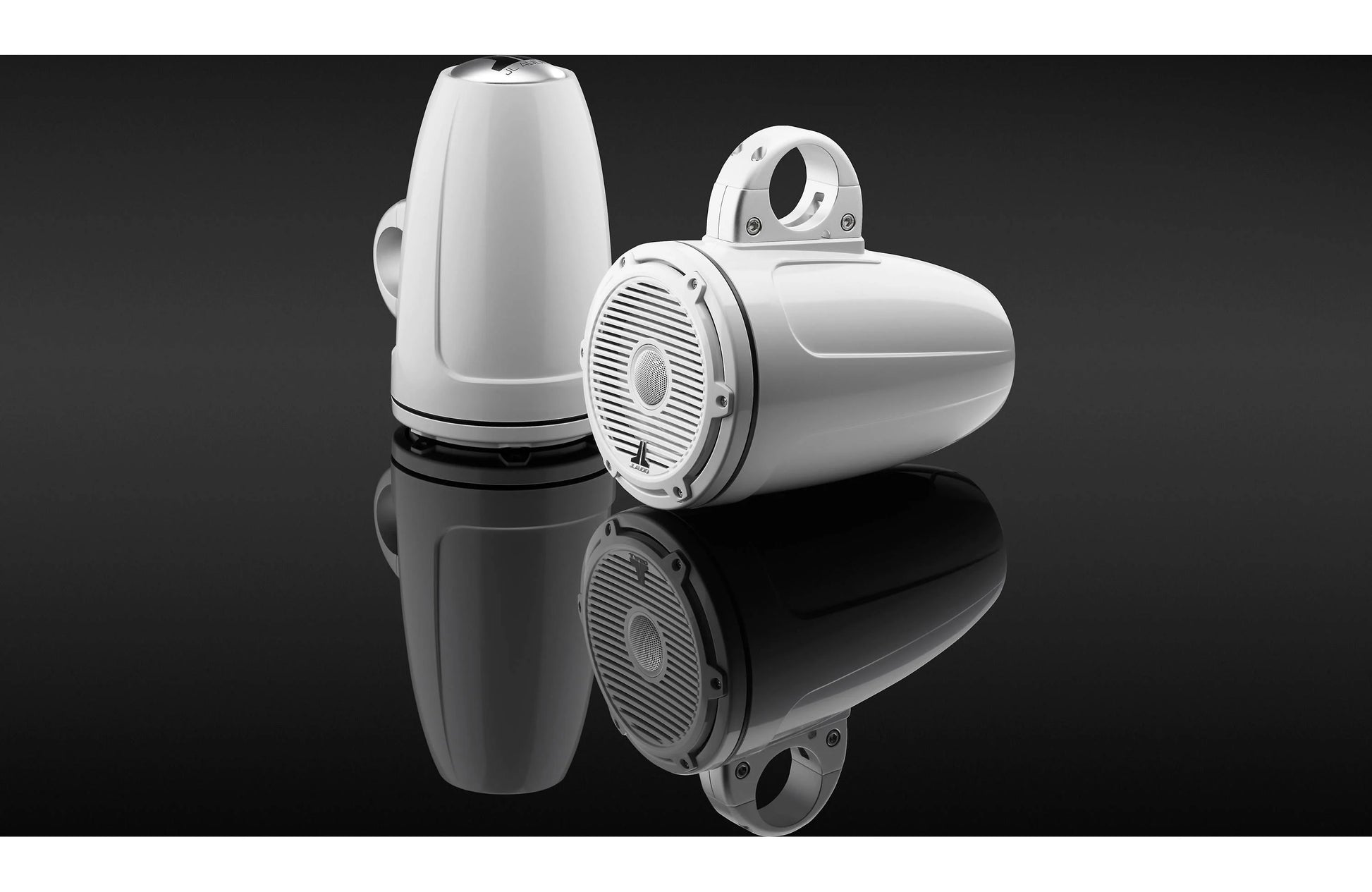

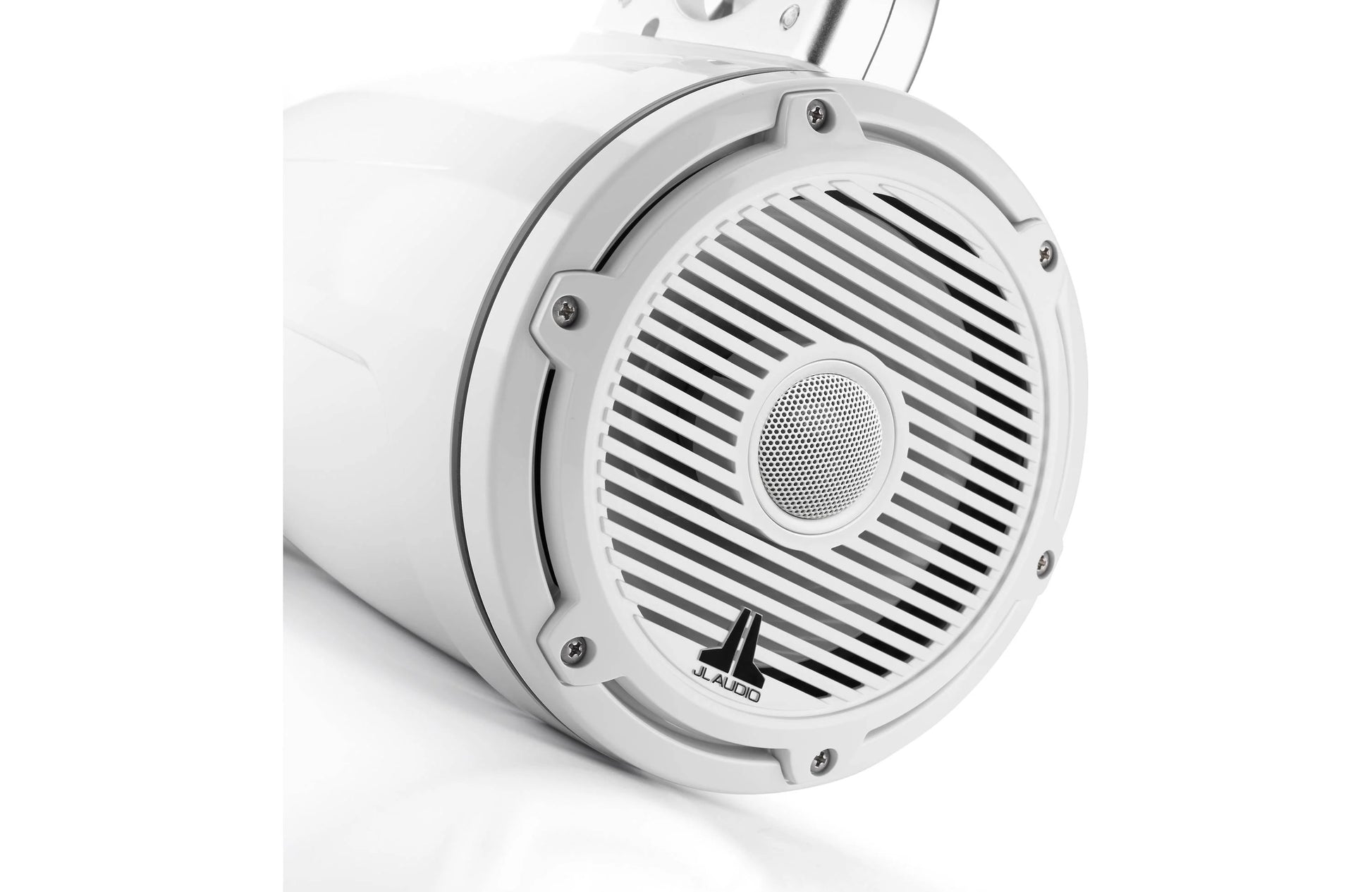

JL Audio M6-770ETXv3-Gw-C-3Gw is a 7.7" 2-way marine enclosed tower coaxial speaker system engineered for open-air listening on wake towers and arches. The long-excursion woofer and 1" silk-dome tweeter are housed in injection-molded marine enclosures designed to project clean, full-range sound well beyond the boat.
Each speaker is rated for 100 W RMS at a nominal 4 Ω load, with 91 dB sensitivity and a 45 Hz–25 kHz frequency response. When driven by a quality marine amplifier in the 40–200 W RMS per channel range, the system delivers midbass impact and high-frequency detail that remain intelligible in typical marine noise and wind conditions.
Key Features
- 7.7" 2-way marine enclosed tower coaxial speaker system (pair)
- Continuous power handling: 100 W RMS per speaker
- Nominal 4 Ω impedance
- 45 Hz–25 kHz frequency response (system)
- System efficiency: 91 dB @ 1 W / 1 m
- Injection-molded, mica-filled polypropylene woofer cone
- Synthetic rubber surround for long-term marine durability
- 1" treated silk-dome tweeter mounted on the grille for wide dispersion
- Gloss white enclosure, trim ring, and Classic grille with white tweeter
- UV- and corrosion-resistant marine-grade construction
- Designed for use with JL Audio tower mounting clamps (sold separately)
Technical Specifications
| Model | M6-770ETXv3-Gw-C-3Gw |
| Garmin PN | 010-03856-00 |
| JL Legacy PN | 93690 |
| UPC | 699440936903 |
| Configuration | 7.7" 2-way enclosed tower coaxial (pair) |
| Nominal Impedance | 4 Ω |
| RMS Power Handling | 100 W per speaker |
| Peak Power Handling | 225 W per speaker |
| Sensitivity | 91 dB @ 1 W / 1 m |
| Frequency Response | 45 Hz – 25 kHz (±3 dB) |
| Recommended Amplifier Power | 40–200 W RMS per channel |
| Enclosure Diameter | 7.70" |
| Enclosure Depth | 12.62" |
| Grille / Finish | Gloss white enclosure, gloss white Classic grille, white tweeter |
| LED Lighting | No |
| Quantity | Pair |
Ideal Applications
- Wakeboard tower and arch-mounted marine audio zones
- Open-cockpit systems requiring long-throw full-range coverage
- Multi-zone JL Audio marine systems with dedicated tower amplification
- Boats needing focused tower output in addition to cockpit speakers
What’s Included
- Pair of JL Audio M6-770ETXv3-Gw-C-3Gw tower speakers
- Integrated enclosures with gloss white Classic grilles
- Pre-attached speaker wiring leads
- Documentation
Why Buy From MCOR Automotive
- Authorized JL Audio dealer using verified marine product data
- System design support for tower, cockpit, and cabin marine zones
- Amplifier matching guidance for JL M6 speakers and subwoofers
- 20+ years of high-end 12-volt and marine integration experience
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
