JL Audio M6-770X-L-GwSw-4 7.7" Marine 2-Way Speaker 100W RMS, 4Ω, Single 010-03913-00 (93913)
JL Audio M6-770X-L-GwSw-4 7.7" Marine 2-Way Speaker 100W RMS, 4Ω, Single 010-03913-00 (93913)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

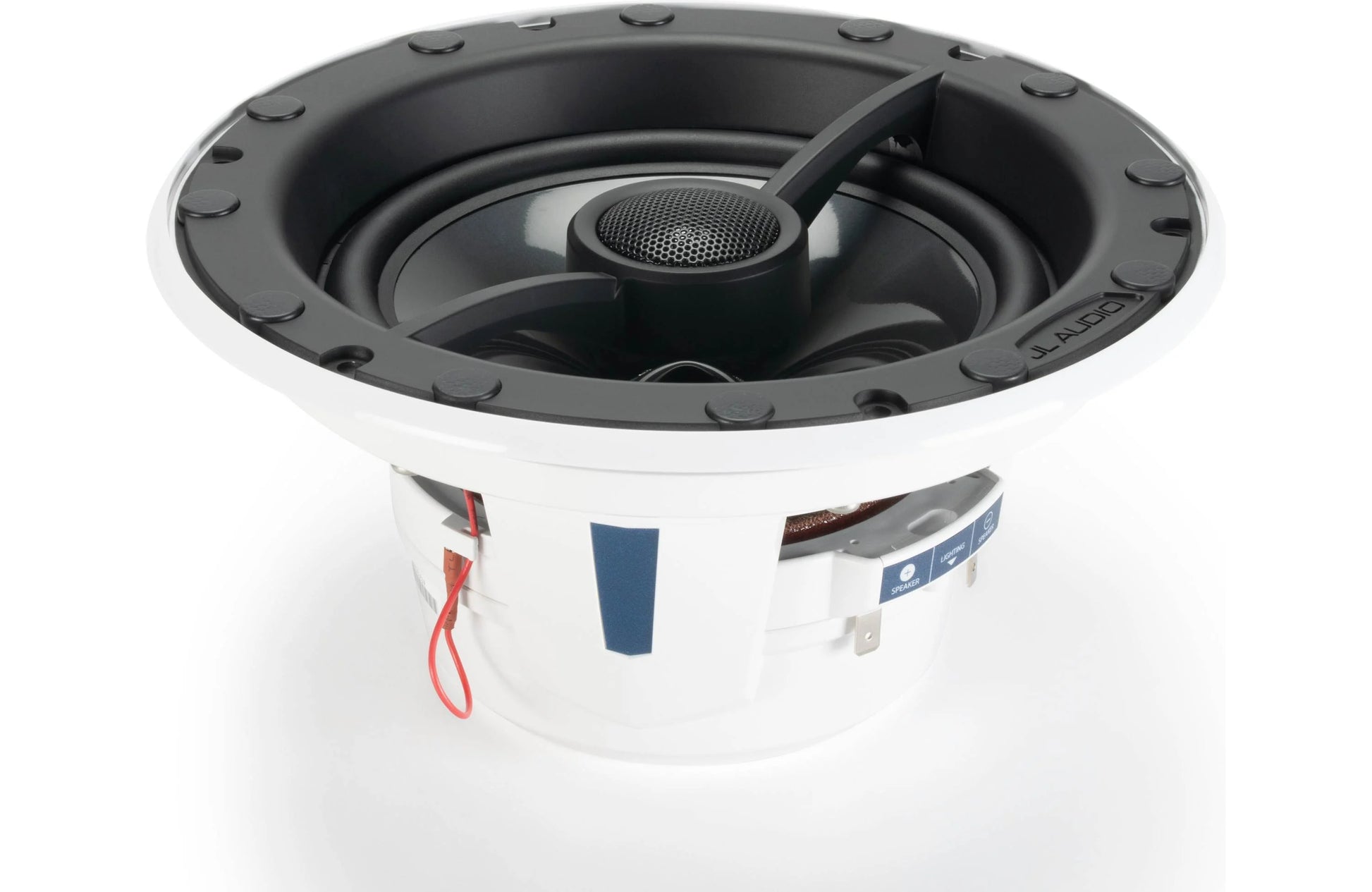

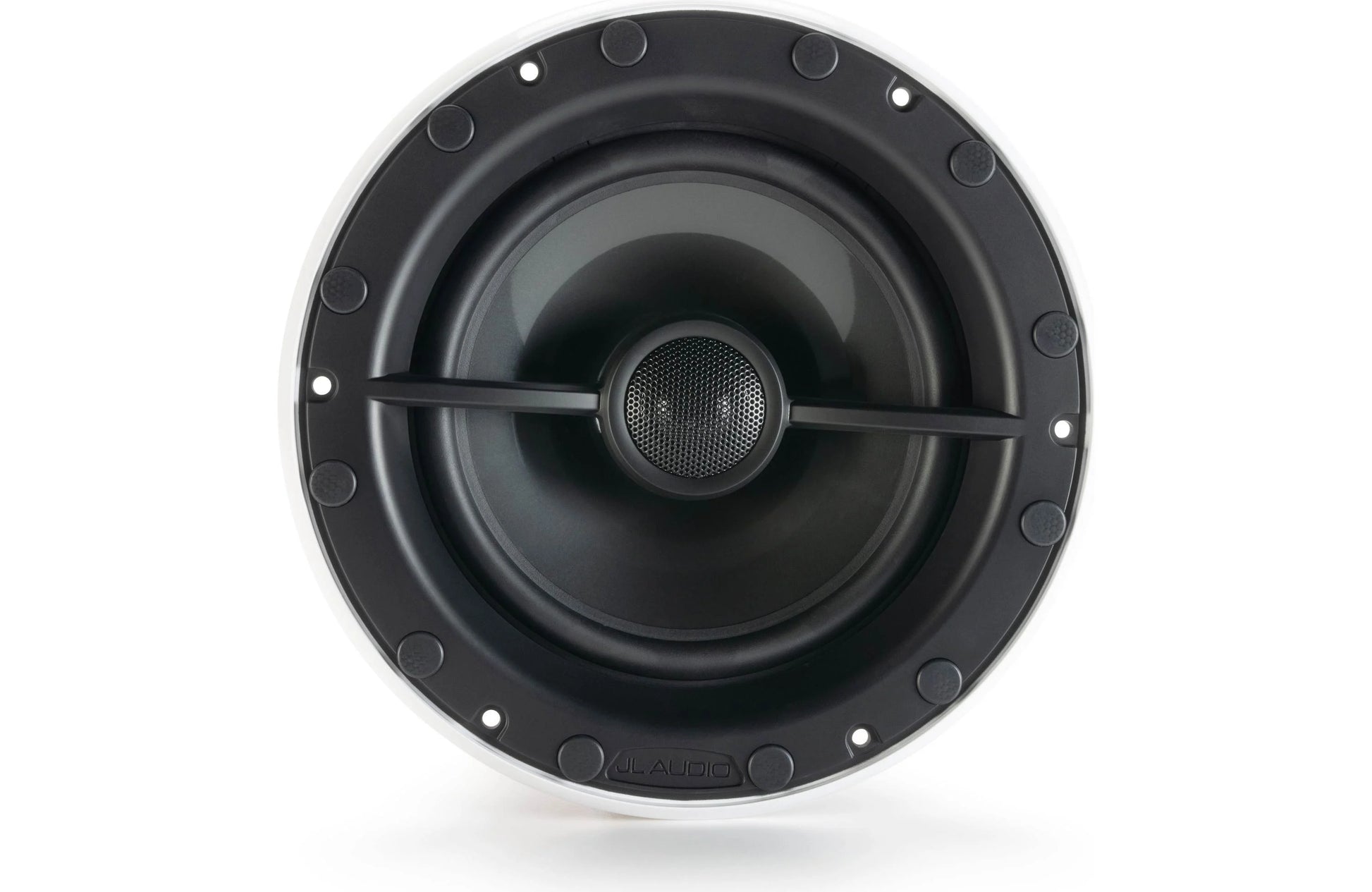

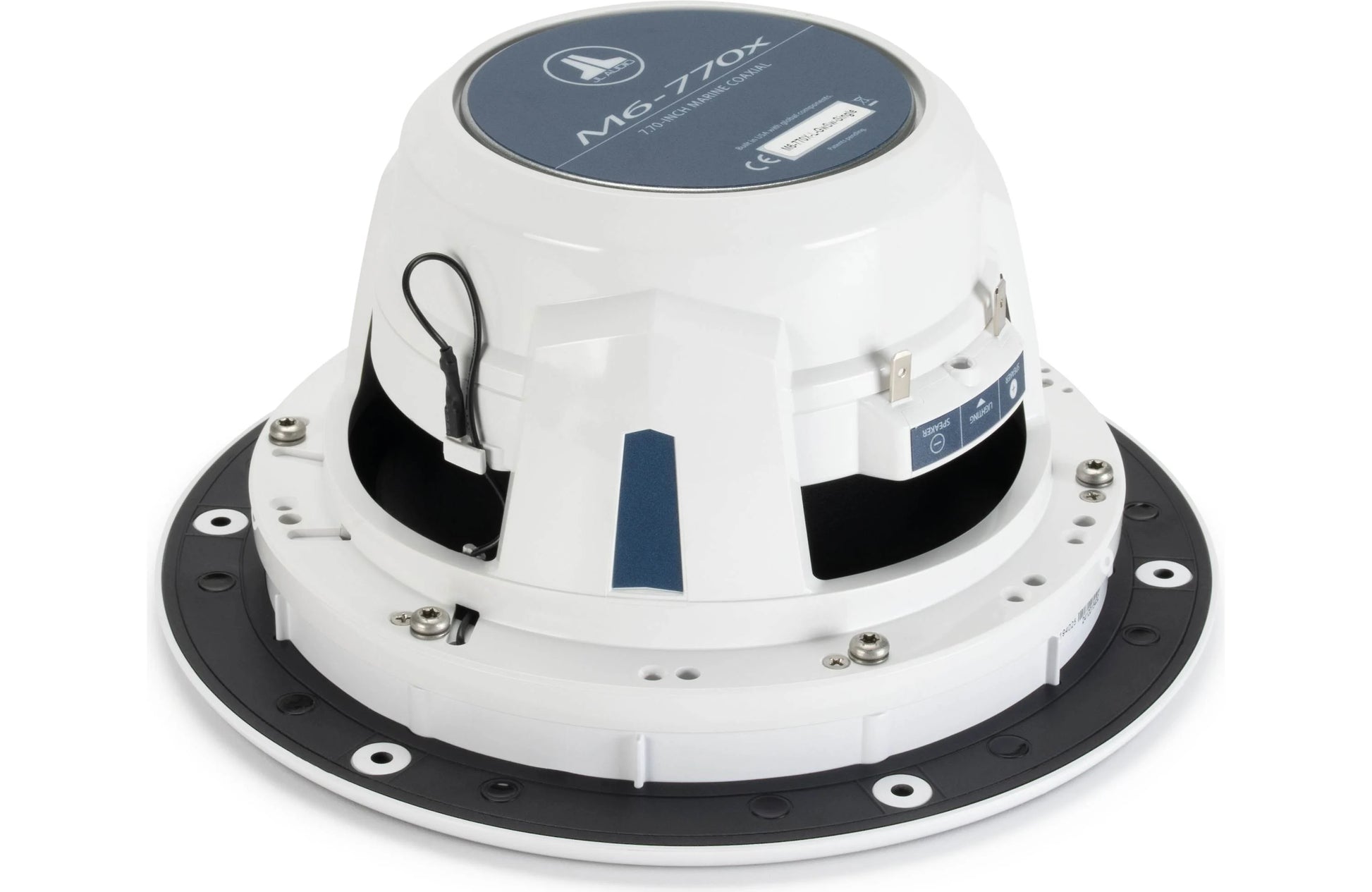

JL Audio M6-770X-L-GwSw-4 is a high-output 7.7" 2-way marine coaxial speaker engineered for rugged marine environments and free-air/infinite-baffle installations. Designed with marine-grade materials and optimized crossover integration, this speaker delivers clear midrange and detailed highs with excellent low-frequency extension relative to its size.
Featuring an injection-molded mica-filled polypropylene woofer with a synthetic rubber surround, a 1" treated silk dome tweeter, and a sealed 2-way crossover, this speaker handles up to 100 watts RMS continuous power (200 watts peak). UV-resistant components and a durable Luxe grille ensure long life in harsh salt, sun, and spray conditions.
Key Features
- 7.7" 2-way marine coaxial speaker
- 100W RMS continuous / 200W peak power handling
- Injection-molded mica-filled polypropylene woofer
- 1" treated silk dome tweeter with integrated crossover
- UV- and corrosion-resistant materials for marine exposure

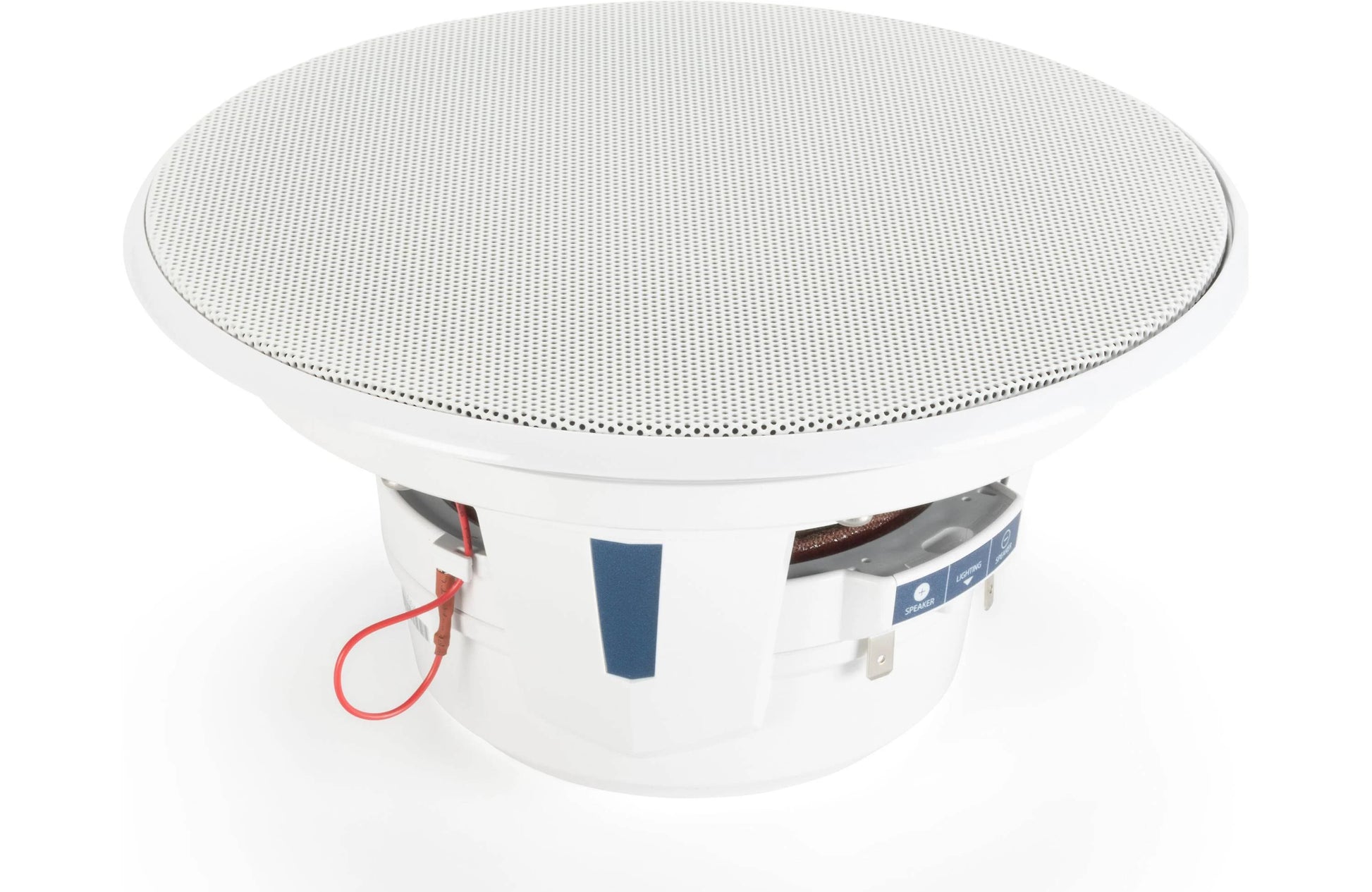

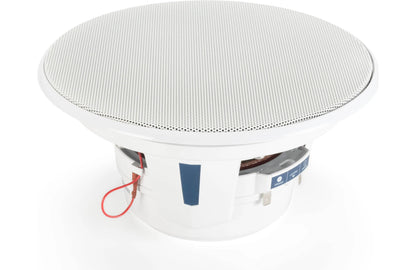

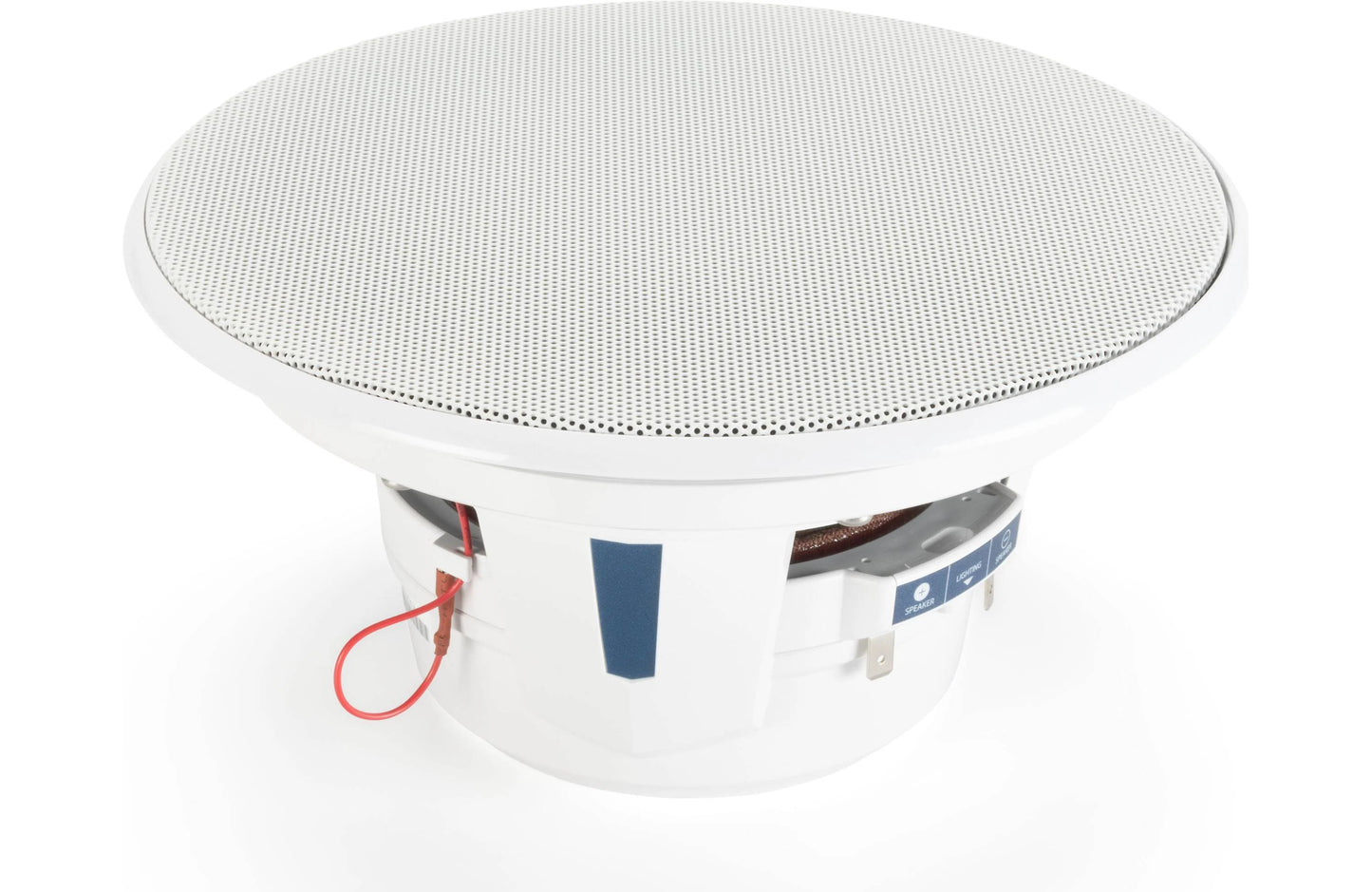

- Luxe white grille included
- Optimized for infinite-baffle or bulkhead mounting
Technical Specifications
| Model | M6-770X-L-GwSw-4 |
| Garmin PN | 010-03913-00 |
| Nominal Impedance | 4 Ω |
| RMS Power Handling | 100 W |
| Peak Power Handling | 200 W |
| Sensitivity | ≈91 dB |
| Frequency Response | 45 Hz – 25 kHz |
| Woofer | 7.7" mica-filled polypropylene |
| Tweeter | 1" treated silk dome |
| Mounting Depth | ≈4.31" |
| Cutout Diameter | ≈7.47" |
Ideal Applications
- Marine and watersports audio systems requiring high-fidelity speakers
- Bulkhead or free-air installs where enclosures aren’t feasible
- Pairing with dedicated amplifiers for balanced marine performance
- OEM-plus marine systems with expanded midrange and highs
What’s Included
- JL Audio M6-770X-L-GwSw-4 marine speaker (010-03913-00)
- White Luxe grille

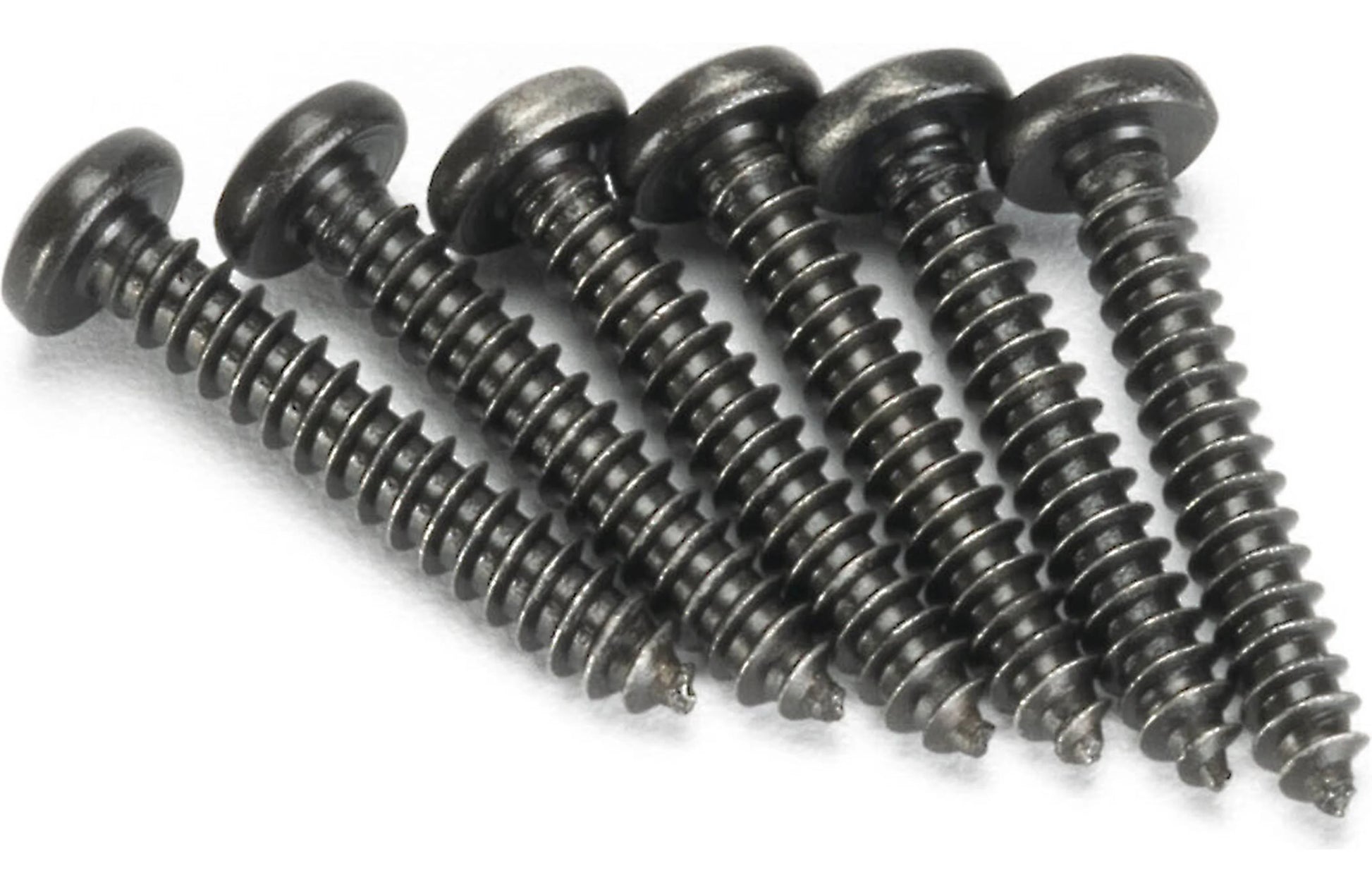

- Mounting hardware and cutout template
- Documentation
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with verified marine specs
- System design and amplifier matching expertise
- Application guidance for installs in boats and powersports vehicles
- 20+ years high-end 12-volt experience
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
Official M6 Luxe Product Video
Official JL Audio / Garmin Audio M6 Luxe product spotlight.
