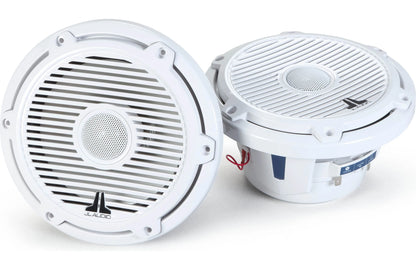

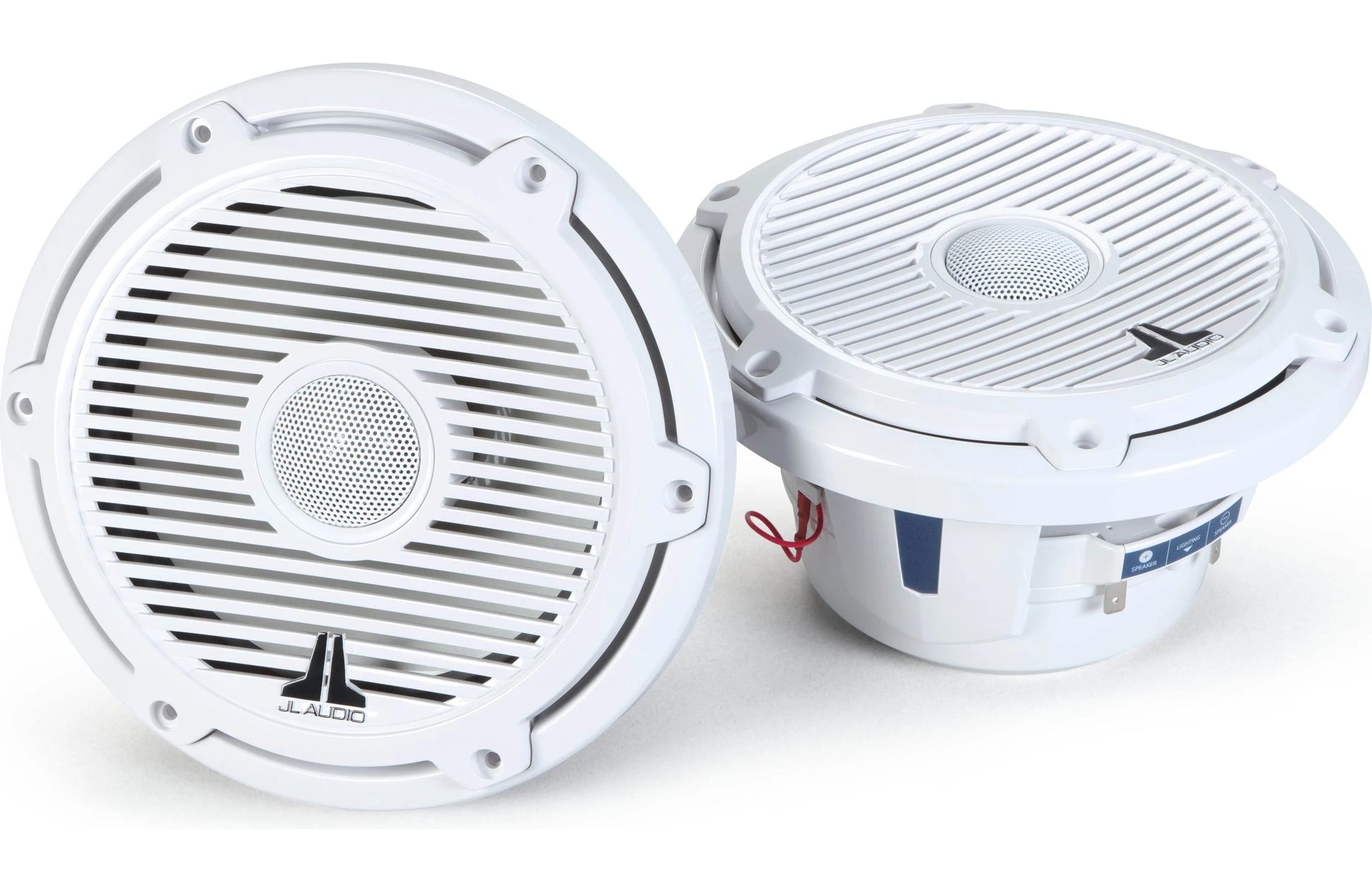

JL Audio M6-770X-C-3Gw 7.7" Marine Coaxial Pair 100W 4Ω, 100W RMS 010-03498-00 (93688)
JL Audio M6-770X-C-3Gw 7.7" Marine Coaxial Pair 100W 4Ω, 100W RMS 010-03498-00 (93688)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio M6-770X-C-3Gw is a 7.7" 2-way marine coaxial speaker system designed for infinite-baffle installation in open-air boats. The long-excursion woofer and 1" treated-silk dome tweeter are engineered to deliver clear, full-range sound that cuts through wind, engine, and water noise in real-world marine environments.
Rated for 100 W RMS at a nominal 4 Ω load with 91 dB sensitivity and a 45–25,000 Hz frequency response, this M6 system works well with marine amplifiers in the 40–200 W RMS per channel range. The injection-molded, mica-filled polypropylene cone, synthetic rubber surround, polymer basket, and UV-resistant Classic grille support long-term reliability under salt, sun, and spray.
Key Features
- 7.7" 2-way marine coaxial speaker system (pair)
- Continuous power handling: 100 W RMS
- Nominal 4 Ω impedance
- Frequency response: 45–25,000 Hz
- Sensitivity: 91 dB @ 1 W / 1 m
- Infinite-baffle design; no enclosure required
- 1" treated-silk dome tweeter with true 2-way crossover
- Injection-molded, mica-filled polypropylene woofer cone with synthetic rubber surround
- UV- and corrosion-resistant polymer basket and gloss white Classic grille with white tweeter
- Purpose-built for harsh marine environments (salt, fog, UV)
Technical Specifications
| Model | M6-770X-C-3Gw |
| Garmin PN | 010-03498-00 |
| JL Legacy PN | 93688 |
| UPC | 699440936880 |
| Configuration | 7.7" 2-way marine coaxial speakers (pair), infinite-baffle |
| Nominal Impedance | 4 Ω |
| RMS Power Handling | 100 W |
| Peak Power Handling | 200 W |
| Recommended Amplifier Power | 40–200 W RMS per channel |
| Sensitivity | 91 dB @ 1 W / 1 m |
| Frequency Response | 45 Hz – 25 kHz |
| Cutout Diameter | ≈ 6.19" (6-3/16") |
| Frame Diameter | ≈ 7.71" |
| Mounting Depth | ≈ 3.38" |
| Grille / Finish | Gloss white Classic grille, white tweeter |
| LED Lighting | No |
Ideal Applications
- Cockpit and helm zones needing higher output than 6.5" speakers
- T-top, hardtop, or arch locations with infinite-baffle mounting
- Multi-zone marine systems using matched M6 speakers and subwoofers
- OEM-plus upgrades on towboats, center consoles, and cruisers
What’s Included
- Pair of JL Audio M6-770X-C-3Gw 7.7" marine coaxial speakers
- Twelve stainless-steel mounting screws
- Twelve stainless-steel flat washers
- Mounting template
- Owner’s manual
