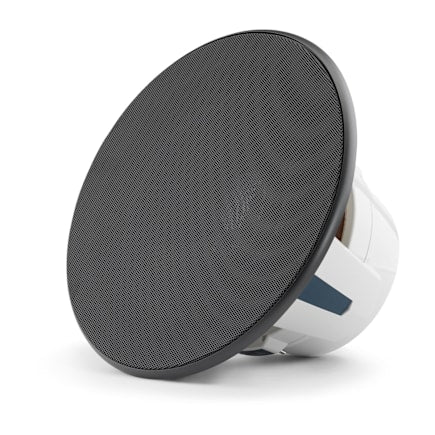

JL Audio M6-10IB-L-SbSb-4 10" Infinite-Baffle Marine Subwoofer, Black Luxe Grille, 250W RMS, 4Ω 010-03869-00

JL Audio M6-10IB-L-SbSb-4 — Add dedicated marine bass with a 10-inch M6 infinite-baffle subwoofer and satin-black Luxe grille. The IB design is intended for installations that separate the front and rear sound waves without relying on a small conventional subwoofer enclosure.

Dedicated marine bass in a Luxe finish. The long-excursion M6 woofer uses a mica-filled polypropylene cone and marine-duty materials, with a satin-black Luxe grille for a coordinated installation. This is a non-illuminated, 4Ω infinite-baffle driver rather than an enclosed-use W model.

The installation baffle is part of the acoustic system. It must separate the front and rear sound waves and provide suitable rear air space. A small sealed box is not automatically interchangeable with an infinite-baffle installation; plan the mounting arrangement and amplifier together.

Key Features

• 10-inch M6 infinite-baffle subwoofer
• Satin-black Luxe grille
• Long-excursion marine woofer design
• Mica-filled polypropylene cone
• Marine-duty construction

Technical Specifications

Installation & System Requirements

Requires a suitable mounting baffle, adequate rear air space and isolation of front/rear sound waves. Confirm Luxe mounting dimensions before cutting. External subwoofer amplifier, fused power/ground and speaker wiring are separate.

What's Included

• One M6 marine subwoofer
• Luxe grille
• Manufacturer mounting hardware and grille-removal tool

Product Identification

Manufacturer: JL Audio. Model: M6-10IB-L-SbSb-4. Garmin part number: 010-03869-00. UPC: 699440937726.

Need help choosing matching components or verifying an application? Use the MCOR Vehicle Fit Guide or contact MCOR before ordering. Individual components remain available for separate purchase.
