JL Audio M6-10W-S-GwGw-4 10" Enclosure-Use Marine Subwoofer, White Sport, 250W RMS, 4Ω 010-03488-00
JL Audio M6-10W-S-GwGw-4 10" Enclosure-Use Marine Subwoofer, White Sport, 250W RMS, 4Ω 010-03488-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

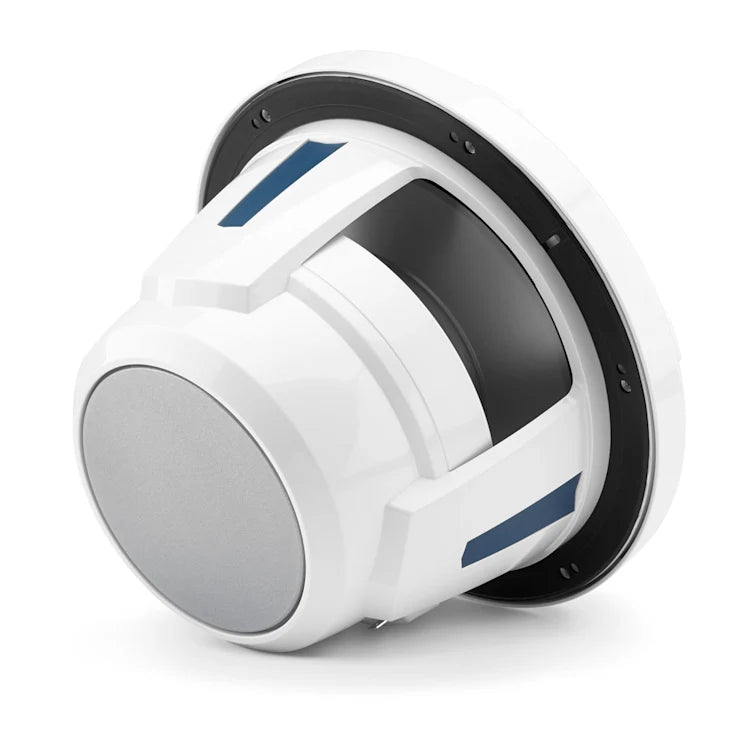

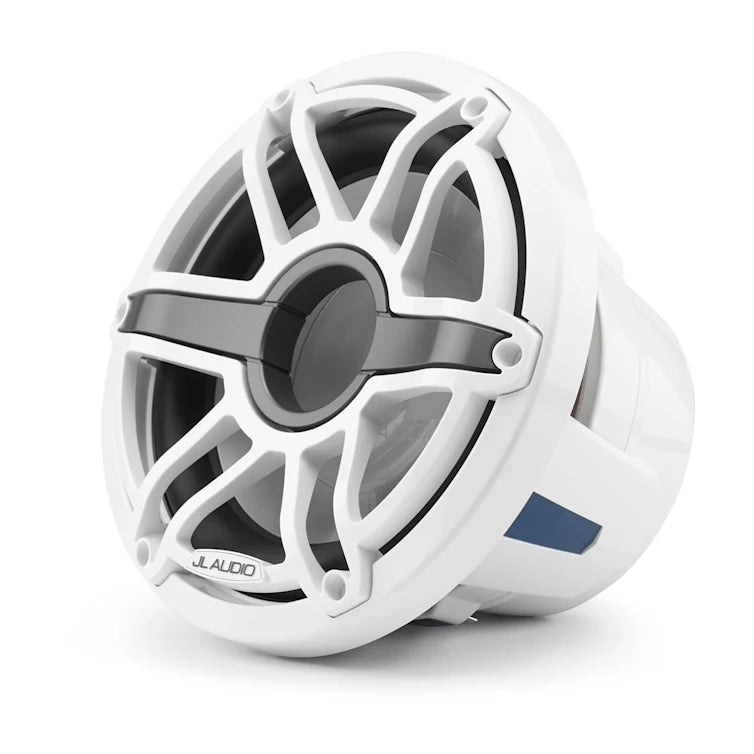

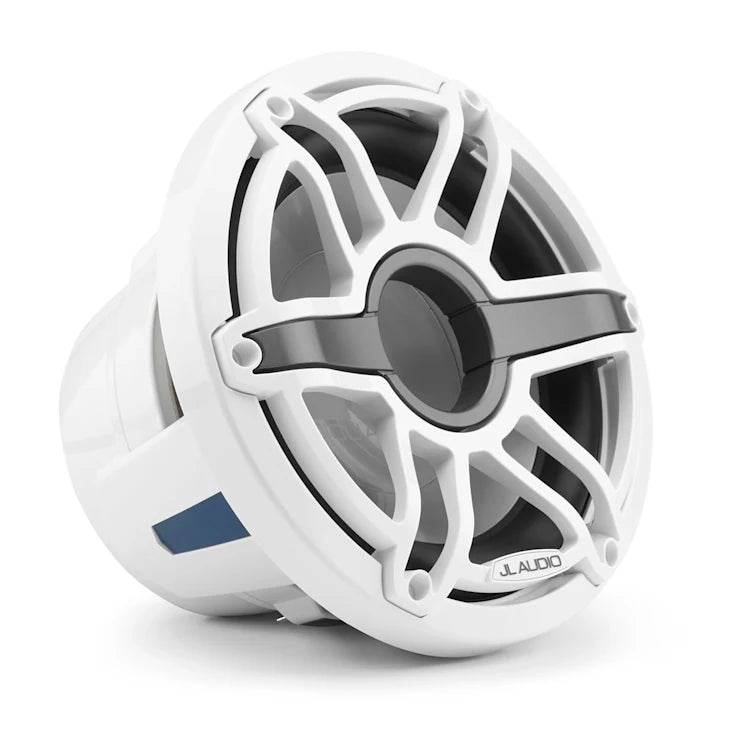

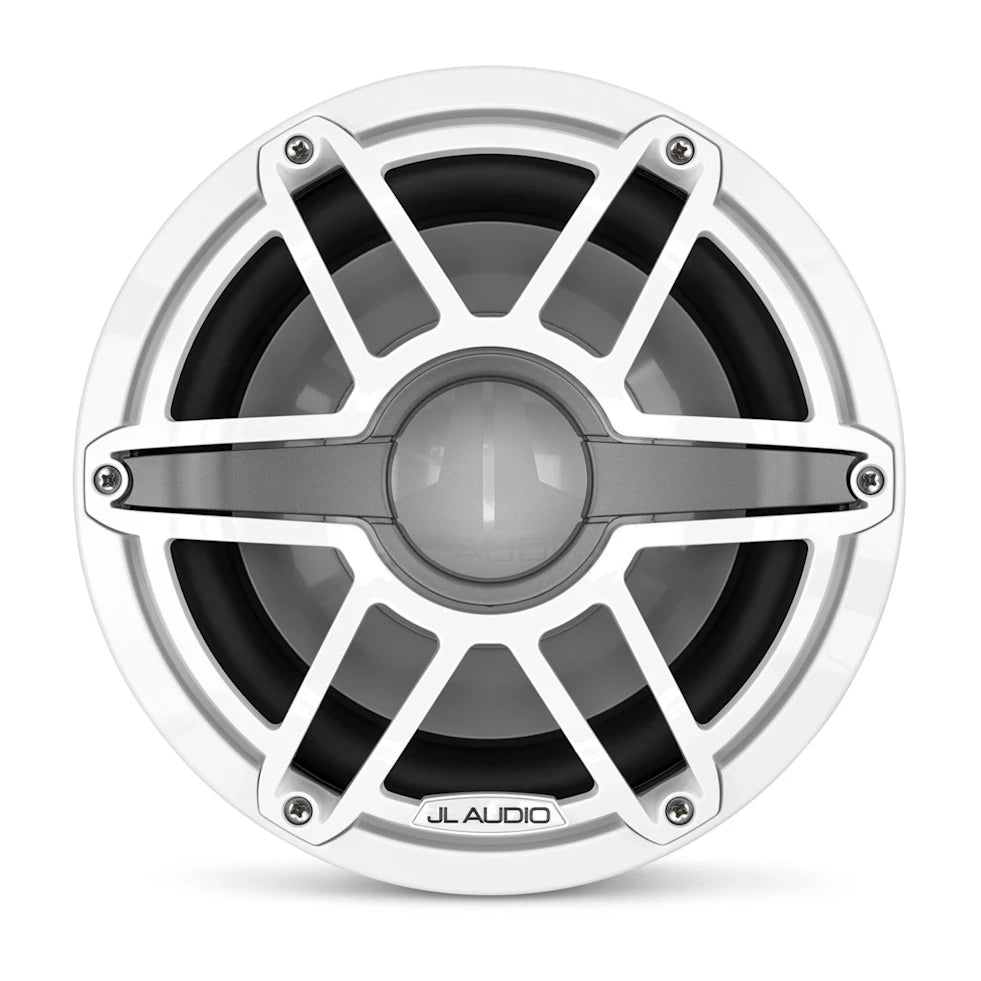

JL Audio M6-10W-S-GwGw-4 is a 10-inch, 250 W RMS marine subwoofer with a White Sport grille, 4-ohm impedance and no LED lighting. This is the enclosure-use “W” version: it is engineered for a correctly sized enclosure, not an infinite-baffle installation.
A mica-filled polypropylene cone and DMA-optimized motor design support controlled bass in open-air marine systems. The marine construction is designed for long-term exposure to saltwater environments, while the removable grille and trim ring support a coordinated installation.
Key Features
- 10-inch M6 marine subwoofer; sold individually
- 250 W continuous RMS power handling; 4 Ω nominal impedance
- White Sport grille; non-lighted version
- Optimized for compact sealed or correctly designed ported enclosures
- Injection-molded, mica-filled polypropylene cone
- Removable grille and trim ring
Technical Specifications
| Model | M6-10W-S-GwGw-4 |
| Garmin Part Number | 010-03488-00 |
| UPC | 699440936446 |
| Installation Type | Enclosure-use |
| Power Handling | 250 W RMS |
| Nominal Impedance | 4 Ω |
| Recommended Amplifier Power | 75–250 W RMS |
| Grille / Lighting | White Sport / No LEDs |
| Selling Quantity | One subwoofer |
| Sensitivity | 86.4 dB @ 1 W / 1 m |
| Overall Diameter | 10.75" (273 mm) |
| Mounting Cutout | 8.875" (225 mm) |
| Recommended Sealed Net Volume | 0.75 cu ft (21.2 L) |
| Recommended Ported Net Volume | 2.00 cu ft (56.6 L) |
Installation & System Matching
Build the enclosure to the manufacturer’s recommendations. Net volume is the air volume after accounting for driver, port and bracing displacement; a ported box also requires the correct port dimensions and tuning. Do not substitute the enclosure requirements of an “IB” model.
Use a subwoofer amplifier appropriate for a single 4-ohm load and set its gain, low-pass filtering and protection to suit the 250 W RMS driver. Amplifier, power wiring and enclosure or baffle construction are not included.
What’s Included
- One JL Audio M6-10W-S-GwGw-4 marine subwoofer
- White Sport grille
- Six stainless steel mounting screws and six washers
Why Buy From MCOR Automotive
MCOR is an authorized JL Audio / Garmin retailer. Our team can help match speakers, amplifiers and installation hardware before you order, with support after the sale.
Fitment & Installation Help
Use our Vehicle Fit Guide for application-specific information, or contact MCOR through chat to verify your installation. A speaker size or power rating alone does not confirm fit.
Authorized Retailer & Warranty
Applicable manufacturer warranty coverage is subject to manufacturer installation and use requirements.
