JL Audio M6-10IB-S-GwGw-i-4 10" Marine Infinite-Baffle Subwoofer RGB 250W 4Ω 010-03085-00 (93636)
JL Audio M6-10IB-S-GwGw-i-4 10" Marine Infinite-Baffle Subwoofer RGB 250W 4Ω 010-03085-00 (93636)
Couldn't load pickup availability

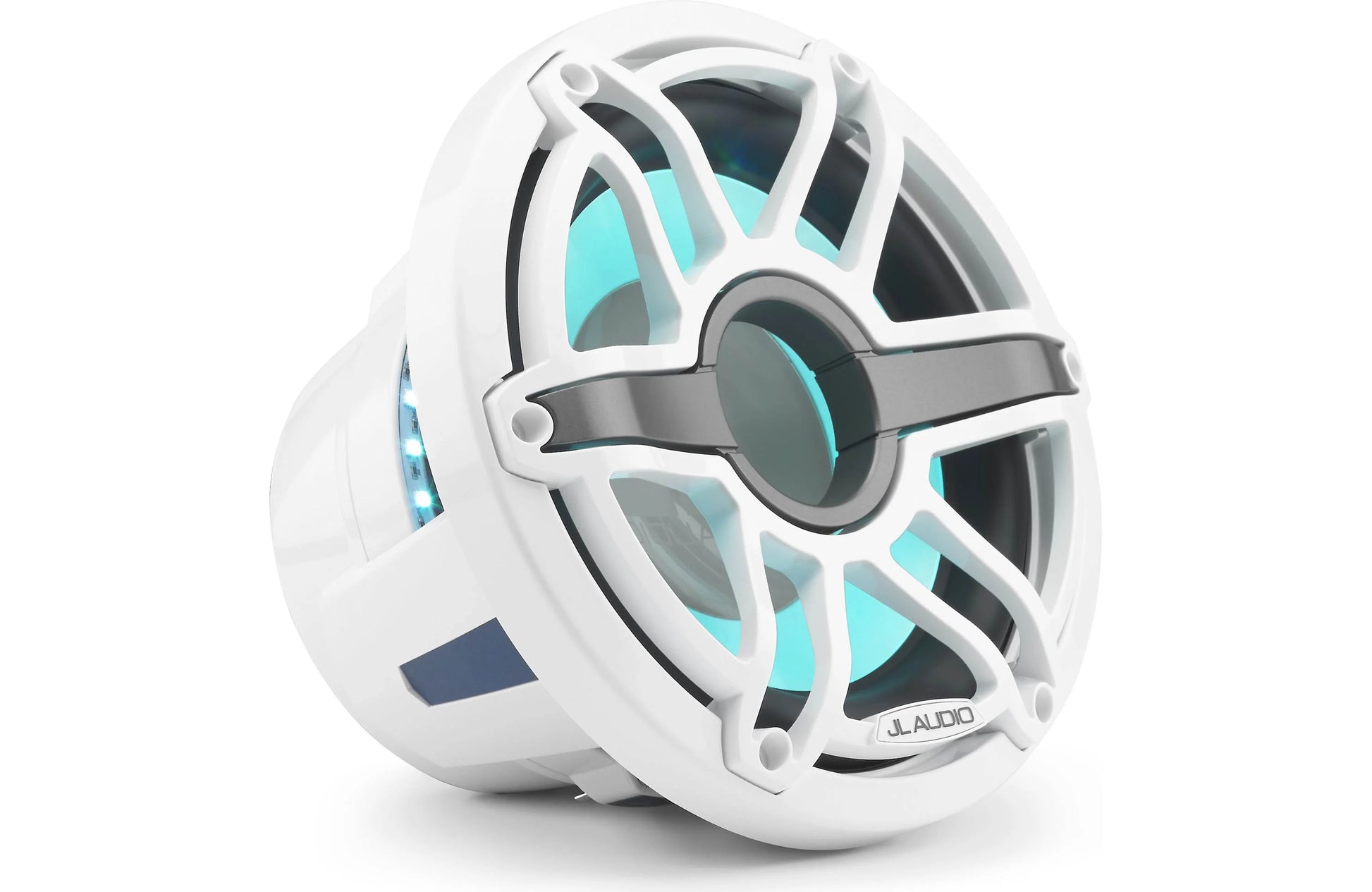

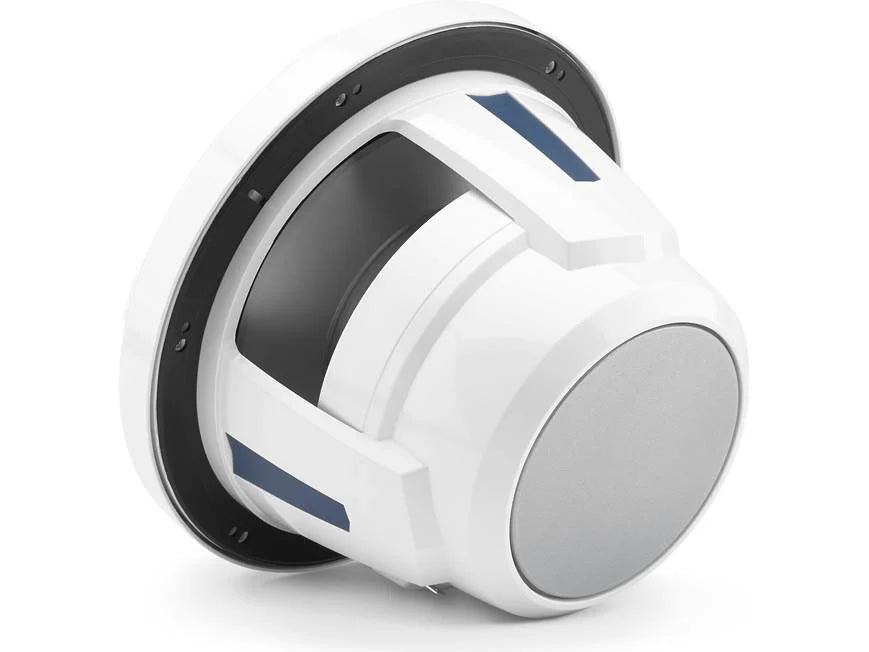

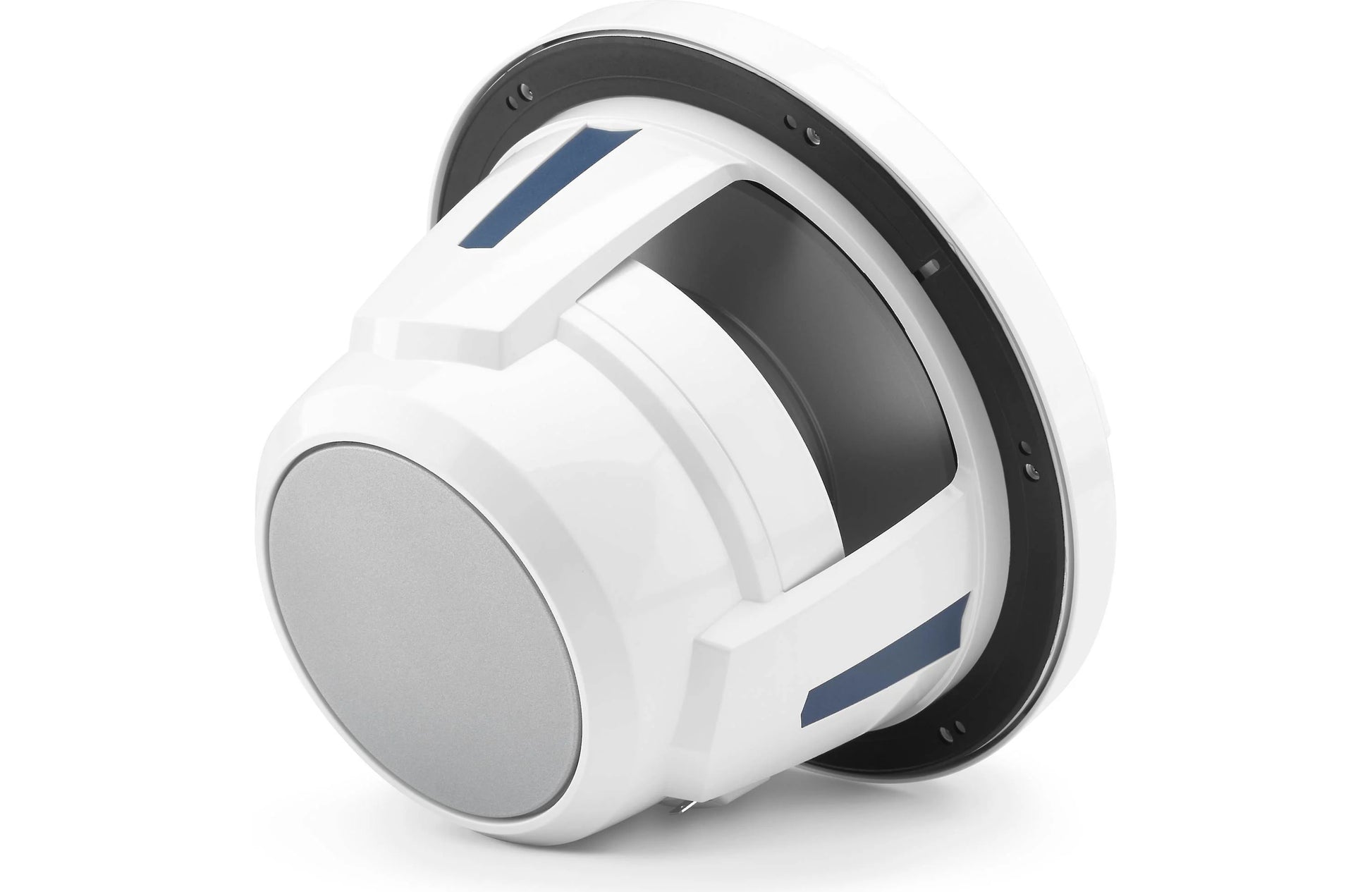

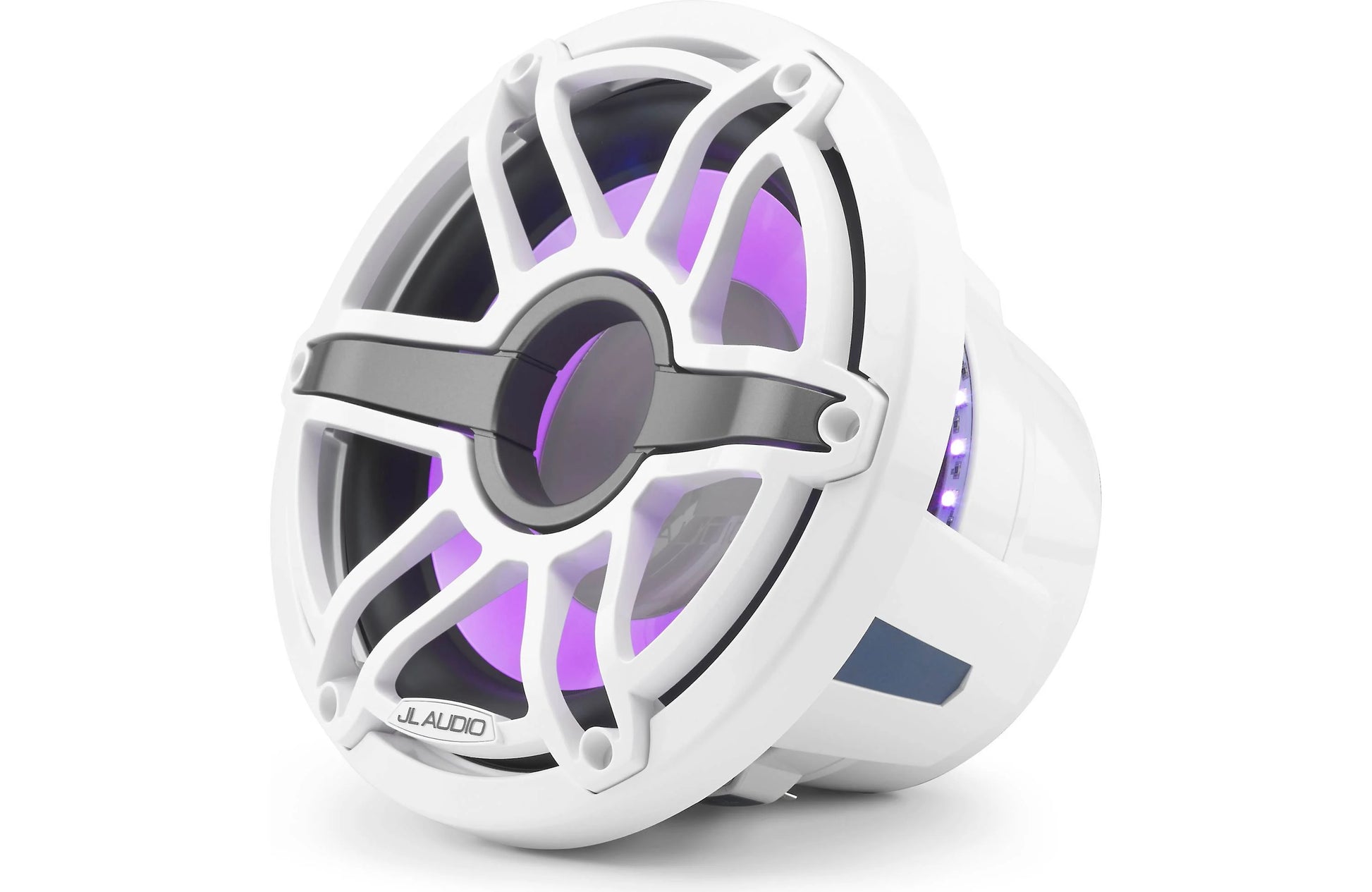

JL Audio M6-10IB-S-GwGw-i-4 10" Marine Infinite-Baffle Subwoofer is a premium 10-inch marine subwoofer engineered for open-air, infinite-baffle installations on boats that demand real low-end authority without a bulky enclosure. Built on JL Audio’s M6 platform, it combines a saltwater-ready motor and suspension with a gloss white Sport grille and integrated Transflective™ RGB LED lighting to deliver both performance and visual impact at the helm or in the cockpit.
Optimized to operate with a large volume of air behind it (at least 2.0 cu. ft. / 56.6 L), this M6 10" IB driver handles up to 250 W RMS at a nominal 4 Ω, and is best paired with amplifier power in the 75–250 W range. The DMA-optimized motor system, long-excursion suspension, and marine-specific build allow this subwoofer to play loud, clean, and controlled in real offshore conditions while easing the workload on your main speakers so the entire system plays louder and clearer.
Key Features
- 10" JL Audio M6 marine infinite-baffle subwoofer (open-air/free-air use)

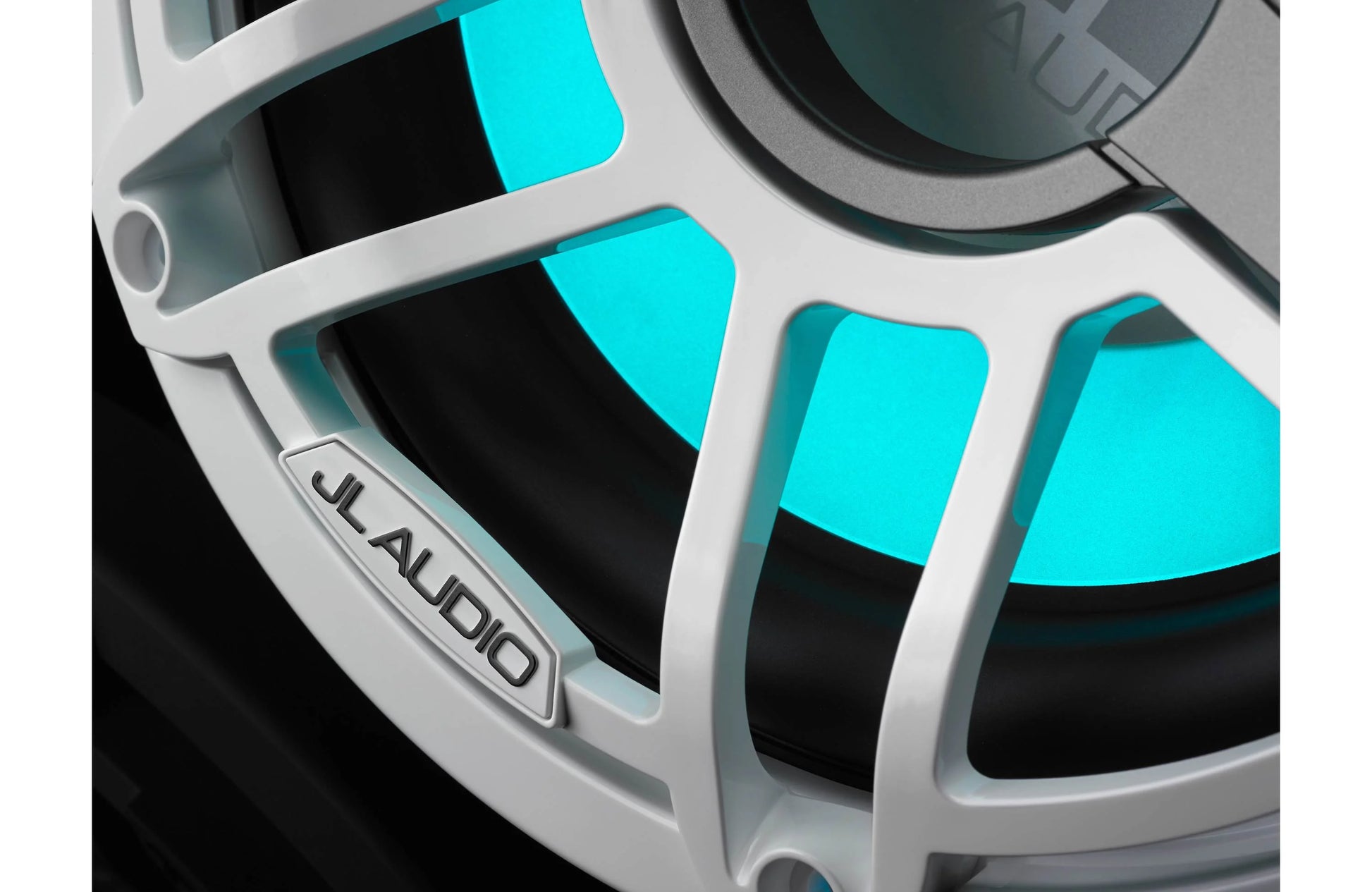

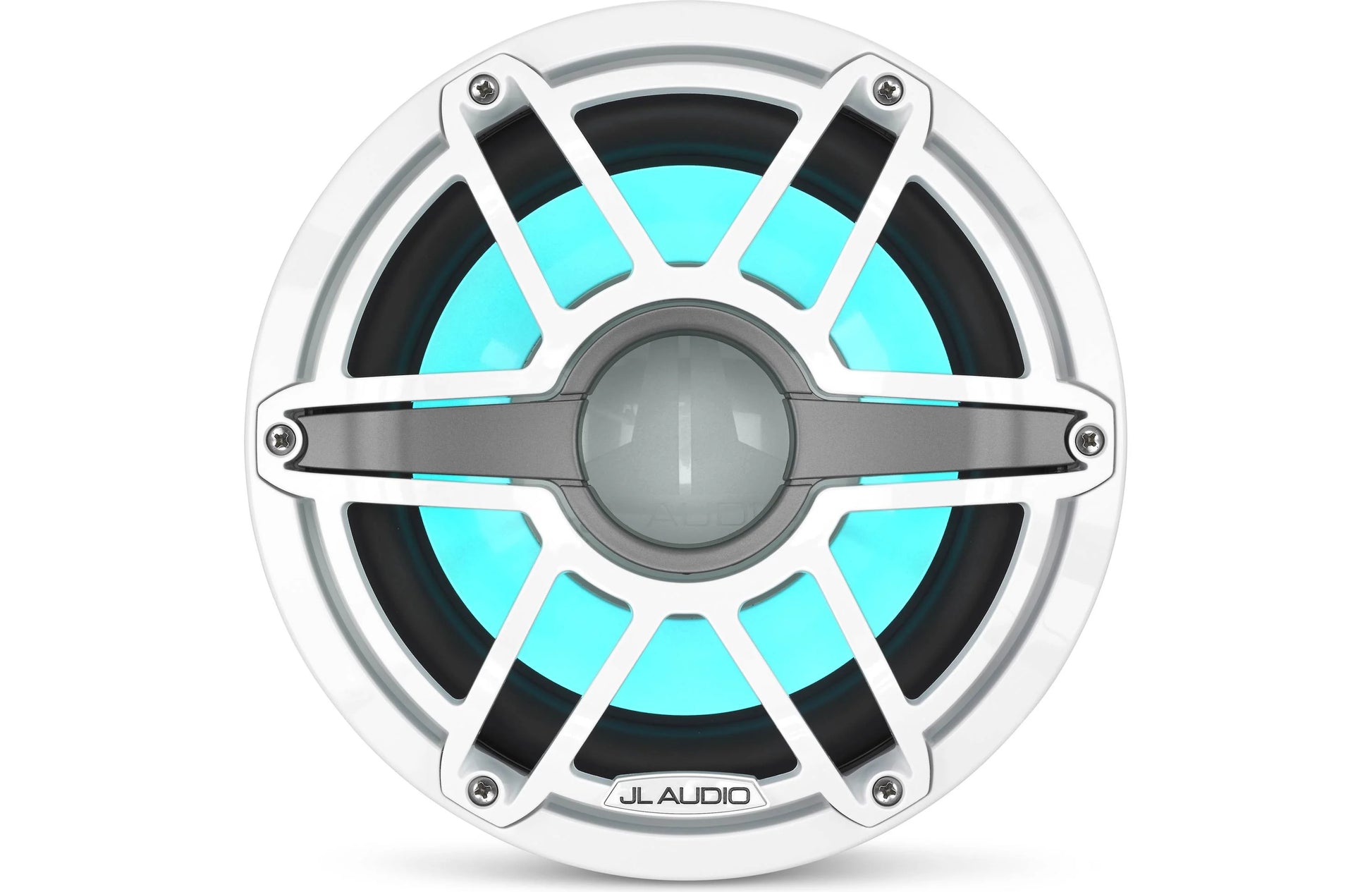

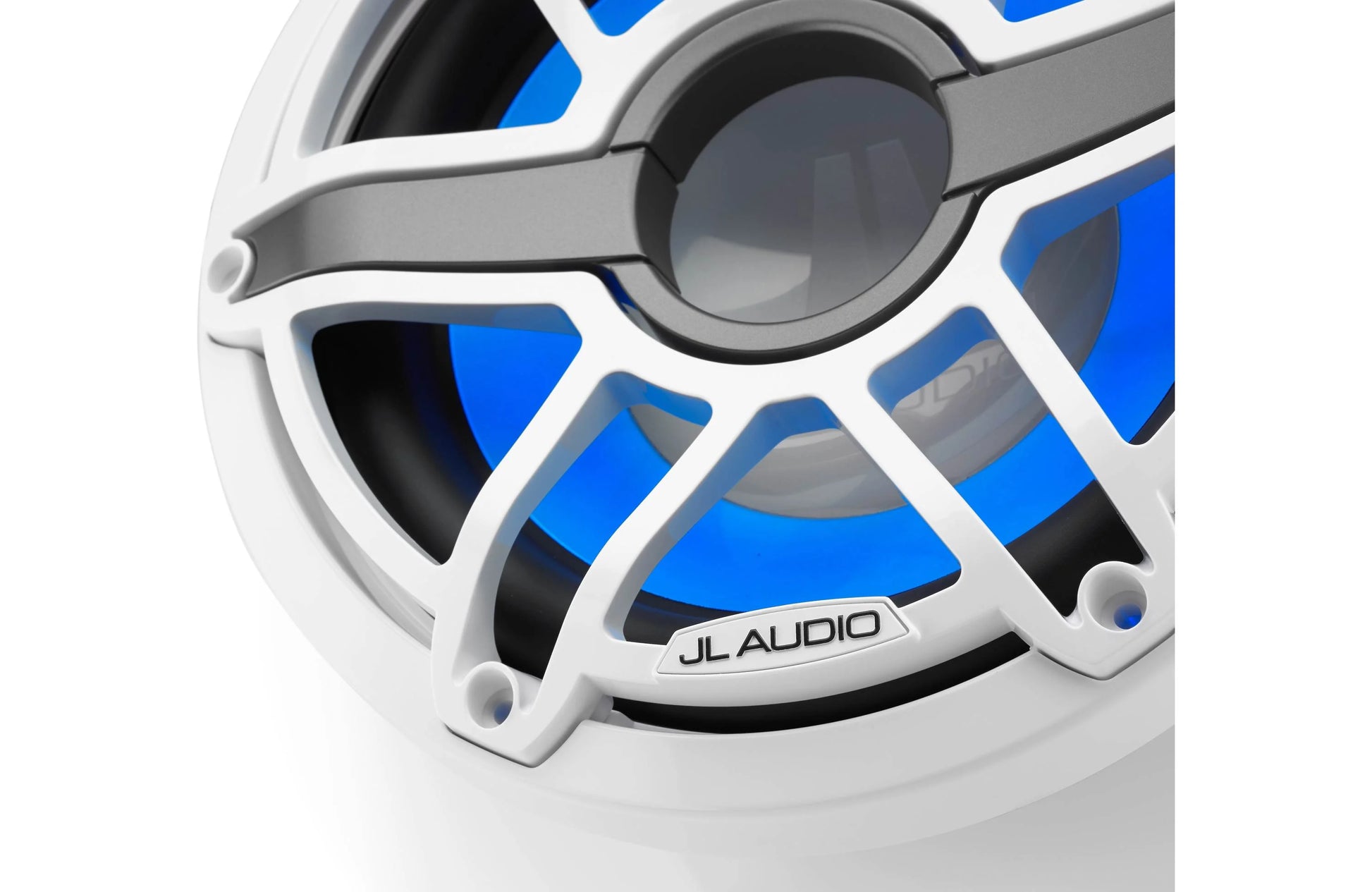

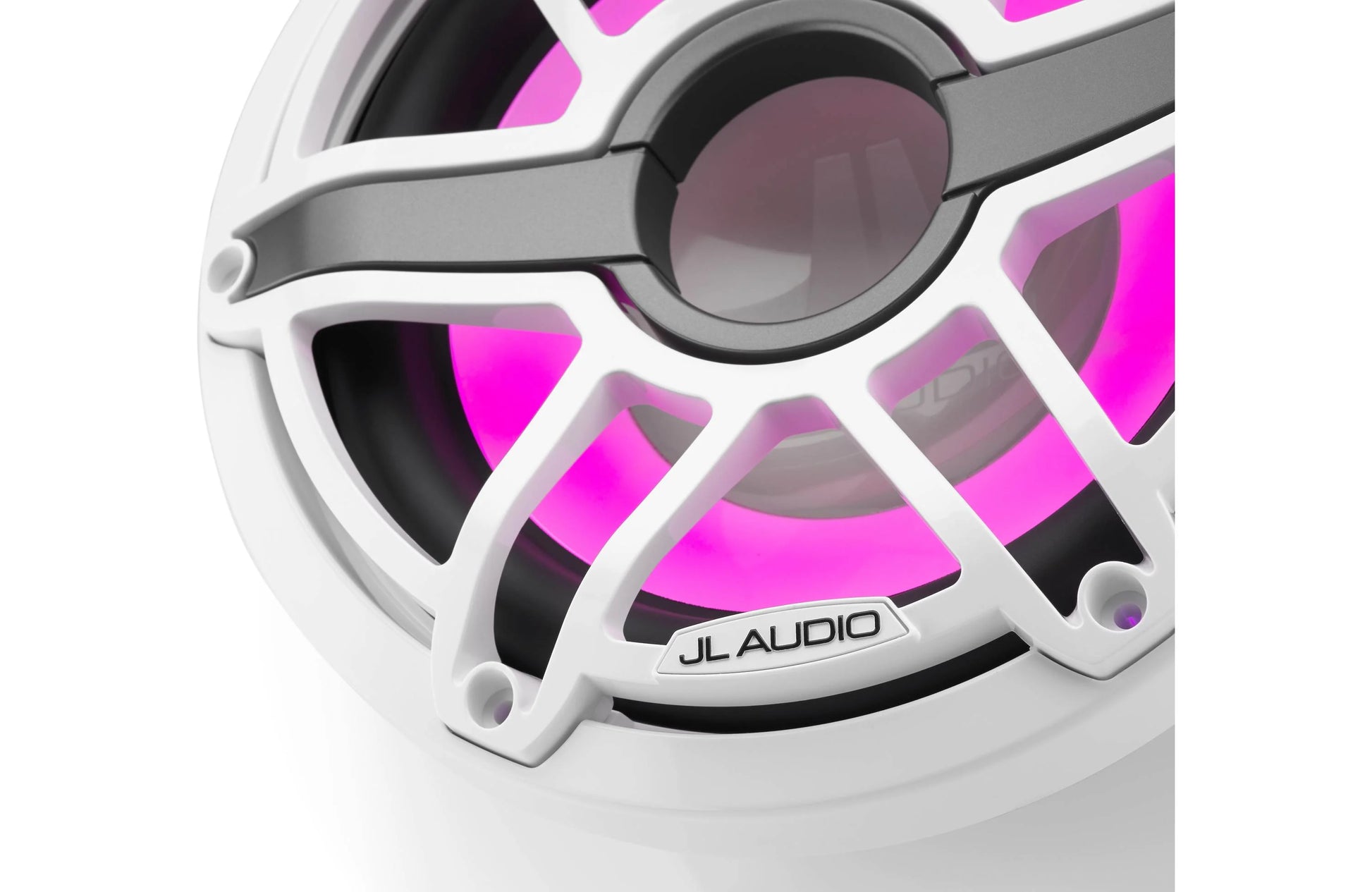

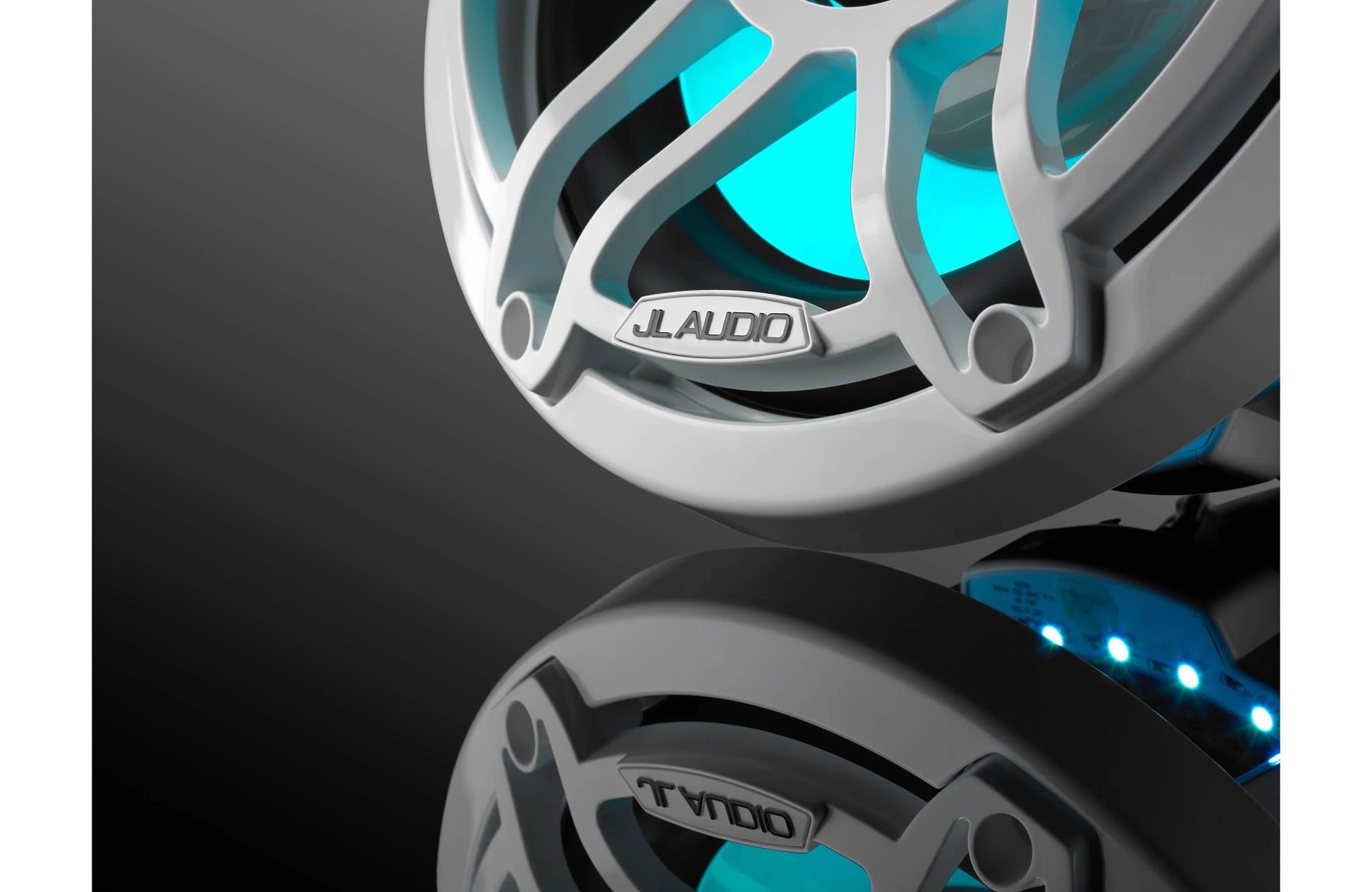

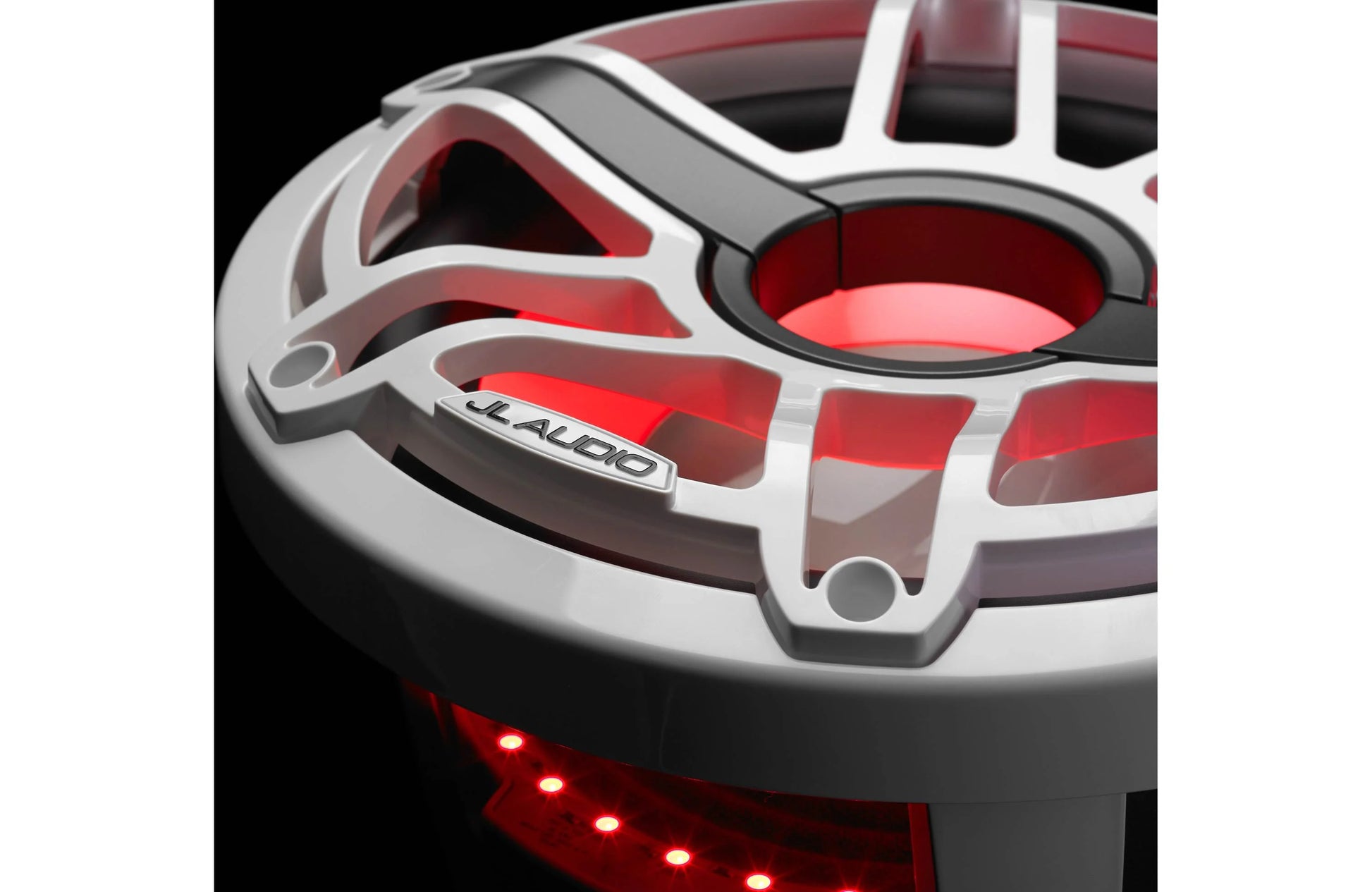

- Gloss White Sport grille with Transflective™ RGB LED cone illumination
- Continuous power handling: 250 W RMS (recommended 75–250 W amplifier power)
- Single 4 Ω voice coil for straightforward amplifier matching
- DMA-optimized motor for linear excursion and controlled bass at all listening levels
- Built for harsh saltwater use with marine-grade materials and UV-resistant finishes
- Designed to relieve smaller main speakers from deep-bass duty for cleaner overall sound
Technical Specifications
| Model | M6-10IB-S-GwGw-i-4 |
| Garmin PN | 010-03085-00 |
| JL Legacy PN | 93636 |
| UPC | 699440936378 |
| Subwoofer Size | 10" (250 mm nominal diameter) |
| Continuous Power Handling (RMS) | 250 W |
| Recommended Amp Power | 75–250 W continuous |
| Nominal Impedance | 4 Ω (single voice coil) |
| Design Application | Infinite-baffle / open-air (large air volume behind mounting surface) |

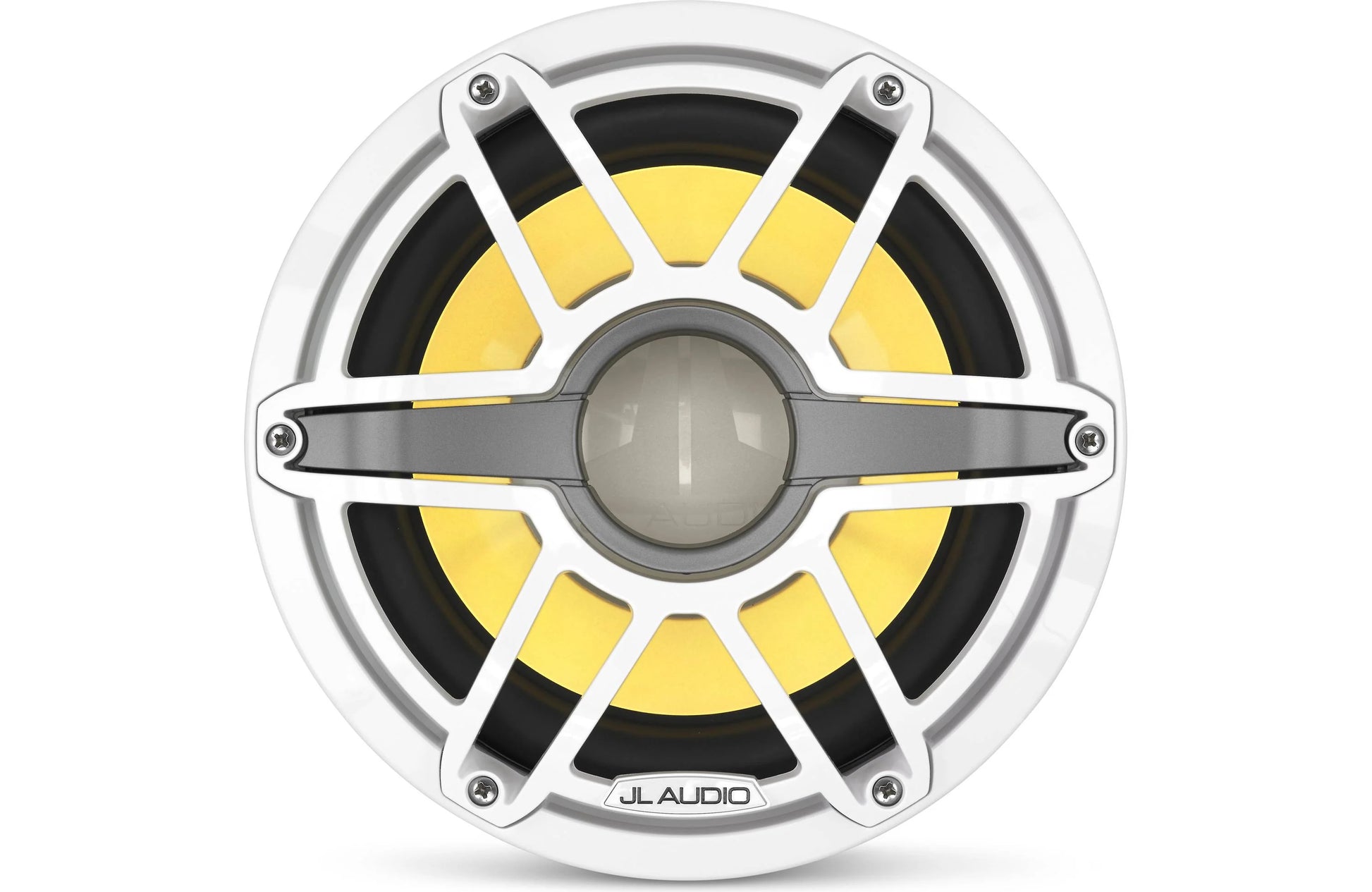

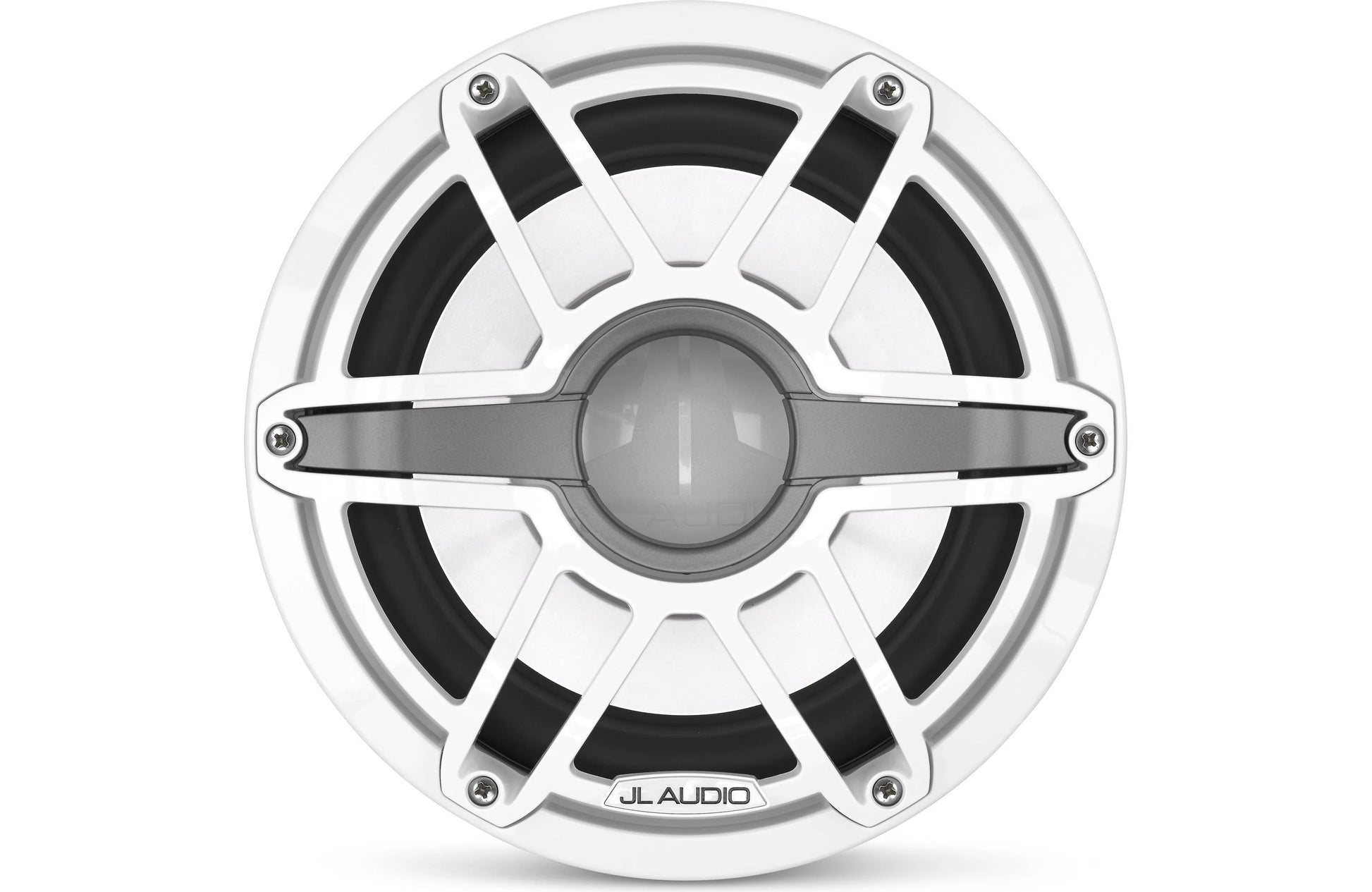

| Grille Style | Gloss White Sport |
| Lighting | Transflective™ RGB LED illumination through the cone |
| Overall Diameter | 10.75" (273 mm) |
| Mounting Hole Diameter | 8.875" (225 mm) |
| Mounting Depth Clearance | 5.90" (150 mm) |
| Frontal Grille Protrusion | 1.66" (42 mm) |
Ideal Applications
- Center consoles, pontoons, cruisers, and towboats using infinite-baffle subwoofer locations
- Marine systems where enclosure space is limited but strong low-frequency output is required
- Upgrades from small “bass-lite” marine packages to true JL Audio M6-level performance
- Multi-zone marine audio builds where cockpit or transom zones need dedicated low end
What’s Included
- JL Audio M6-10IB-S-GwGw-i-4 10" marine infinite-baffle subwoofer
- Gloss White Sport grille with integrated Transflective™ RGB lighting
- Mounting hardware (as supplied by JL Audio)
- Documentation / warranty information
Why Buy From MCOR Automotive
- Authorized JL Audio / Garmin dealer with real-world marine audio tuning experience
- Support matching M6 subs with JL marine amplifiers, speakers, and lighting controllers
- Guidance on infinite-baffle placement, amplifier gain setup, and RGB integration after the sale
