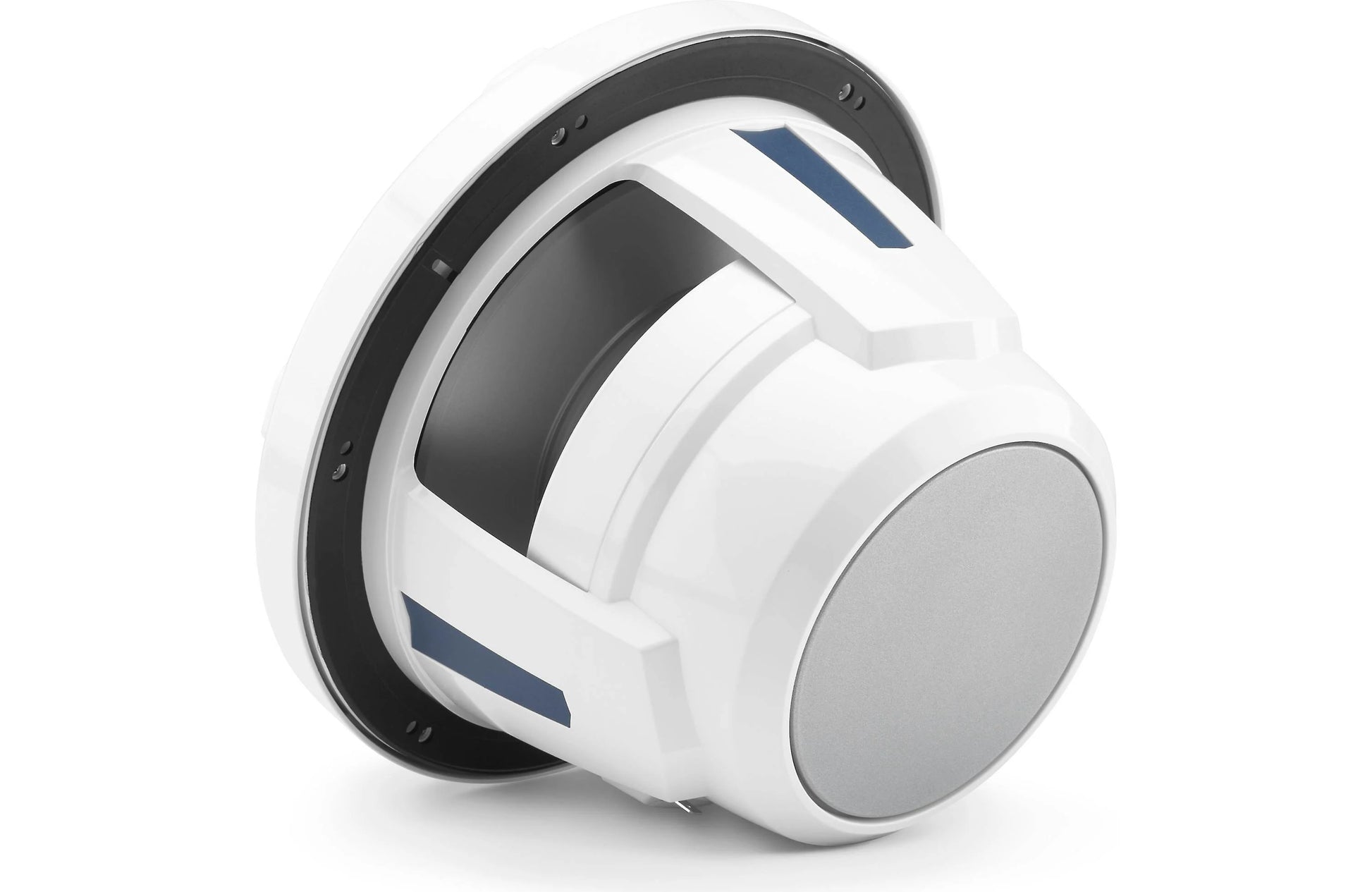

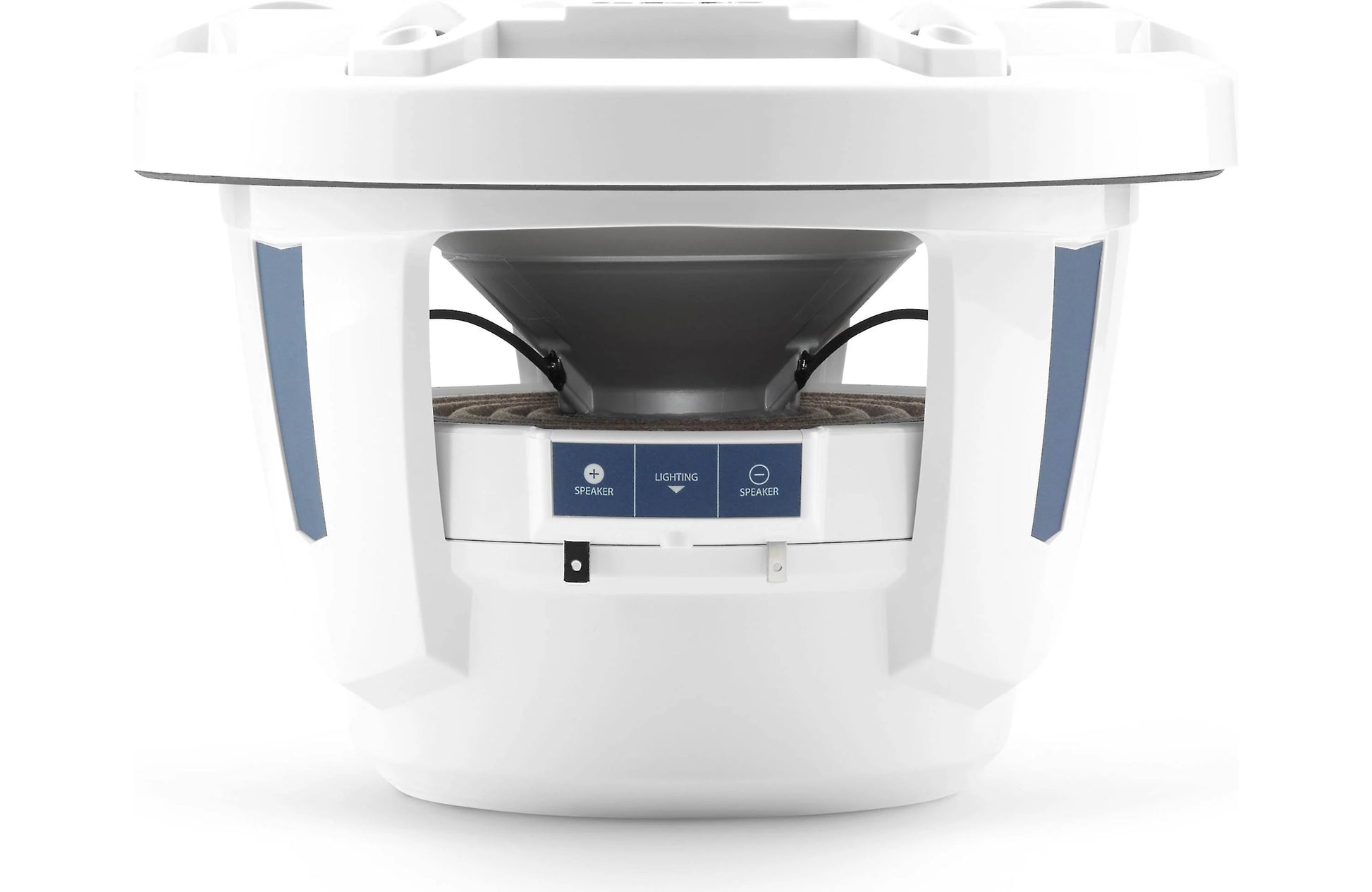

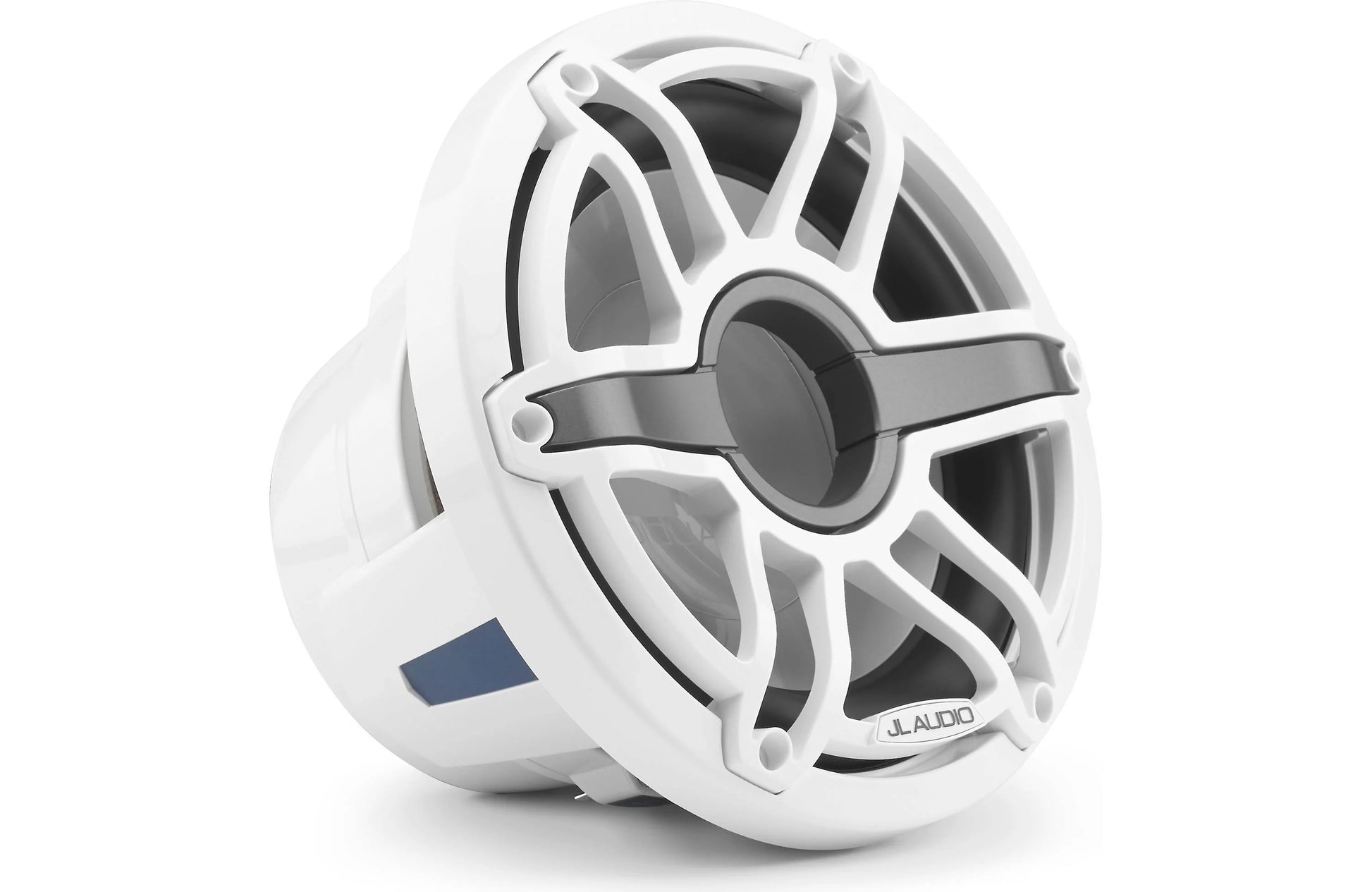

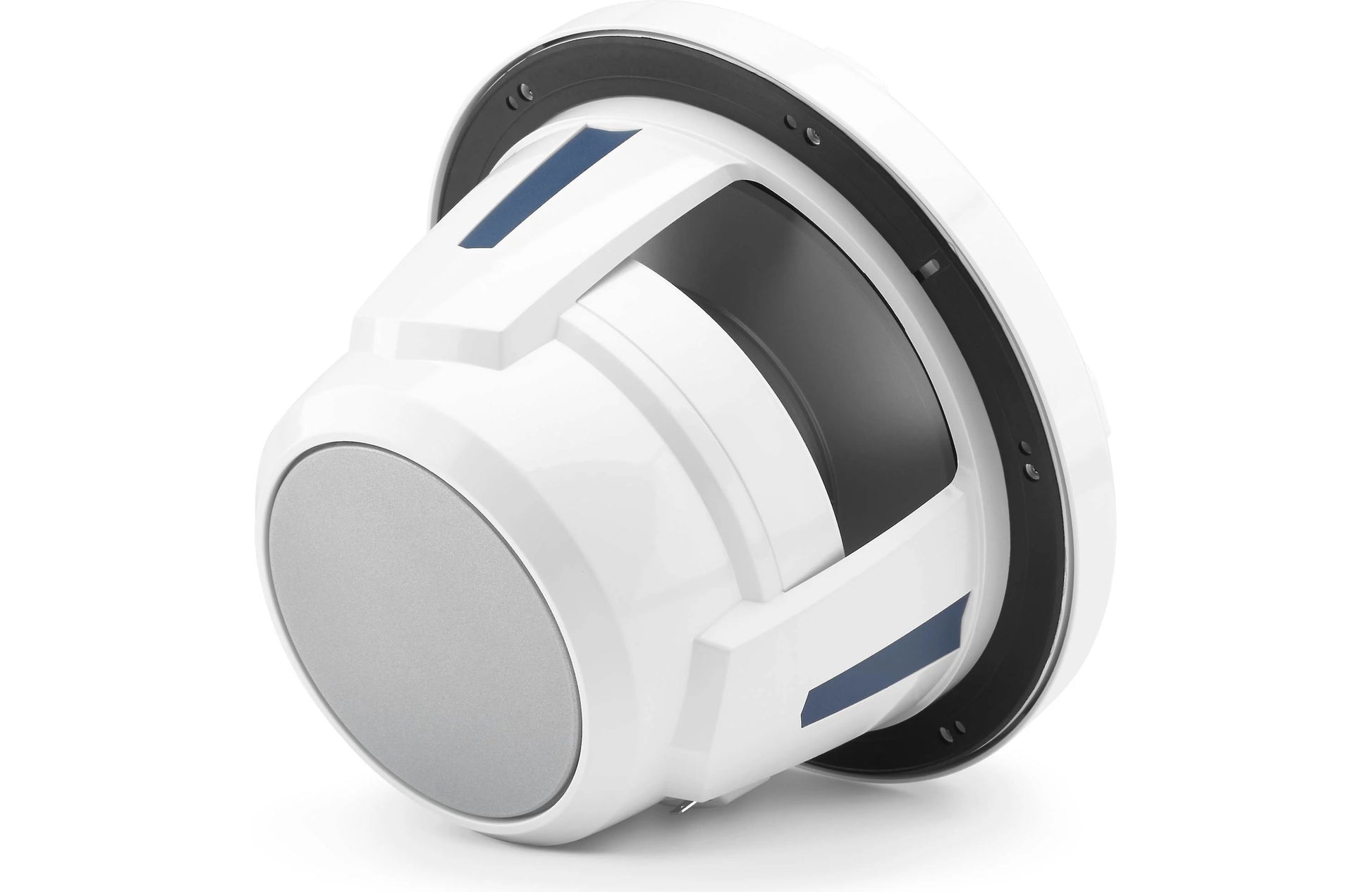

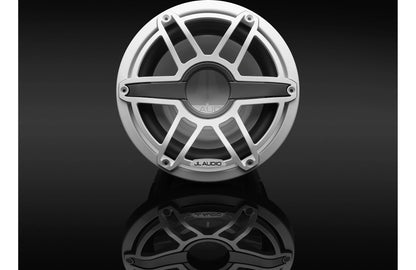

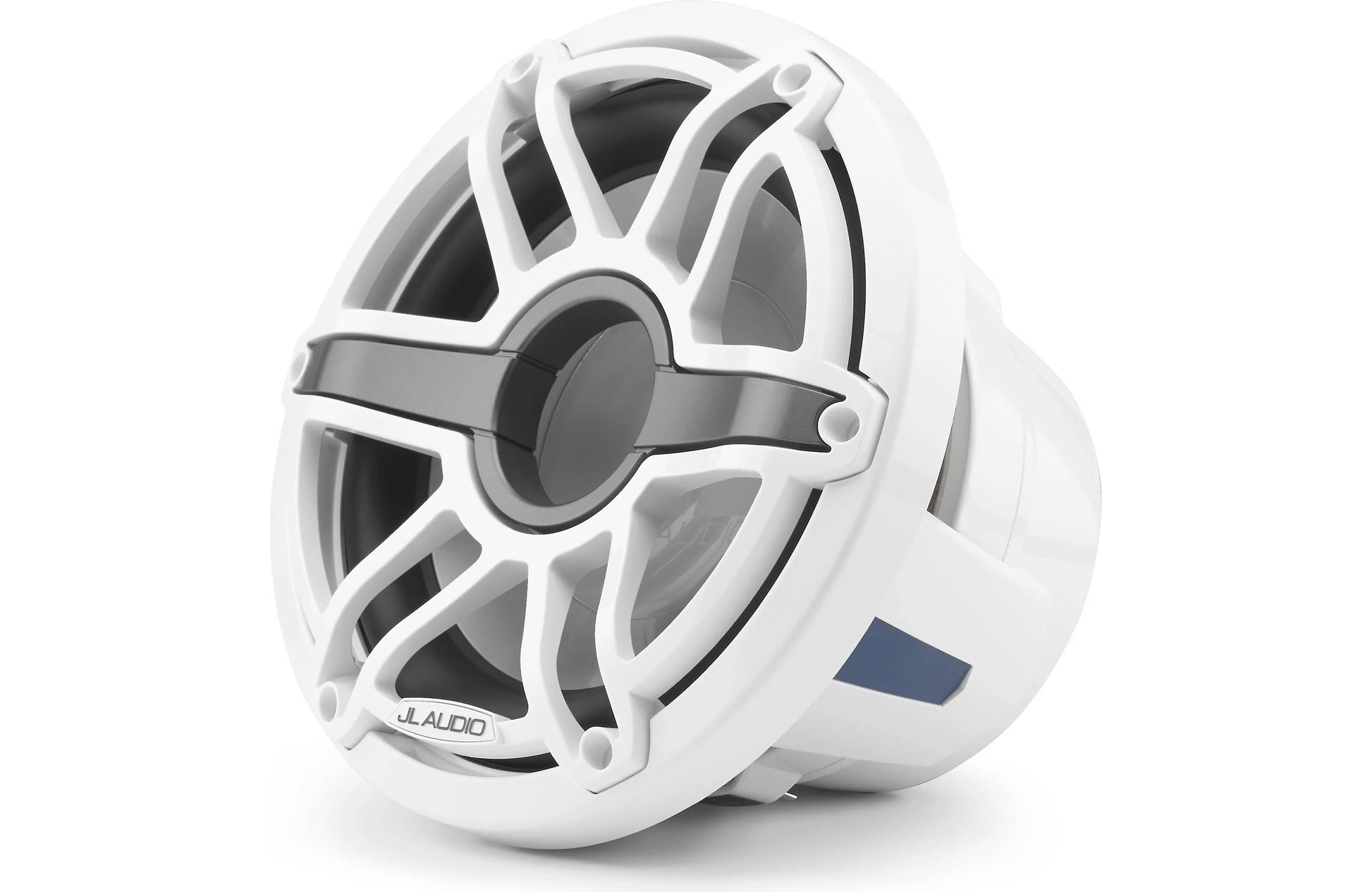

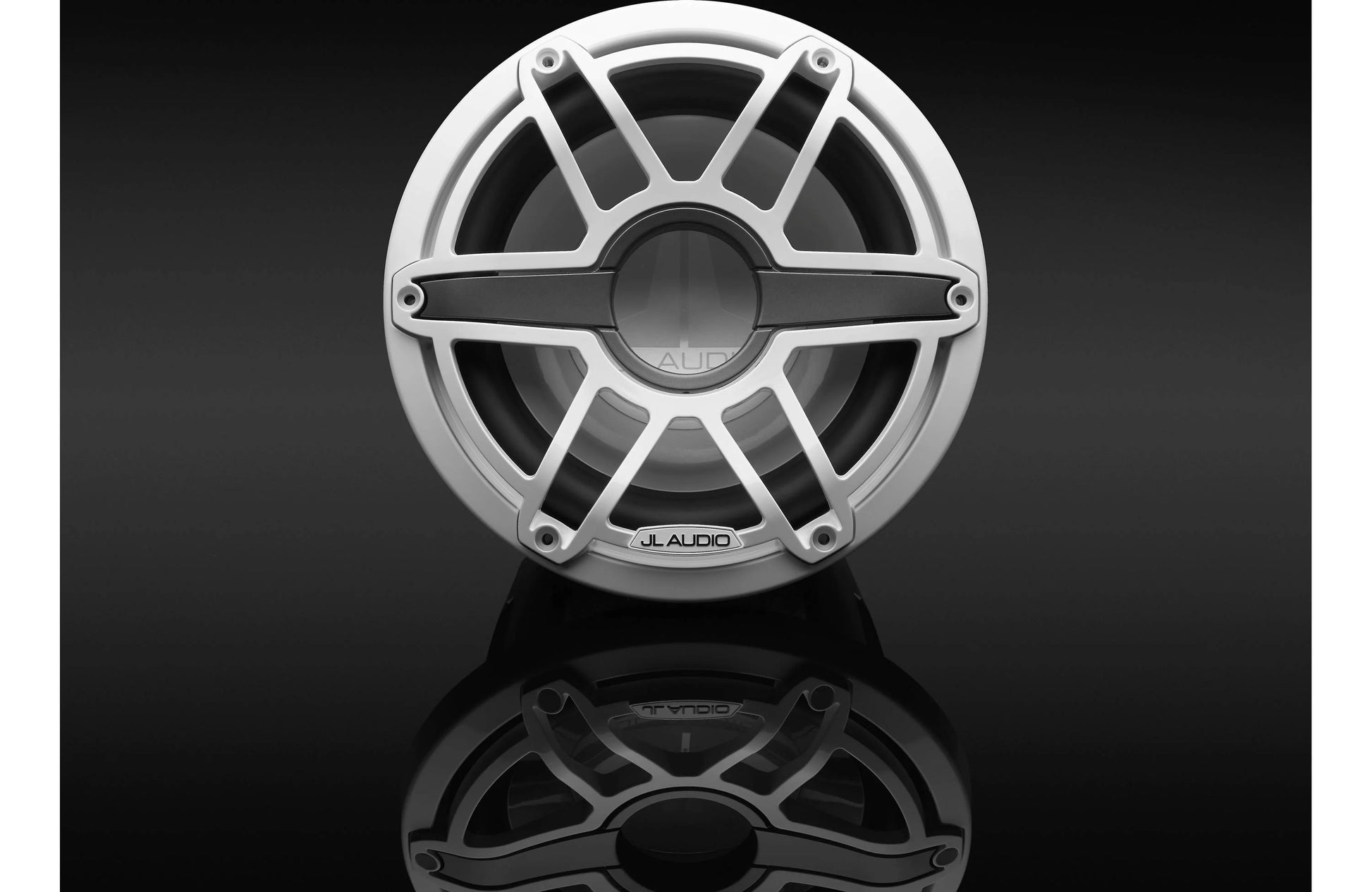

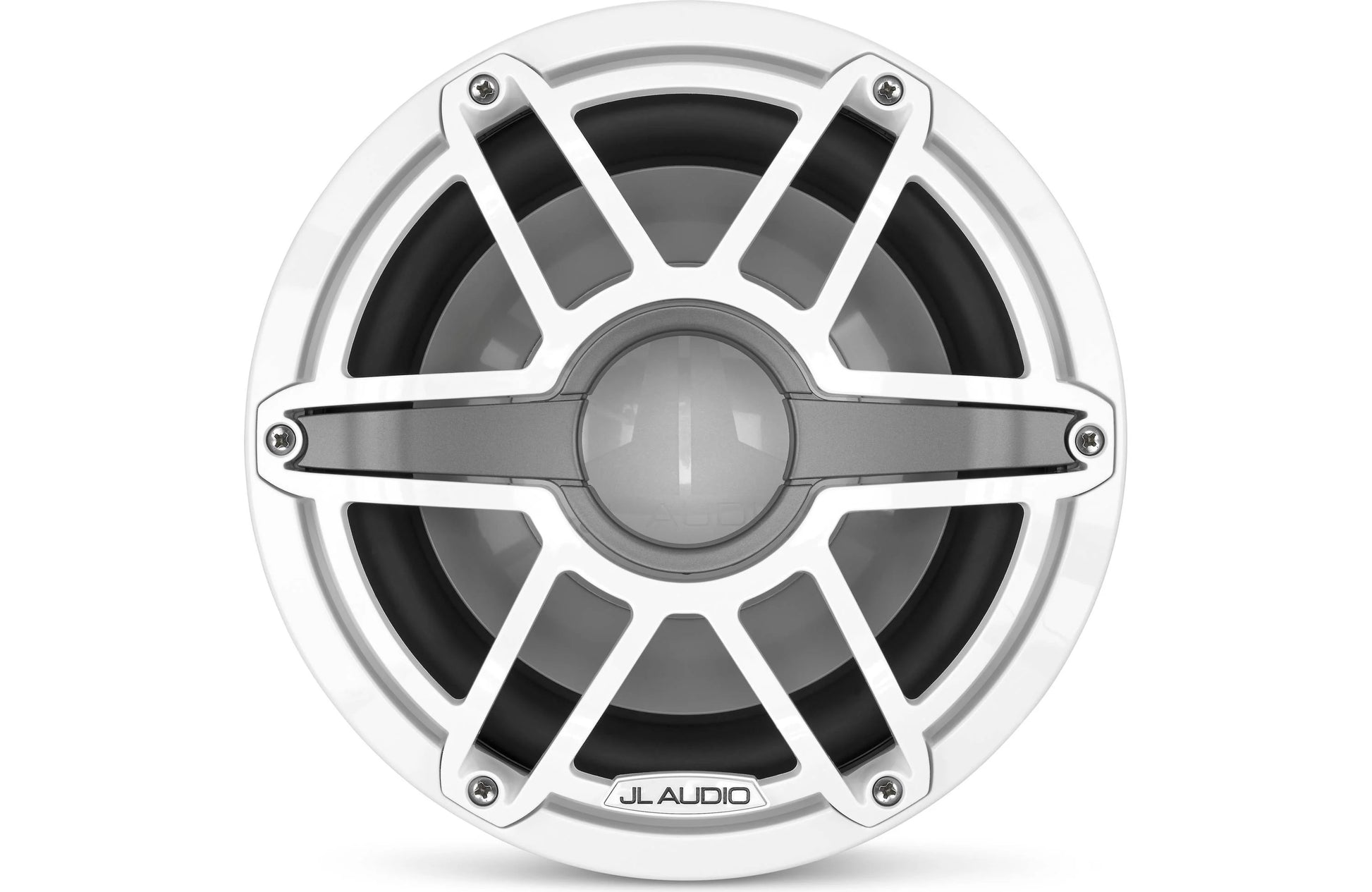

JL Audio M6-10IB-S-GmGm-i-4 10" Marine Infinite-Baffle Subwoofer RGB 250W 4Ω 010-03084-00 (93635)

JL Audio M6-10IB-S-GmGm-i-4 10" Marine Infinite-Baffle Subwoofer RGB 250W 4Ω 010-03084-00 (93635)

Regular price $479.99 USD
Regular price Sale price $479.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

JL Audio M6-10IB-S-GmGm-i-4 10" Marine Infinite-Baffle Subwoofer is a premium 10-inch marine subwoofer optimized for open-air, enclosure-free infinite-baffle installations. This configuration delivers deep, controlled bass in real-world boating environments without sacrificing cockpit or cabin space, while its Gunmetal Sport grille with Transflective™ RGB LED lighting integrates seamlessly into modern marine interiors.

Rated for 250 W RMS at a nominal 4 Ω, the M6 10" IB sub uses JL’s DMA-optimized motor system for linear excursion, reduced distortion, and consistent bass output at speed offshore. Best used with 75–250 W of clean amplifier power, and paired with main marine speakers that benefit from the sub relieving deep-bass duties for higher overall system headroom.

Key Features

  • 10" JL Audio M6 marine infinite-baffle subwoofer (free-air/open-air)

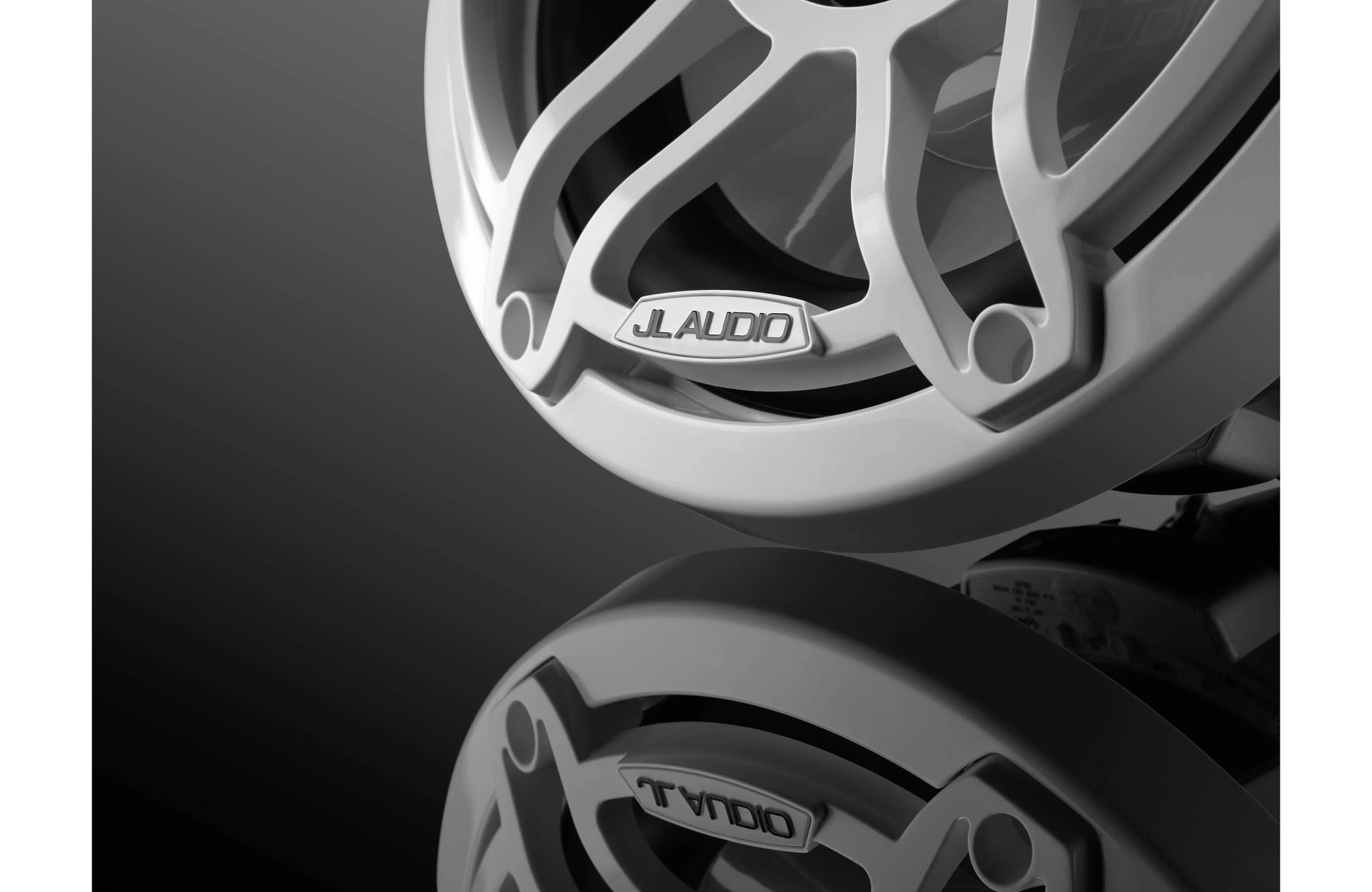

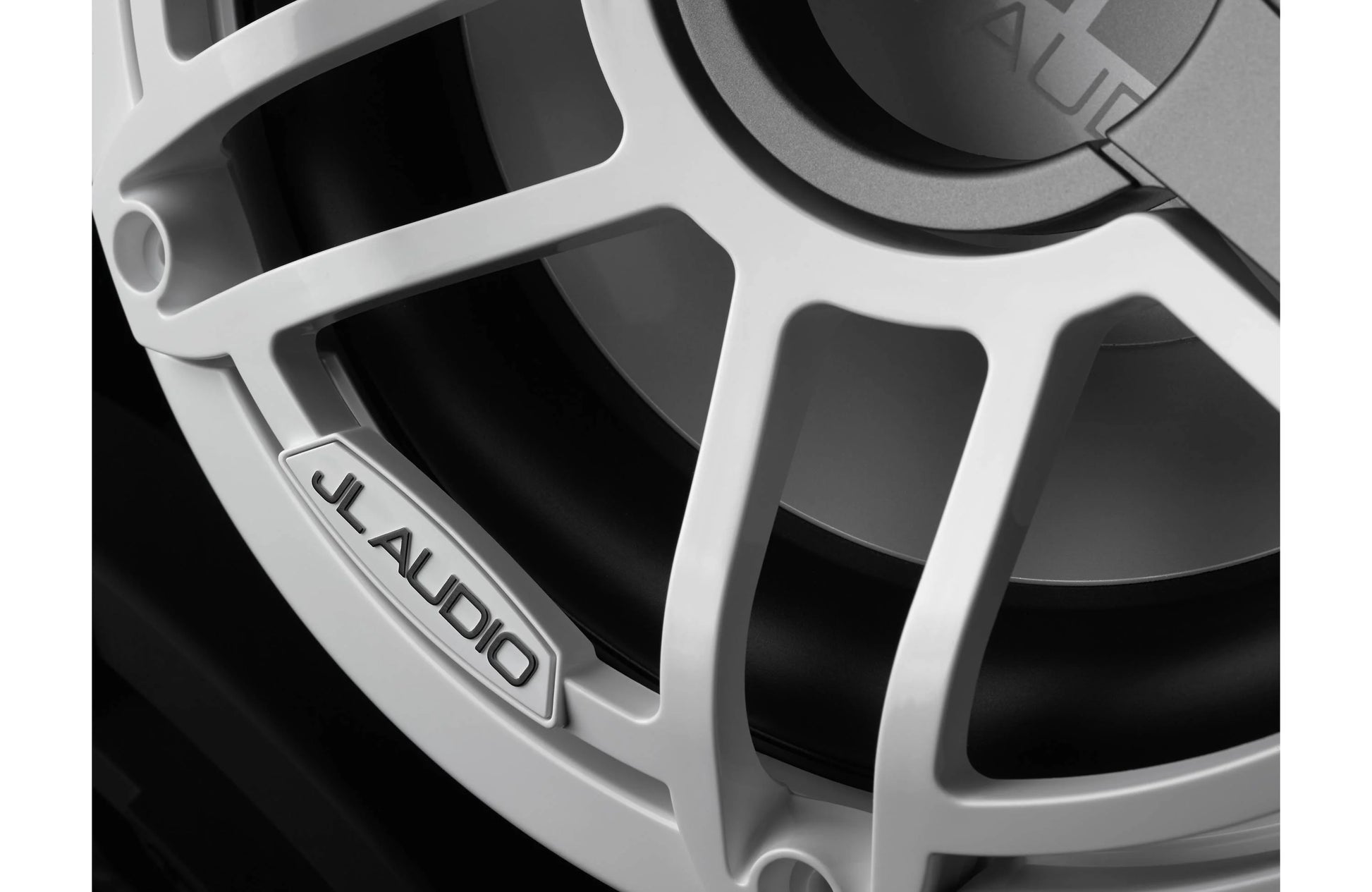

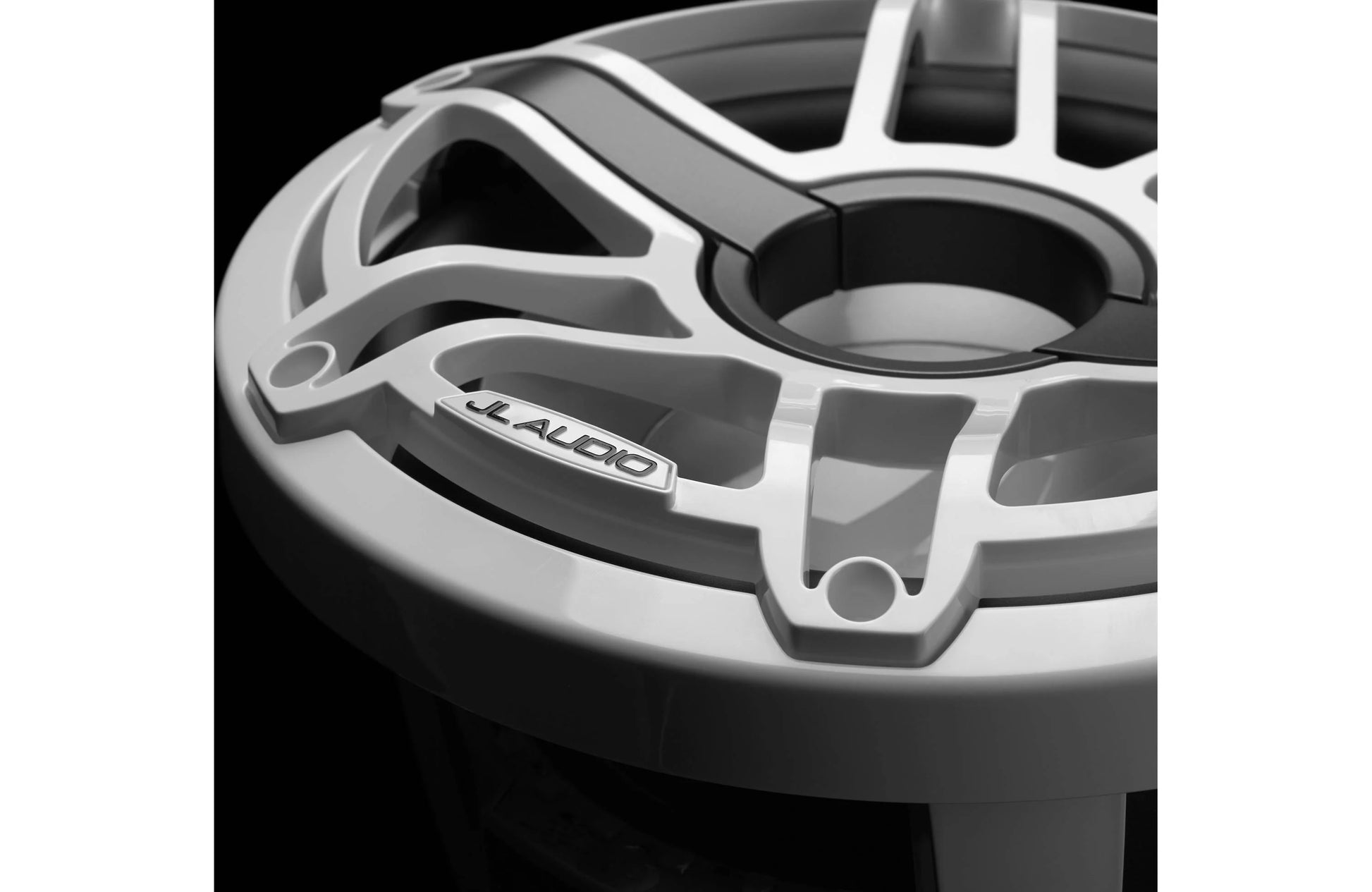

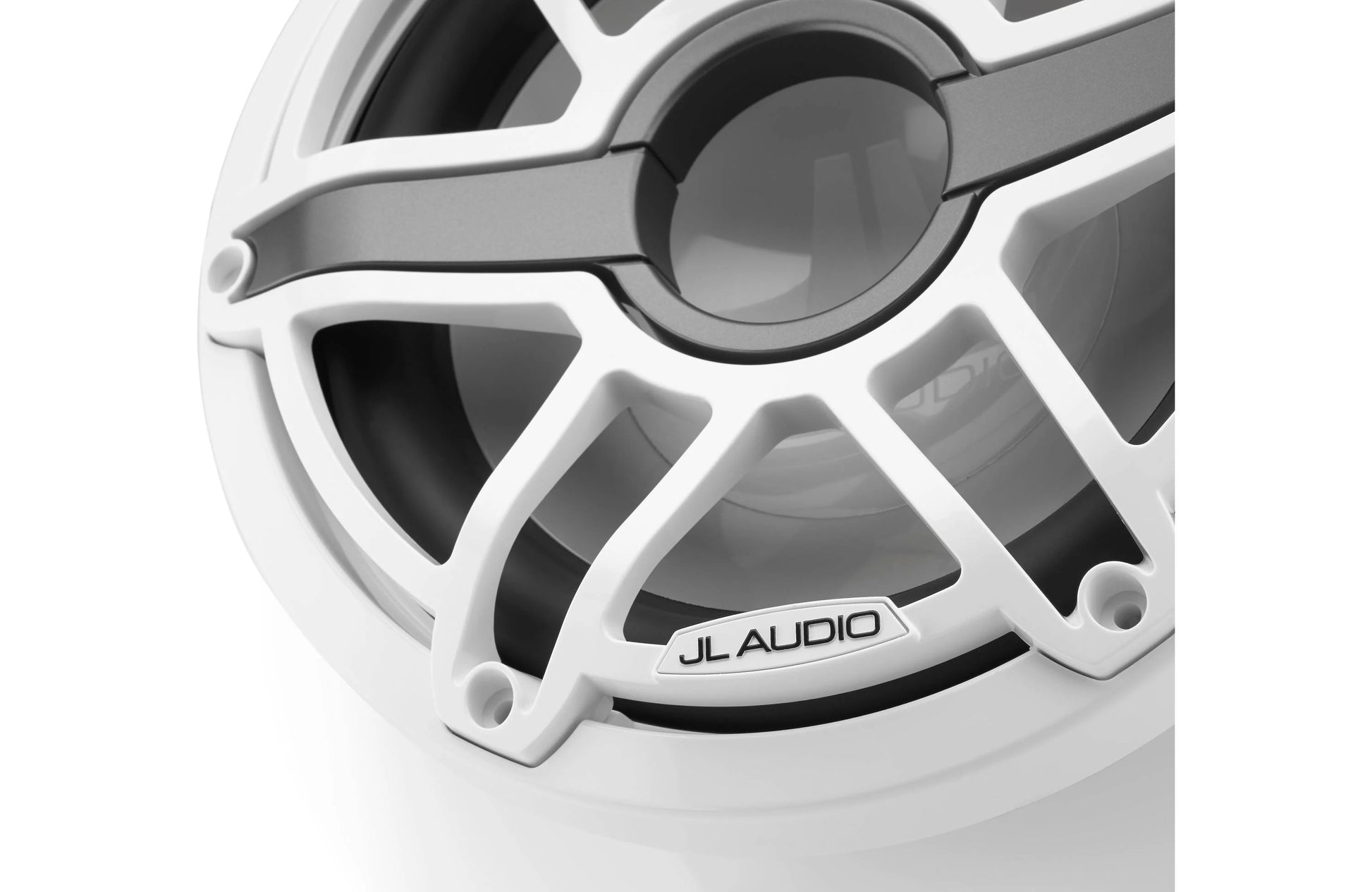

  • Gunmetal Sport grille with Transflective™ RGB LED illumination
  • Continuous Power Handling: 250 W RMS (recommended 75–250 W)
  • Single 4 Ω voice coil
  • DMA-optimized motor for low distortion and controlled excursion
  • Saltwater-ready materials for UV, moisture, and corrosion resistance
  • Eliminates enclosure requirements in marine applications

Technical Specifications

Model M6-10IB-S-GmGm-i-4
Garmin PN 010-03084-00
JL Legacy PN 93635
UPC 699440936354
Size 10" (250 mm)
Continuous Power (RMS) 250 W
Recommended Amp Power 75–250 W
Impedance 4 Ω (single voice coil)
Application Infinite-baffle / free-air (large open backing volume)
Grille Gunmetal Sport
Lighting Transflective™ RGB LED
Overall Diameter 10.75" (273 mm)
Mounting Hole Diameter 8.875" (225 mm)
Mounting Depth 5.90" (150 mm)
Frontal Protrusion 1.66" (42 mm)

Ideal Applications

  • Center consoles, towboats, pontoons, and cruisers
  • Free-air marine subwoofer locations with no enclosure volume
  • Multi-zone marine audio where cockpit zones need dedicated low end
  • Upgrades from small bass-lite OEM packages to real JL low-frequency performance

What’s Included

  • M6-10IB-S-GmGm-i-4 10" marine subwoofer
  • Gunmetal Sport grille w/ Transflective RGB lighting
  • Mounting hardware (as supplied)
  • Documentation / warranty
