JL Audio M6-10IB-C-GwGw-4 10" Marine Infinite-Baffle Subwoofer 250W 4Ω, 250W RMS, Single 010-03083-00 (93633)
JL Audio M6-10IB-C-GwGw-4 10" Marine Infinite-Baffle Subwoofer 250W 4Ω, 250W RMS, Single 010-03083-00 (93633)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

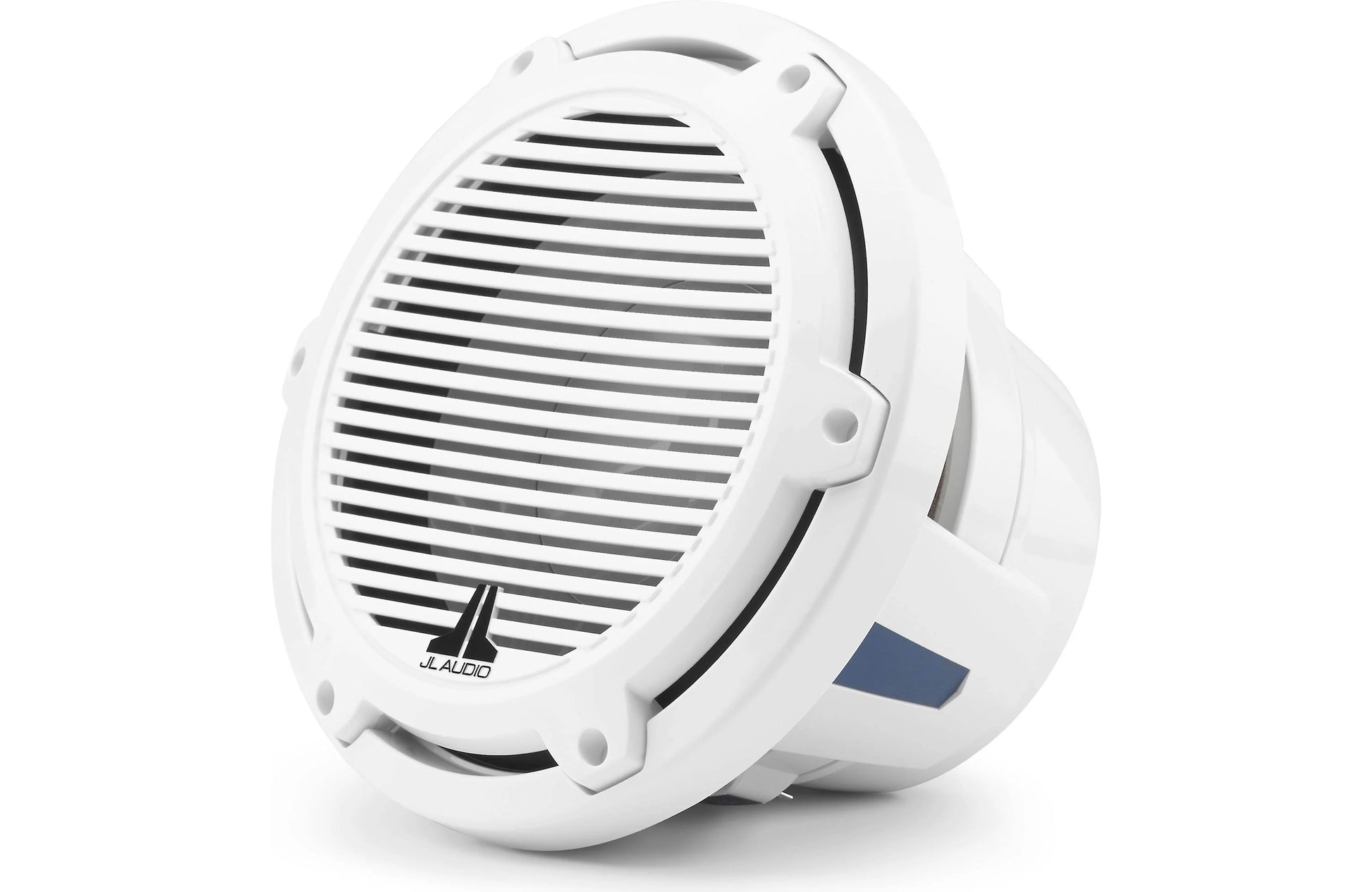

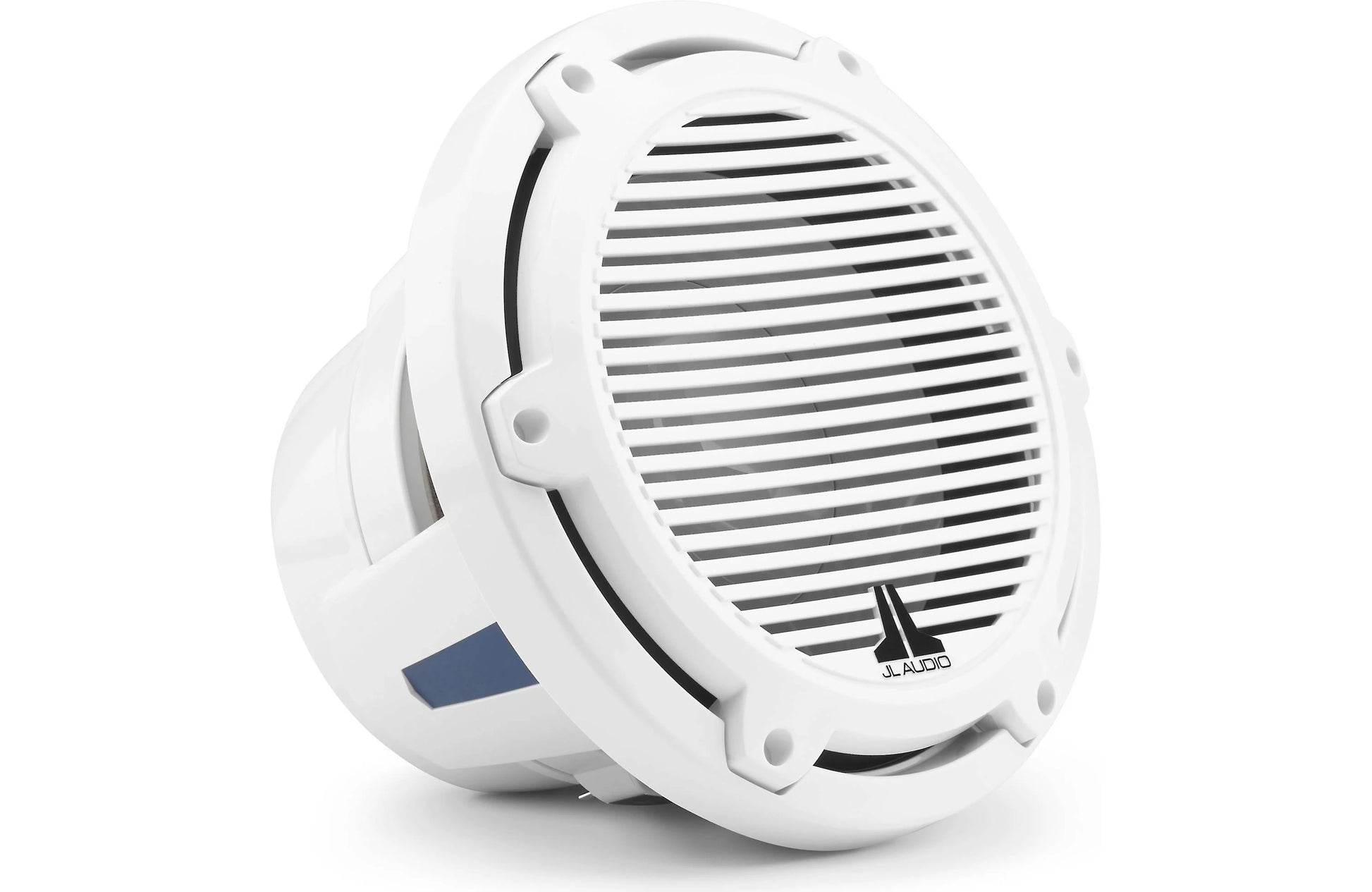

JL Audio M6-10IB-C-GwGw-4 10" Marine Infinite-Baffle Subwoofer is a premium 10-inch marine subwoofer engineered for open-air, enclosure-free locations on today’s boats. With its Gloss White Classic grille and saltwater-ready build, it delivers serious low-frequency output while blending cleanly into factory-style interiors.
Optimized for infinite-baffle operation (no dedicated box), this driver is rated for 250 W RMS at a nominal 4 Ω and is best used with 75–250 W of clean amplifier power. JL Audio’s long-excursion design and DMA-optimized motor provide controlled, musical bass that relieves your main speakers of deep-bass duties so the entire marine system can play louder and cleaner at all listening levels.
Key Features
- 10" JL Audio M6 marine infinite-baffle subwoofer (free-air)

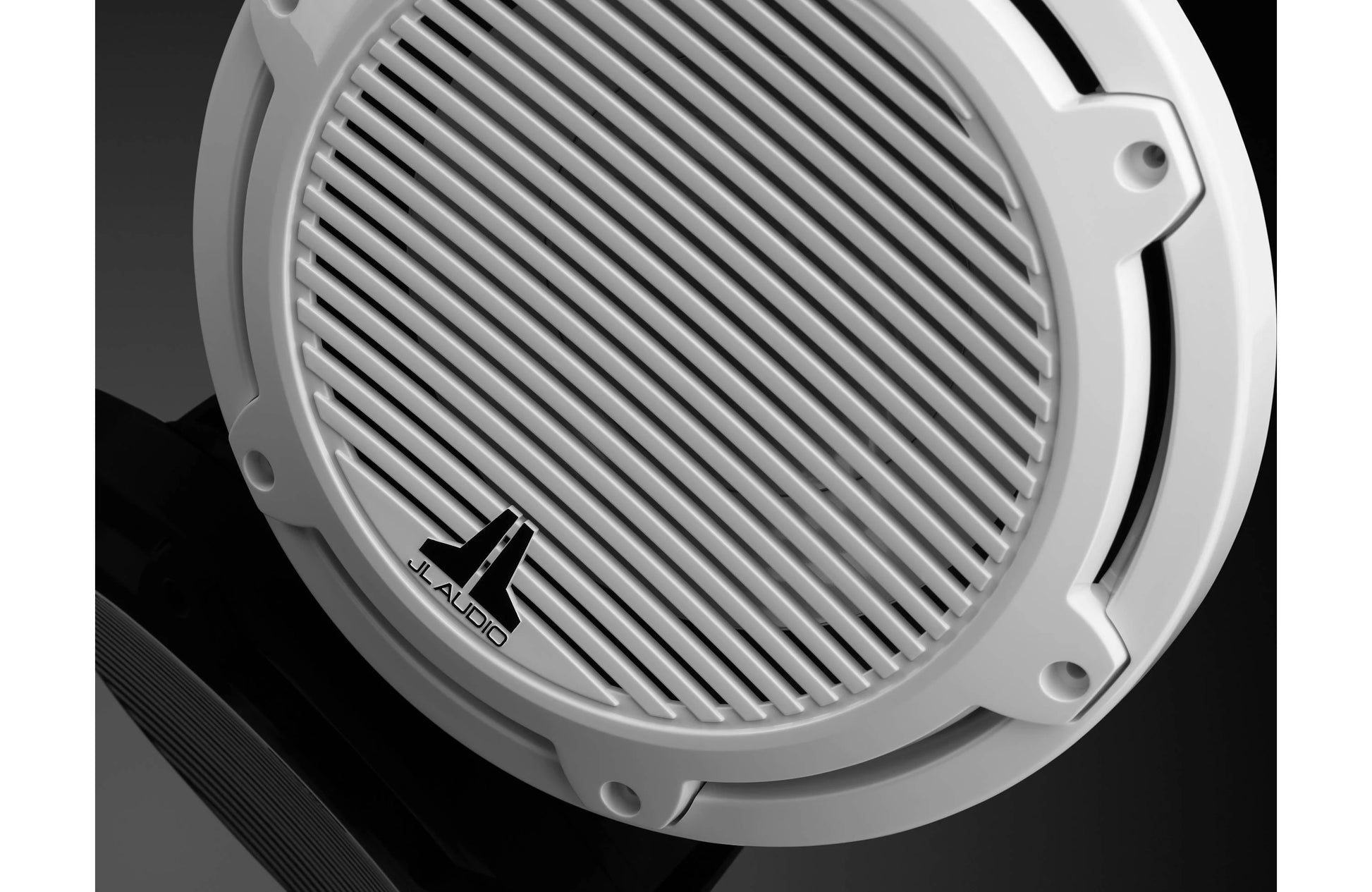

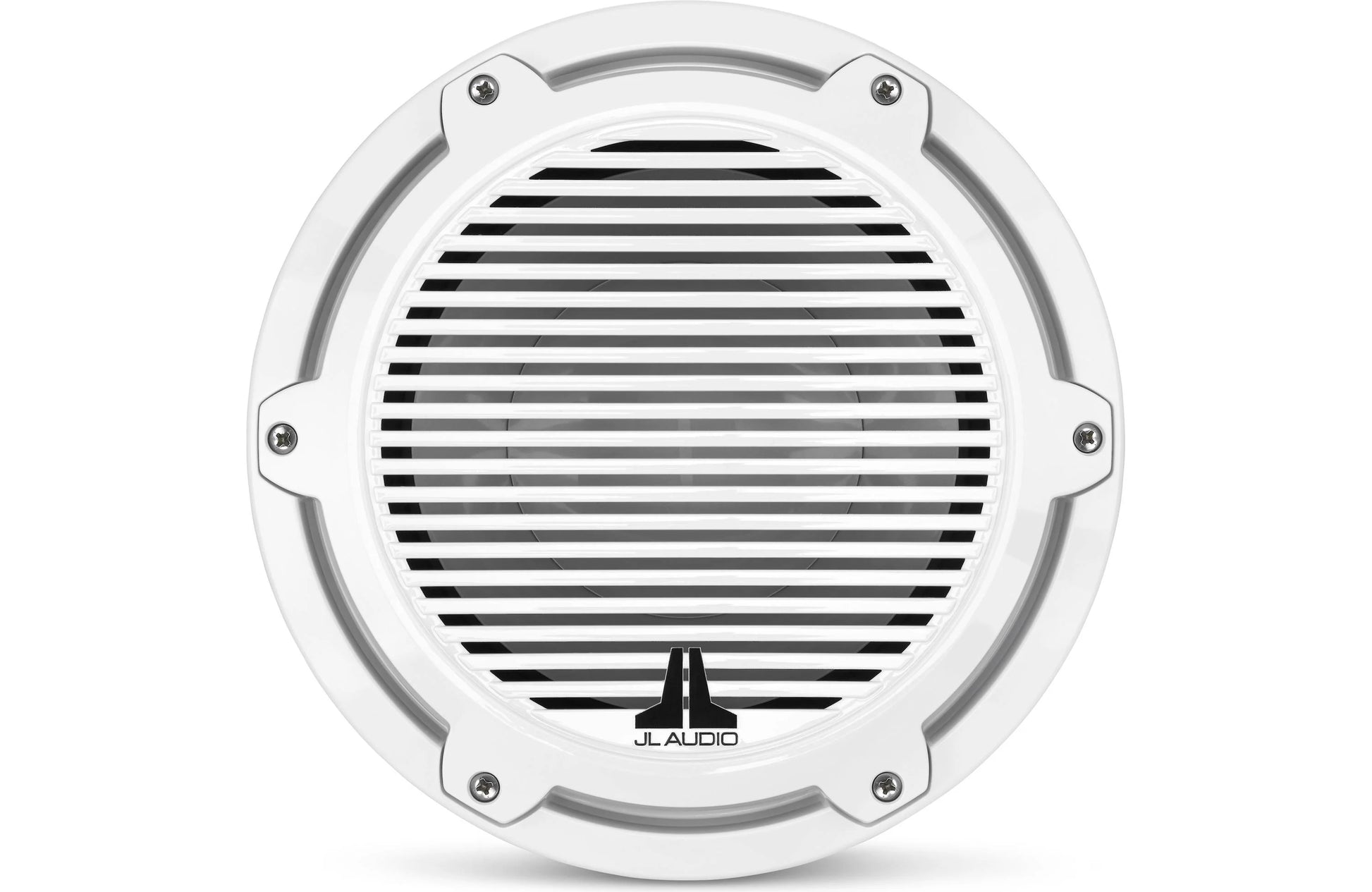

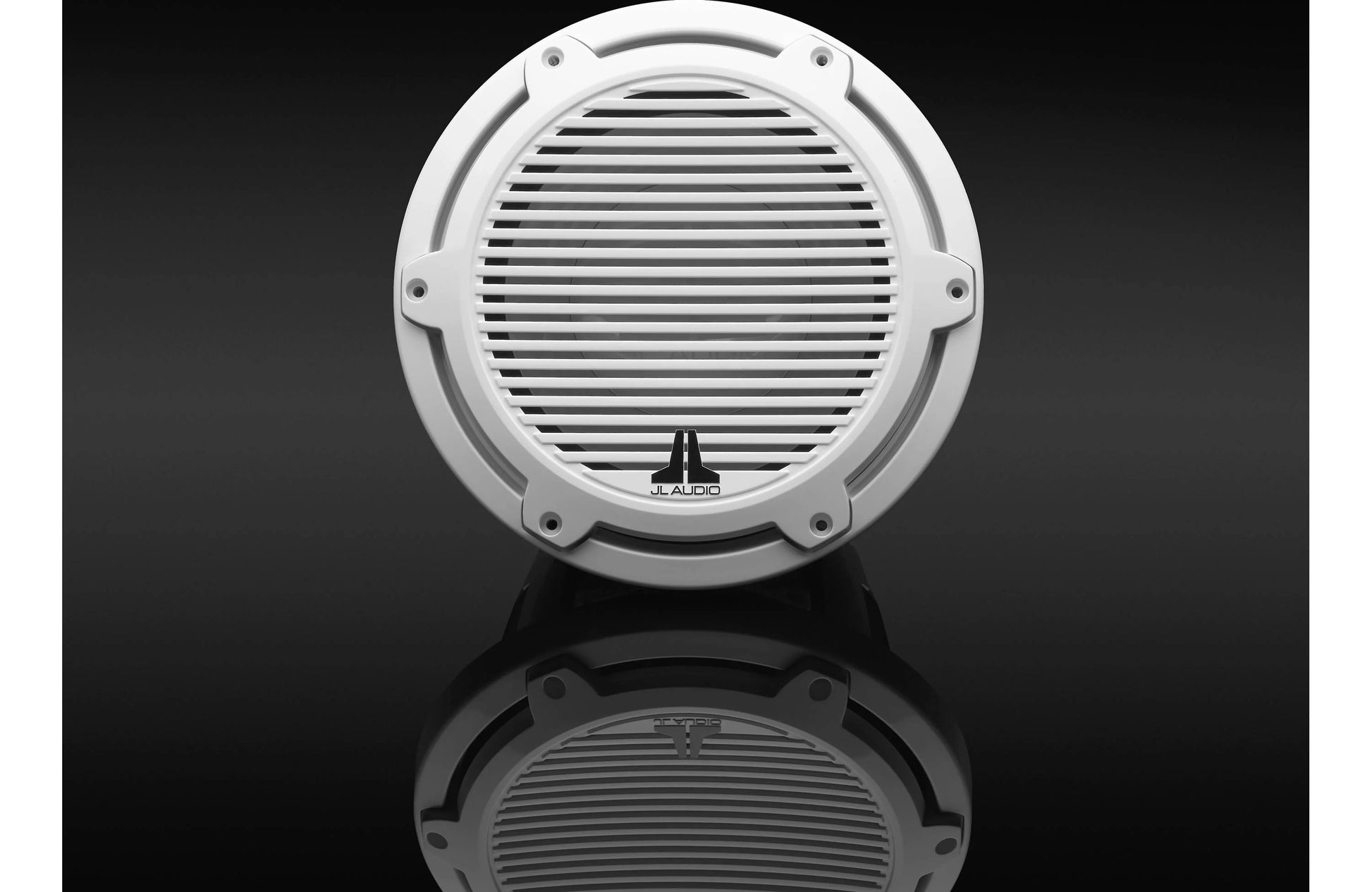

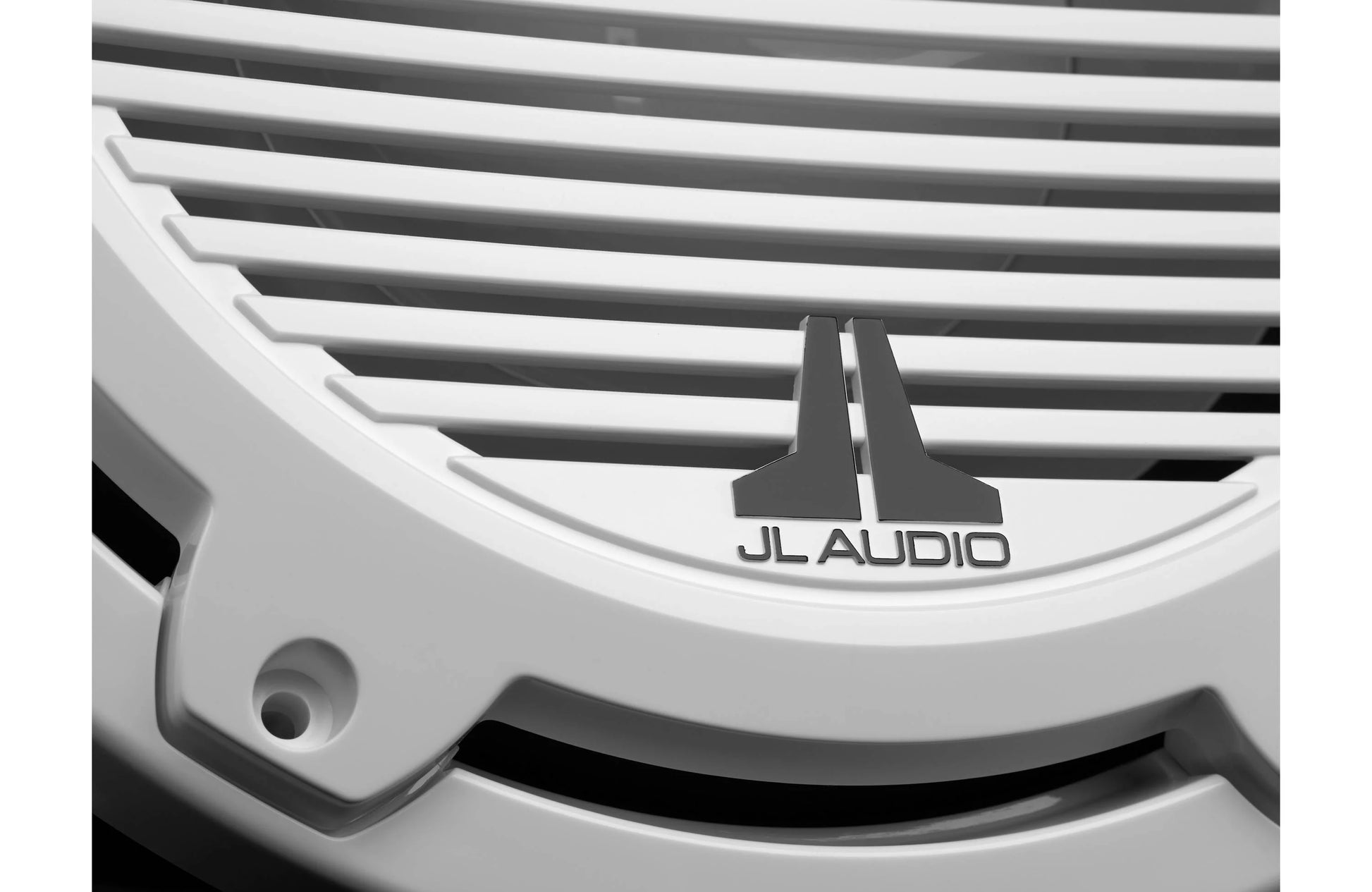

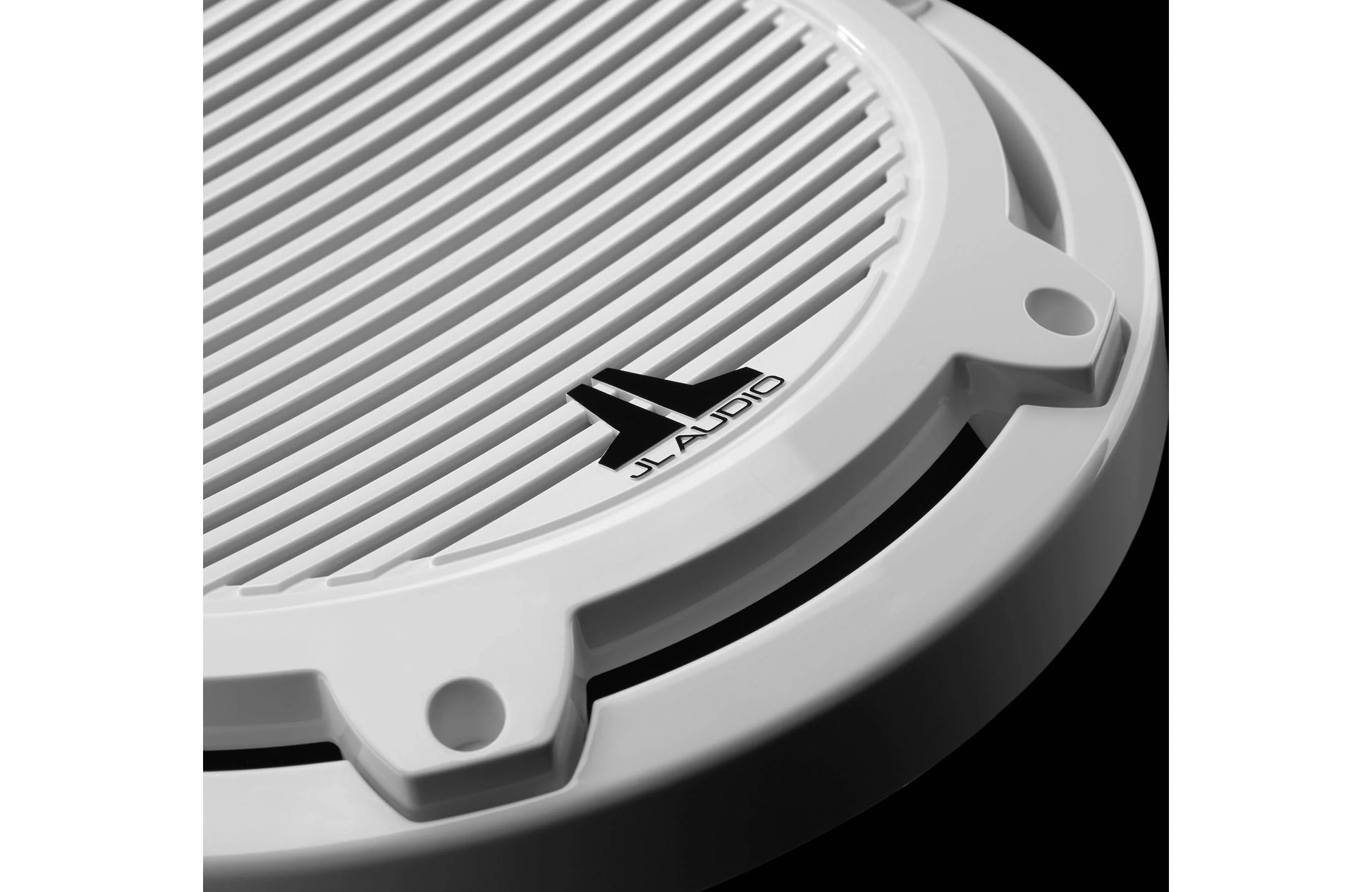

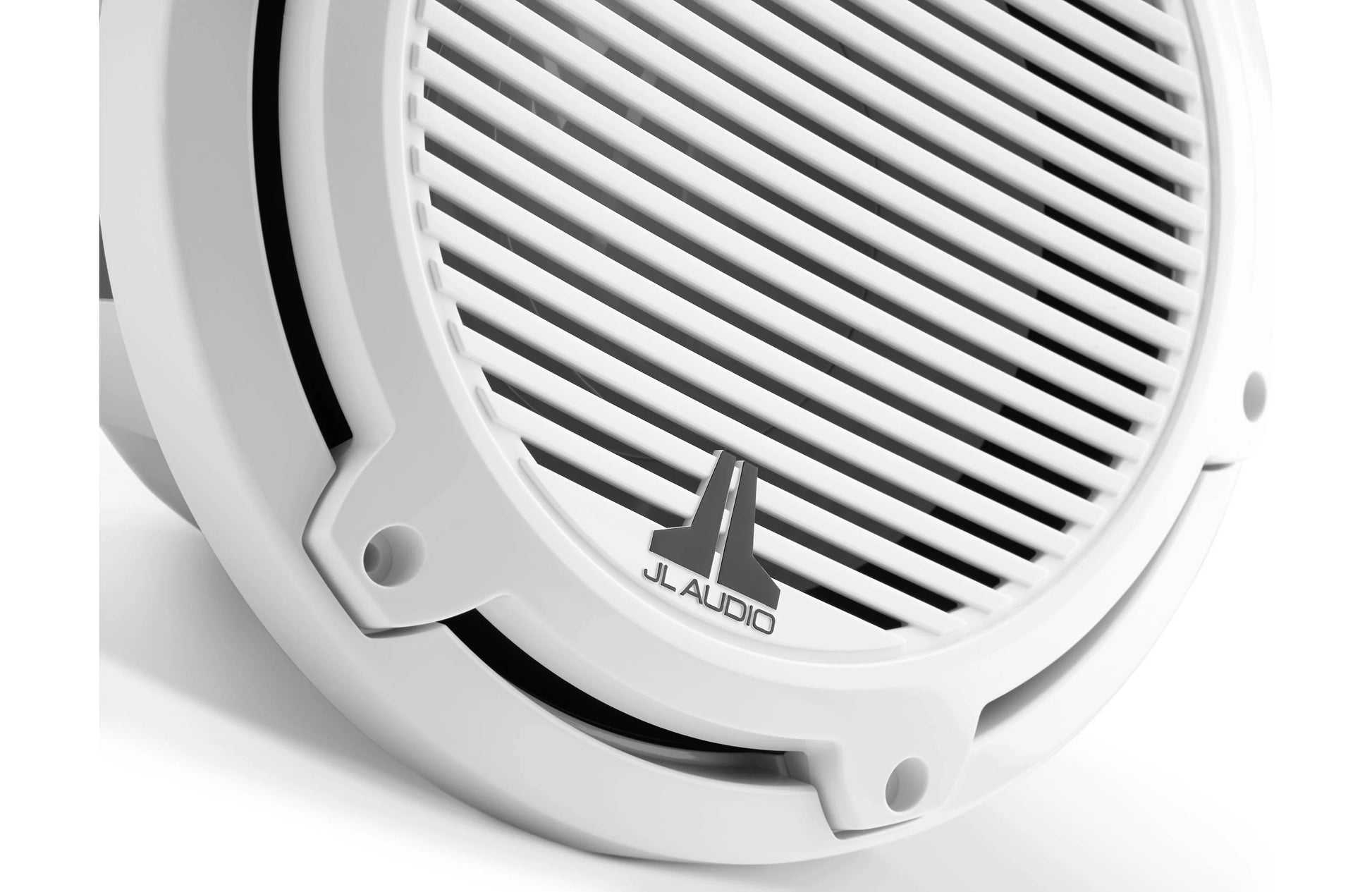

- Gloss White Classic grille for a clean OEM-style appearance
- Continuous power handling: 250 W RMS
- Nominal impedance: 4 Ω
- Designed for use without a dedicated enclosure (large open backing volume)
- DMA-optimized motor and long-excursion suspension for low distortion
- Purpose-built for real saltwater duty, UV exposure, and marine vibration
Technical Specifications
| Model | M6-10IB-C-GwGw-4 |
| Garmin PN | 010-03083-00 |
| JL Legacy PN | 93633 |
| UPC | 699440936330 |
| Size | 10" (250 mm) |
| Continuous Power (RMS) | 250 W |
| Recommended Amp Power | 75–250 W continuous |
| Nominal Impedance | 4 Ω (single voice coil) |
| Application | Infinite-baffle / free-air (no enclosure required) |
| Grille | Gloss White Classic |
| Mounting Hole Diameter | 8.875" (225 mm) |
| Mounting Depth Clearance | 5.90" (150 mm) |
| Frontal Grille Protrusion | 1.66" (42 mm) |
Ideal Applications
- Center consoles, pontoons, cruisers, and towboats needing real low-end output
- Factory-style marine installs where enclosure volume is not available
- System upgrades where main speakers need relief from deep-bass duties
- Multi-zone marine audio systems with dedicated cockpit or transom bass
What’s Included
- JL Audio M6-10IB-C-GwGw-4 10" marine infinite-baffle subwoofer
- Gloss White Classic grille (pre-installed)
- Mounting hardware (as supplied by JL Audio)
- Documentation / warranty information
Why Buy From MCOR Automotive
- Authorized JL Audio / Garmin dealer with real-world marine install experience
- Support matching M6 subs with JL marine amplifiers and full-range speakers
- Guidance on amp power, crossover points, and placement for open-air bass
