JL Audio M6-100CT-CS-GmTi 1" Marine Tweeter Pair Gray/Titanium 75W, 75W RMS, 4Ω 010-03501-00 (93694)
JL Audio M6-100CT-CS-GmTi 1" Marine Tweeter Pair Gray/Titanium 75W, 75W RMS, 4Ω 010-03501-00 (93694)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

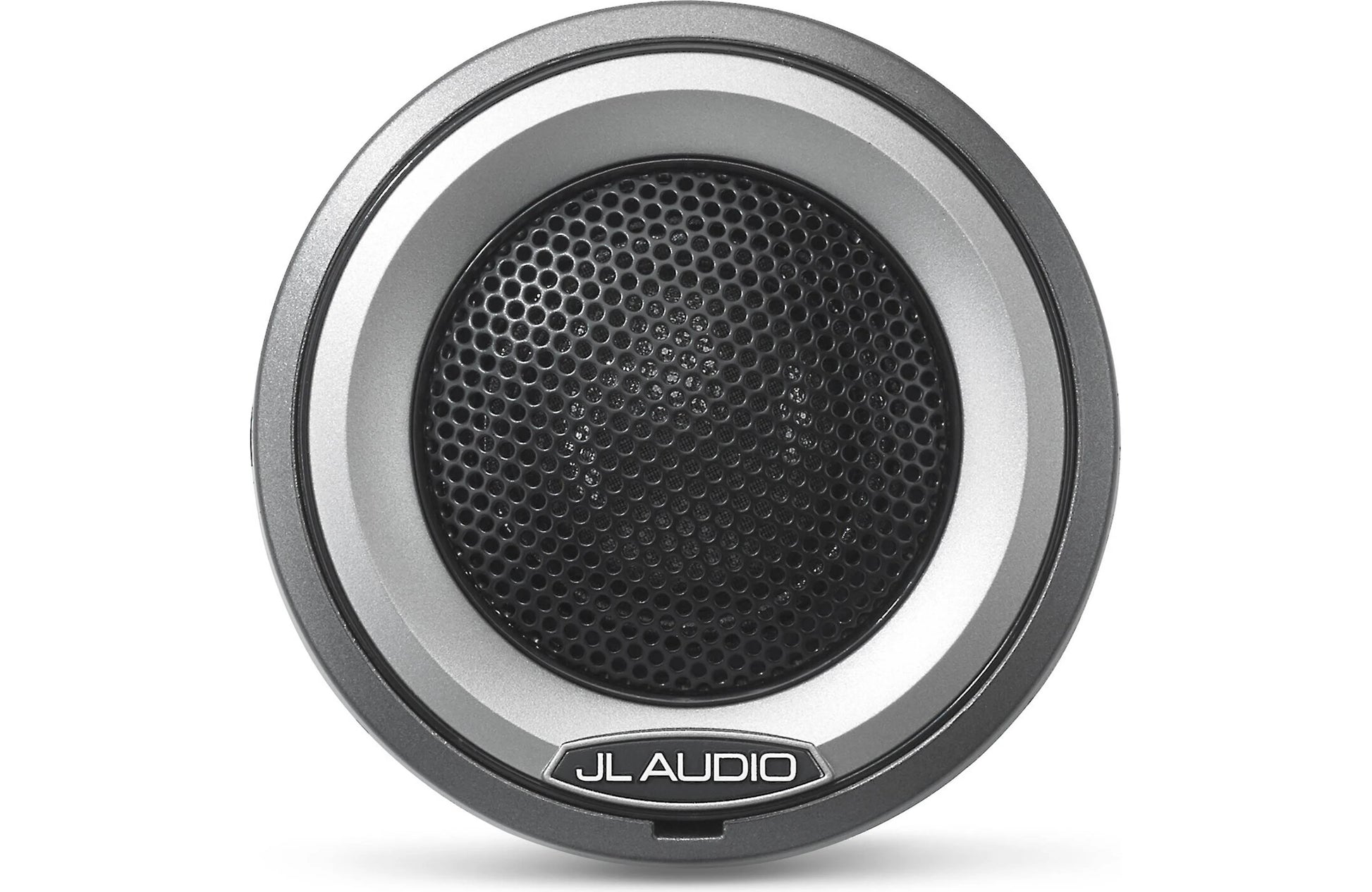

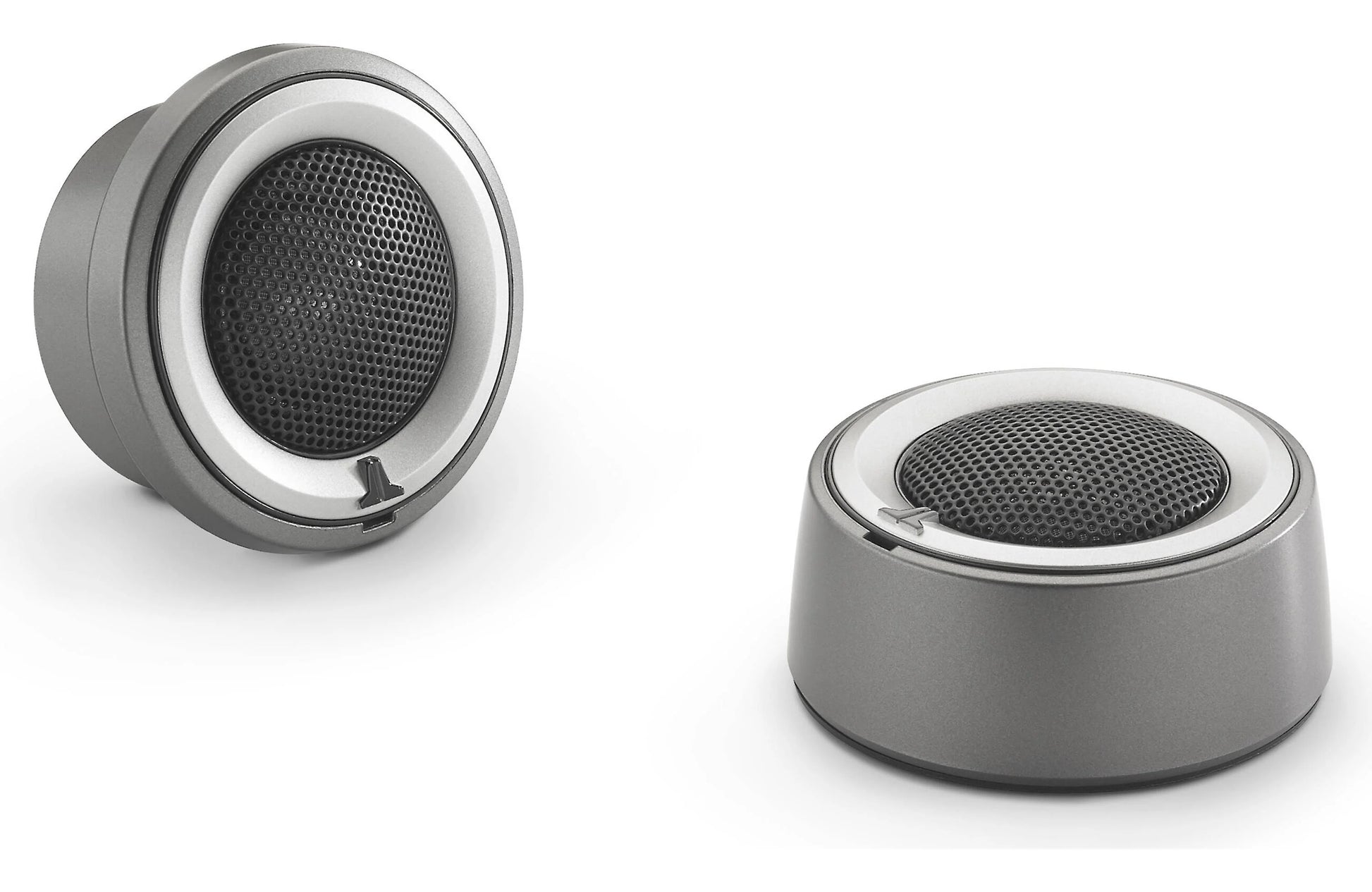

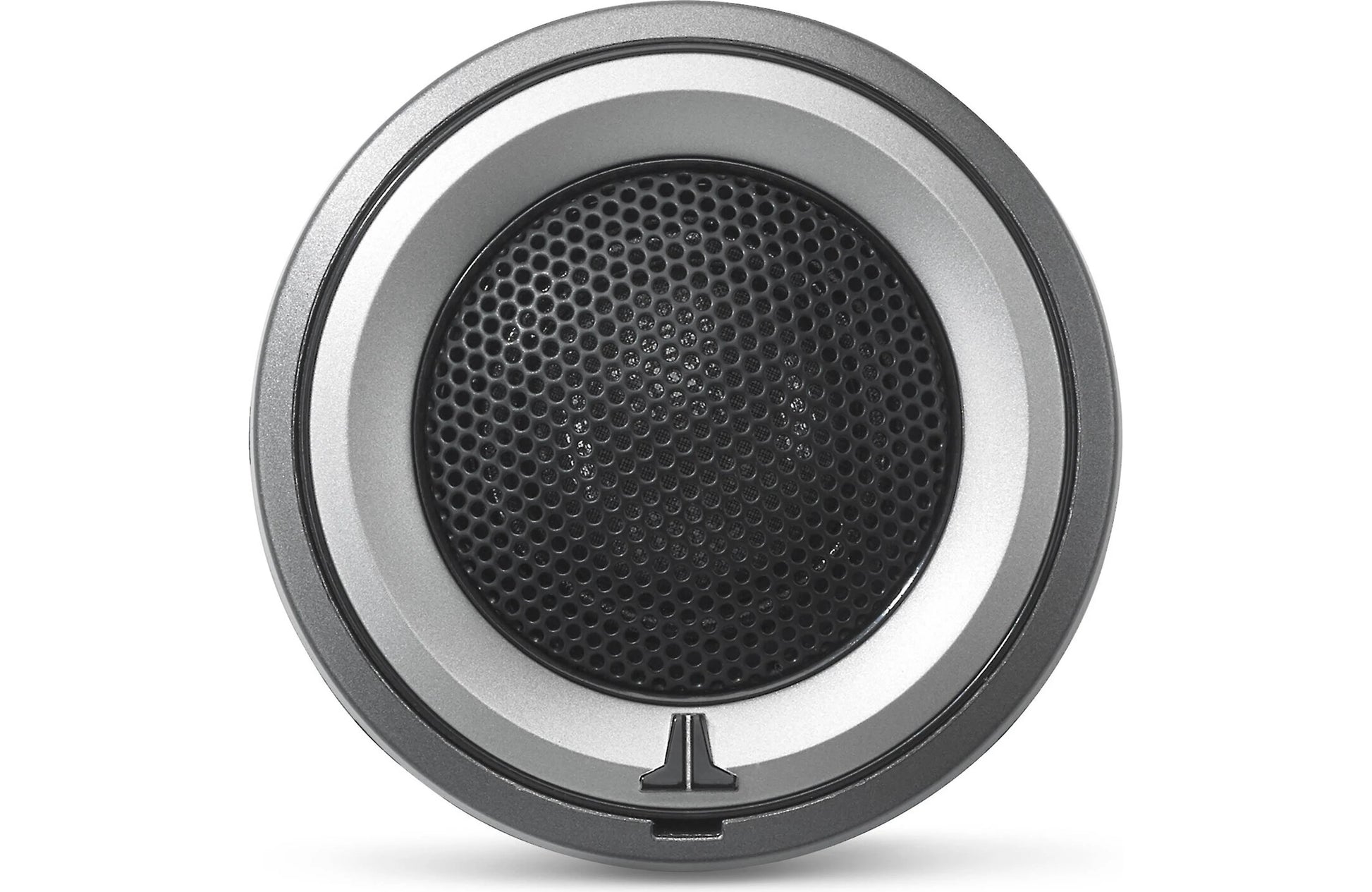

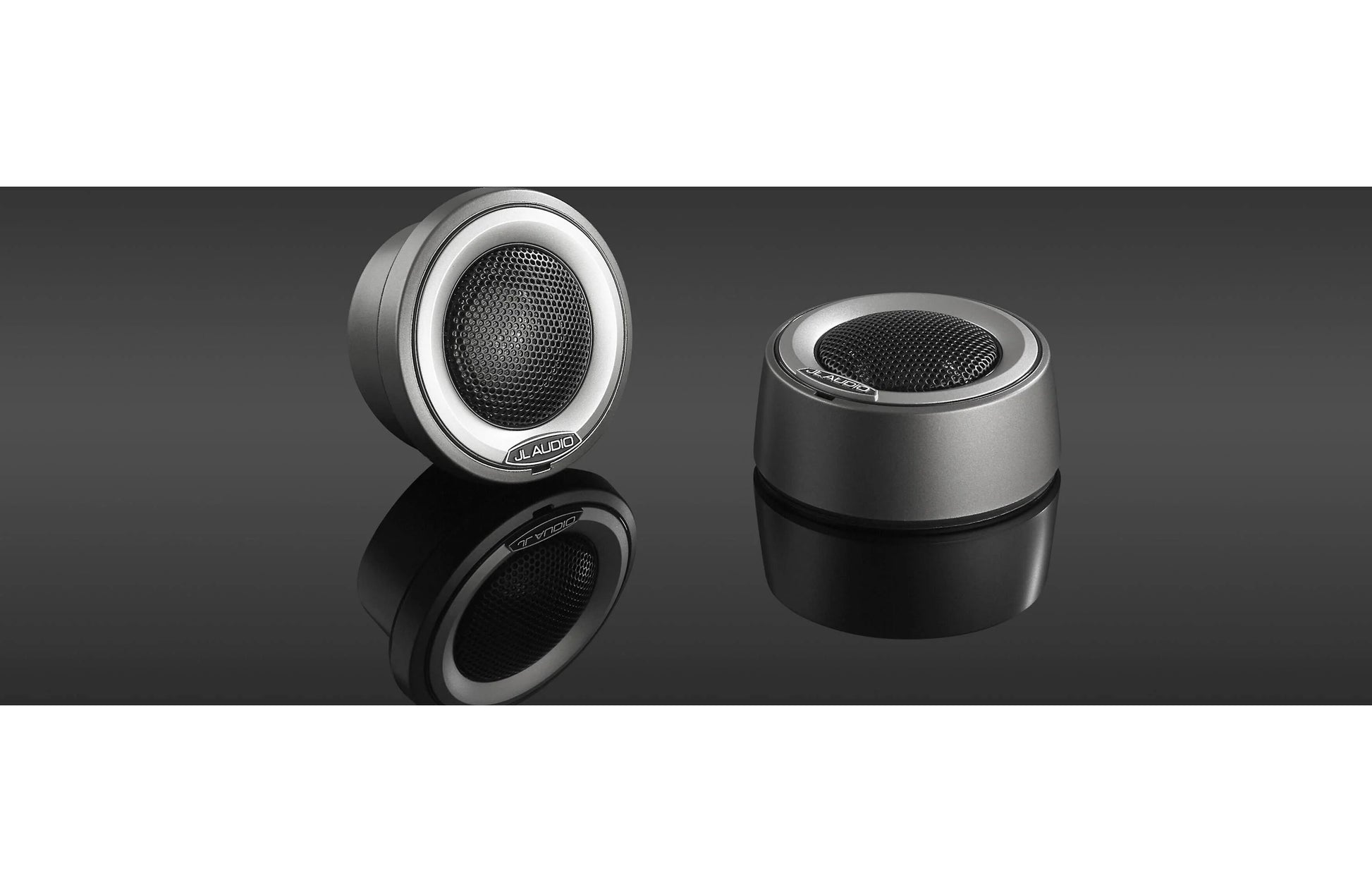

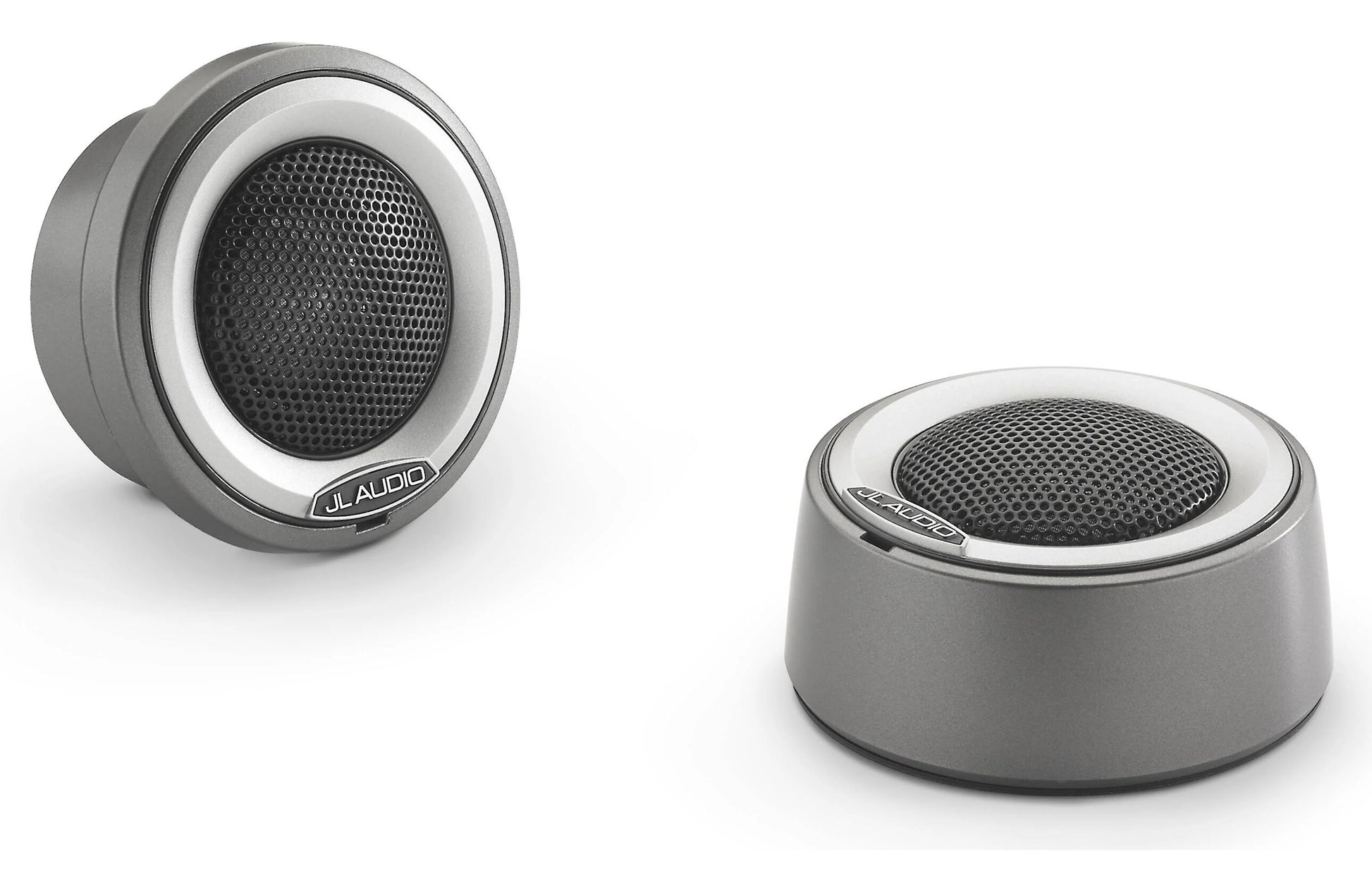

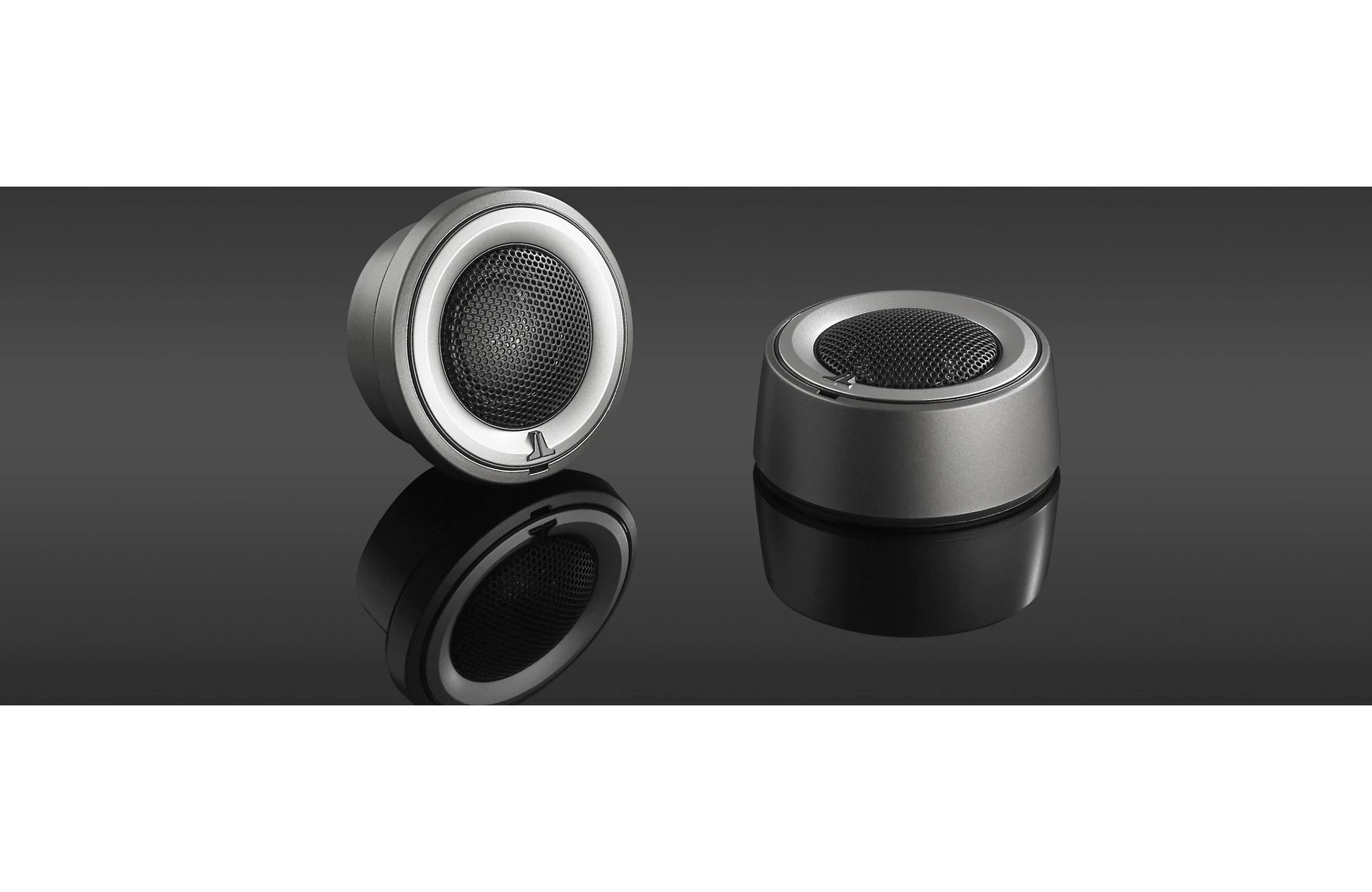

JL Audio M6-100CT-CS-GmTi is a 1" marine silk-dome tweeter pair engineered to extend high-frequency detail and stage height in M6-based systems. Each tweeter uses a compact marine-rated housing with optimized motor and dome geometry to maintain output and dispersion in open-air listening zones.
Rated for 75 W RMS at 4 Ω with a sensitivity of 91 dB, these tweeters are supplied with dedicated 3rd-order high-pass crossovers designed to protect the drivers and maintain clean integration with M6 midbass and coaxial speakers. Flush- and surface-mount hardware provide flexibility for helm pods, dash panels, and custom marine locations where elevated high-frequency performance is required.
Key Features
- 1" (25 mm) marine silk-dome tweeter pair
- Continuous power handling: 75 W RMS (per tweeter)
- Nominal 4 Ω impedance
- 91 dB sensitivity (1 W/1 m)
- Outboard 3rd-order high-pass crossovers included
- Designed to integrate with JL M6 marine speakers and amplifiers
- Gray Metallic/Titanium cosmetic package
- UV and corrosion-resistant marine construction
- Flush- and surface-mount hardware included
Technical Specifications
| Model | M6-100CT-CS-GmTi |
| Garmin PN | 010-03501-00 |
| JL Legacy PN | 93694 |
| UPC | 699440936941 |
| Impedance | 4 Ω |
| RMS Power Handling | 75 W |
| Recommended Amp Power | 10–75 W RMS per channel |
| Sensitivity | 91 dB @ 1 W/1 m |
| Frequency Response | 4.8 kHz – 25 kHz |
| Tweeter Diameter (flush) | ≈2.61" (66 mm) |
| Tweeter Diameter (surface) | ≈2.67" (68 mm) |
| Cutout Diameter | ≈2.12" (54 mm) |
| Mounting Depth | ≈1.20" (30 mm) |
Ideal Applications
- Marine and watersports systems needing extended high-frequency detail
- Adding dedicated tweeters to existing M6 coaxial or component layouts
- Helm, dash, and pod locations where directional highs are required
- Multi-zone marine installs focused on clarity and definition

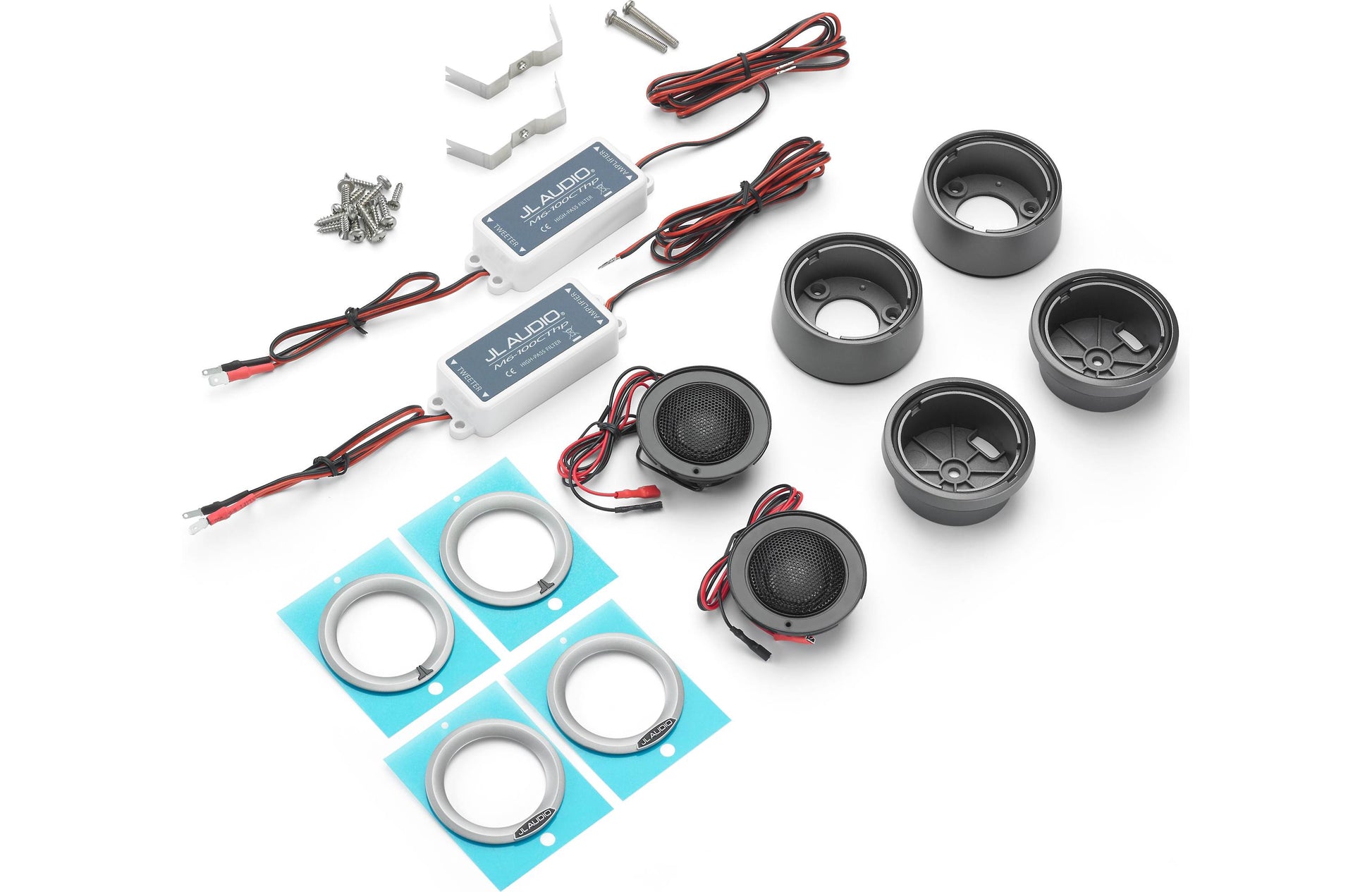

What’s Included
- Pair of JL Audio M6-100CT-CS-GmTi 1" marine tweeters
- Outboard 3rd-order high-pass crossovers
- Flush- and surface-mount cups
- Mounting hardware
- Documentation
Why Buy From MCOR Automotive
- Authorized JL Audio dealer using verified spec data
- System design support for M6-based marine and powersports installs
- Guidance on amplifier gain structure and crossover setup
- 20+ years in high-end 12-volt and marine integration
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
