JL Audio M6-100CT-C/S-GwGm 1" Marine Component Tweeters Pair 75W RMS 010-03500-00 (93693)
JL Audio M6-100CT-C/S-GwGm 1" Marine Component Tweeters Pair 75W RMS 010-03500-00 (93693)
Couldn't load pickup availability
***This item may have an additional 3 days handling time***

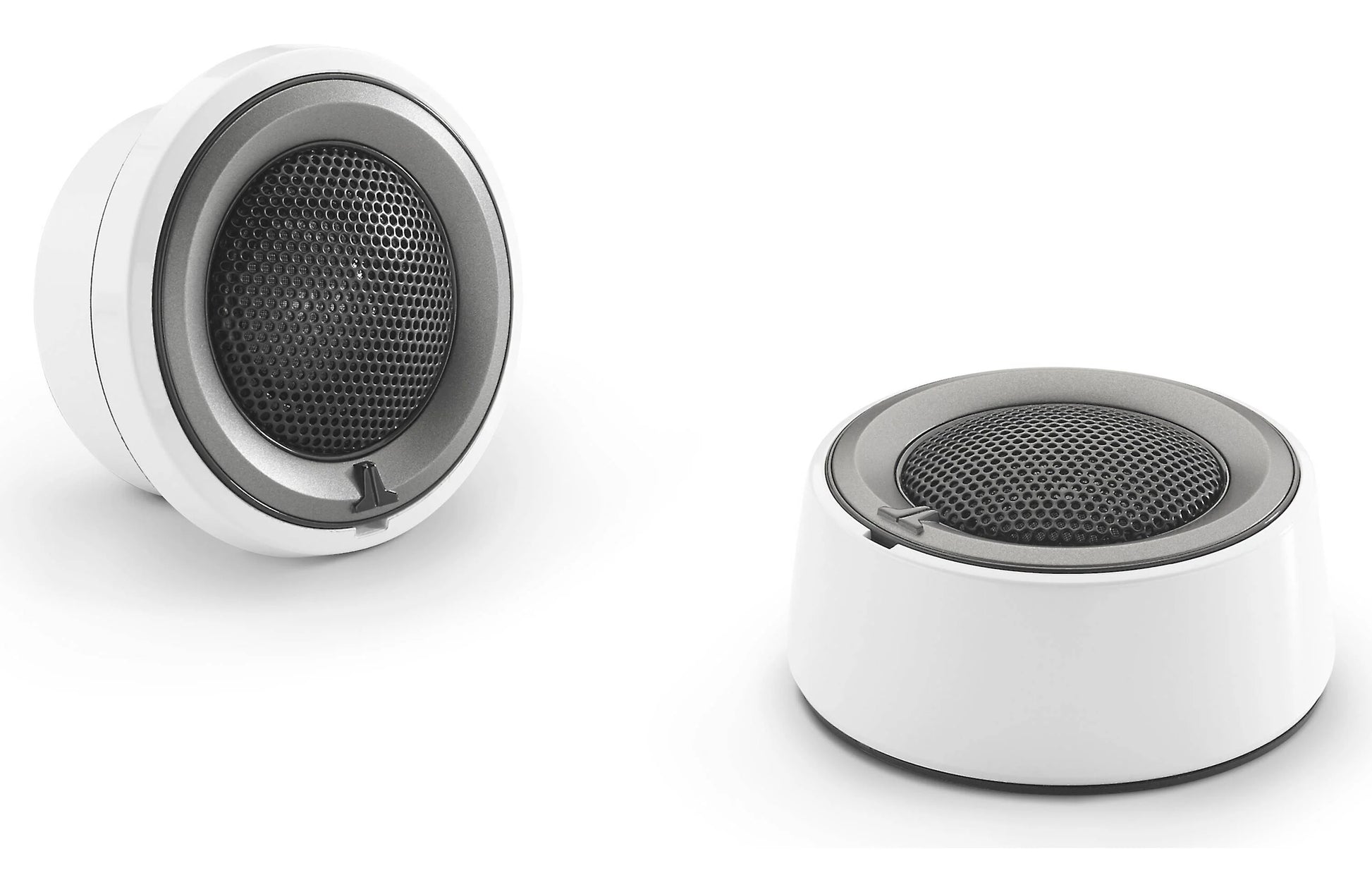

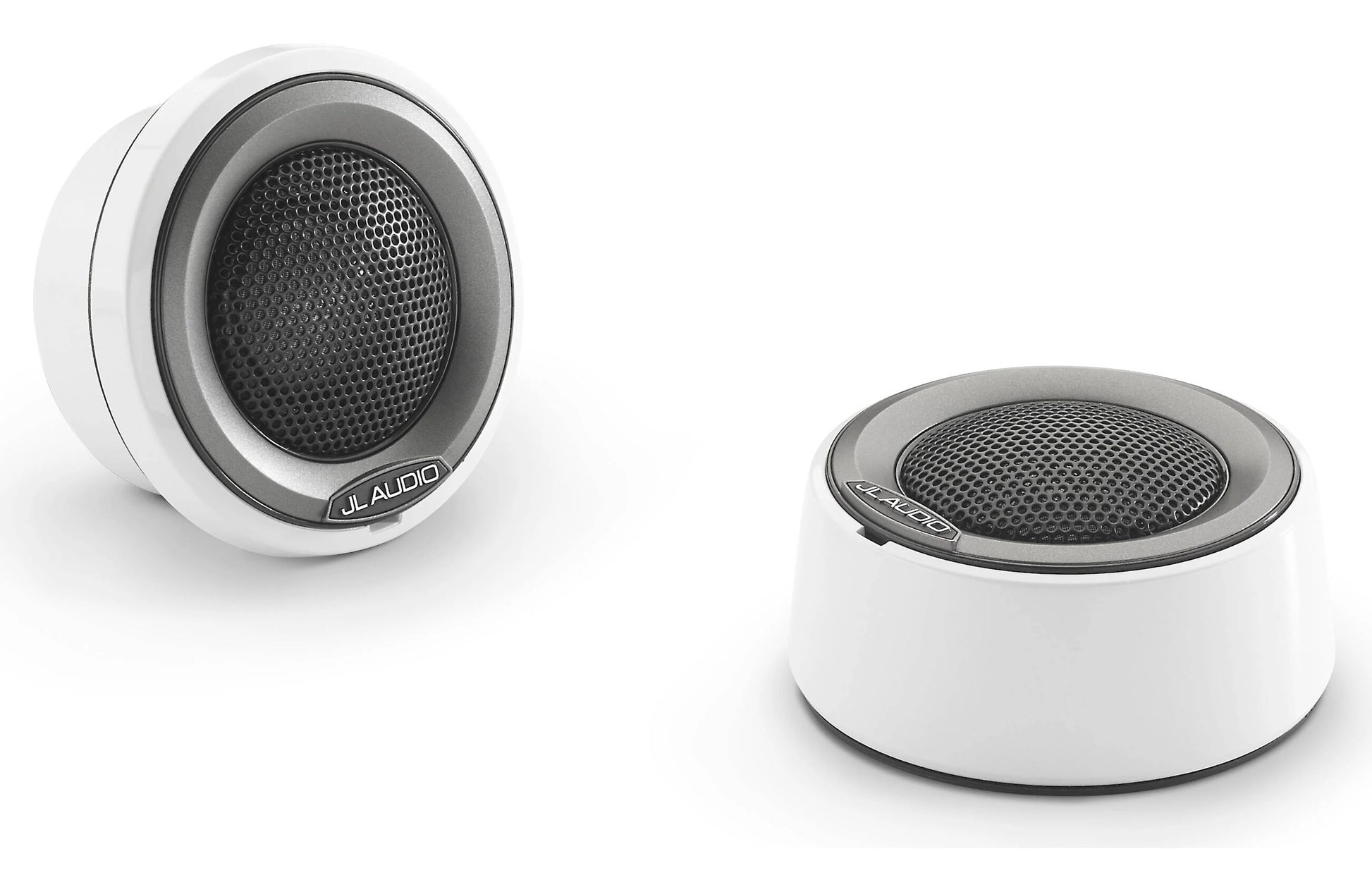

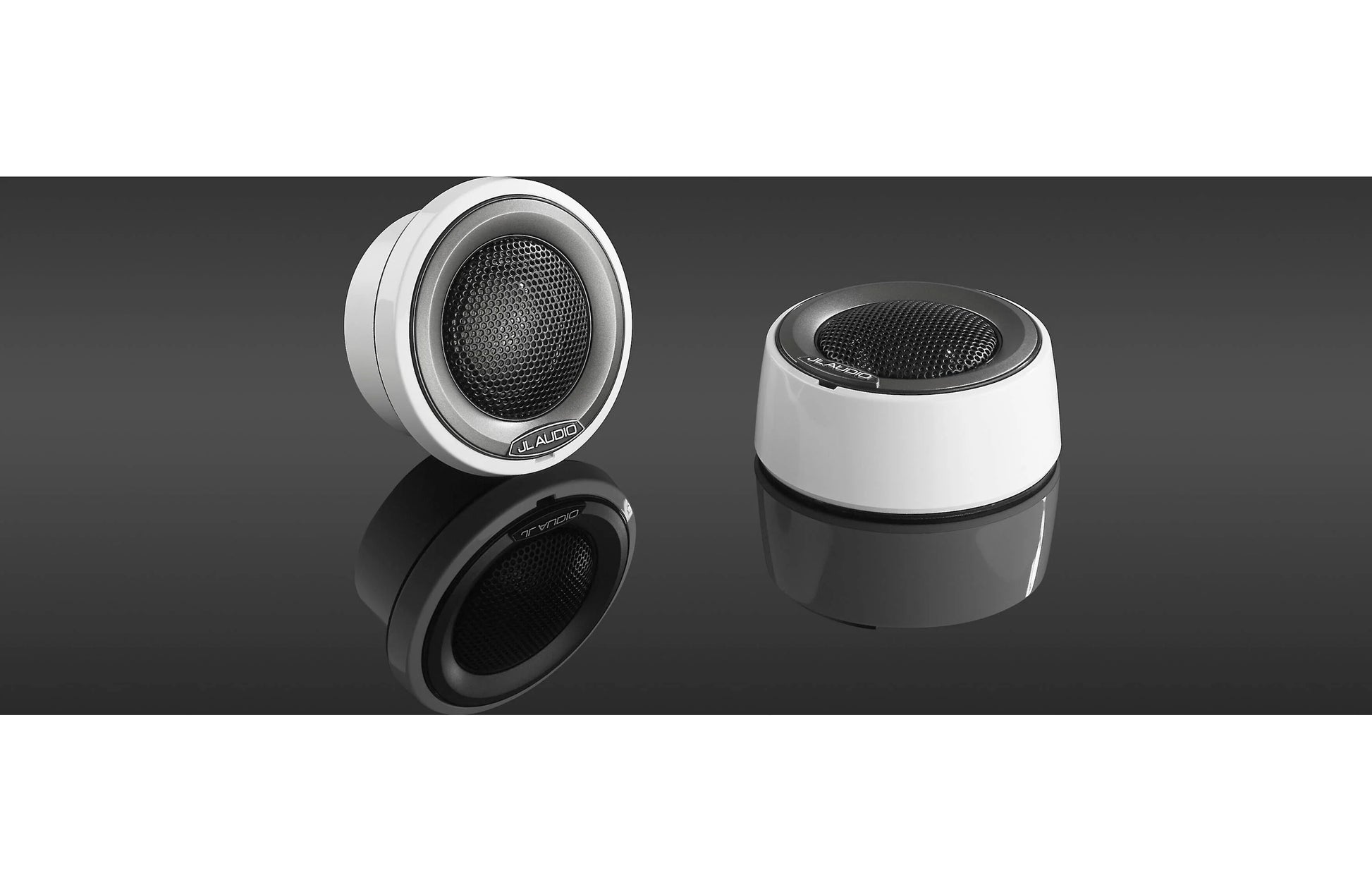

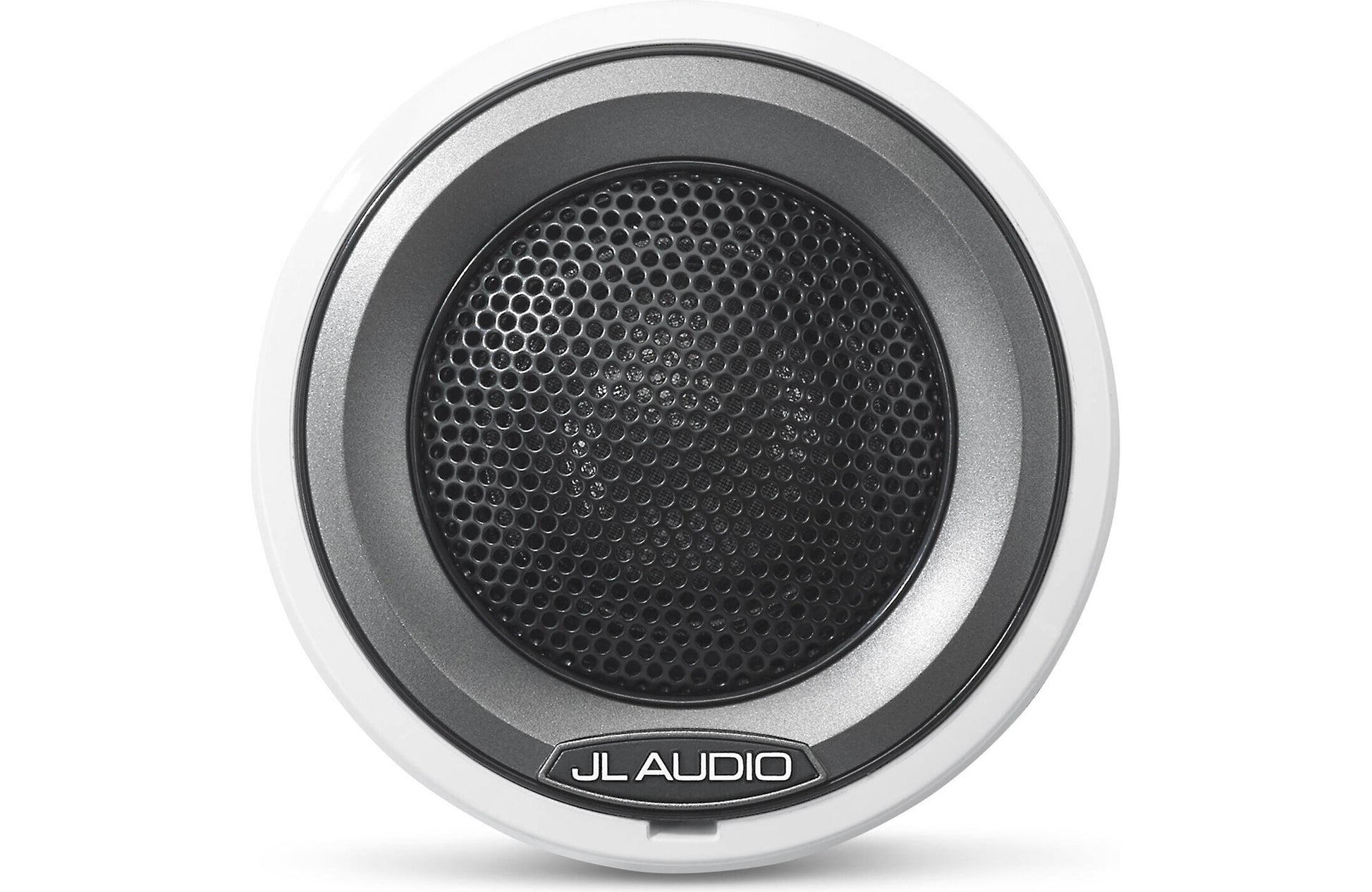

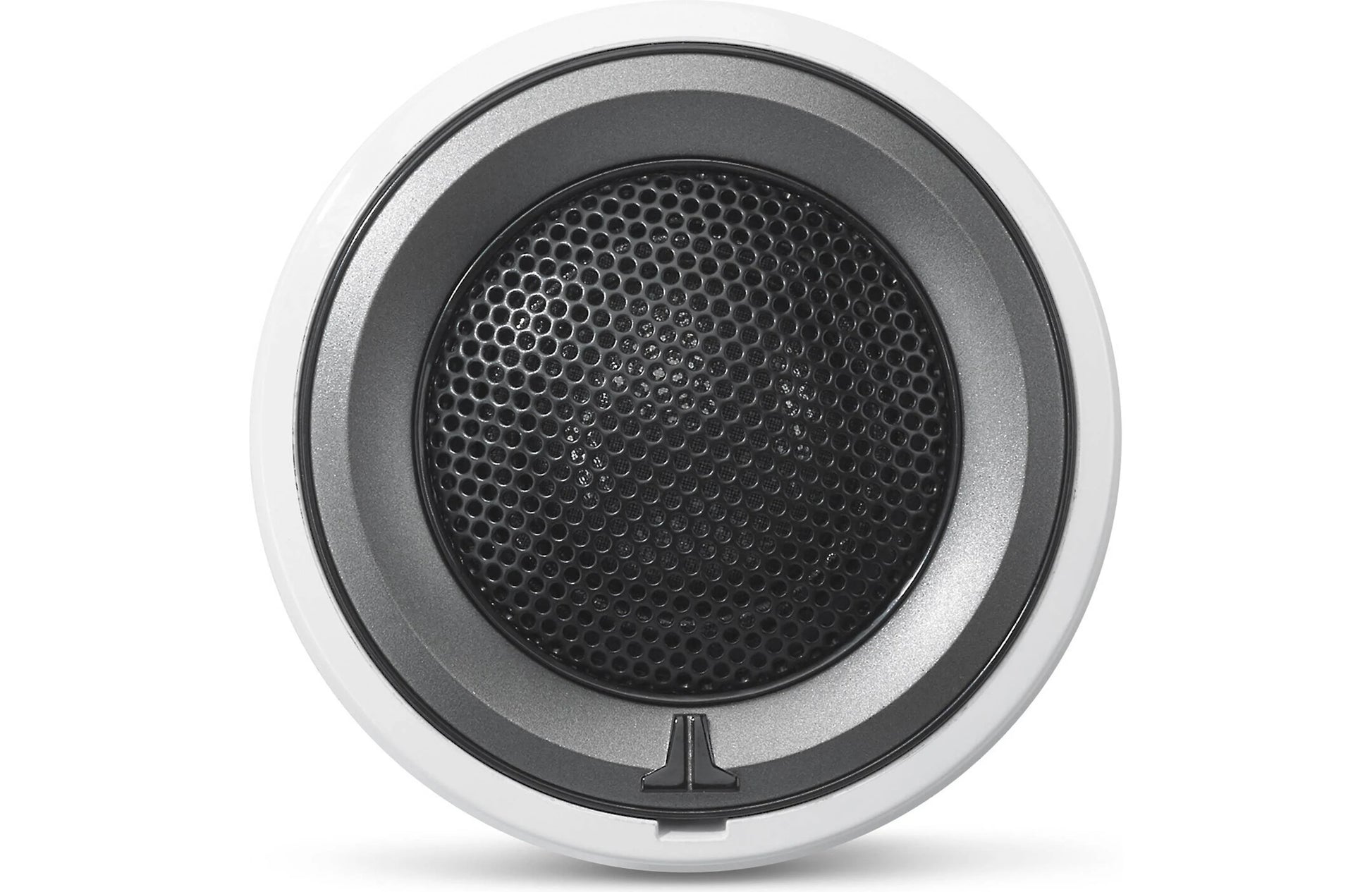

JL Audio M6-100CT-C/S-GwGm is a pair of 1" white/titanium marine component tweeters engineered to deliver wide dispersion and detailed high-frequency clarity in real marine audio systems. Each tweeter utilizes a premium silk dome diaphragm for smooth, extended highs that cut through wind, water, and ambient noise common on boats and watersports craft. These tweeters are built for true marine duty with UV and corrosion-resistant materials and protective finishes.
Aimed at elevating system top end, this set handles up to 75 W RMS per tweeter with a nominal 4 Ω impedance and includes outboard 3rd-order high-pass crossovers to protect the drivers and integrate cleanly with midbass systems. The package includes both surface and flush mount housings plus dual trim rings (“Classic” and “Sport”) to customize the look of the installation.
Key Features
- 1" marine component tweeters pair with silk dome diaphragms
- 75 W RMS continuous power handling per tweeter
- Nominal 4 Ω impedance
- Outboard 3rd-order high-pass crossovers included
- Flush and surface mount housings included
- Includes “Classic” and “Sport” badge trim rings
- Corrosion- and UV-resistant marine design
Technical Specifications
| Model | M6-100CT-C/S-GwGm |
| Garmin PN | 010-03500-00 |
| JL Legacy PN | 93693 |
| UPC | 699440936934 |
| Nominal Impedance | 4 Ω |
| RMS Power Handling | 75 W per tweeter |
| Peak Power Handling | 150 W per tweeter |
| Sensitivity | ≈91 dB |
| Frequency Response | ≈4.8 kHz – 25 kHz |
| Tweeter Diameter | 1" (25 mm) |
| Mounting Options | Flush or surface |
Ideal Applications
- Marine and watersports audio systems needing refined high-frequency detail
- Component upgrades paired with marine midbass or coaxial systems
- Custom helm, dash, or pod locations where highs define clarity
- Systems driven by 10–75 W per channel marine amplifiers

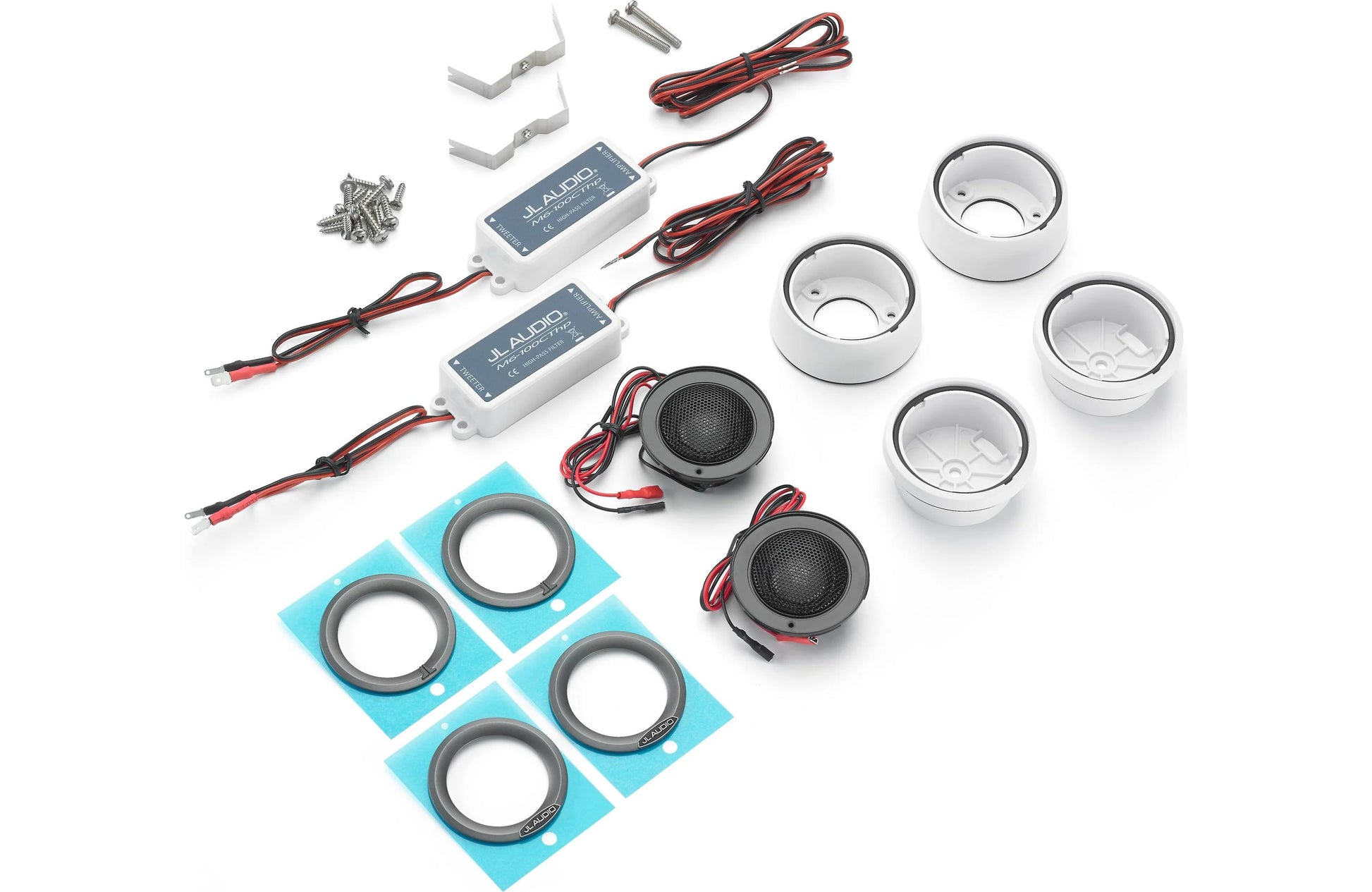

What’s Included
- Pair of JL Audio M6-100CT-C/S-GwGm marine tweeters
- Outboard 3rd-order high-pass crossovers
- Surface and flush mount housings
- Classic and Sport trim rings
- Mounting hardware
- Documentation
