JL Audio LoC-22 2-Channel Line Output Converter 010-03328-00 (98413)
JL Audio LoC-22 2-Channel Line Output Converter 010-03328-00 (98413)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

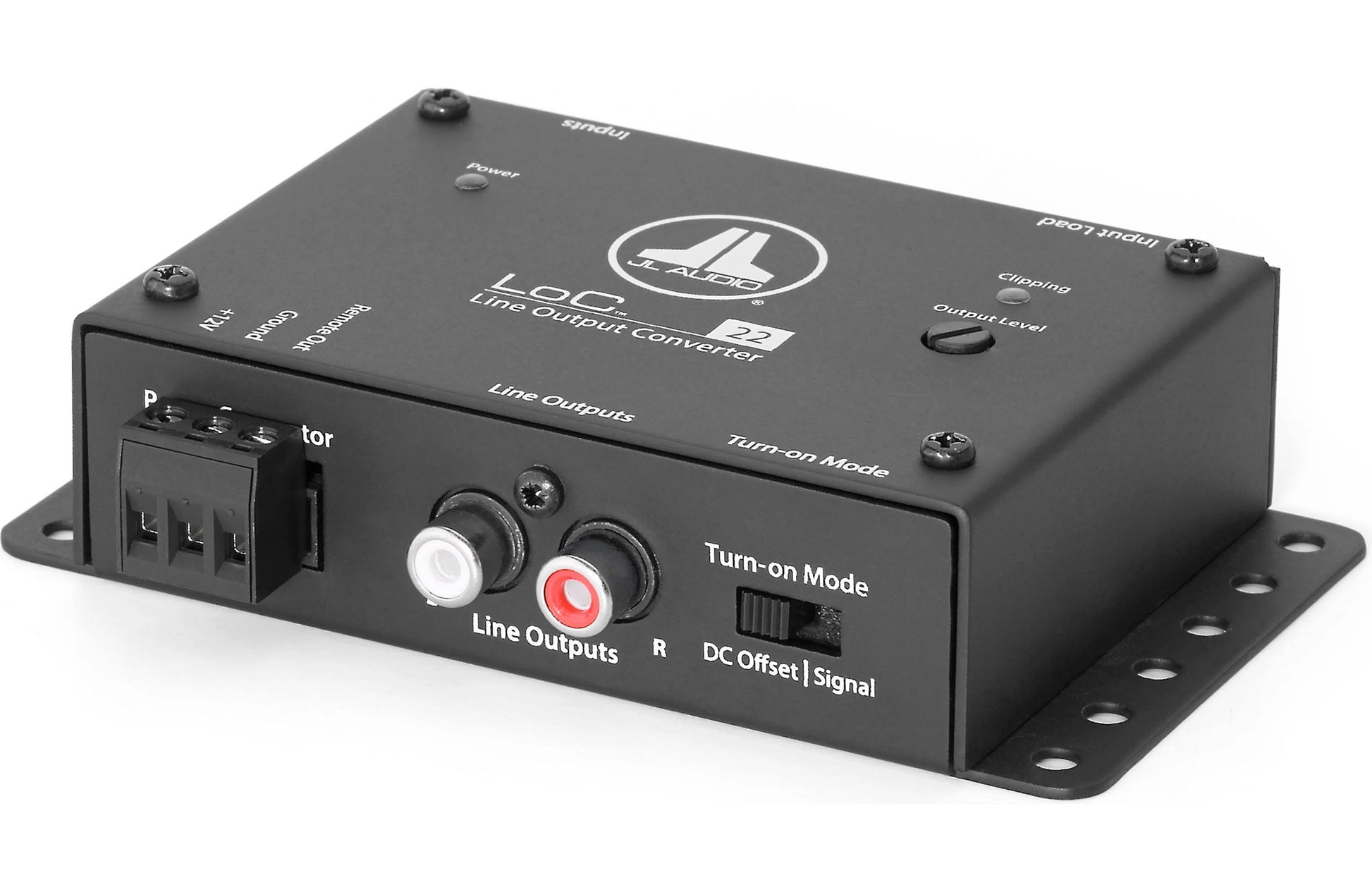

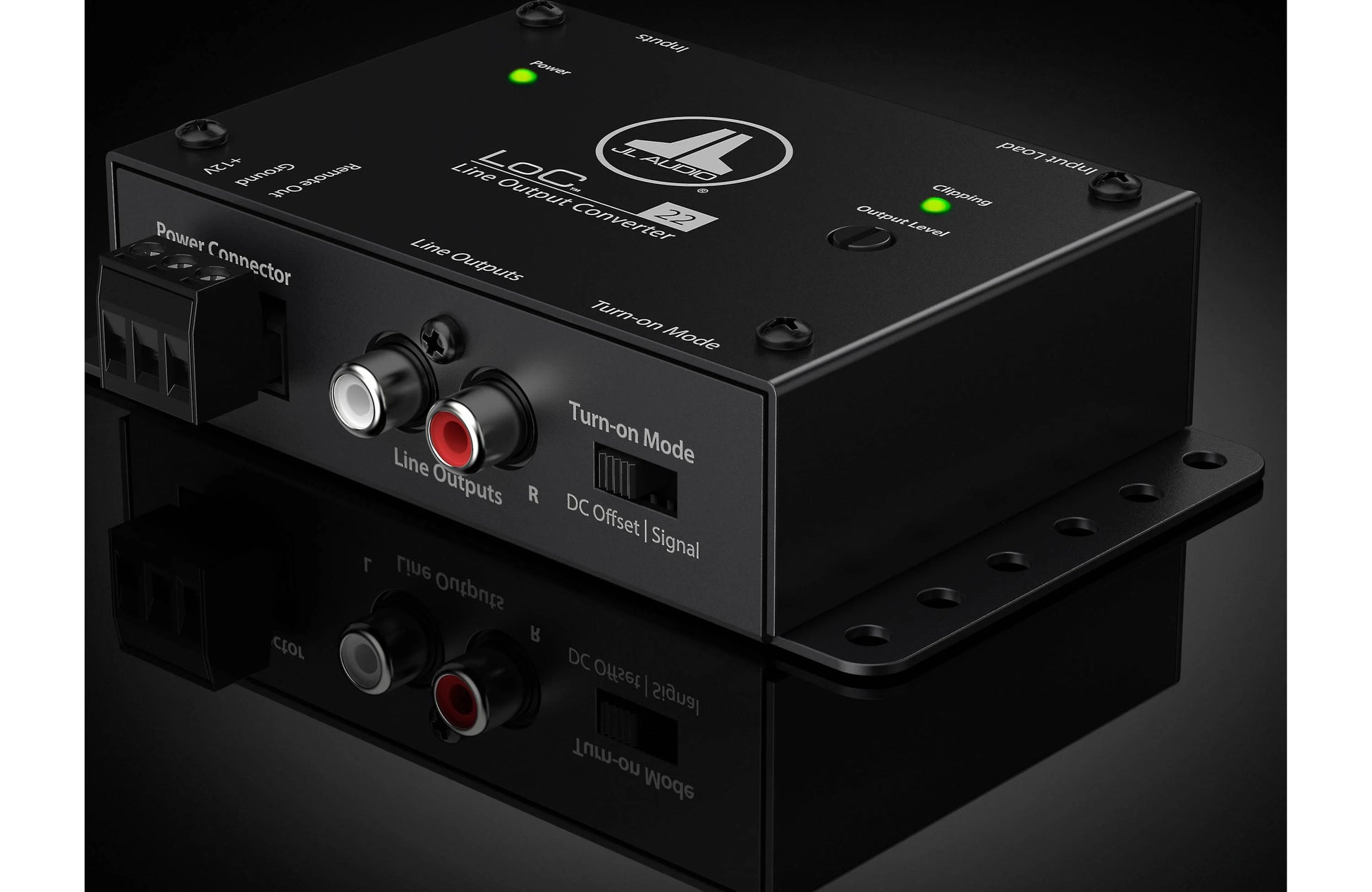

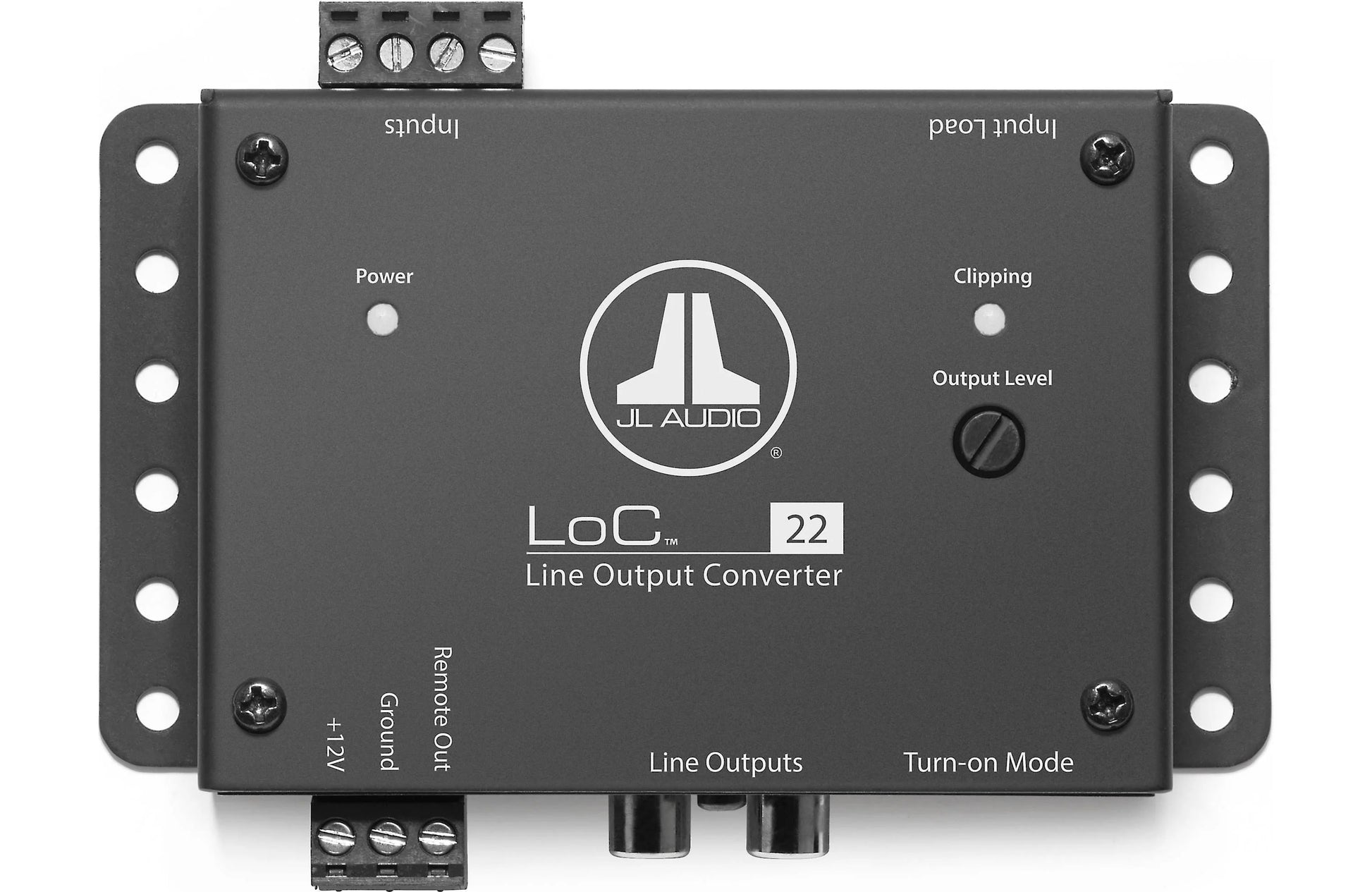

JL Audio LoC-22 Line Output Converter is a fully active 2-channel OEM integration module engineered to derive clean, adjustable RCA-level outputs from factory speaker-level sources. Designed for vehicles lacking preamp outputs, the LoC-22 enables seamless amplifier and processor upgrades while preserving OEM head units and control systems.
The converter accepts up to 40 V RMS high-level input per channel and delivers up to 8 V RMS stereo RCA outputs for downstream amplifiers. A differential-balanced input stage improves noise rejection and reduces induced interference, while auto turn-on logic (signal-sense or DC-offset) provides a dedicated 12 V remote out for aftermarket components. Adjustable level and clipping indication simplify gain matching during setup.
Key Features
- Fully active 2-channel OEM integration converter
- High-level inputs convert to adjustable low-level RCA outputs
- Accepts up to 40 V RMS per channel
- Differential-balanced input architecture for noise rejection
- Automatic turn-on (signal-sense or DC-offset)
- Dedicated 12 V remote turn-on output
- Clipping indicator for accurate gain matching
- Compact form factor for discreet installation
Technical Specifications
| Model | LoC-22 |
| Garmin PN | 010-03328-00 |
| JL Legacy PN | 98413 |
| UPC | 699440984133 |
| Type | 2-channel active line output converter |

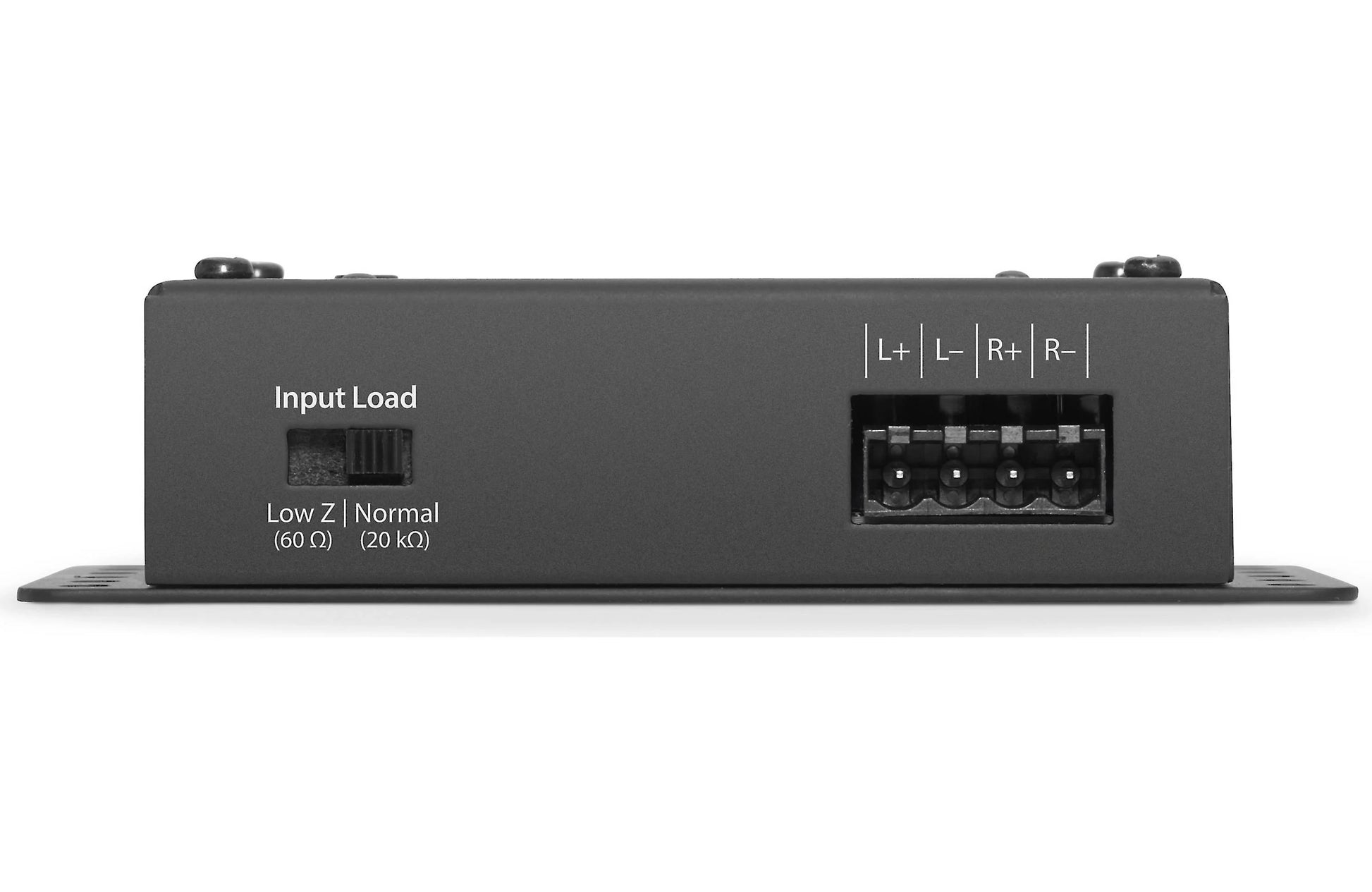

| Input Type | Speaker-level, differential-balanced |
| Max Input Voltage | Up to 40 V RMS / ch |
| Output Voltage | Up to 8 V RMS (stereo RCA) |
| Frequency Response | 3 Hz – 32 kHz (+0/-1 dB) |

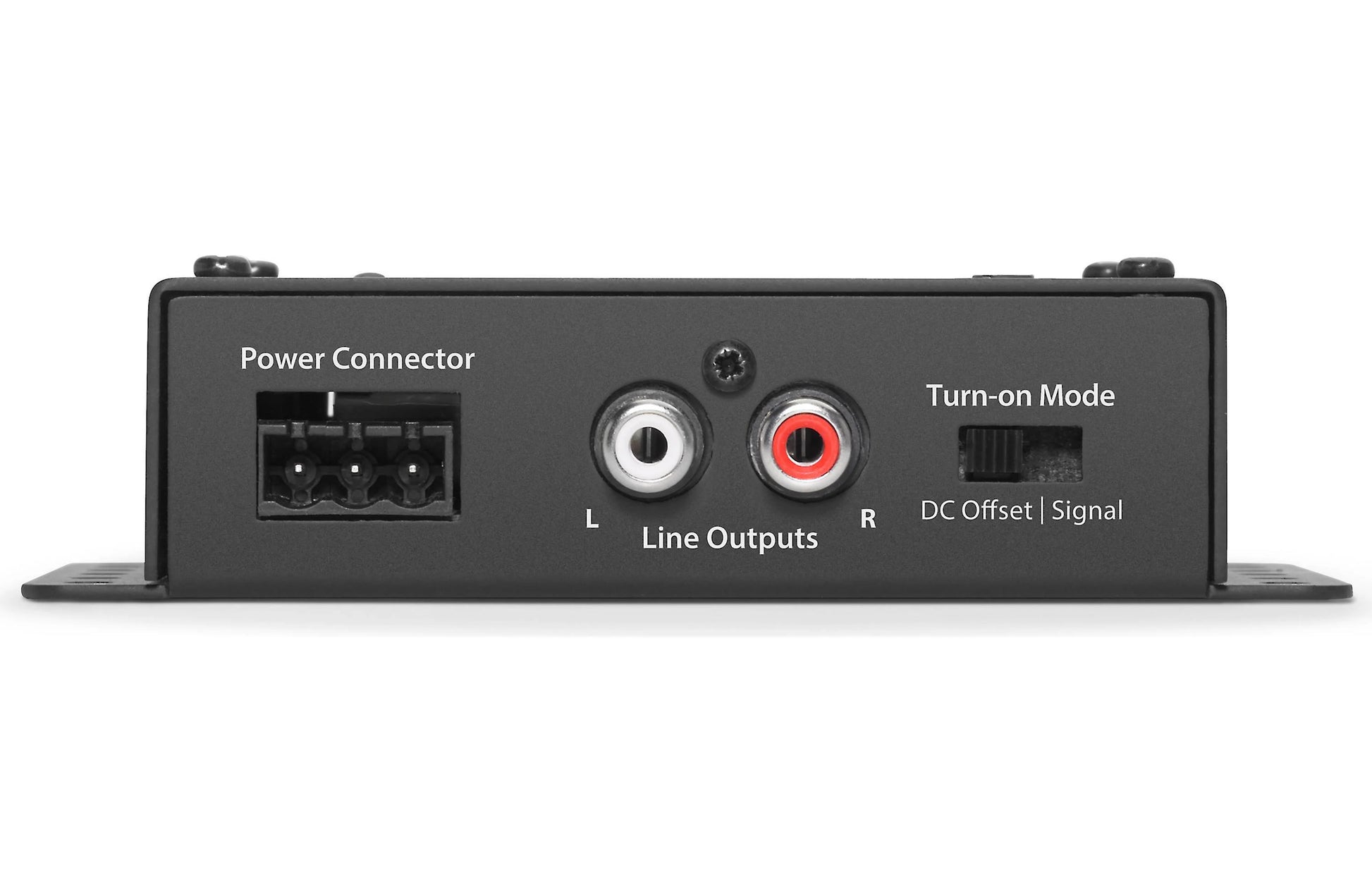

| Turn-On Options | Signal-sense or DC-offset |
| Remote Out | 12 V (low-current) |
| Operating Voltage | 9–16 V DC |
| Channels | 2 |
| Dimensions | ~4.72" W × 1.23" H × 3.04" D |
Ideal Applications
- Adding amplifiers to vehicles without RCA outputs
- OEM head unit retention with aftermarket processing
- Factory audio integration in cars, trucks, and powersports
- Systems requiring clean, adjustable low-level signal
What’s Included
- JL Audio LoC-22 line output converter
- Harness / wiring (as supplied)
- Documentation
