JL Audio HO112RG-W3v3 12" Ported H.O. Wedge Subwoofer 500W RMS 2Ω 010-03235-00 (93136)
JL Audio HO112RG-W3v3 12" Ported H.O. Wedge Subwoofer 500W RMS 2Ω 010-03235-00 (93136)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

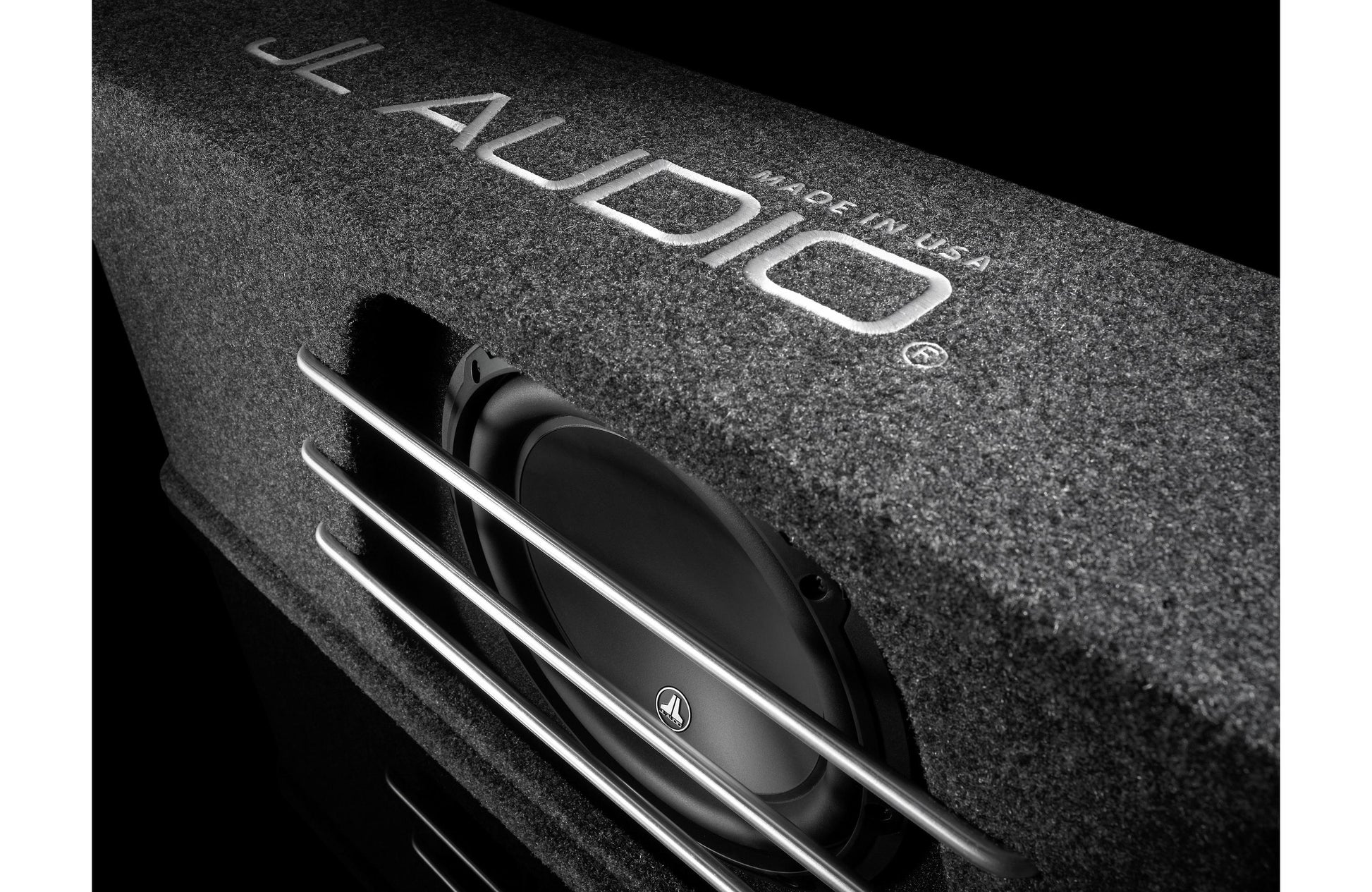

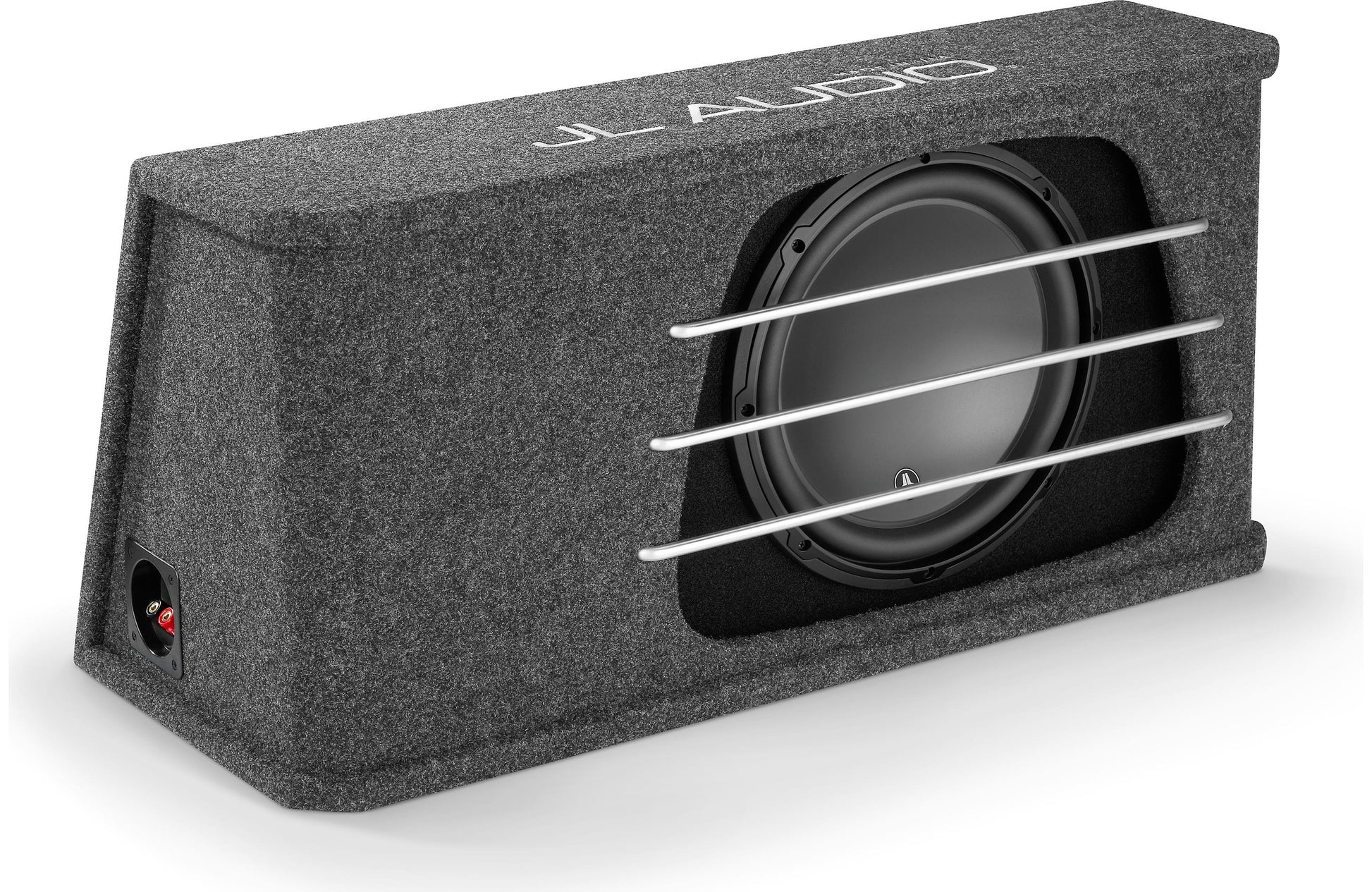

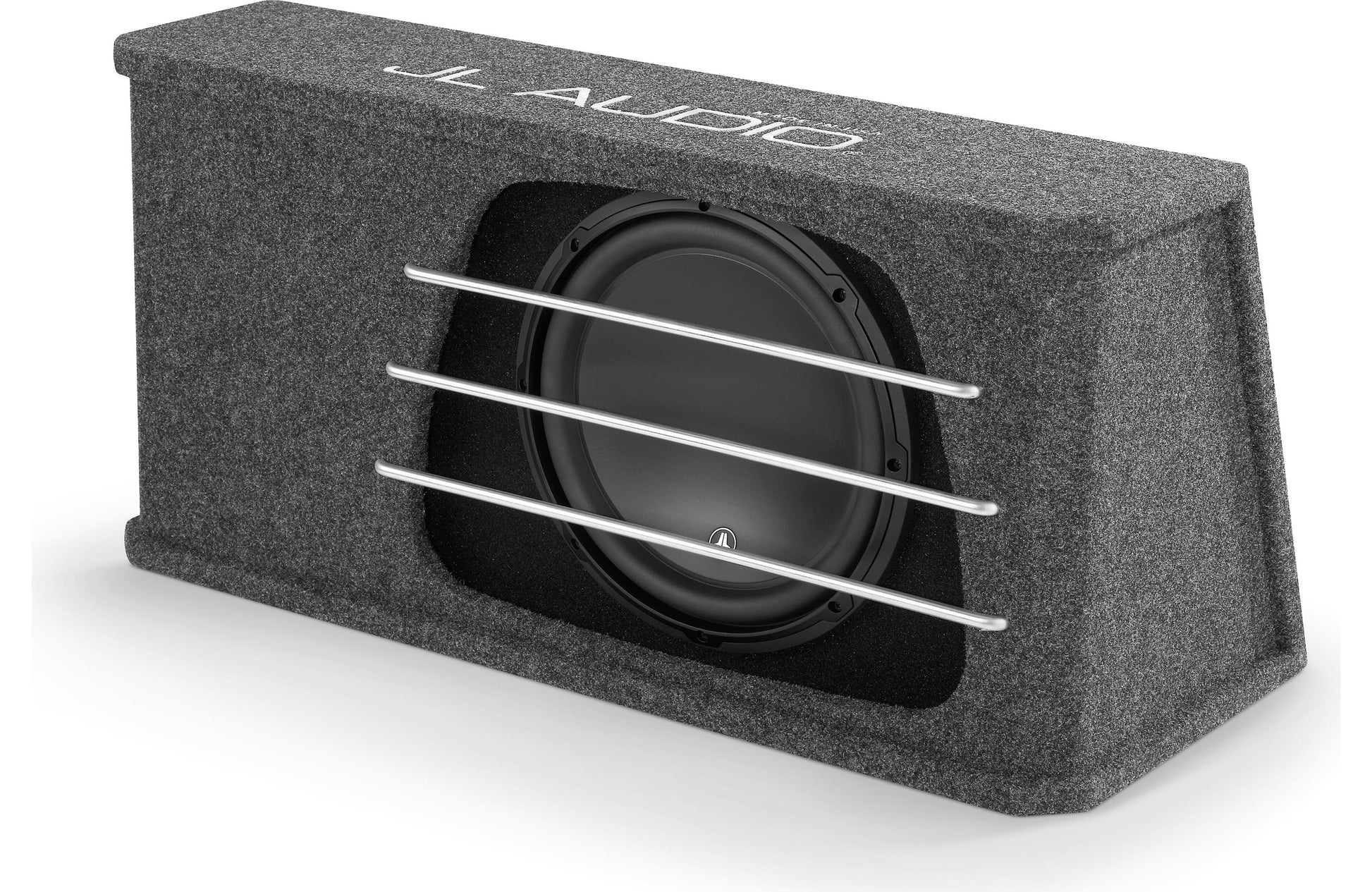

JL Audio HO112RG-W3v3 12" Ported H.O. Wedge™ Subwoofer is a high-output, chamber-coupled wedge enclosure loaded with JL Audio’s W3v3 long-excursion subwoofer. The patented H.O. (High Output) Wedge design aligns the porting and driver in a compact cabinet to maximize bass extension and efficiency from an otherwise space-limited footprint, delivering powerful, durable low-frequency performance for cars, trucks, and SUVs.
This configuration is rated for 500 W RMS continuous power into a nominal 2Ω load, making it a versatile match for a wide range of mono and multi-channel amplifiers. The slot-ported H.O. Wedge enclosure optimizes airflow and reduces port turbulence, translating amplifier power into deep, articulate bass with minimal distortion. Finished in automotive-grade dark carpet with a recessed driver mount and durable construction, the system ships pre-wired and ready to connect.
Key Features
- 12" JL Audio W3v3 long-excursion subwoofer loaded in H.O. Wedge™ ported enclosure
- Continuous power handling: 500 W RMS
- Nominal impedance: 2Ω
- Chamber-coupled slot-ported design for enhanced low-frequency efficiency
- Compact wedge shape for space-restricted installs
- Dark gray automotive carpet finish
- Pre-wired with binding posts for easy connection
Technical Specifications
| Model | HO112RG-W3v3 |
| Garmin PN | 010-03235-00 |
| JL Legacy PN | 93136 |
| UPC | 699440931368 |
| Subwoofer Size | 12" (300 mm) |
| Driver | 12W3v3-2 long-excursion subwoofer |
| Continuous Power (RMS) | 500 W |
| Recommended Amplifier Power | 150–500 W RMS |
| Nominal Impedance | 2 Ω |
| Enclosure Type | Chamber-coupled slot-ported H.O. Wedge™ |
| Finish | Dark gray automotive carpet |
| Dimensions (W×H×D) | ~14.5" × 16" × 24" (est.) |
| Weight | ~60 lb (est.) |
| Warranty | 2 Years |
Amp Matching
Ideal Applications
- Cars, trucks, and SUVs needing powerful low-frequency extension
- Space-restricted installs where a compact wedge enclosure is preferred
- Systems driven by mono or multi-channel amplifiers requiring versatile load
- High-output builds where smooth, deep bass response is essential
What’s Included
- JL Audio HO112RG-W3v3 ported subwoofer system
- Pre-wired binding posts
- Documentation / warranty information
