JL Audio HO112R-W7AE 12" H.O. Wedge Subwoofer Enclosure 1000W 3Ω 010-03241-00 (93276)
JL Audio HO112R-W7AE 12" H.O. Wedge Subwoofer Enclosure 1000W 3Ω 010-03241-00 (93276)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

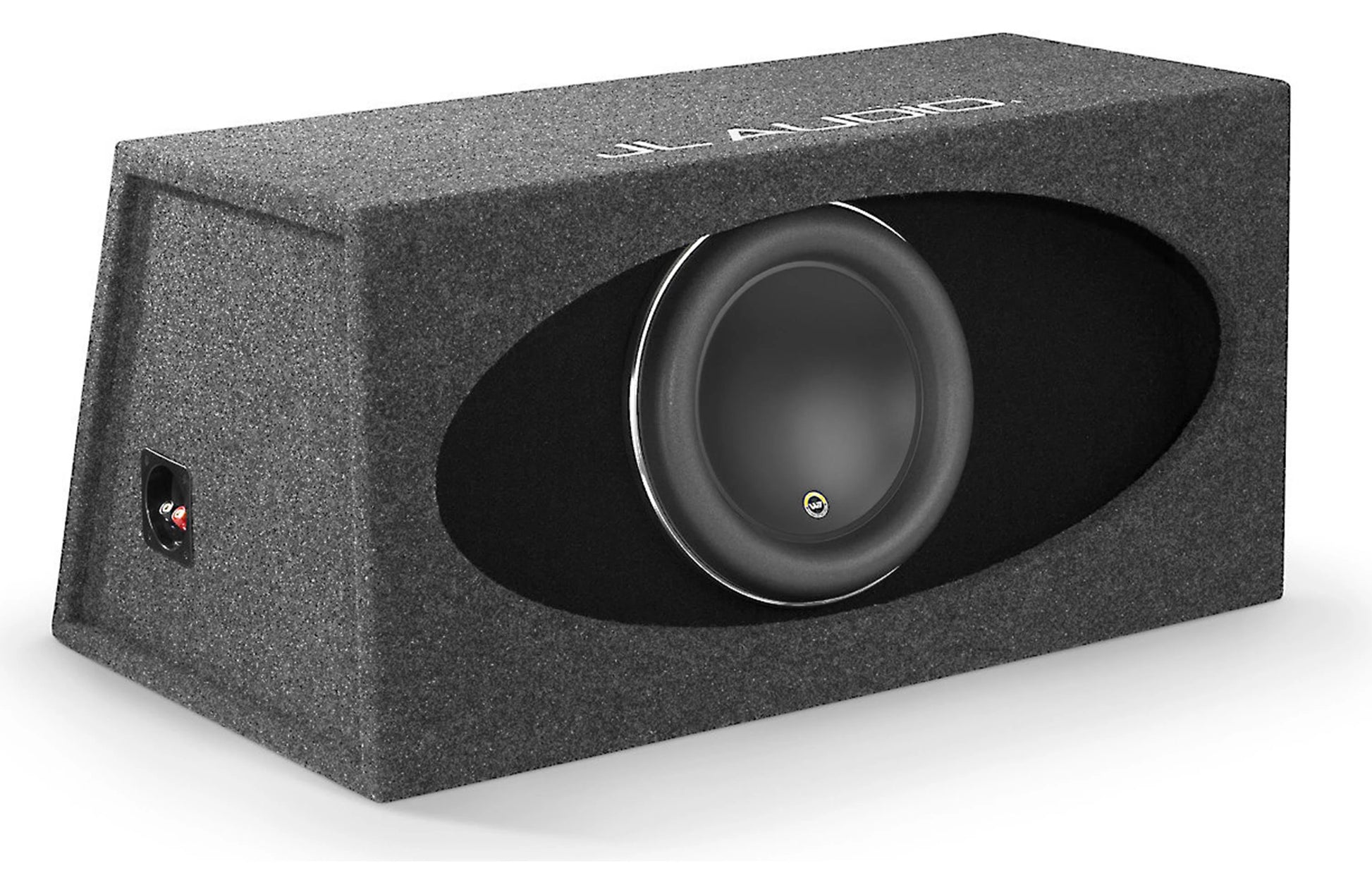

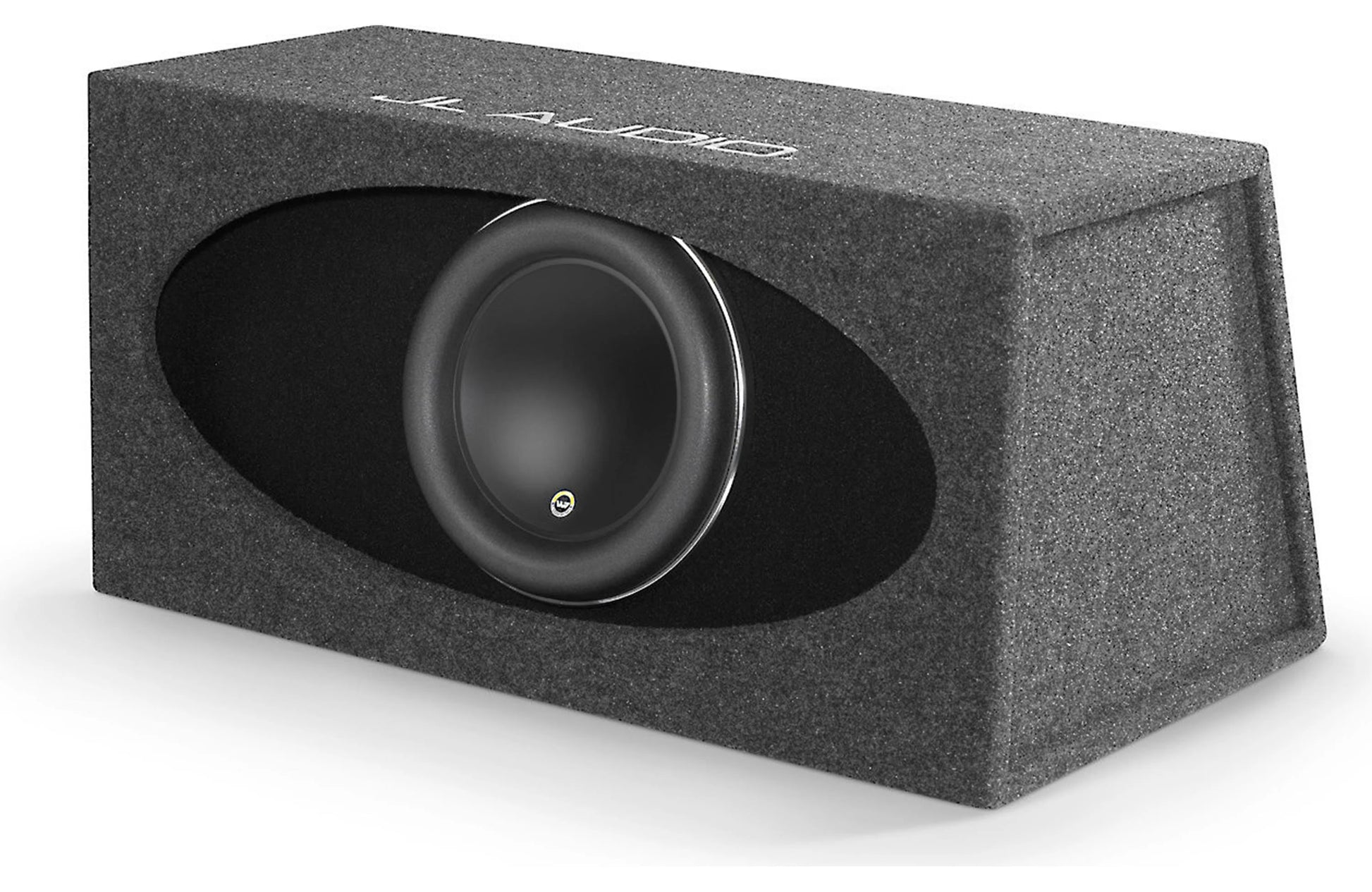

JL Audio HO112R-W7AE H.O. Wedge™ is a high-output, loaded subwoofer enclosure system featuring a single 12" W7AE subwoofer in a chamber-coupled, slot-ported, rear-firing design. It’s built for serious low-frequency output with tight, controlled sonics in a wide range of car-audio applications.
Power / Load: This system is rated for 1000 W RMS continuous power handling with a 3 Ω nominal impedance. JL Audio recommends pairing it with amplifier power in the 400–1000 W RMS range.
Key Features
- Loaded H.O. Wedge™ enclosure system with (1) 12" W7AE subwoofer
- Chamber-coupled, slot-ported, rear-firing enclosure design
- Designed for efficient, powerful bass performance with tight, clear sonics
- 5-way binding post terminal for simplified connection

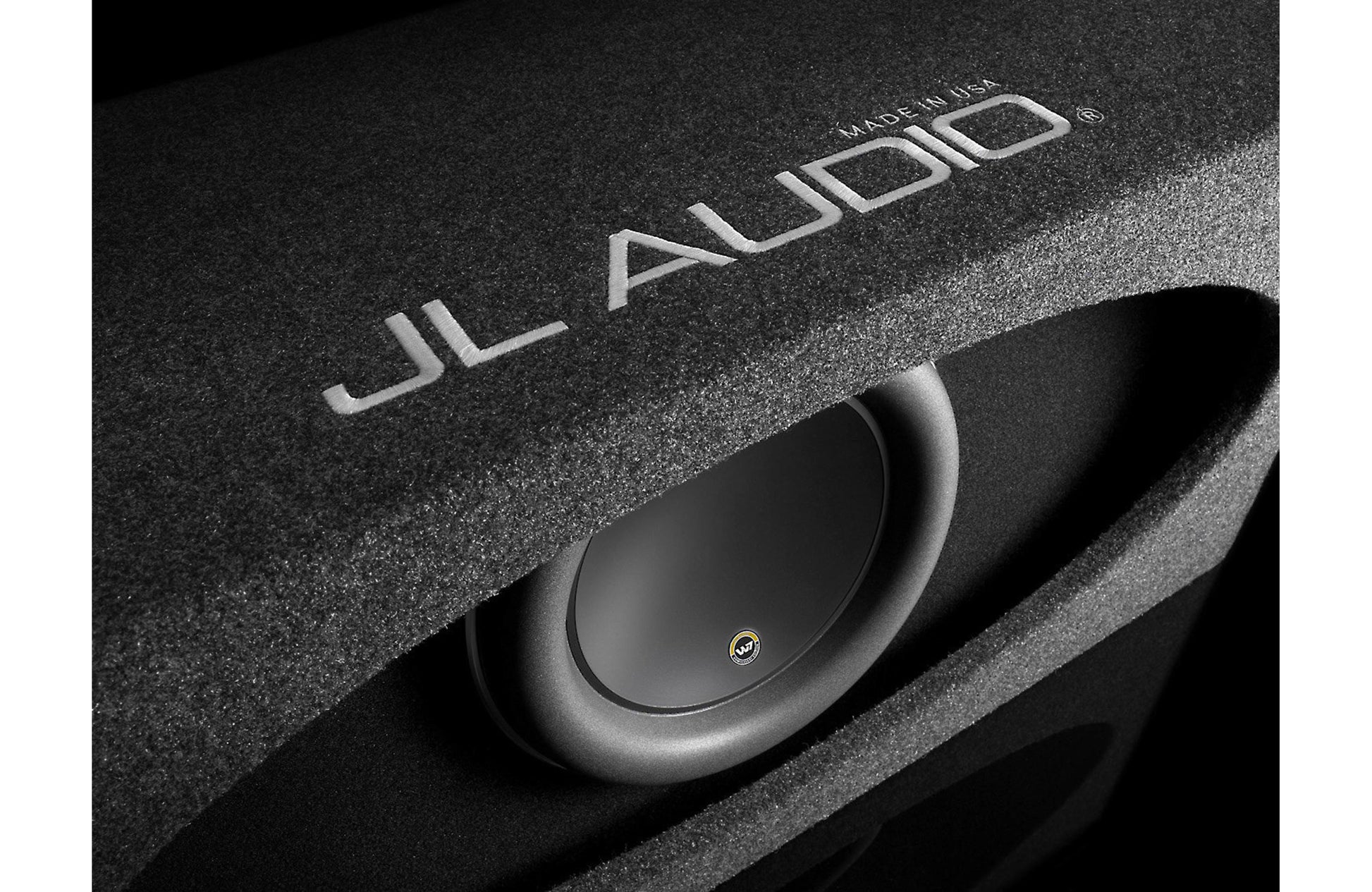

- High-grade automotive carpet finish with “JL AUDIO” embroidery on top surface
Installation & Compatibility
- Universal (vehicle-agnostic) loaded enclosure system
- Speaker connection: 5-way binding post terminal
Recommended Amplifier Matching (Sold Separately)
For best performance, pair this enclosure with a JL Audio monoblock amplifier and set gain to stay within the recommended 400–1000 W RMS range:
- JL Audio XDM1000/1 – 1000 W RMS @ 2 Ω (gain-matched for the recommended range)
- JL Audio RD1000/1 – 1000 W RMS @ 2 Ω (gain-matched for the recommended range)
- JL Audio JD1000/1 – 1000 W RMS @ 2 Ω (gain-matched for the recommended range)
- JL Audio HD1200/1 – 1200 W RMS @ 2 Ω (gain-limited headroom)
- JL Audio RD1500/1 – 1500 W RMS @ 2 Ω (gain-limited headroom)
Technical Specifications
| Model | HO112R-W7AE |
| Garmin PN | 010-03241-00 |
| JL Legacy PN | 93276 |
| Subwoofer | 12" W7AE |
| Subwoofer Size | 12" (300 mm) |
| Continuous Power (RMS) | 1000 W |
| Nominal Impedance | 3 Ω |
| Recommended Amplifier Power (RMS) | 400–1000 W |
| Enclosure Type | Chamber-coupled, slot-ported, rear-firing design |
| Dimensions (W × H × D) | 34" × 17" × Top: 14.5" / Base: 20.5" |
| Weight | 119 lb (53.95 kg) |
| Speaker Connections | Five-way binding post terminal |
| Warranty | 2 Years |
Ideal Applications
- High-output bass system builds using a single premium 12" subwoofer enclosure
- Installations needing strong output with controlled low-frequency performance
- Systems using monoblock amplification in the 400–1000 W RMS range
What’s Included
- JL Audio HO112R-W7AE loaded H.O. Wedge™ enclosure system
