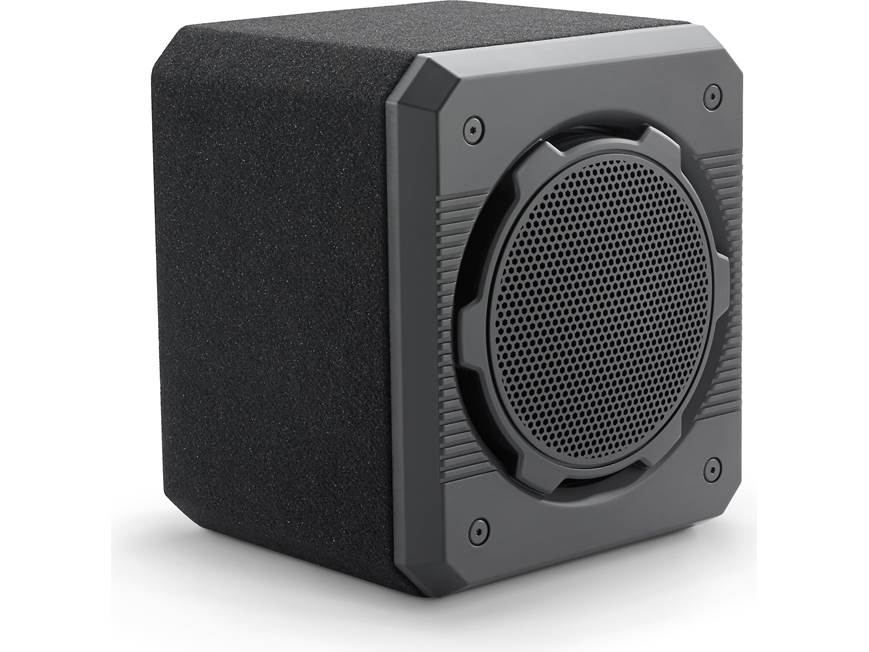

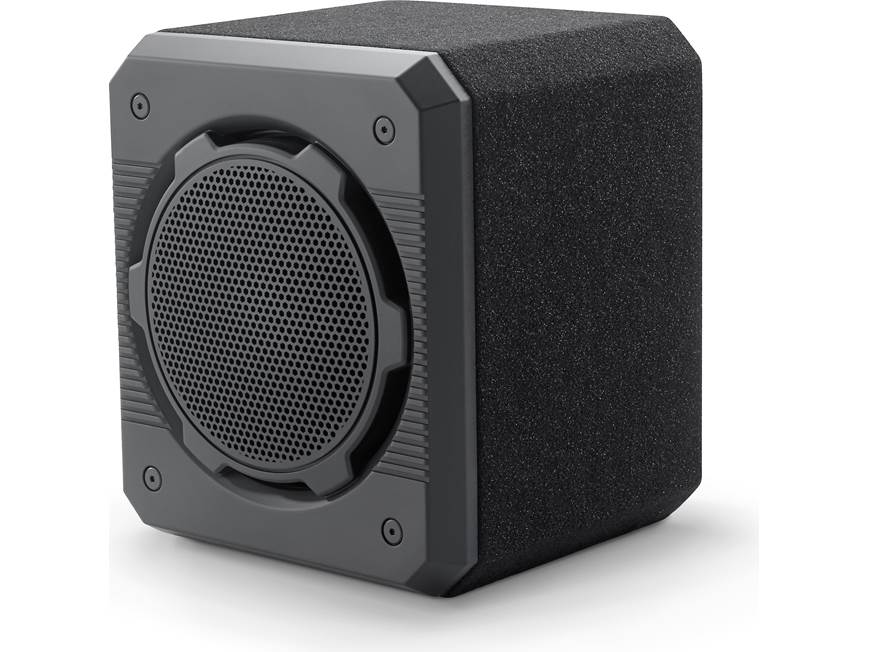

JL Audio CS110G-W6v3 ProWedge 10" Loaded Sealed Subwoofer Enclosure, 600W RMS, 2Ω – 010-04035-00 (93306)

CS110G-W6v3 — Choose a matched enclosure-and-driver system instead of a bare subwoofer and an unverified universal box. The CS110G-W6v3 ProWedge loads one 10W6v3-D4 driver into a compact sealed MDF enclosure, with a protective polymer grille and a 2-ohm connection at the enclosure terminals. Its 600W RMS power handling suits a properly matched external amplifier.

Key Performance Features

• Single 10W6v3-D4 subwoofer in a factory-designed sealed enclosure
• 600W continuous RMS power handling; recommended amplifier range 300–600W RMS

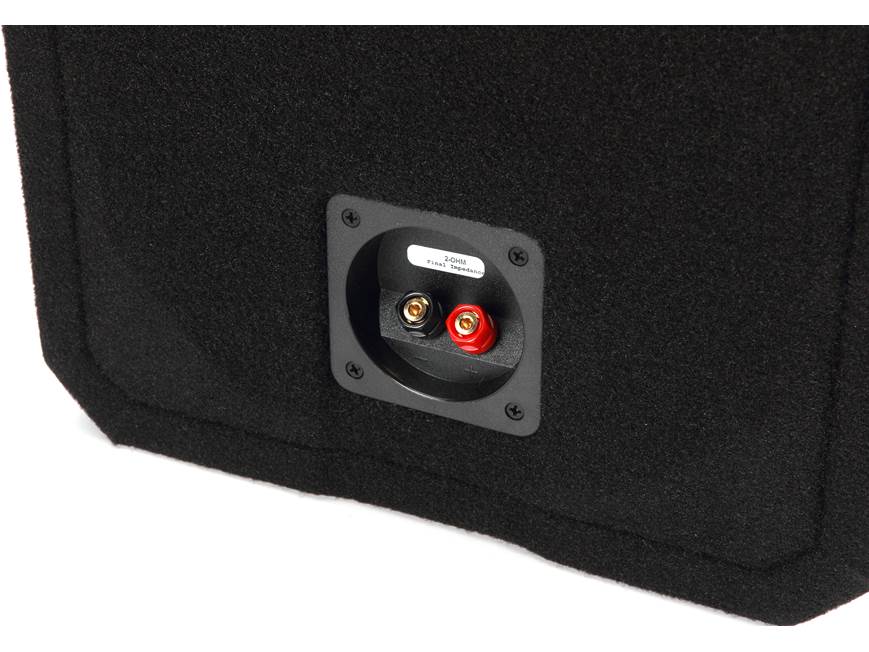

• Dual 4-ohm driver coils are internally wired for a 2-ohm total system load
• CNC-cut MDF construction with black automotive carpet
• Installed polymer grille protects the driver from loose cargo
• Compact ProWedge format; passive system, not a powered enclosure

Technical Specifications

Installation & System Requirements

Requires a separate amplifier rated for the 2-ohm system load, amplifier power wiring with appropriate fusing and speaker wiring. The bare driver’s dual-4-ohm label does not make the loaded enclosure a 4-ohm system. Verify available space and secure the enclosure so it cannot move during driving. This is a universal enclosure by dimensions, not a vehicle-specific guaranteed-fit box. Manufacturer nominal dimensions and retailer physical measurements differ slightly, so allow clearance rather than relying on a zero-tolerance fit.

What’s Included

• Sealed enclosure loaded with one 10W6v3-D4 subwoofer
• Installed protective polymer grille

Product Identification
