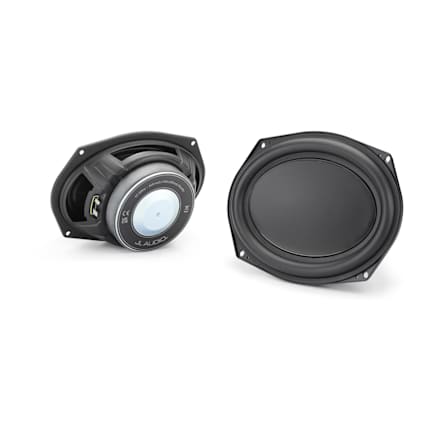

JL Audio CF-690w 6x9" Custom-Fit Component Woofers, 100W RMS, 4Ω, Pair 010-03891-00

JL Audio CF-690w — The CF-690w is the woofer-only option for a carefully designed custom-fit active system. These 6x9-inch drivers deliver midbass in selected Ram, Toyota and GM factory locations; they do not include a complete full-range speaker system.

Use the CF-690w where the system design calls for dedicated woofers. The specified 36–610 Hz operating range makes clear that these are not full-range coaxials. Their frames and supplied adapters support selected factory locations, but upper-frequency drivers and the correct active filtering must be planned separately.

The manufacturer’s CF-690w package list contains two woofers, four OEM adapter rings and two foam gaskets. This listing is for that packaged pair—not a complete CF-690-RTG component set and not a single loose replacement driver.

Key Features

• Two 6x9-inch component woofers
• Dedicated frames with four OEM adapter rings
• Mineral-filled polypropylene cones
• Designed for flexible active-system installation

Technical Specifications

Installation & System Requirements

This is a woofer pair, not a coaxial speaker or complete CF-690-RTG component system. Separate mid/tweeter drivers, active crossover/DSP processing, amplifier and vehicle wiring are required for a complete full-range system. Confirm exact application and factory equipment before ordering.

What's Included

• Two CF-690w woofers
• Four OEM adapter rings
• Two woofer foam gaskets
• Sixteen mounting screws
• Manufacturer crimpable connectors

Product Identification

Manufacturer: JL Audio. Model: CF-690w. Garmin part number: 010-03891-00. UPC: 699440990677.

Need help choosing matching components or verifying an application? Use the MCOR Vehicle Fit Guide or contact MCOR before ordering. Individual components remain available for separate purchase.
