JL Audio C6-275cm 2.75" High-Frequency Component Speakers, 50W RMS, 4Ω, Pair 010-03845-00 (93688)
JL Audio C6-275cm 2.75" High-Frequency Component Speakers, 50W RMS, 4Ω, Pair 010-03845-00 (93688)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

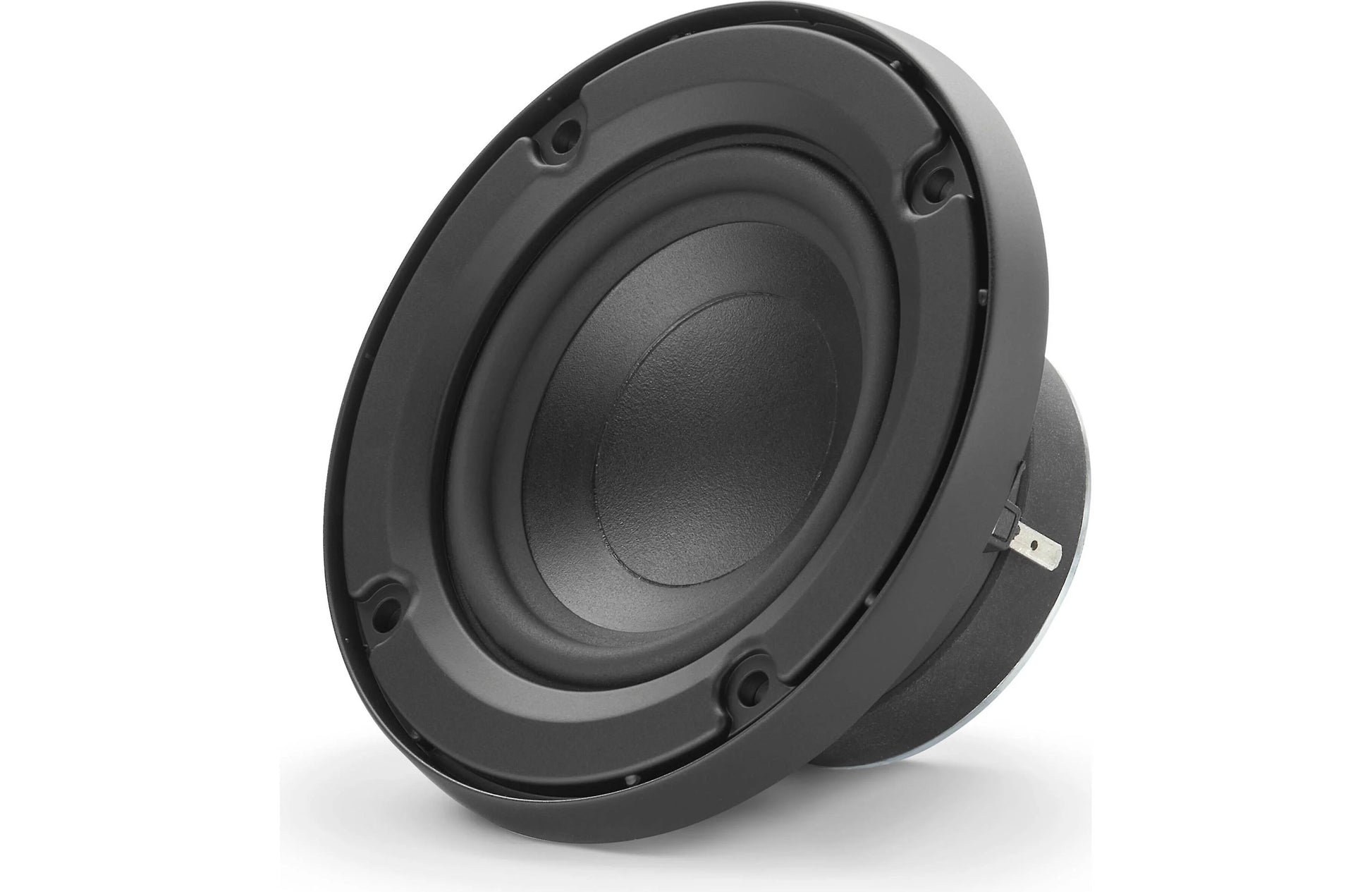

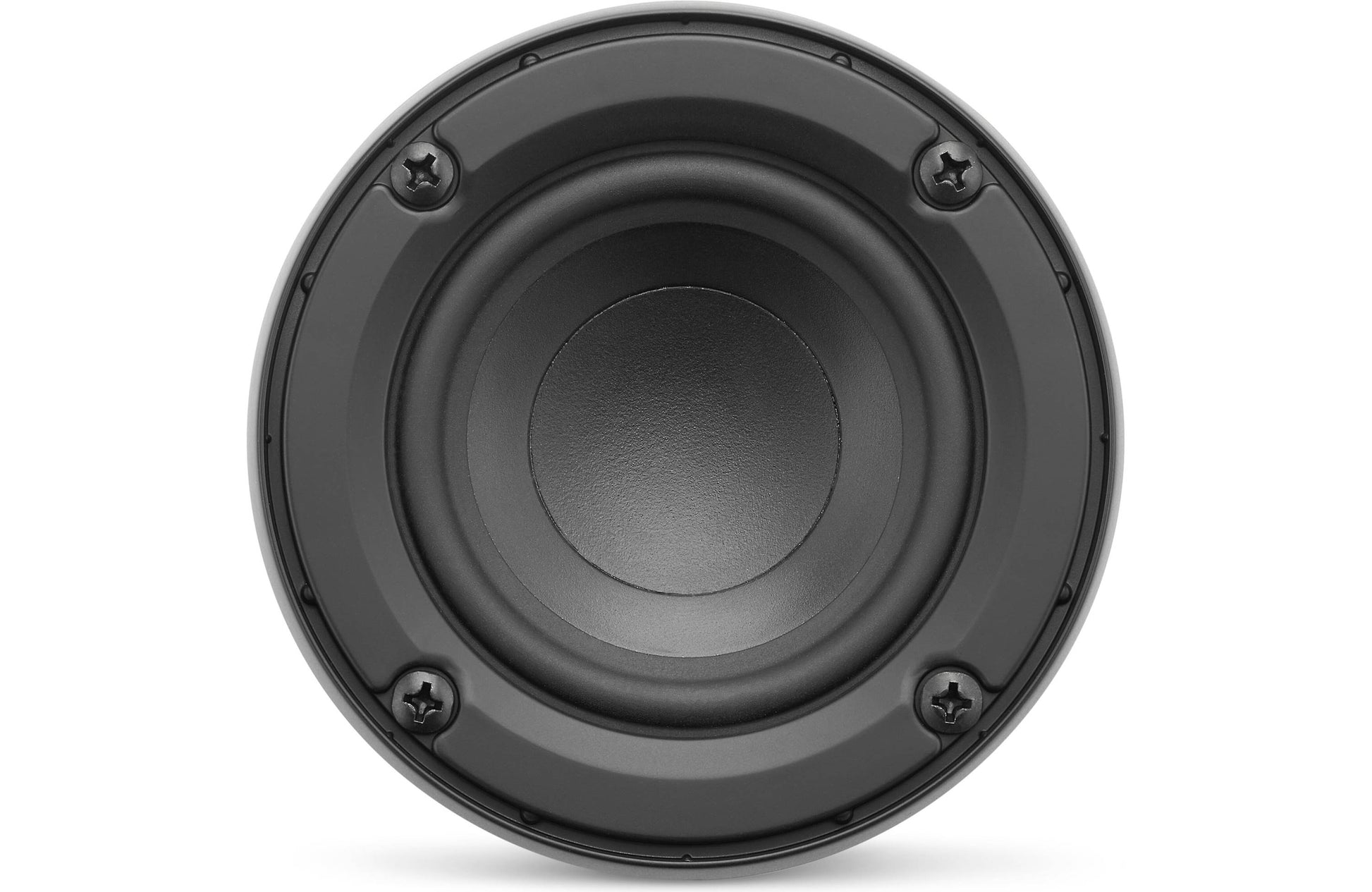

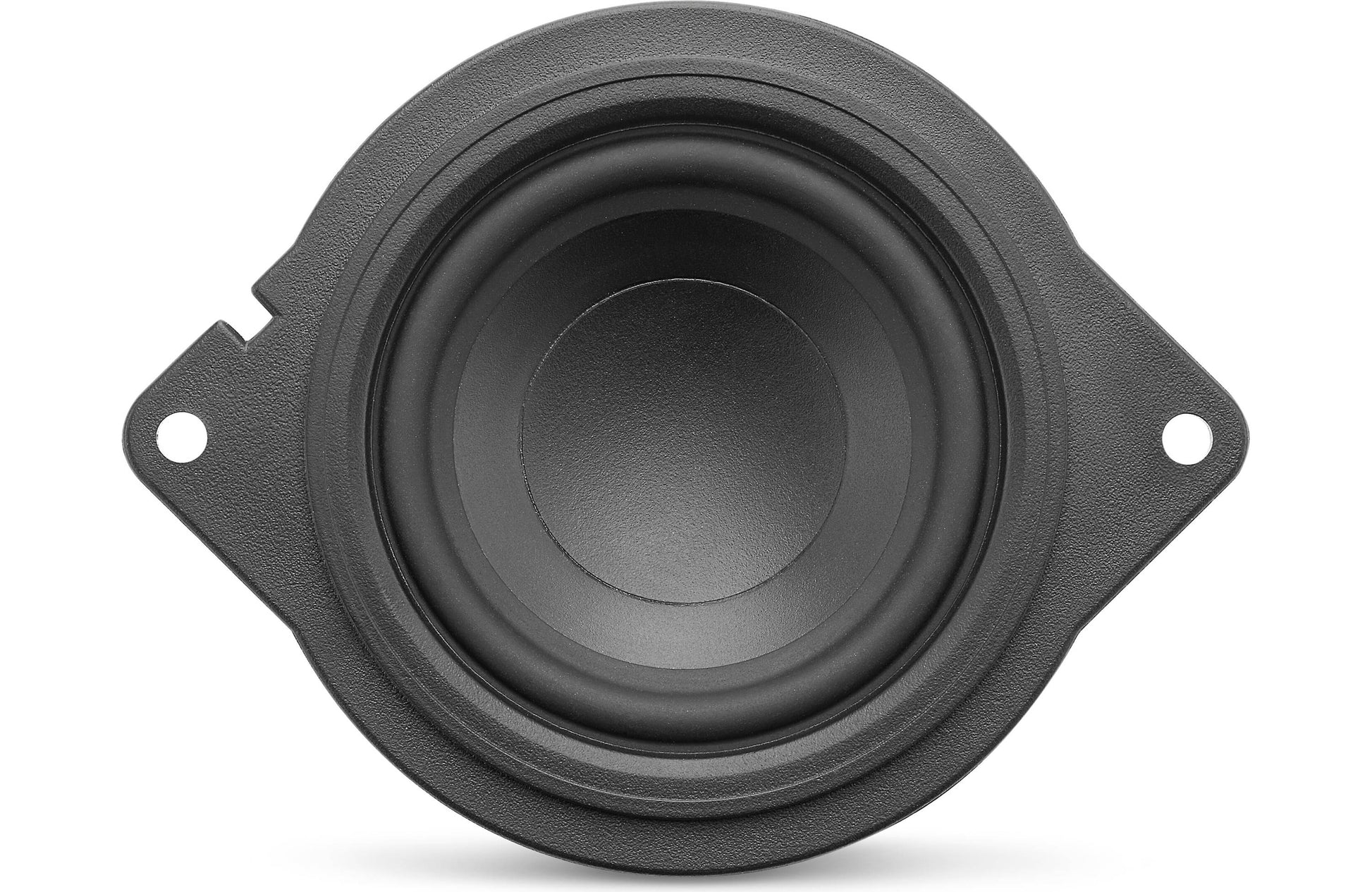

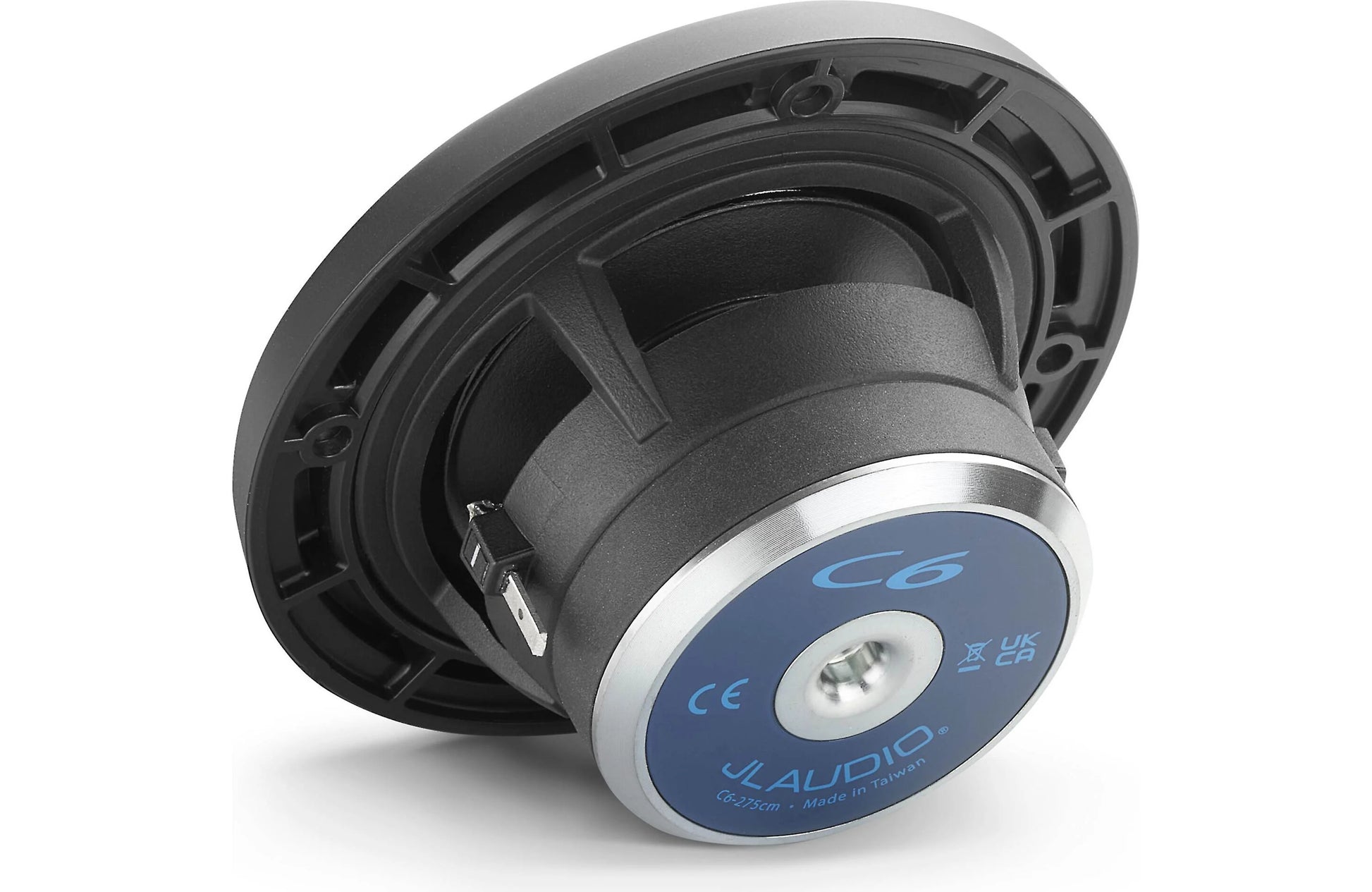

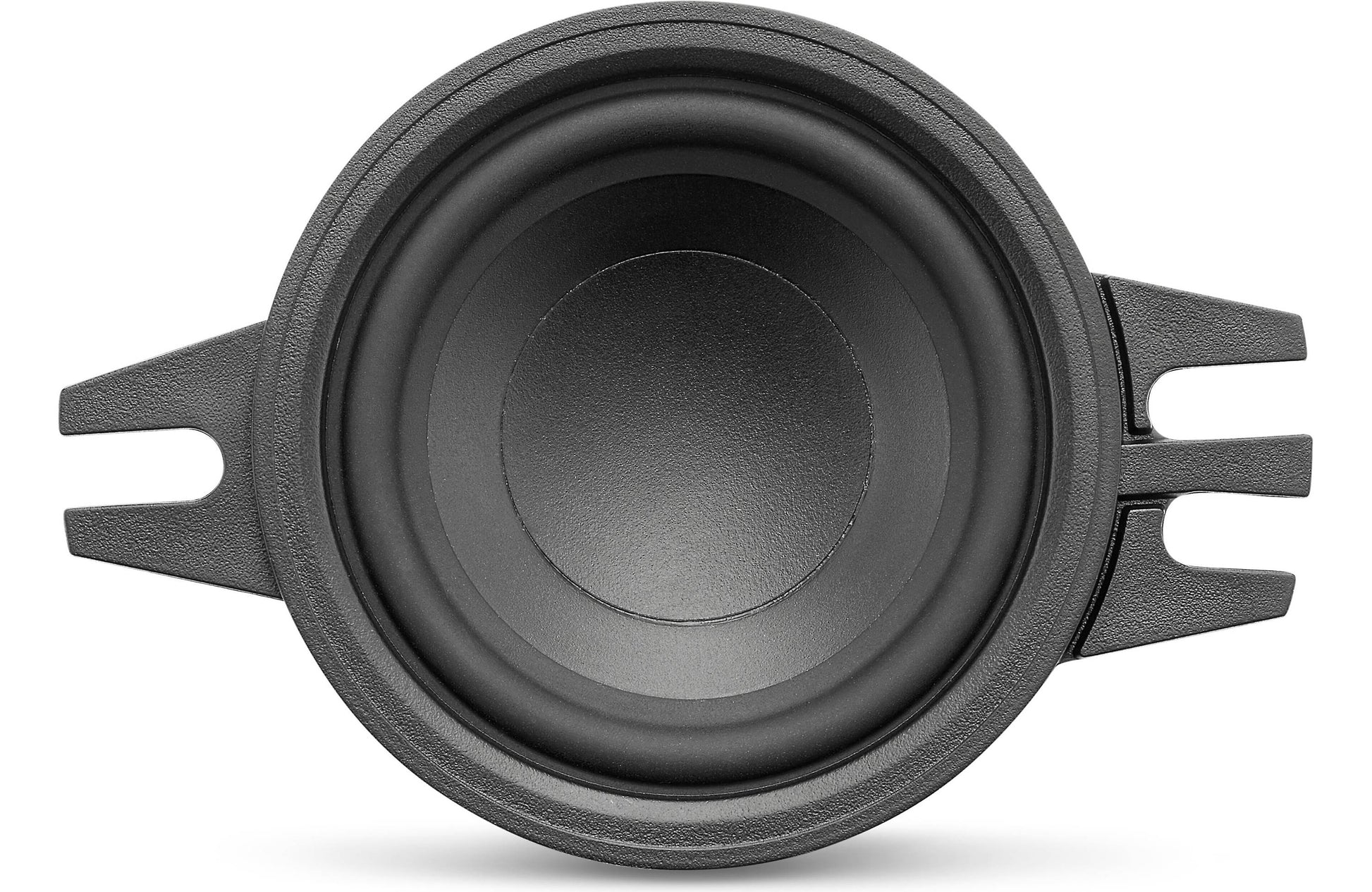

JL Audio C6-275cm 2.75" Component Speakers are ultra-compact, high-frequency transducers used in JL Audio’s flagship C6 component platform. Designed to support detailed upper-midrange reproduction, the 2.75" drivers integrate into vehicles where pillar, dash, or A-panel placement is required for premium staging and imaging.
Engineered for performance-oriented OEM-plus and high-end aftermarket builds, C6-275cm drivers are optimized to operate in conjunction with C6 woofers and tweeters via external crossover or DSP channels. Their small form factor and shallow architecture enable discreet OEM-style mounting solutions without sacrificing clarity, making them ideal for 3-way and 4-way active systems.
Key Features
- Flagship JL Audio C6 series high-frequency component drivers
- 2.75" (70 mm) transducers for upper-midrange duties
- Compact design for dash, pillar, and panel integrations
- Tuned for active DSP crossover management
- Designed to pair with C6 woofers and tweeters
- Optimized for premium staging and imaging
- Sold as a matched pair
Technical Specifications
| Model | C6-275cm |
| Garmin PN | 010-03845-00 |
| JL Legacy PN | 93688 |
| UPC | 699440936889 |
| Series | C6 Component |
| Driver Size | 2.75" (70 mm) |
| Driver Architecture | 1-way high-frequency transducer |
| Midrange Design | Cone |
| Midrange Material | Mineral-filled polypropylene |
| Surround Material | Synthetic rubber |
| Nominal Impedance | 4 Ω |
| Continuous Power (RMS) | 50 W |
| Frequency Response | 350 Hz – 4.8 kHz |
| Sensitivity (1 W @ 1 m) | 83.5 dB |
| Sensitivity (2.83 V) | 86.5 dB |
| DSP / Crossover Requirement | Yes (external, active or passive) |
| Weather Resistance | No |
| Grilles Included | Fine mesh |
| Mounting Depth (Top) | 1.50" (38.1 mm) |
| Mounting Depth (Bottom) | N/A |
| Cutout Diameter | 2.56" (65 mm) |
| Mounting Height | 0.27" (6.9 mm) |
| Frame Size | 2.95" × 2.95" |
| Quantity | Pair |
| Parts Warranty | 1 Year |
Ideal Applications
- High-end component systems requiring upper-midrange support
- OEM-plus builds seeking discreet dash/pillar placement
- DSP-managed 3-way and 4-way automotive architectures
- Premium car audio systems using JL C6 woofers/tweeters

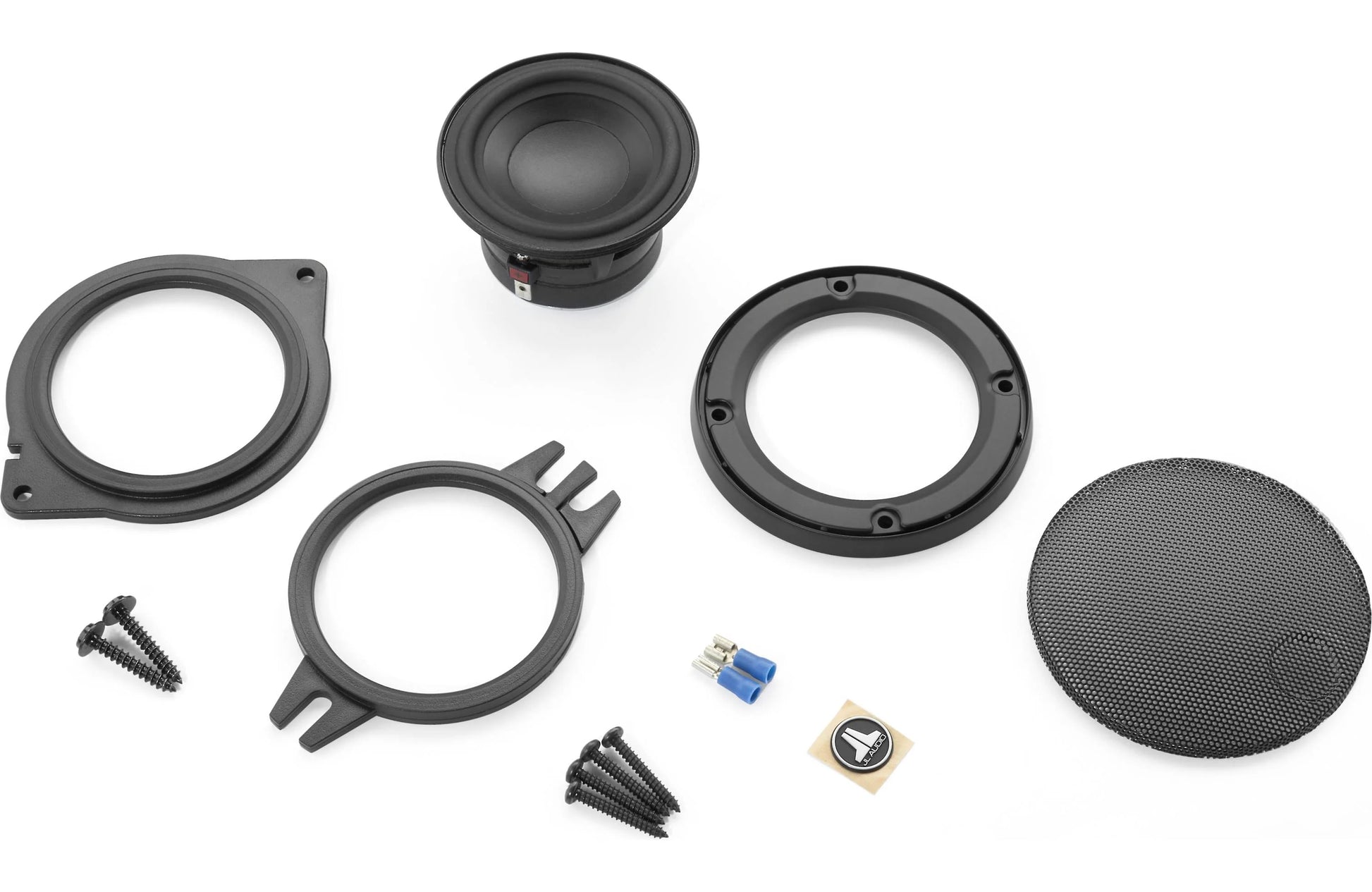

What’s Included
- Two JL Audio C6-275cm drivers

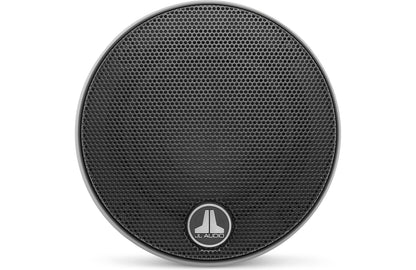

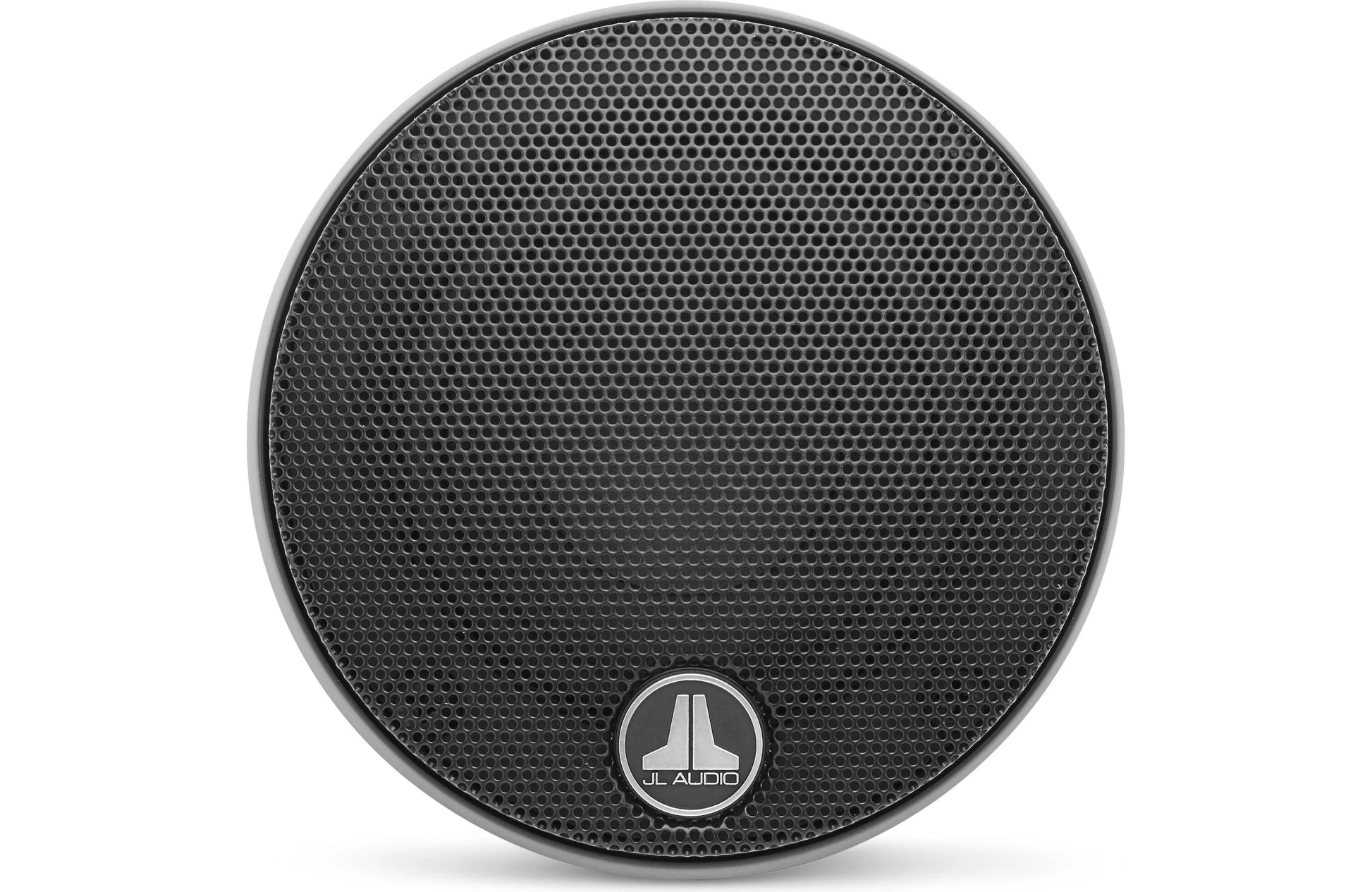

- Fine mesh grilles
- Mounting hardware (as supplied)
- Documentation
Why Buy From MCOR Automotive
- Authorized JL Audio dealer with high-end component system experience
- Support matching C6 drivers with DSP, crossovers, and amplification
