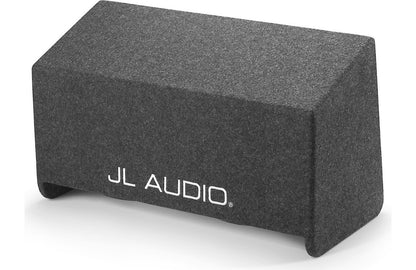

JL Audio CP210-W0v3 BassWedge Dual 10" Ported Enclosure 300W RMS 2Ω 010-03237-00 (93139)
JL Audio CP210-W0v3 BassWedge Dual 10" Ported Enclosure 300W RMS 2Ω 010-03237-00 (93139)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

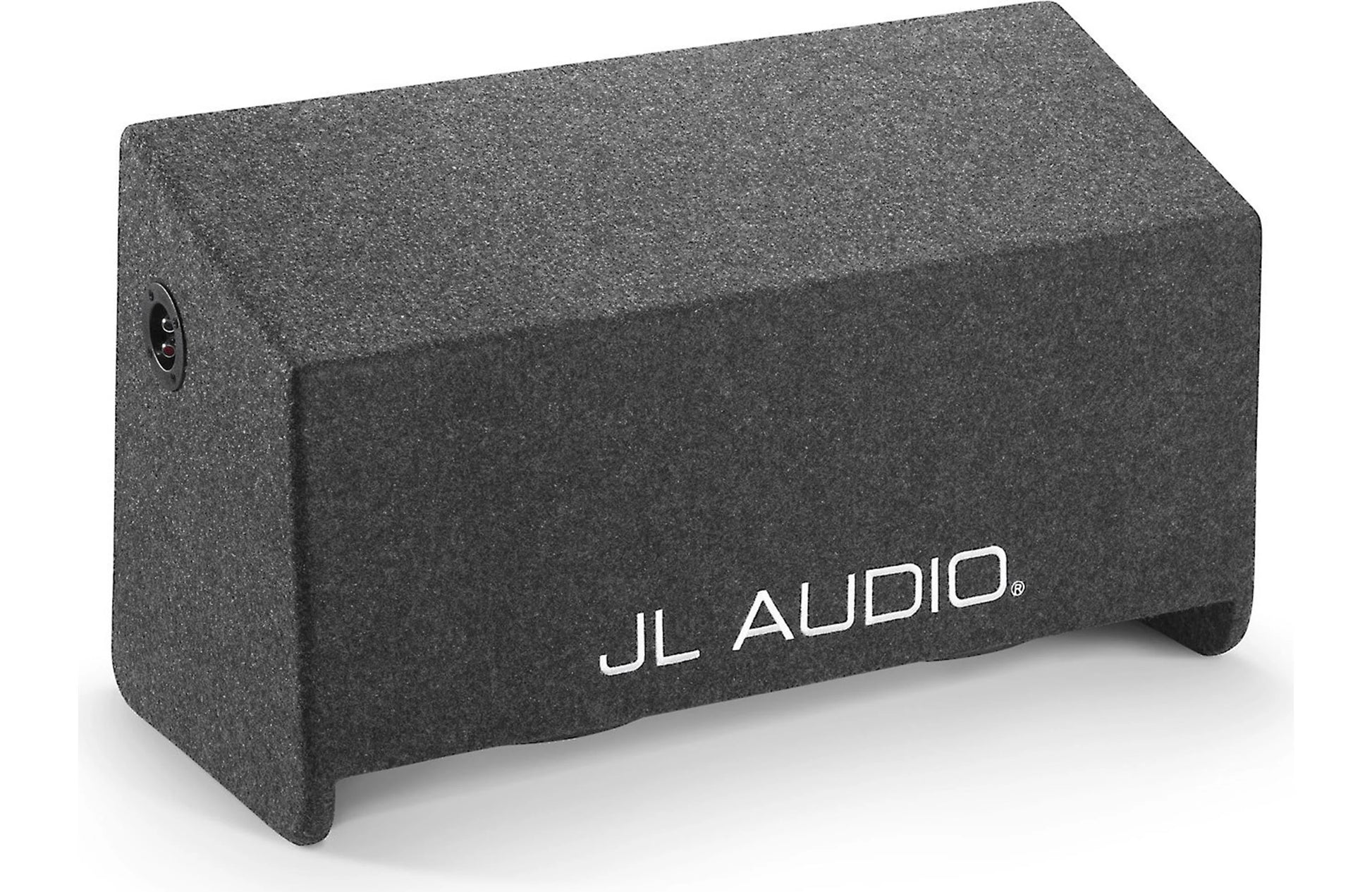

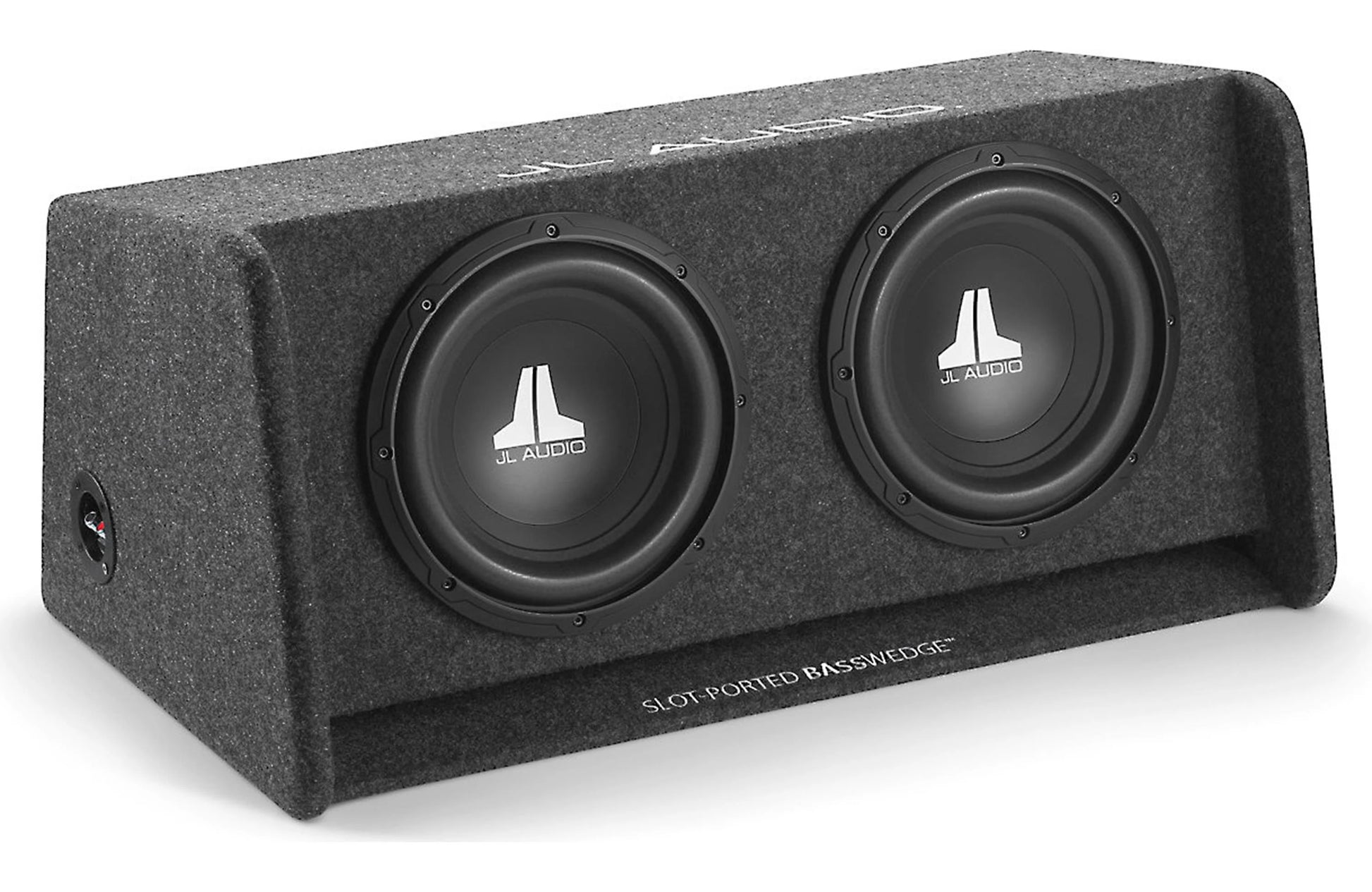

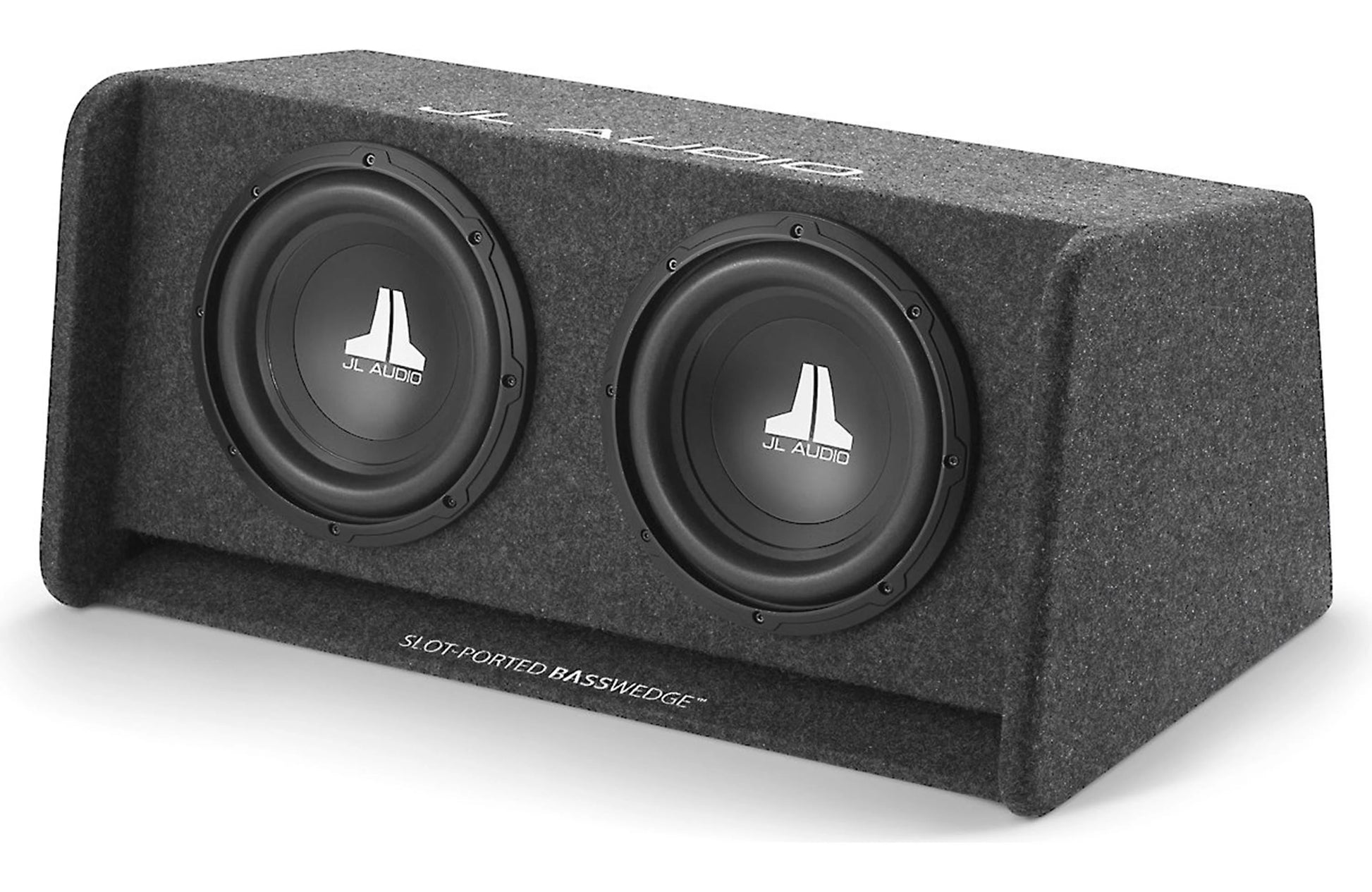

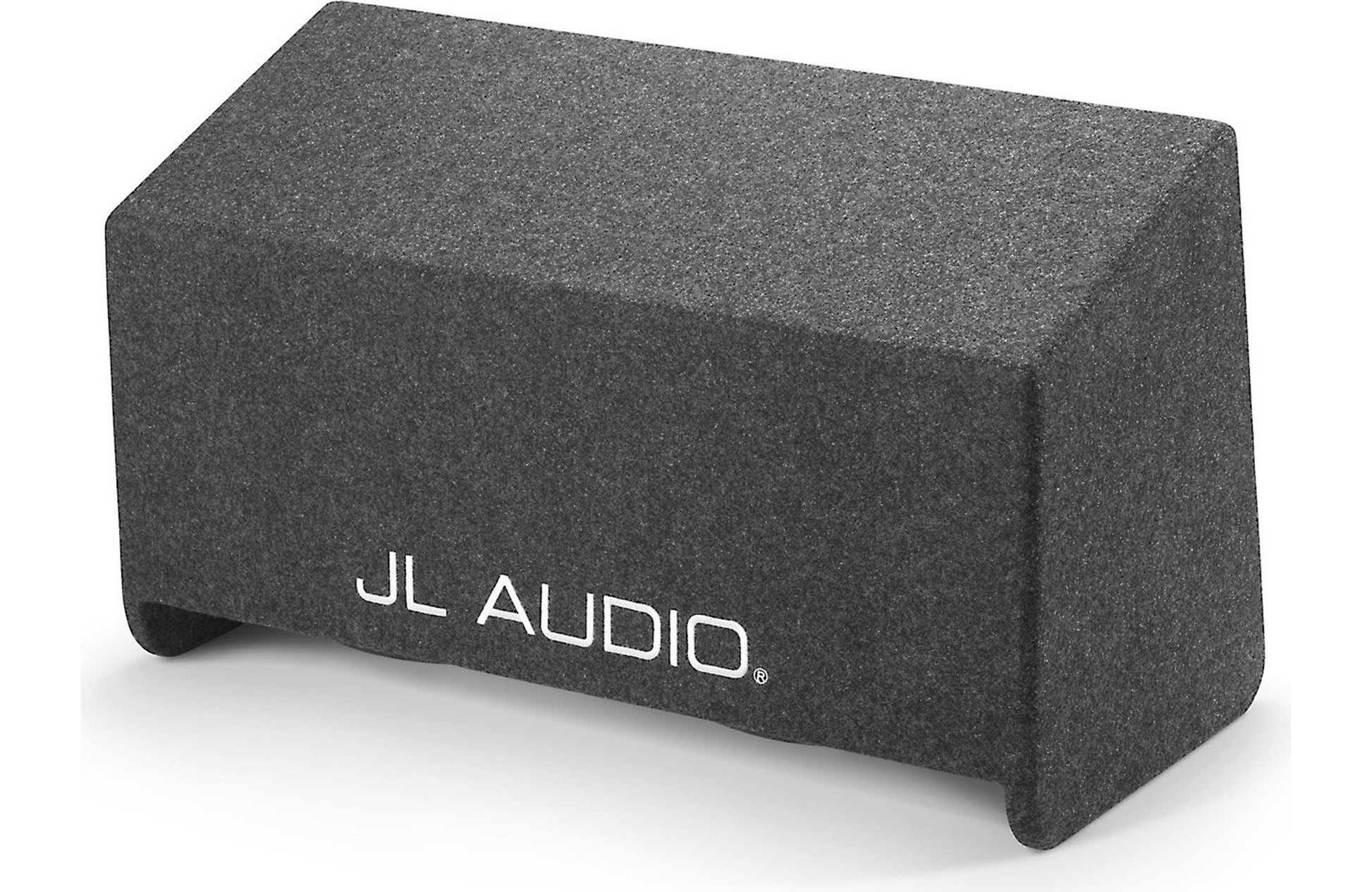

JL Audio CP210-W0v3 BassWedge™ 10" Enclosed Subwoofer is a dual-loaded, slot-ported enclosure engineered to deliver high-efficiency bass output from a compact cabinet. The system features two 10W0v3 long-excursion subwoofers and a BassWedge™ port alignment designed to maximize low-frequency reinforcement and smooth response for daily-driver builds.
Rated at 600 W RMS continuous and wired to a nominal 2 Ω impedance, the CP210-W0v3 pairs efficiently with a wide range of mono amplifiers. Its ported architecture provides stronger low-bass output compared to sealed boxes while maintaining musical articulation and transient capability. Finished in dark automotive carpet with a recessed baffle and steel-mesh grilles, the enclosure ships pre-wired and ready to connect.
Key Features
- Dual 10" W0v3 long-excursion subwoofers in BassWedge™ slot-ported enclosure
- Continuous power handling: 600 W RMS
- Nominal impedance: 2 Ω
- Ported design for boosted low-frequency efficiency
- Compact form factor for cars, trucks, and hatchbacks
- Steel-mesh driver protection included
- Pre-wired for plug-and-play installation
Technical Specifications
| Model | CP210-W0v3 |
| Garmin PN | 010-03237-00 |
| JL Legacy PN | 93139 |
| UPC | 699440931399 |
| Subwoofer Size | 10" × 2 (dual) |
| Driver | 10W0v3-4 long-excursion |
| Continuous Power (RMS) | 600 W |
| Recommended Amp Power | 150–600 W RMS |
| Nominal Impedance | 2 Ω |
| Enclosure Type | Slot-ported BassWedge™ |
| Finish | Dark automotive carpet |
| Approx. Dimensions (W×H×D) | ~28.0" × 13.25" × 11.0" |
| Approx. Weight | ~55.0 lb |
| Warranty | 2 Years |
Amp Matching
- Nominal Load: 2 Ω
- Target Power: 300–600 W RMS (600 W RMS max)
-
Recommended JL mono amplifiers:
- JL Audio JD500/1 — efficient, compact, ideal daily-driver match
- JL Audio RD500/1 — clean power, strong control at 2 Ω
- JL Audio XDM600/1 — full output capability for the enclosure
- Non-JL guidance: choose a class-D mono amplifier stable at 2 Ω delivering 400–600 W RMS.
- Filter setup: low-pass ~60–80 Hz, 24 dB/octave; subsonic filter ~25–30 Hz (ported alignment).
Ideal Applications
- Daily-driver builds needing controlled but impactful bass
- Compact installs in sedans, hatchbacks, and trucks
- Systems seeking ported efficiency from a small box
- Pairing with JL or other mono amplifiers for budget-friendly systems
What’s Included
- JL Audio CP210-W0v3 BassWedge™ dual-loaded enclosure
- Steel-mesh protective grilles
- Documentation / warranty
