JL Audio AP Bluetooth 4-Channel Compact Marine Amplifier & Wired Remote, 010-03431-00
JL Audio AP Bluetooth 4-Channel Compact Marine Amplifier & Wired Remote, 010-03431-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

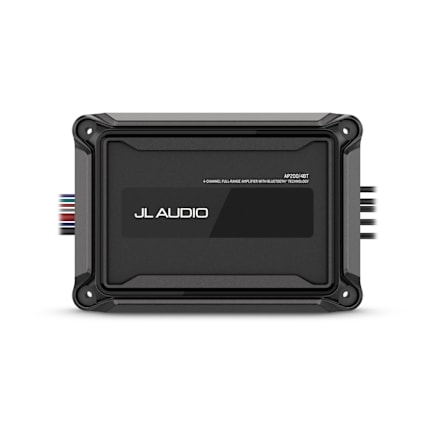

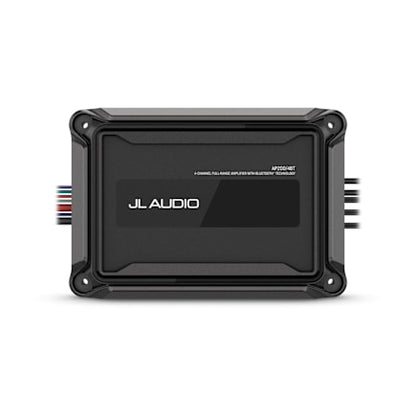

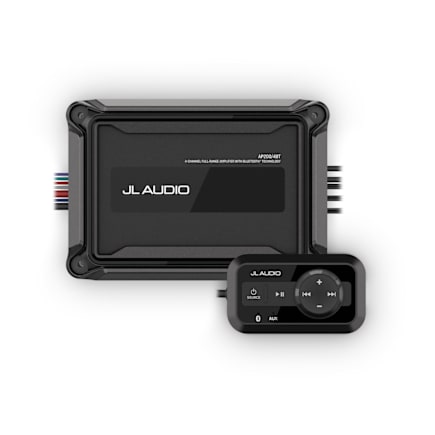

JL Audio AP Bluetooth 4-Channel — Build a compact audio system around direct Bluetooth streaming. This four-channel JL Audio AP amplifier includes a wired remote, allowing a small boat, personal watercraft or similar installation to play music without a conventional dashboard stereo.
Compact marine amplification with protected hardware. The efficient Class-D design reduces heat and electrical demand compared with a conventional Class-AB design. Garmin identifies the enclosure as ignition protected and IP67-rated, with an important limitation: the rating excludes the cables, so splices and connectors still need protection.

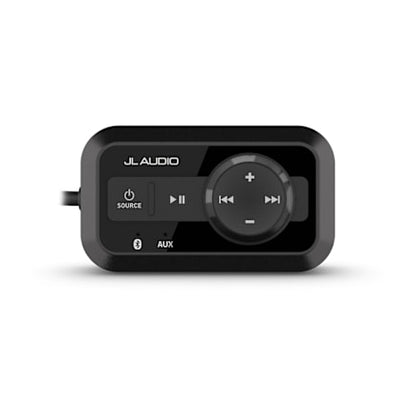

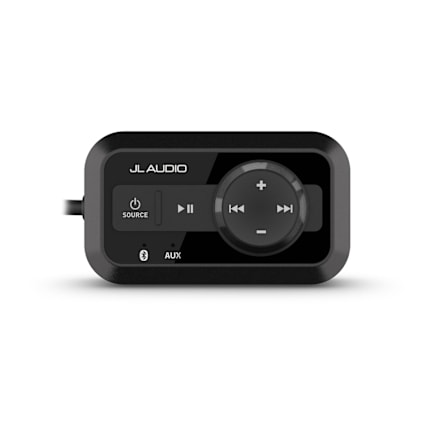

Streaming and control are included. This Bluetooth model pairs directly with a compatible phone and comes with an IPX7-rated wired controller. It is a useful alternative when there is no space for a traditional source unit. Its rating and output are specific to this Bluetooth amplifier—not the same as the non-Bluetooth AP four-channel model.
Key Features
- Bluetooth audio streaming from a compatible smartphone
- Included remote supports flush, surface or bar mounting
- Efficient Class-D amplification
- IP67-rated amplifier excluding cables; IPX7-rated remote
- Ignition-protected design
Technical Specifications
| Manufacturer Part Number | 010-03431-00 |
| UPC | 729218924549 |
| Output at 4Ω | 40 W RMS x 4, or 100 W RMS x 2 bridged |
| Output at 2Ω | 50 W RMS x 4 |
| Power rating conditions | 14.4 V, <1% THD |
| Supply | 9–16 VDC |
| Fuse recommendation | 35 A |
| Minimum copper power/ground wire | 4 AWG |
| Size (W x H x D) | 7.28 x 1.85 x 4.90 inches |
Installation & System Requirements
Speakers/subwoofer, correctly fused copper power and ground wiring and installation materials are separate. Protect all cable connections; the amplifier IP67 rating excludes its cables.
What's Included
- 4 channel amplifier with BLUETOOTH® technology
- Remote controller
- Surface mounting cup with four mounting screws
- Four amplifier mounting screws
- Flush mounting kits
- Flush mounting template for the remote controller
- Waterproof gasket for the remote controller
- Documentation
Product Identification
Manufacturer: JL Audio. Model: AP Bluetooth 4-Channel. Garmin part number: 010-03431-00. UPC: 729218924549.
Need help choosing matching components or verifying an application? Use the MCOR Vehicle Fit Guide or contact MCOR before ordering. Individual components remain available for separate purchase.
