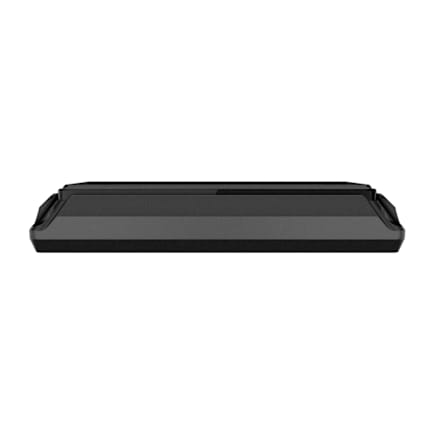

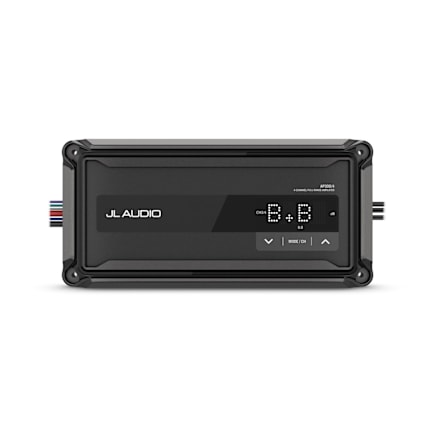

JL Audio AP 4-Channel Compact Marine Class-D Amplifier, 010-03429-00
JL Audio AP 4-Channel Compact Marine Class-D Amplifier, 010-03429-00
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio AP 4-Channel — Power a flexible marine speaker system with the compact JL Audio AP 4-channel amplifier. Its rugged enclosure and onboard controls make it a practical choice where space and exposure matter.
Compact marine amplification with protected hardware. The efficient Class-D design reduces heat and electrical demand compared with a conventional Class-AB design. Garmin identifies the enclosure as ignition protected and IP67-rated, with an important limitation: the rating excludes the cables, so splices and connectors still need protection.
Setup remains system-specific. The onboard LCD allows manual control; Easy Tune requires a compatible DSP-equipped stereo and Garmin Audio app. This non-Bluetooth AP model is an amplifier, not a self-contained streaming source unit. Match the rated output and speaker loads before choosing a stereo or bridged configuration.
Key Features
- Efficient Class-D design
- IP67 rating excluding cables; ignition protected
- Built-in LCD display for manual control
- Easy Tune support with a compatible DSP-equipped stereo and Garmin Audio app
Technical Specifications
| Manufacturer Part Number | 010-03429-00 |
| UPC | 729218924525 |
| Output at 4Ω | 50 W RMS x 4; 150 W RMS x 2 bridged |
| Output at 2Ω | 75 W RMS x 4 |
| Power rating conditions | 14.4 V, <1% THD |
| Supply | 9–16 VDC |
| Fuse recommendation | 35 A |
| Minimum copper power/ground wire | 4 AWG |
| Size (W x H x D) | 10.43 x 1.86 x 4.90 inches |
Installation & System Requirements
Speakers, subwoofer, fused copper power/ground wiring and signal cables are separate. Easy Tune requires compatible DSP-equipped source hardware; it is not built-in Bluetooth streaming. Protect cable connections because the IP67 rating excludes cables.
What's Included
- JL Audio AP amplifier (based on your selection)
- Four mounting screws
- Documentation
Product Identification
Manufacturer: JL Audio. Model: AP 4-Channel. Garmin part number: 010-03429-00. UPC: 729218924525.
Need help choosing matching components or verifying an application? Use the MCOR Vehicle Fit Guide or contact MCOR before ordering. Individual components remain available for separate purchase.
