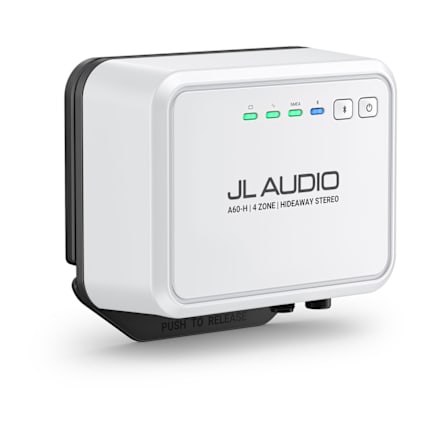

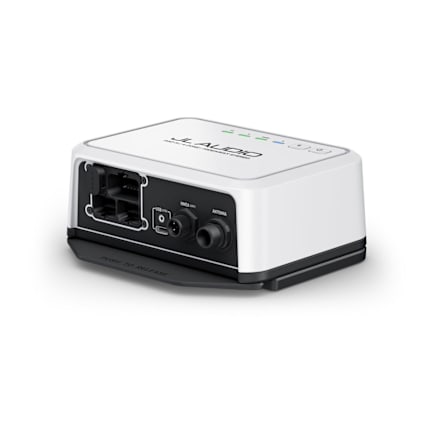

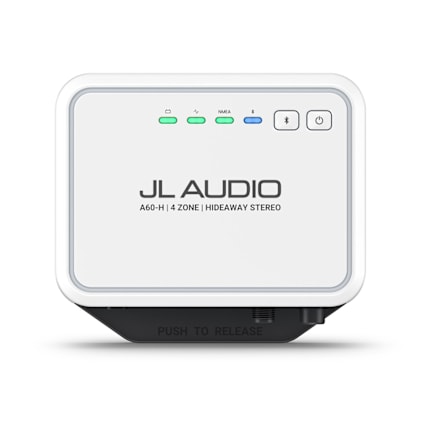

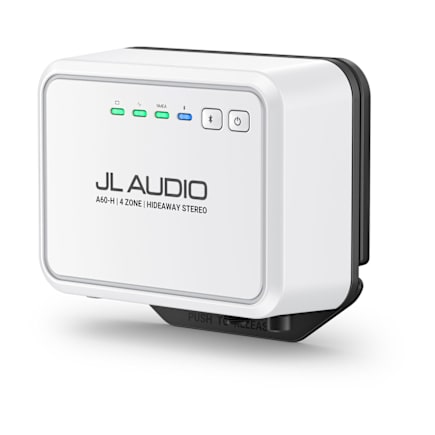

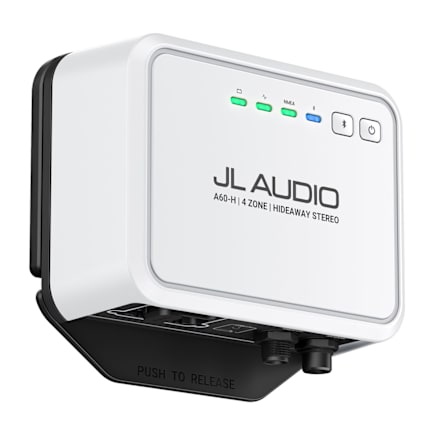

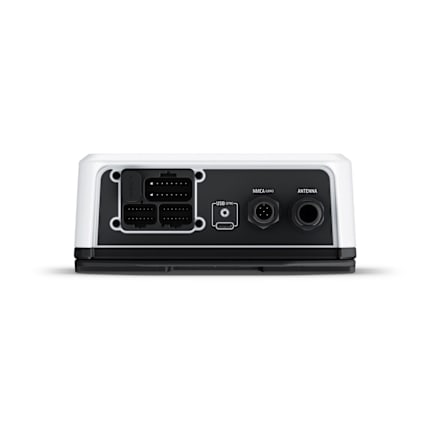

JL Audio A60-H Hideaway Marine Stereo, Bluetooth 6.1, DSP & 4-Zone Control 010-04305-00

JL Audio A60-H — Conceal the stereo hardware and control your marine audio through compatible Garmin devices and the Garmin Audio app. The A60-H combines Bluetooth 6.1 LE audio streaming, built-in DSP and four-zone control in a marine-rated source unit.

Four-zone control does not mean four internally amplified zones. The A60 platform provides four-zone speaker and subwoofer preamp connections, with the built-in four-channel Class-D amplifier serving two speaker zones. Additional zones and subwoofers use external amplifiers. That distinction makes the difference between buying a source unit and planning a complete boat system.

Built-in DSP and Easy Tune work with the Garmin Audio app to set up suitable audio profiles and manage signal delivery. Bluetooth 6.1 LE supports LC3 streaming, and compatible Garmin devices provide additional control options. DAB+ is region-dependent; NMEA 2000 control requires a supported device and the appropriate network components.

Key Features

• Bluetooth 6.1 LE audio streaming with LC3 support
• Four-zone Multi-Zone control with speaker and subwoofer preamp outputs
• DSP profile setup and Easy Tune through the Garmin Audio app
• NMEA 2000 integration with compatible Garmin MFDs and optional NRX-300 remote
• AM/FM, USB, AUX and DAB+ where broadcast service is available
• IPX6 / IPX7 water-ingress ratings when properly installed

Technical Specifications

Installation & System Requirements

Speakers, external amplification for preamp-fed zones and subwoofers, antenna, NMEA 2000 network components and optional wired remote are separate. Compatible control devices are required for the hideaway model; confirm network and device compatibility before ordering.

What's Included

• JL Audio A60-H
• Power/speaker harness
• Zone 1 and zone 2 harness
• Zone 3 and zone 4 harness
• Mounting bracket with hardware
• Documentation

Product Identification

Manufacturer: JL Audio. Model: A60-H. Garmin part number: 010-04305-00. UPC: 753759355067.

Need help choosing matching components or verifying an application? Use the MCOR Vehicle Fit Guide or contact MCOR before ordering. Individual components remain available for separate purchase.

Compare JL Audio Marine Source Units

Need to choose between an integrated display, hideaway hardware or external amplification? Compare A60, A60-H, MM55, MM55-HR, MM105 and MM105-HR before building your system.
