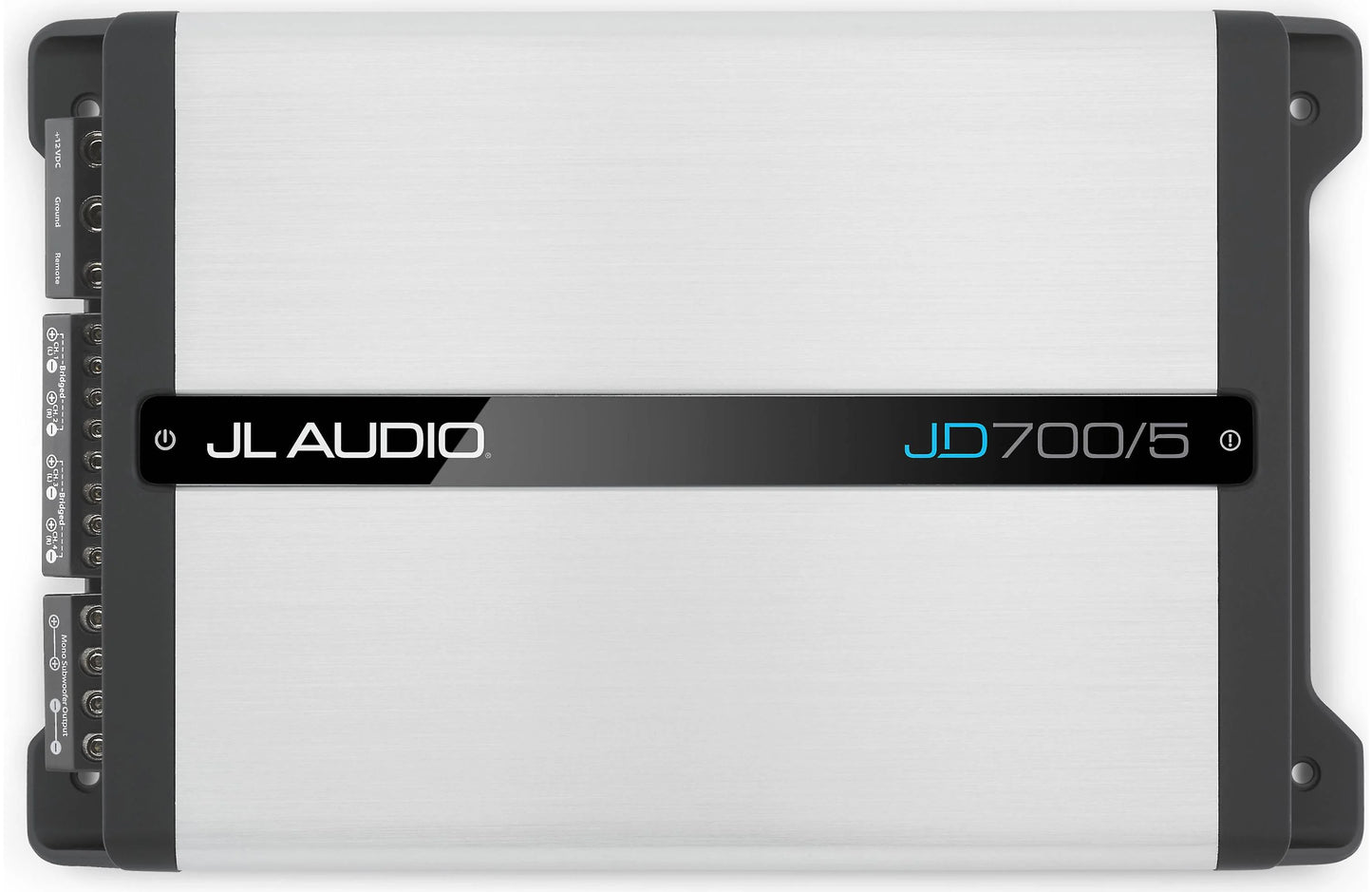

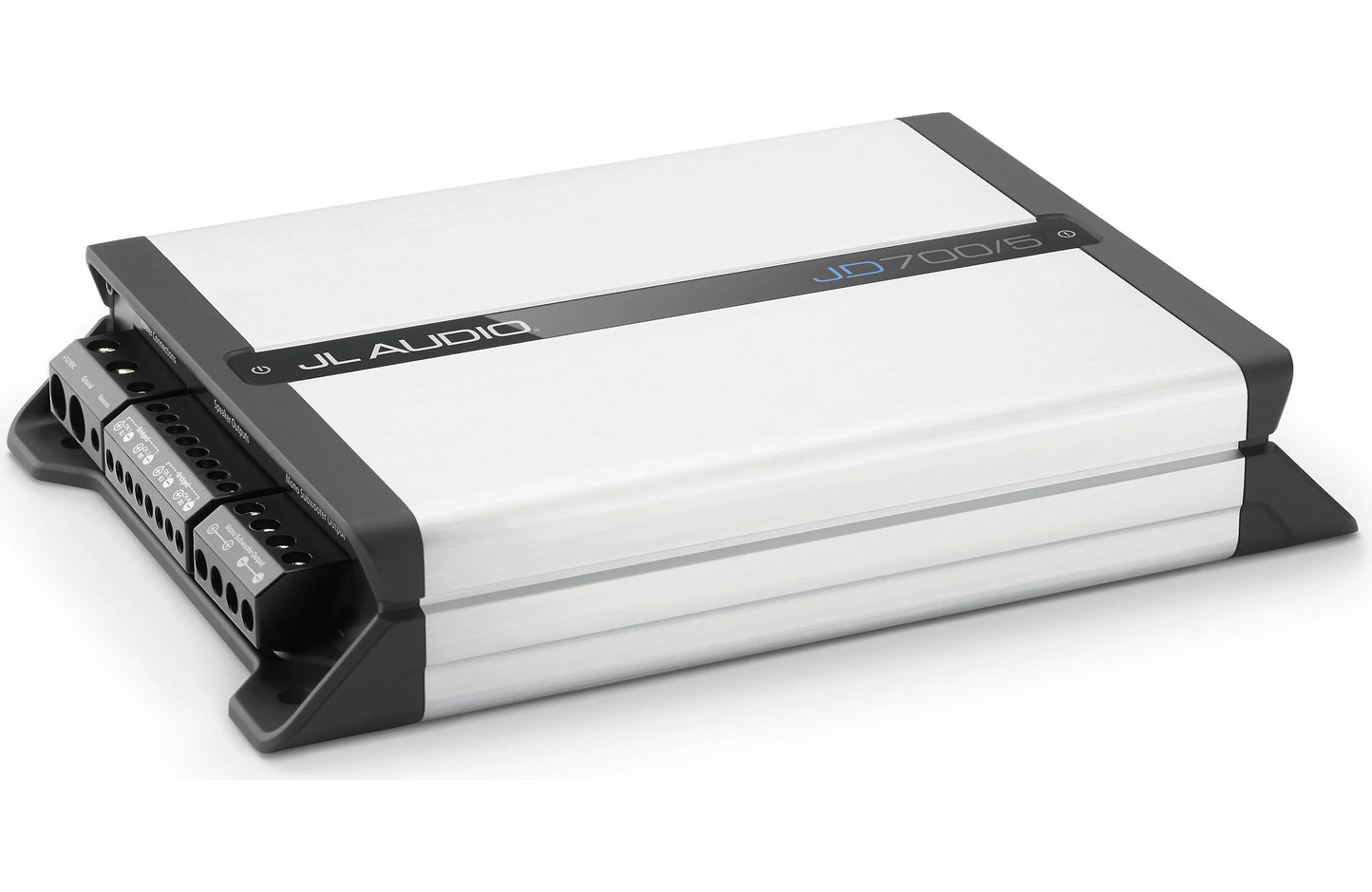

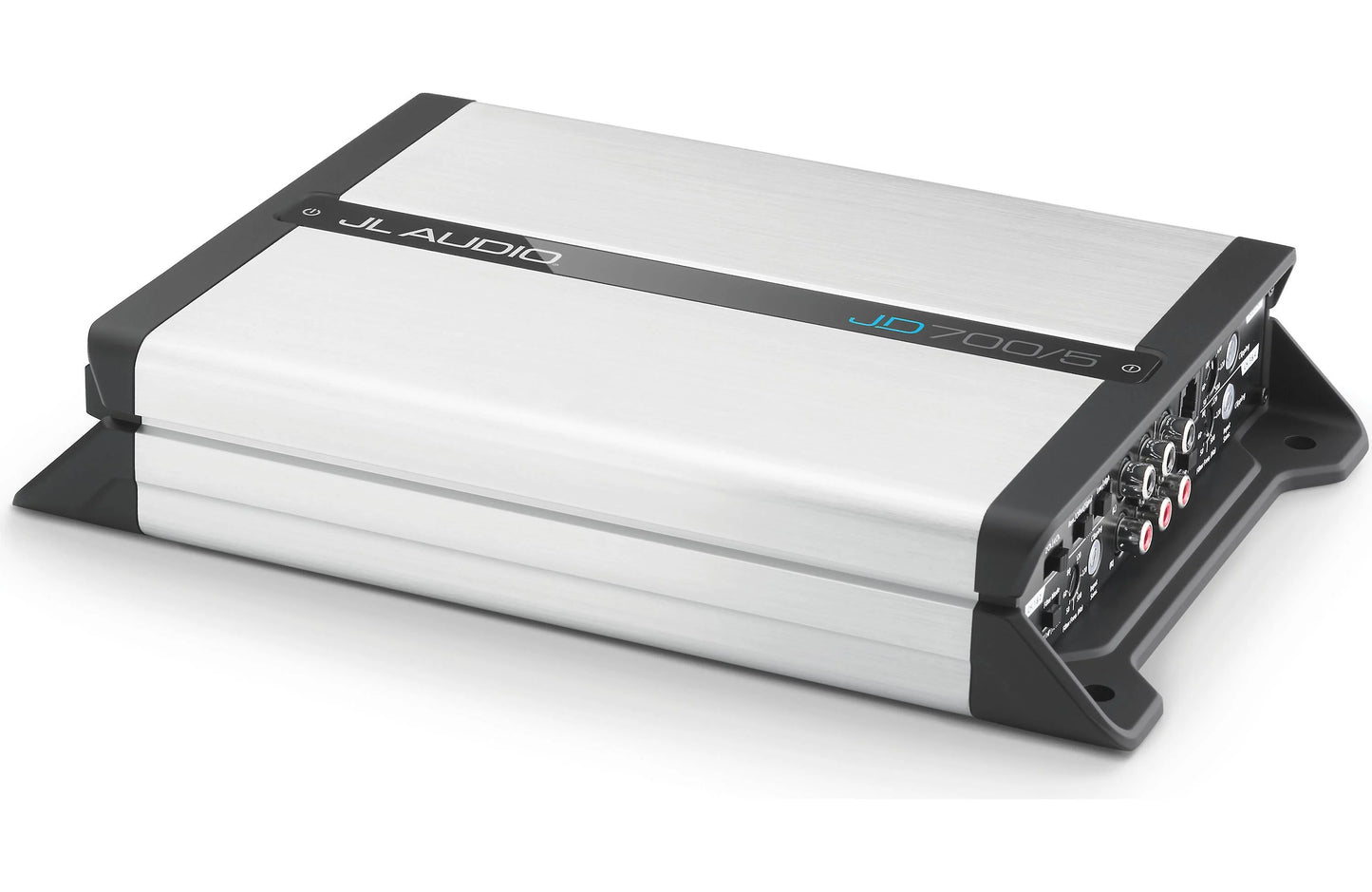

JL Audio JD700/5 5 Channel Class D Amplifier, 700W RMS 010-03883-00 (98364)
JL Audio JD700/5 5 Channel Class D Amplifier, 700W RMS 010-03883-00 (98364)
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
JL Audio JD700/5 combines four full-range channels and one subwoofer channel in one amplifier. At 14.4 V and 2 ohms, it supplies 100 W RMS × 4 plus 300 W RMS × 1: 700 W combined RMS. At 4 ohms, output is 75 W × 4 plus 180 W × 1. Match each speaker and the subwoofer to the output available at their actual load.
Plan your system before ordering

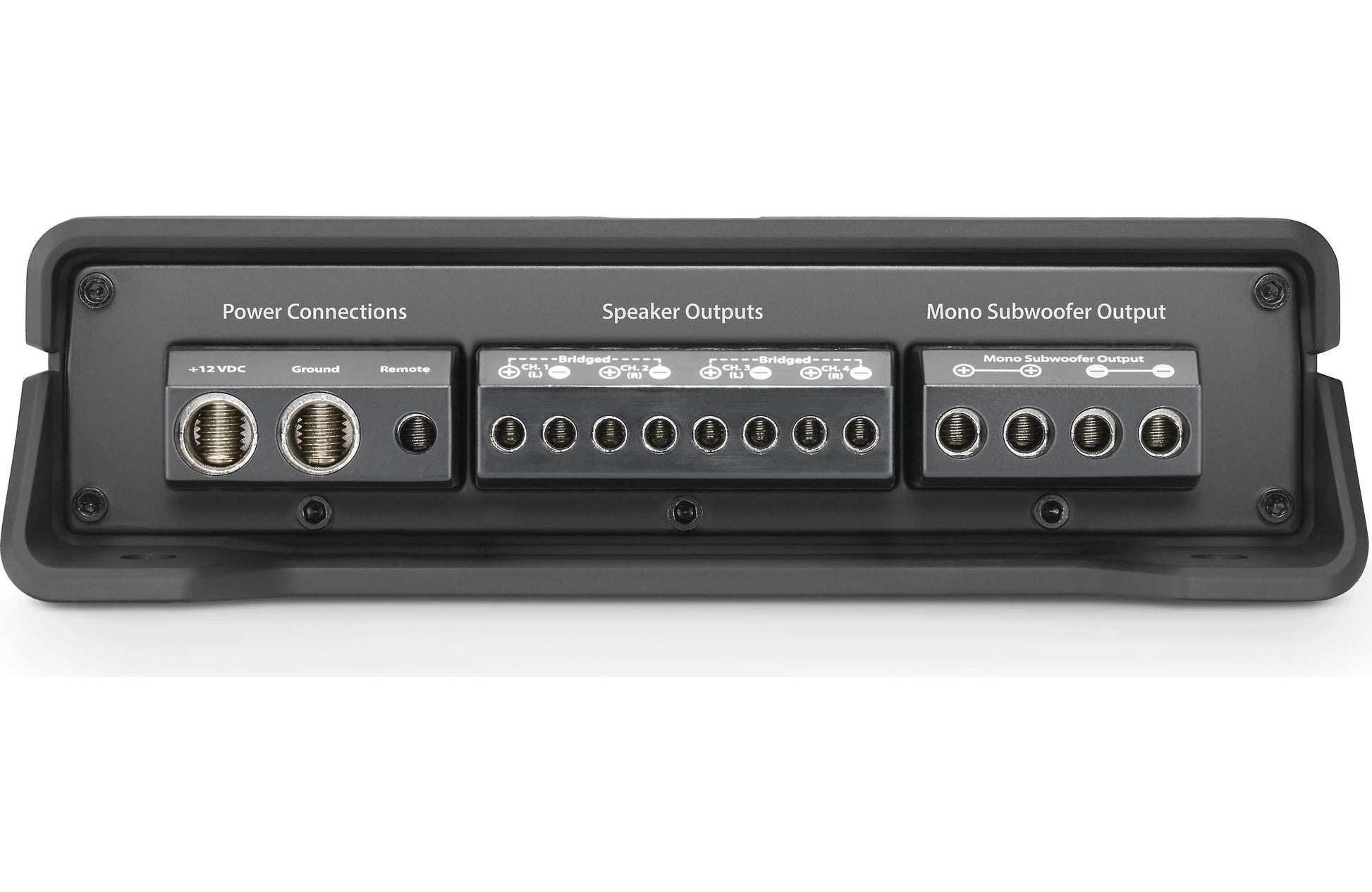

- Load limits: 2 ohms minimum per unbridged channel; 4 ohms for a bridged full-range channel pair. Bridging uses two channels and reduces the number of independent speaker outputs.
- Power protection: use a 60 A inline fuse or circuit breaker and correctly sized OFC or tinned-copper power/ground wiring. The manual specifies 4 AWG for most installations; longer or higher-current shared runs may need larger wire.
- Space: 11.86 × 7.50 × 2.10 inches (301 × 190 × 53 mm), W×D×H, plus ventilation and cable clearance. Install in a dry location.
- Separate items: speakers, subwoofer/enclosure, installation wiring, required radio interface and optional RBC-1 controller are not included with the amplifier.
Part Number 010-03883-00
5-Channel Class D System Amplifier, 75 W x 4 @ 4 Ω + 180 W x 1 @ 4 Ω - 14.4V
Four speaker channels and one dedicated bass channel
Power your entire system with this 5-channel system amplifier that combines a 4-channel full-range and monoblock subwoofer amplifier in one single, easy-to-install package. A generous feature set adds even more value. Add the optional, separately sold bass knob RBC-1 for convenient control of subwoofer on the fly.

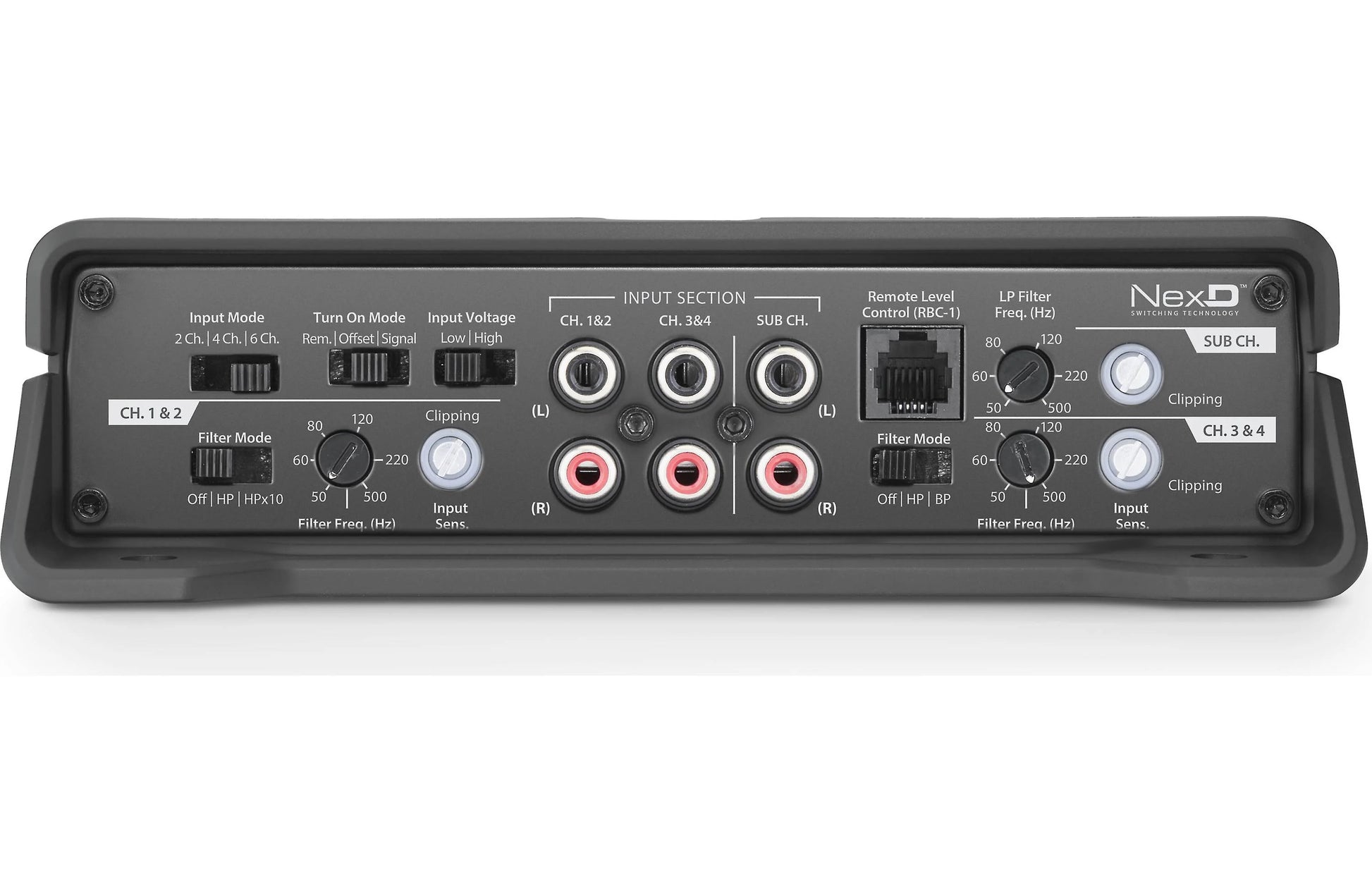

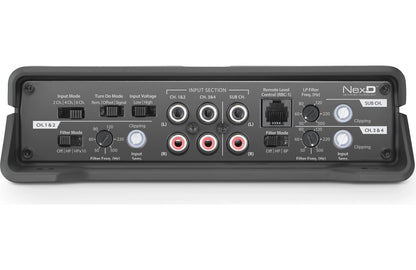

12 DB/OCTAVE FILTERING WITH CHANNEL-SPECIFIC HIGH-PASS, BANDPASS AND SUBWOOFER LOW-PASS CONTROLS
SELECTABLE INPUT VOLTAGE: LOW (200 mV TO 2-VOLT RMS) TO HIGH (800 mV to 8-VOLT RMS)
3 TURN-ON OPTIONS: +12-VOLT REMOTE WIRE, SIGNAL SENSING OR DC OFFSET
ONBOARD LED CLIPPING INDICATOR SIMPLIFIES LEVEL SETTING
SIGNAL ROUTING FLEXIBILITY WITH 2-, 4- OR 6-CHANNEL INPUT MODE
2-YEAR WARRANTY
General |
|
| Channels | 5 |
|---|---|
| Physical dimensions (Height) | 2.10" (53 mm) |
| Physical dimensions (Width) | 11.86" (301 mm) |
| Physical dimensions (Depth) | 7.50" (190 mm) |
| Weight |
6.55 lbs (2.97 kg) |
| Operating voltage | 10.5-16 VDC |
| Warranty | 2 years |
Audio |
|
| Amplifier class | Class D |
|---|---|
| Rated continuous (RMS) power (14.4 V input @ 4 Ohm < 1% THD) |
Main: 75 W x 4 |
| Rated continuous (RMS) power (14.4 V input @ 2 Ohm < 1% THD) |
Main: 100 W x 4 |
| Rated continuous (RMS) power (12.5 V input @ 4 Ohm < 1% THD) |
Main: 60 W x 4 |
| Rated continuous (RMS) power (12.5 V input @ 2 Ohm < 1% THD) |
Main: 90 W x 4 |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | >104 dB |
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | >80 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Main Channels | >84 dB |
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz - 20 kHz noise bandwidth): Analog Inputs - Subwoofer Channel | >60 dB |
| Damping factor @ 4 Ω | >150/50 Hz |
| Damping factor @ 2 Ω | >75/50 Hz |
| THD+N @ Rated Power: Main Channels | <1% @ 2 Ω per Channel |
| THD+N @ Rated Power: Subwoofer Channel | <1% @ 2 Ω per Channel |
| Frequency response (+0, -1dB) | 12 Hz-22 kHz |
| Frequency response (+0, -1dB): Main Channels | 12 Hz-22 kHz |
| Frequency response (+0, -1dB): Subwoofer Channel | 7 Hz-500 Hz |
| Input voltage range @ RCA inputs | Switchable from 200 mV-2 V RMS (Low) to 800 mV-8 V RMS (High) |
| Fuse rating | 60 A |
| Recommended fuse type(s) | AFS, AGU or MaxiFuse™ |
| Min. copper power/Ground wire gauge | 4 AWG wire |
| Protection circuits | Input under/over voltage Over temperature Output short circuit |
Signal Processing |
|
| Filter mode(s): Channels 1 & 2 | Off, High-pass or High-pass x10 |
|---|---|
| Filter Slope(s): Channels 1 & 2 | 12 dB/octave |
| Filter frequency range: Channels 1 & 2 | 50 Hz–500 Hz (HP); 500 Hz–5 kHz (HPx10) |
| Filter mode(s): Channels 3 & 4 | Off, High-pass or Bandpass |
| Filter Slope(s): Channels 3 & 4 | 12 dB/octave |
| Filter frequency range: Channels 3 & 4 | 50 Hz-500 Hz |
| Filter mode(s): Subwoofer Channel | Low-pass |
| Filter slope(s): Subwoofer Channel | 12 dB/octave |
| Filter frequency range: Subwoofer Channel | 50 Hz-500 Hz |
| Remote level control | Optional (RBC-1) |
| Remote level modes | Sub Channel only |
| Channel input mode switch | yes (2/4/6 Channels) |
Why buy JL Audio from MCOR Automotive
- Authorized JL Audio / Garmin dealer with over 22 years in business.
- We install and use this gear every day, so our recommendations come from real-world results.
- Pre-sale help if you’re unsure what fits your vehicle, boat or system goals.
- Support after the sale if you run into questions on wiring, setup or matching gear.
Fitment & Installation Help
Need help confirming fitment or installation parts? Use our Fit Guide or contact us through the chat button before ordering.
Authorized Retailer & Warranty
MCOR Automotive is an authorized JL Audio / Garmin retailer. Products purchased from MCOR include applicable manufacturer warranty coverage when installed and used according to manufacturer guidelines.
Read the official JD700/5 installation manual for wiring, channel configuration and input-level setup.
