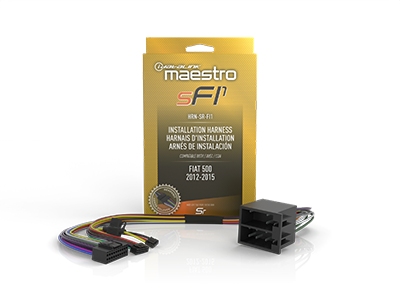

iDatalink Maestro HRN-SR-FI1 Radio Replacement T-Harness for 2012-2015 Fiat 500
iDatalink Maestro HRN-SR-FI1 Radio Replacement T-Harness for 2012-2015 Fiat 500
Couldn't load pickup availability
The iDatalink Maestro HRN-SR-FI1 Radio Replacement T-Harness for 2012-2015 Fiat 500 is designed for select 2012-2015 Fiat 500, 500 Abarth, and 500c applications whose factory-radio configuration matches the current Maestro coverage data. This listing explains the required system pieces and the purchasing checks that matter before installation.
At a Glance
- Vehicle-specific radio-replacement T-harness for the Maestro SR platform
- Connects supported factory radio wiring to the ADS-MSR interface without treating the harness as a standalone solution
- Helps retain supported steering-wheel controls and factory amplifier functions when the application record allows
- Head-unit-ready connector supports an optional radio-specific Maestro adapter for select Alpine, JVC, Kenwood, Pioneer, and Sony receivers
- Requires ADS-MSR firmware programmed for the exact vehicle and radio configuration
- Factory radio, navigation, amplifier, camera, screen, and trim qualifiers must be checked before purchase
Vehicle Compatibility
Use the table below to find the row that matches your vehicle and factory equipment. The year, make, and model must match, along with the listed factory radio, screen, amplifier, navigation, or other equipment details. If your vehicle does not match a row exactly, contact MCOR before ordering.
| Make | Model | Years | Factory Radio / Equipment Qualifier |
|---|---|---|---|
| Fiat | 500 | 2012-2015 | All |
| Fiat | 500 Abarth | 2012-2015 | All |
| Fiat | 500c | 2012-2015 | All |
Compatibility & What You Need
Required: iDatalink Maestro ADS-MSR interface, vehicle-specific Weblink programming, and a compatible aftermarket radio. Select a radio-specific Maestro head-unit adapter where supported; otherwise follow the official radio wiring instructions.
Compatible & Related Products
- Maestro ADS-MSR interface - sold separately; application-dependent
Technical Specifications
| Specification | Details |
|---|---|
| Brand | iDatalink Maestro |
| Manufacturer part number | HRN-SR-FI1 |
| Product type | Vehicle-specific radio replacement T-harness |
| System family | Maestro SR radio replacement |
| Programming | Vehicle/system-specific Weblink programming may be required |
| Primary application | select 2012-2015 Fiat 500, 500 Abarth, and 500c applications whose factory-radio configuration matches the current Maestro coverage data |
What's Included
- One genuine iDatalink Maestro HRN-SR-FI1 product package
- Manufacturer-supplied components shown or listed for this part number
Fitment disclaimer: Compatibility is not determined by year and model alone. Verify the exact year, make, model, trim, factory radio, navigation, amplifier/audio package, screen, camera equipment, aftermarket radio, required interface, firmware, and accessories before ordering. Contact MCOR Automotive through the chat button for application help.
