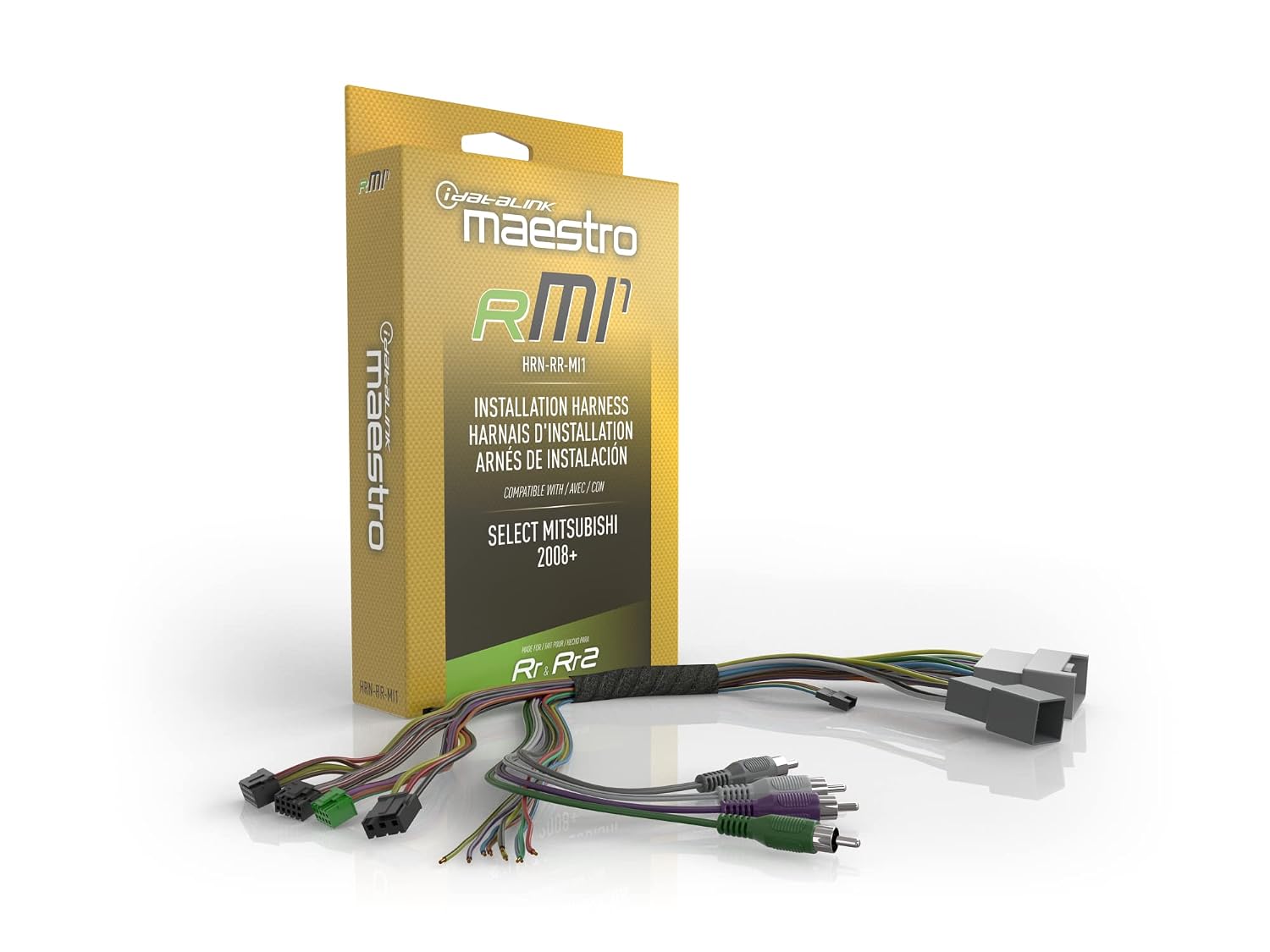

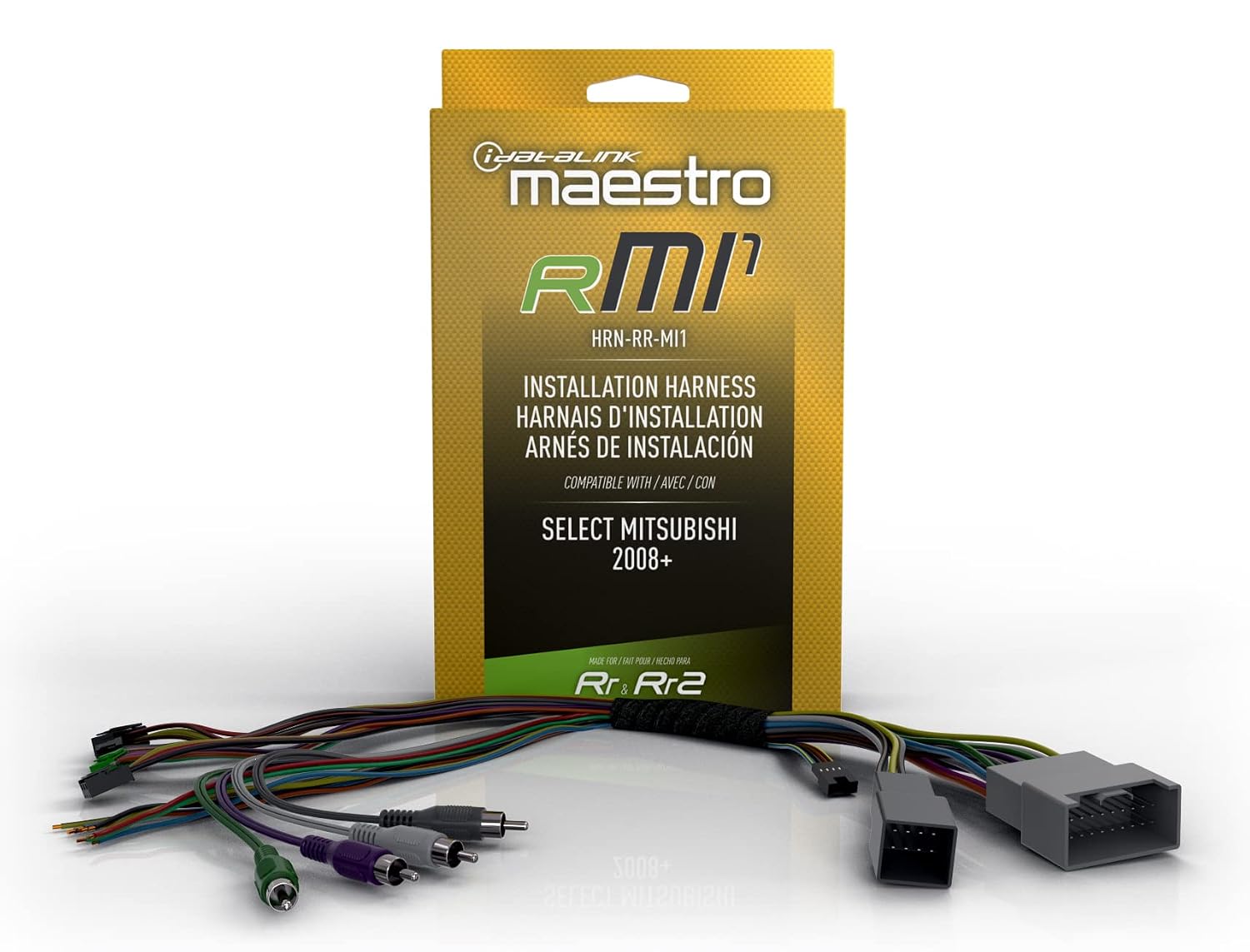

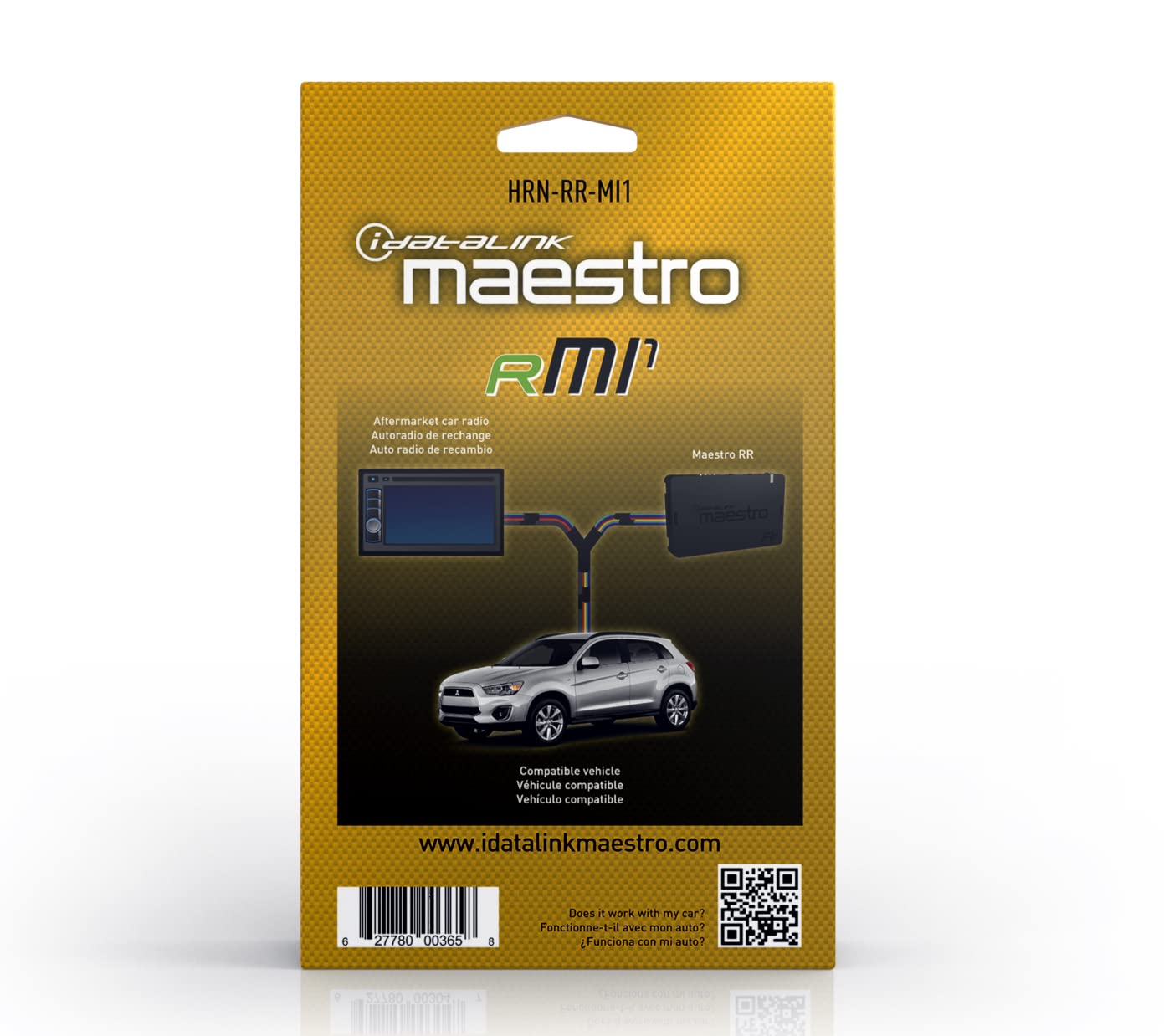

iDatalink Maestro HRN-RR-MI1 Radio Replacement T-Harness for 2008-2019 Mitsubishi Vehicles

The iDatalink Maestro HRN-RR-MI1 is the original RR-series vehicle-specific radio replacement T-harness for select Mitsubishi vehicles. It is used with a separately sold iDatalink Maestro RR or RR2 radio replacement interface and an iDatalink-compatible aftermarket radio.

This listing is for the original HRN-RR-MI1 part number. It is not the newer HRN-HRR-MI1 replacement listing.

Key Features

• Original iDatalink Maestro HRN-RR-MI1 radio replacement T-harness for select Mitsubishi vehicles
• Designed for use with Maestro RR (ADS-MRR) or Maestro RR2 (ADS-MRR2), sold separately
• Works with an iDatalink-compatible aftermarket radio
• Helps retain supported factory features such as steering wheel controls, factory backup camera, and vehicle data functions when originally equipped
• Vehicle-specific harness design reduces hardwiring compared with a universal radio installation
• Uses programmed firmware ADS-RR(SR)-MI01-DS for the listed Mitsubishi applications

Vehicle Fitment

Use the table below to confirm the published HRN-RR-MI1 application range. Fitment depends on the exact year, model, trim, factory radio, factory audio system, and aftermarket radio being installed.

Compatibility & Installation Notes

• Required module: iDatalink Maestro RR or Maestro RR2 radio replacement interface, sold separately.
• Required radio: iDatalink-compatible aftermarket radio, sold separately.
• Required programming: The Maestro RR/RR2 module must be flashed with firmware ADS-RR(SR)-MI01-DS before installation.
• Factory feature retention: Maestro only retains functions that were originally available in the vehicle and supported by the selected aftermarket radio.

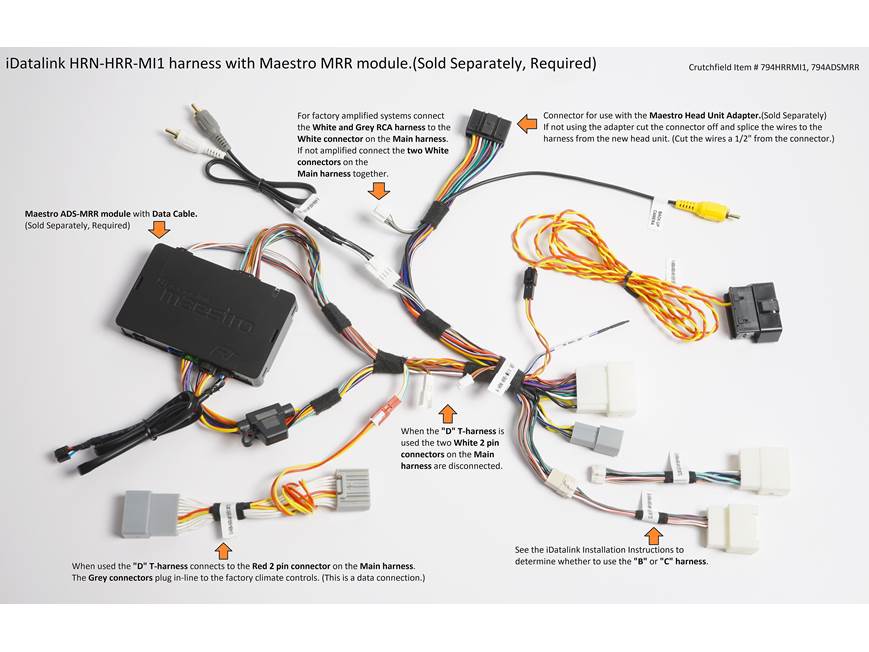

• Factory amplifier applications: The install manual includes separate wiring paths for amplified and non-amplified vehicles. Match the vehicle's factory audio system before installation.
• 2014-up applications: Some guide sections use an additional climate-control harness connection. Follow the vehicle-specific guide pages for the exact vehicle.
• Reverse input warning: The purple/white reverse wire should only be connected to the radio reverse input as directed by the install guide.
• Professional installation is recommended.

Technical Highlights

What's Included

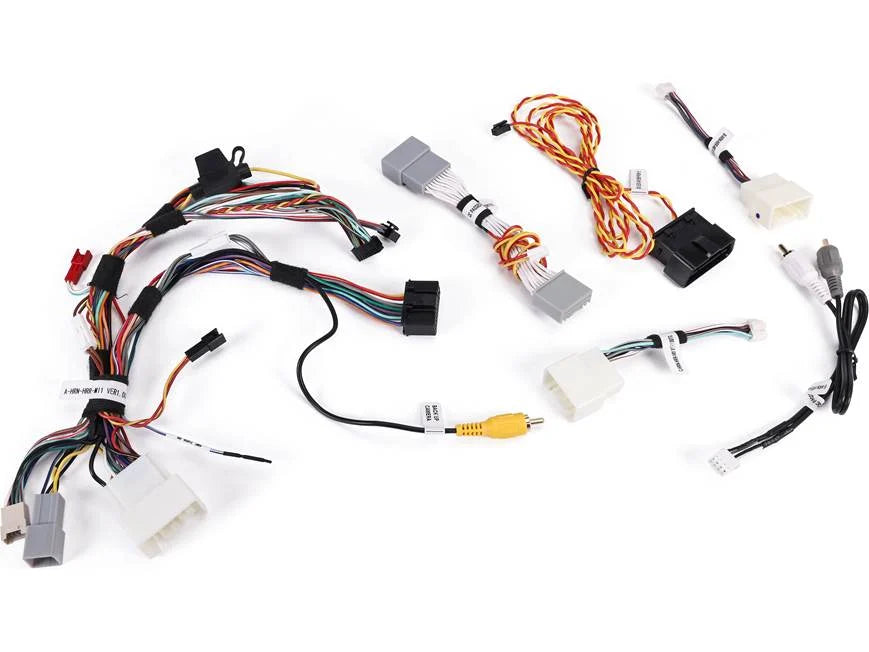

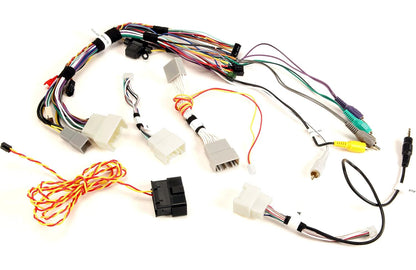

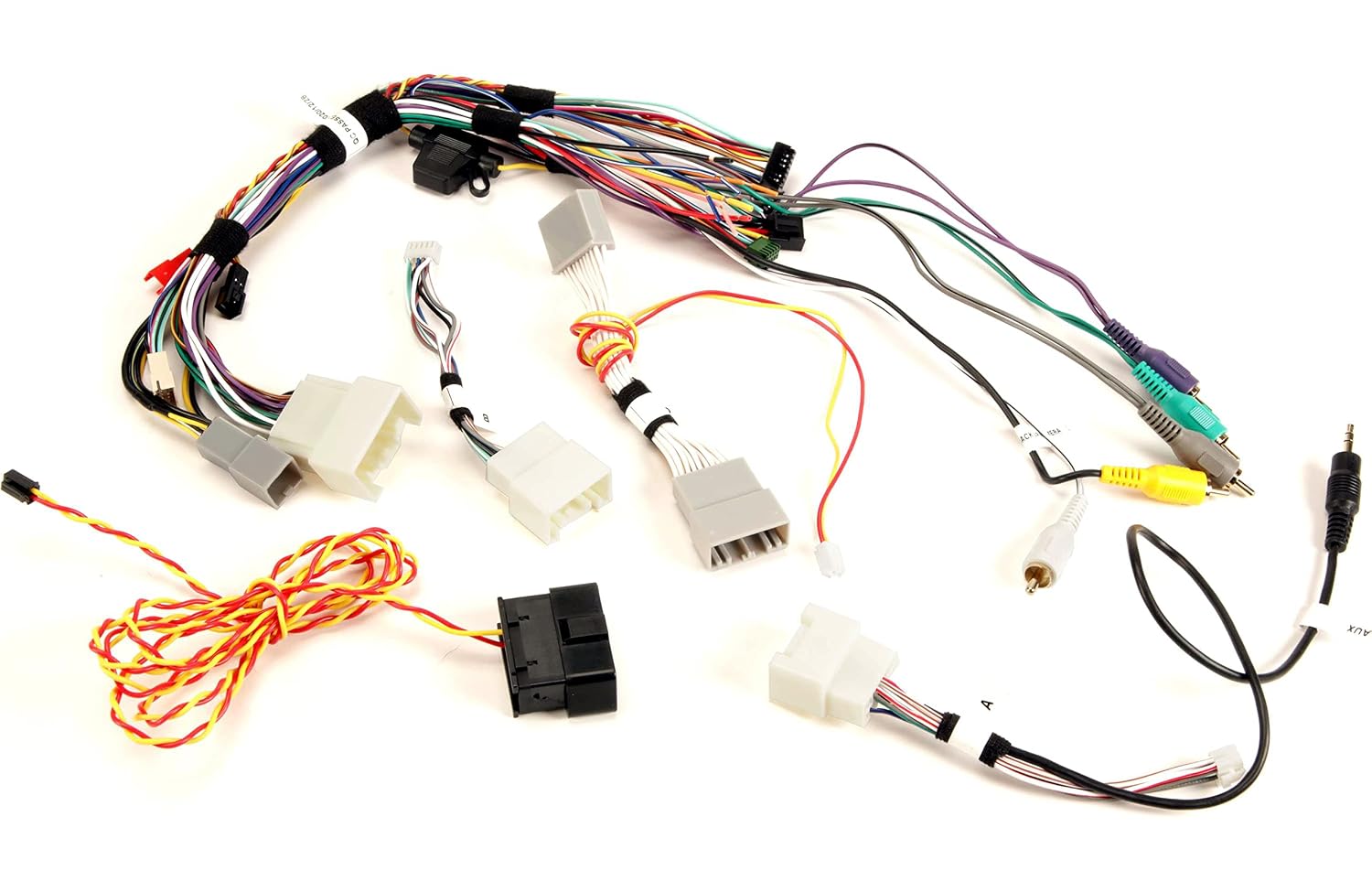

• iDatalink Maestro HRN-RR-MI1 Mitsubishi radio replacement T-harness
• Vehicle-specific connection leads supplied with the HRN-RR-MI1 harness package

Sold separately: Maestro RR/RR2 module, aftermarket radio, dash kit, antenna adapter, and any vehicle-specific installation accessories not included with this harness.

Important Fitment Disclaimer

Do not order by model year alone. Confirm the exact vehicle, trim, factory audio system, and aftermarket radio compatibility before purchase. If your Mitsubishi has a factory amplified system, factory backup camera, or other retained features, verify the correct guide section before installation.

Authorized Retailer & Warranty

MCOR Automotive is an authorized iDatalink Maestro retailer. Products purchased from MCOR Automotive include manufacturer-backed support according to iDatalink's current warranty policy.
