iDatalink Maestro HRN-HRR-HO2 Radio Replacement Wiring Harness for Select Honda Vehicles

***This item may have an additional 1–2 business days handling time***

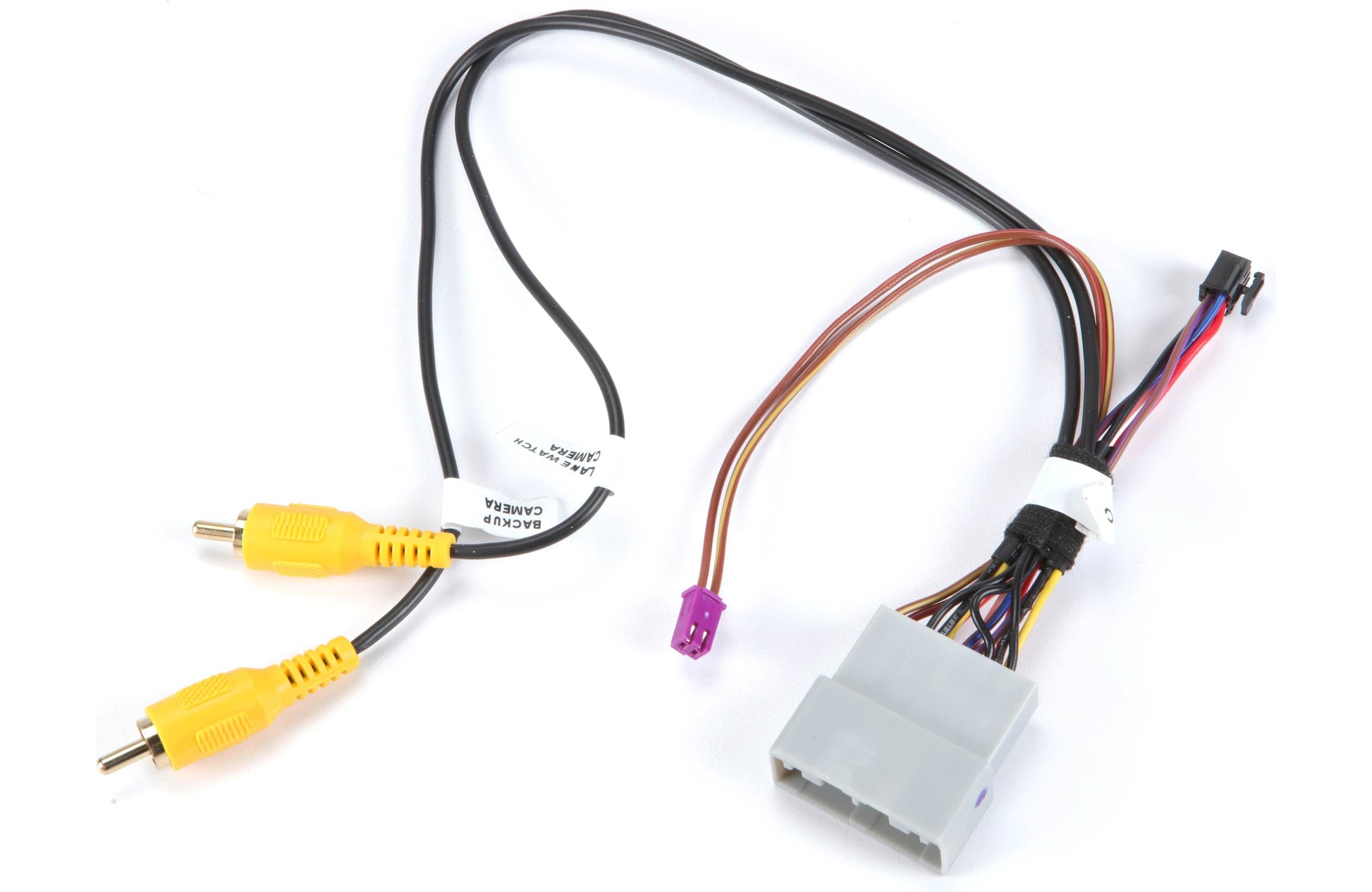

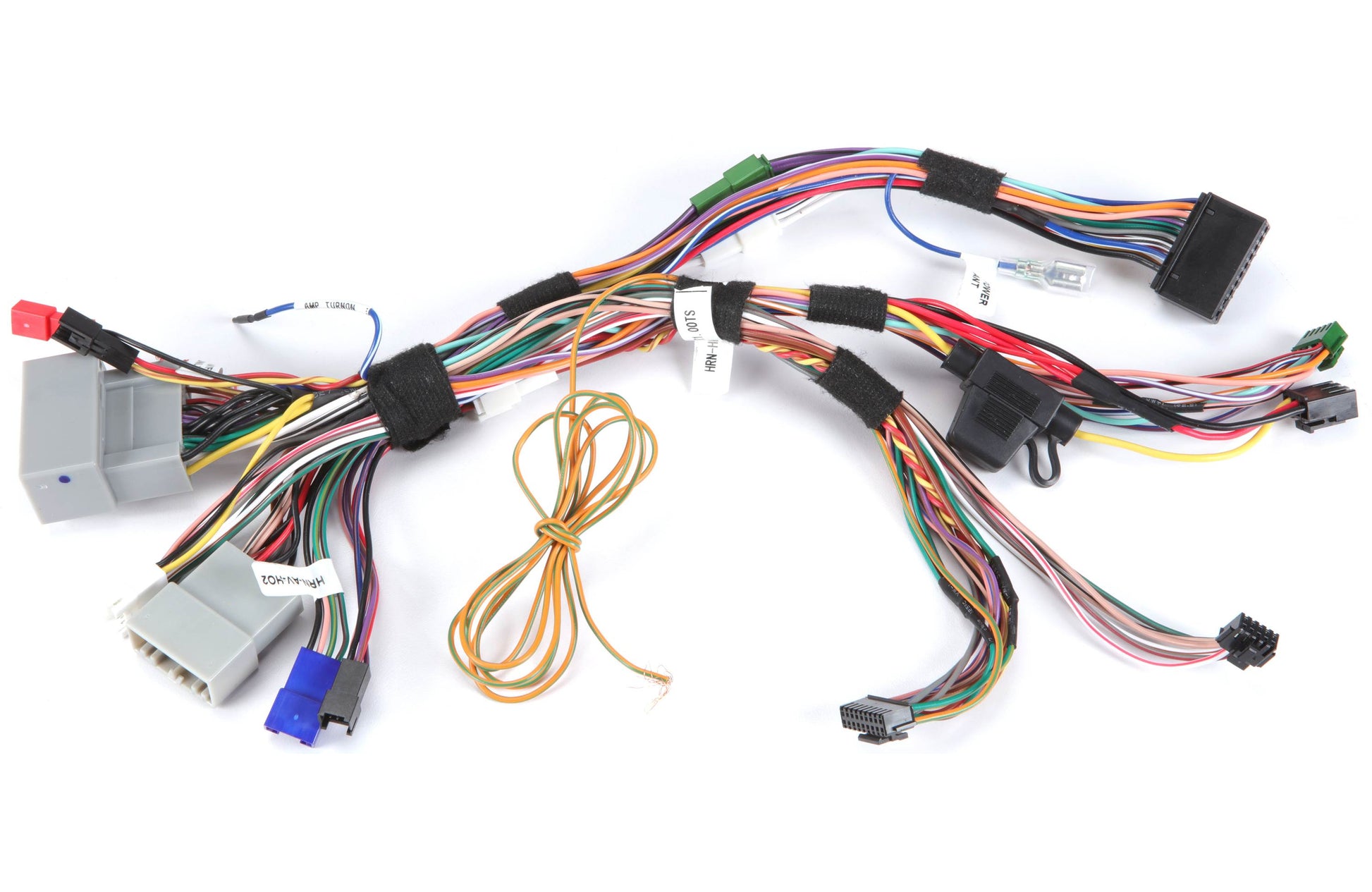

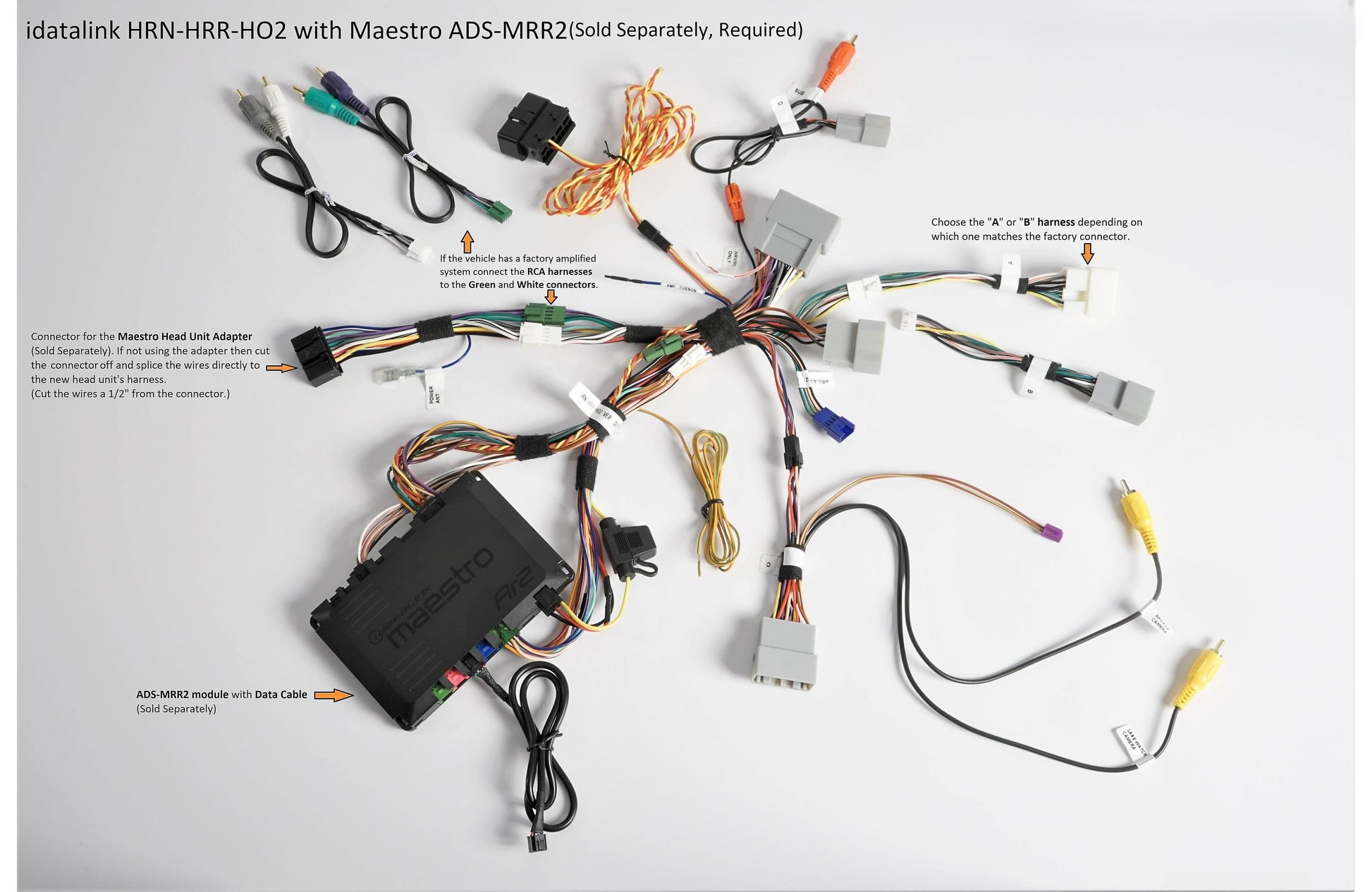

iDatalink Maestro HRN-HRR-HO2 is a vehicle-specific radio replacement wiring harness designed for use in select 2008–2018 Honda vehicles when installing an iDatalink-ready aftermarket radio. This harness interfaces between the factory radio connector and the aftermarket head unit or accessory harness, and must be used with a compatible iDatalink interface module such as ADS-MRR or ADS-MRR2 to retain vehicle data and control functions.

The harness terminates on the radio side in a universal connector that either mates with Maestro head-unit adapters or can be removed to allow conventional wiring. When installed with the appropriate Maestro interface module and iDatalink-ready radio, the HRN-HRR-HO2 harness supports retention of steering wheel audio controls, factory Bluetooth, backup camera functionality (if equipped), vehicle data display, and other OEM features through the aftermarket interface.

Confirmed Vehicle Fitment

• 2008 Honda Accord
• 2009 Honda Accord
• 2009 Honda Pilot
• 2010 Honda Accord
• 2010 Honda Accord Crosstour
• 2010 Honda Pilot
• 2011 Honda Accord
• 2011 Honda Accord Crosstour
• 2011 Honda Odyssey
• 2011 Honda Pilot
• 2012 Honda Accord
• 2012 Honda CR-V
• 2012 Honda Civic
• 2012 Honda Odyssey
• 2012 Honda Pilot
• 2013 Honda Accord
• 2013 Honda CR-V
• 2013 Honda Civic
• 2013 Honda Odyssey
• 2013 Honda Pilot
• 2014 Honda Accord
• 2014 Honda CR-V
• 2014 Honda Civic
• 2014 Honda Odyssey
• 2014 Honda Pilot
• 2015 Honda Accord
• 2015 Honda CR-V
• 2015 Honda Civic
• 2015 Honda Fit
• 2015 Honda Odyssey
• 2015 Honda Pilot
• 2016 Honda CR-V
• 2016 Honda Fit
• 2016 Honda HR-V
• 2016 Honda Odyssey
• 2017 Honda Fit
• 2017 Honda HR-V
• 2017 Honda Odyssey
• 2018 Honda HR-V

Key Features

• Radio replacement harness for select 2008–2018 Honda vehicles
• Works with Maestro ADS-MRR or ADS-MRR2 modules
• Universal connector for iDatalink head-unit adapters
• Retains steering wheel audio controls with proper interface
• Retains factory Bluetooth and secondary display where available

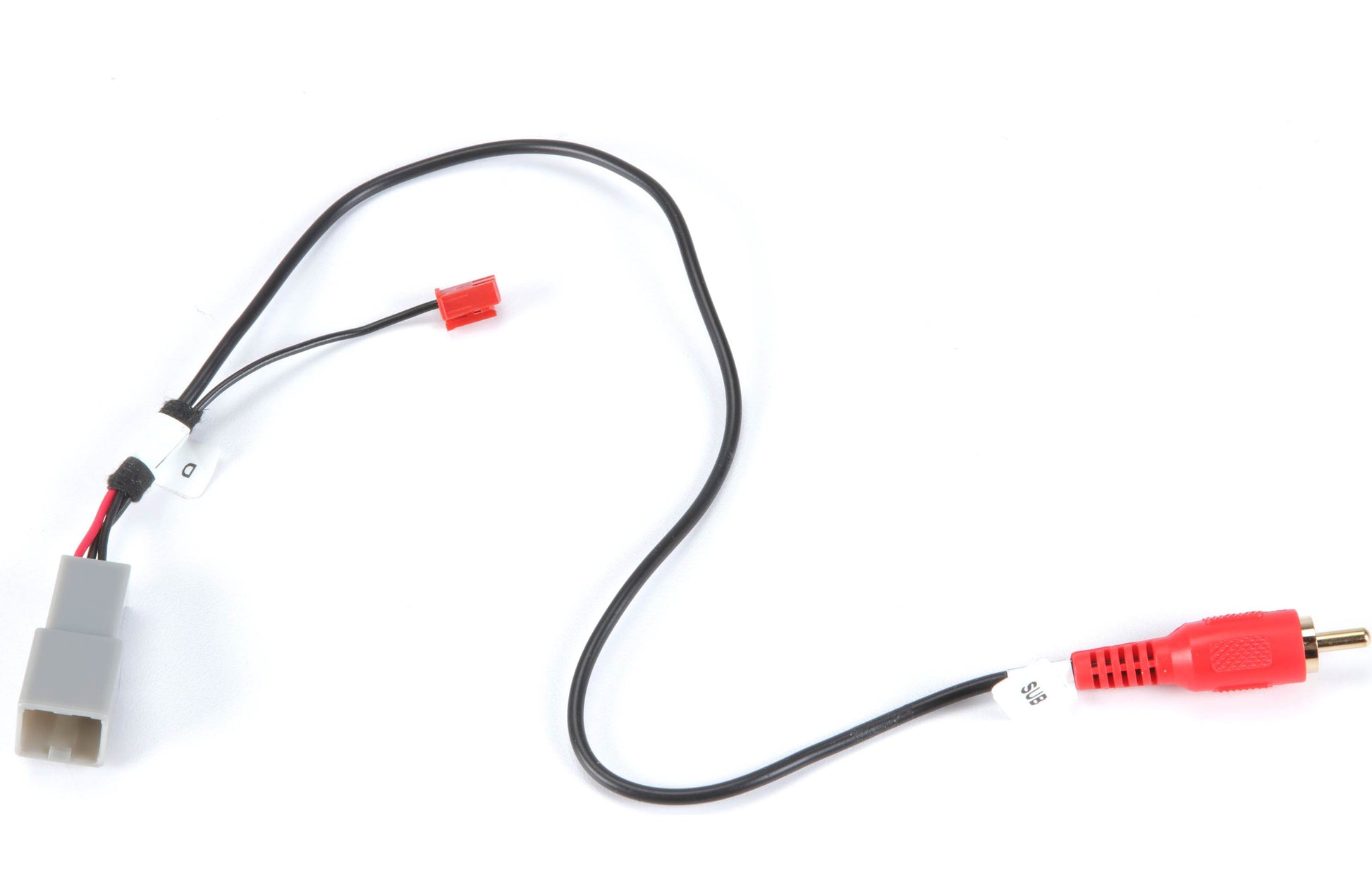

• Retains factory backup camera and auto camera switching (vehicle dependent)
• Provides navigation outputs such as reverse, parking brake, and vehicle speed sense

Technical Specifications

Ideal Applications

• Replacement of factory Honda radios with aftermarket iDatalink-ready units
• Retention of steering wheel controls and factory features
• Integration with Maestro interface modules and vehicle data outputs

What’s Included

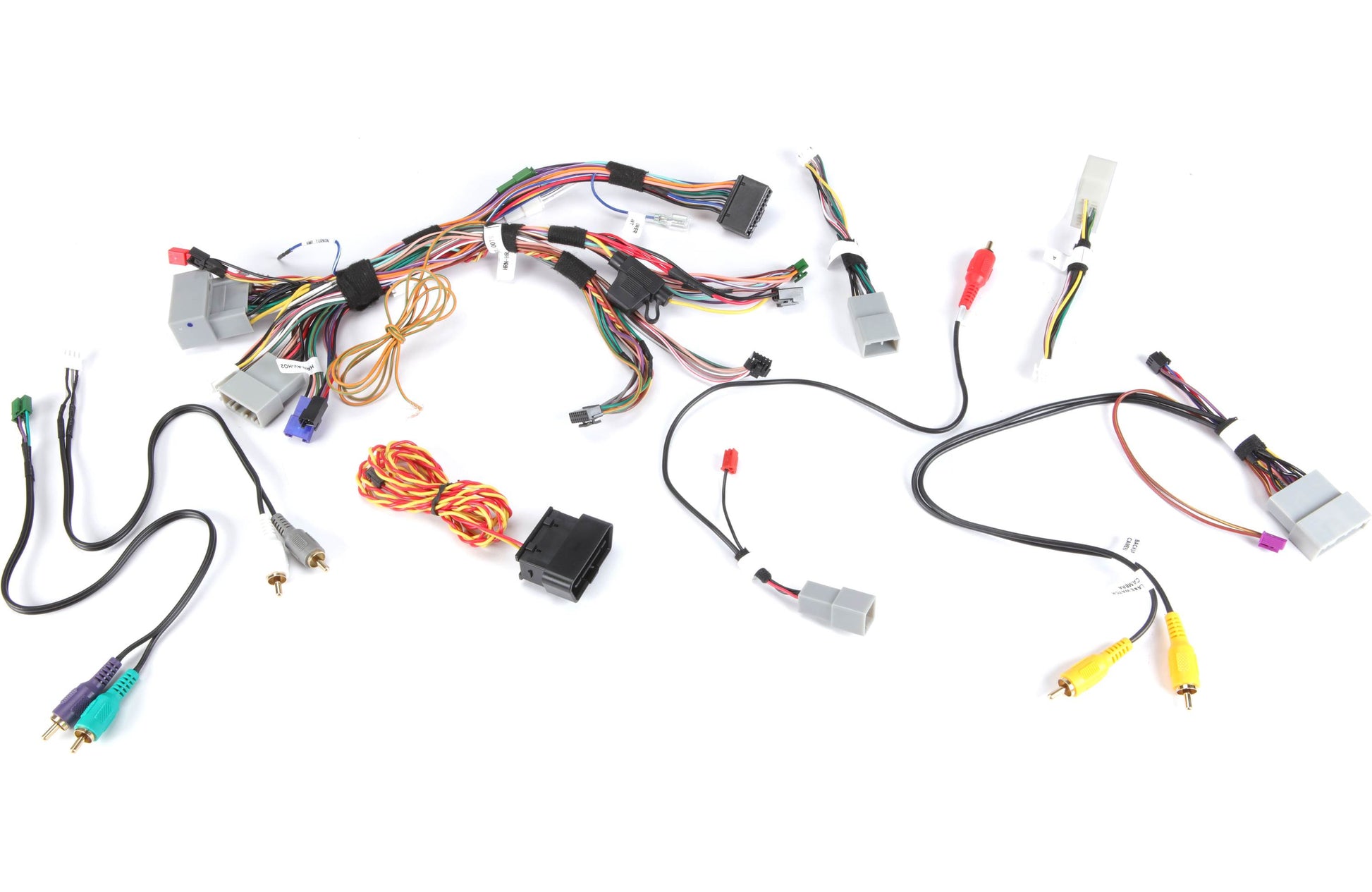

• iDatalink Maestro HRN-HRR-HO2 wiring harness
• Documentation
