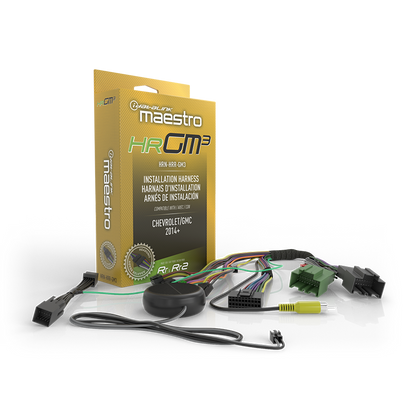

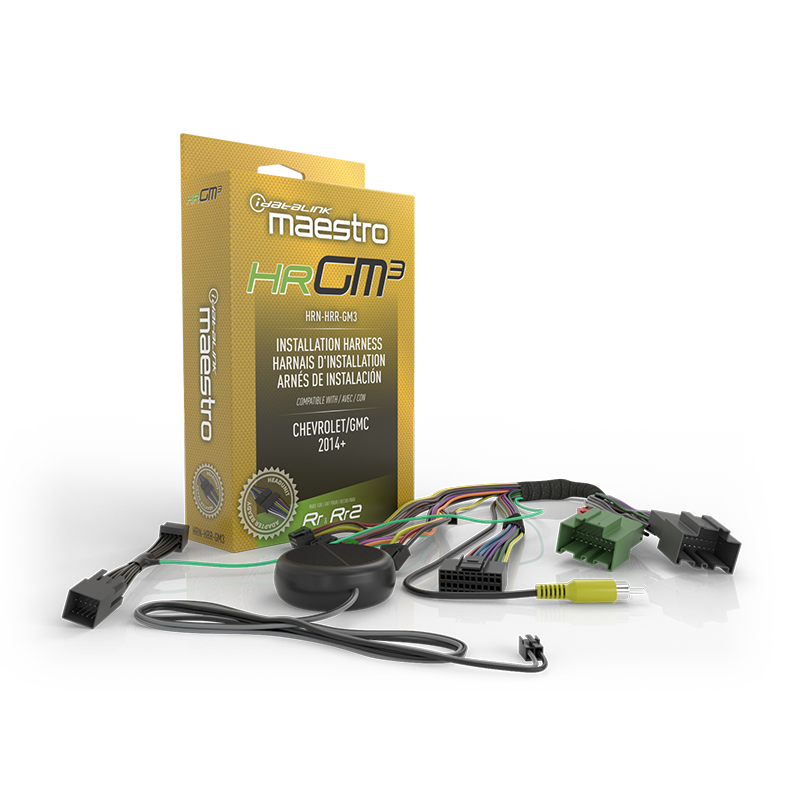

iDatalink Maestro HRN-HRR-GM3 Radio Replacement T-Harness with Chime Speaker for Select GM Vehicles

The iDatalink Maestro HRN-HRR-GM3 Radio Replacement T-Harness with Chime Speaker for Select GM Vehicles is designed for select 2014-up GM-platform applications whose factory radio and audio system match the current GM3 coverage record. It is not a standalone interface: exact factory equipment and the rest of the installation system determine fit and retained features.

At a Glance

• Vehicle-specific radio-replacement T-harness for the exact applications listed in the current Maestro coverage data
• Designed for use with a separately sold Maestro ADS-MRR or ADS-MRR2 interface programmed for the exact vehicle and radio
• Universal radio-side connector supports compatible Maestro head-unit adapters for a cleaner plug-in connection
• Supports application-dependent retention of steering-wheel controls, factory audio, cameras, vehicle settings, and other factory features
• Includes the application-specific chime speaker supplied with this GM harness package
• Supports amplified and non-amplified applications listed in the guide, but does not retain the supported factory amplifier
• Amplified applications require the factory amplifier to be bypassed as specified by the current application guide
• Factory radio, navigation, amplifier, audio package, screen, camera, trim, and firmware qualifiers must be verified before ordering
• Dash kit, antenna adapter, USB adapter, camera adapter, radio, and other application-specific parts are sold separately unless expressly listed

Vehicle Compatibility

Use the table below to find the row that matches your vehicle and factory equipment. The year, make, and model must match, along with the listed factory radio, screen, amplifier, navigation, or other equipment details. If your vehicle does not match a row exactly, contact MCOR before ordering.

Compatibility & What You Need

Important purchasing requirement: This harness is one component of a complete radio-replacement system. It requires a Maestro ADS-MRR or ADS-MRR2 interface, vehicle-specific Weblink programming, a compatible aftermarket radio, and any application-specific dash, antenna, USB, camera, or head-unit-adapter parts. If the vehicle has a supported Bose or other factory amplifier, plan for amplifier bypass; this harness does not retain that amplifier.

Compatible & Related Products

• Maestro ADS-MRR radio replacement interface - sold separately; application-dependent
• Maestro ADS-MRR2 advanced radio replacement interface - sold separately; application-dependent
• Maestro Alpine head-unit adapter - sold separately; application-dependent
• Maestro 22-pin Kenwood/JVC head-unit adapter - sold separately; application-dependent
• Maestro 16-pin Kenwood/JVC head-unit adapter - sold separately; application-dependent
• Maestro Pioneer head-unit adapter - sold separately; application-dependent
• Maestro Sony head-unit adapter - sold separately; application-dependent

Technical Specifications

What's Included

• One genuine iDatalink Maestro HRN-HRR-GM3 product package
• Manufacturer-supplied harnesses and components shown for this exact current part number
• Interfaces, radios, dash kits, antenna adapters, USB adapters, camera adapters, and installation materials are not included unless expressly stated

Fitment disclaimer: Compatibility is not determined by year and model alone. Verify the exact year, make, model, trim, factory radio, navigation, amplifier/audio package, screen, camera equipment, connector, aftermarket radio, required interface, firmware, and accessories before ordering. Product photos show the listed part; surrounding equipment may be pictured for application context and is not included. Contact MCOR Automotive through the chat button for application help.
