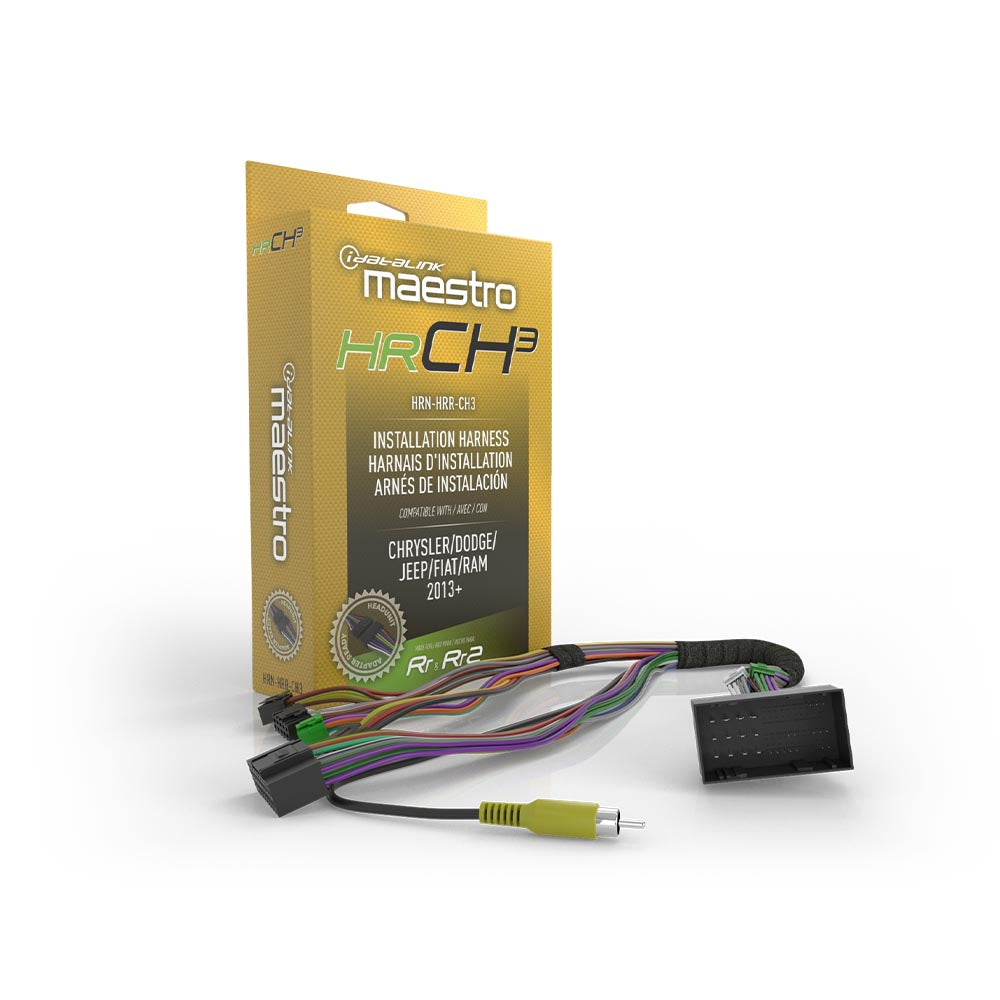

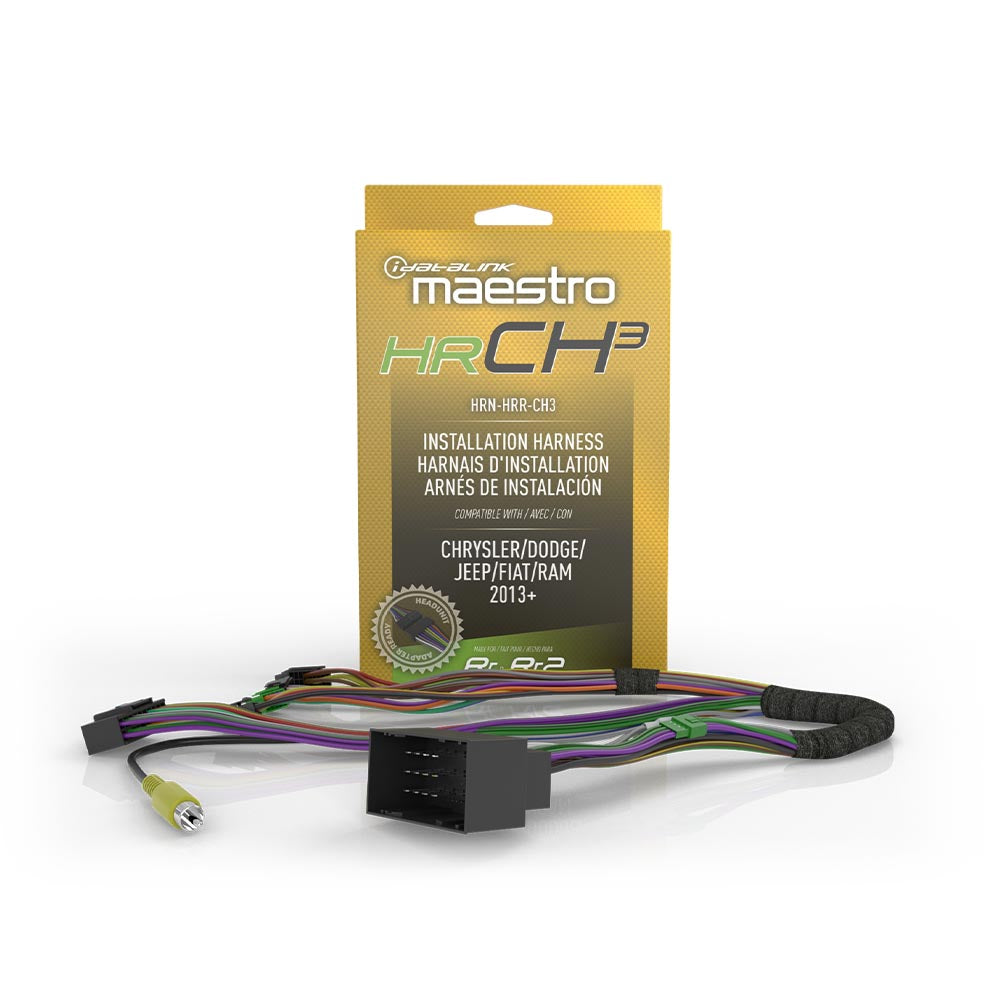

iDatalink Maestro HRN-HRR-CH3 Radio Replacement T-Harness for Select 2013-Up Chrysler, Dodge & Jeep

The iDatalink Maestro HRN-HRR-CH3 Radio Replacement T-Harness for Select 2013-Up Chrysler, Dodge & Jeep is designed for select 2013-up Chrysler, Dodge, Jeep, Ram, and Fiat applications using the supported 52-pin factory-radio connection. It is an application-specific integration part, so the vehicle's factory equipment and the rest of the installation system matter just as much as the year and model.

At a Glance

• Vehicle-specific radio-replacement T-harness for supported 52-pin Chrysler-group applications
• Designed for use with a separately sold Maestro RR or RR2 interface programmed for the exact vehicle and radio
• Universal radio-side connector can be used with a compatible Maestro head-unit adapter for a cleaner plug-in connection
• Supports application-dependent retention of steering-wheel controls, factory amplifier functions, cameras, vehicle settings, and other factory features
• HRN-AV-CH1 is additionally required when the verified application calls for factory backup-camera or rear-seat-entertainment retention
• Factory screen, amplifier, camera, trim, radio, and firmware qualifiers must be checked before purchase

Vehicle Compatibility

Use the table below to find the row that matches your vehicle and factory equipment. The year, make, and model must match, along with the listed factory radio, screen, amplifier, navigation, or other equipment details. If your vehicle does not match a row exactly, contact MCOR before ordering.

Compatibility & What You Need

Important purchasing requirement: This harness is one component of a complete radio-replacement system. It requires a Maestro ADS-MRR or ADS-MRR2 interface, vehicle-specific Weblink programming, a compatible aftermarket radio, and any application-specific dash, antenna, USB, camera, or head-unit-adapter parts. If the vehicle uses a supported factory backup camera or rear-seat entertainment system, the current Firstech product record calls for HRN-AV-CH1 as well.

Compatible & Related Products

• Maestro ADS-MRR radio replacement interface - sold separately; application-dependent
• Maestro ADS-MRR2 advanced radio replacement interface - sold separately; application-dependent
• Maestro CH1 backup camera and rear-seat A/V retention harness - sold separately; application-dependent
• Maestro Alpine head-unit adapter - sold separately; application-dependent
• Maestro 22-pin Kenwood/JVC head-unit adapter - sold separately; application-dependent
• Maestro 16-pin Kenwood/JVC head-unit adapter - sold separately; application-dependent
• Maestro Pioneer head-unit adapter - sold separately; application-dependent
• Maestro Sony head-unit adapter - sold separately; application-dependent

Technical Specifications

What's Included

• One genuine iDatalink Maestro HRN-HRR-CH3 product package
• Manufacturer-supplied harness, adapter, enclosure, or components shown for this exact part number
• Other interfaces, radios, amplifiers, DSPs, vehicle harnesses, antennas, dash kits, and installation materials are not included unless expressly listed

Fitment disclaimer: Compatibility is not determined by year and model alone. Verify the exact year, make, model, trim, factory radio, navigation, amplifier/audio package, screen, camera equipment, connector, aftermarket radio or amplifier, required interface, firmware, and accessories before ordering. Product photos show the listed part; surrounding equipment may be pictured for application context and is not included. Contact MCOR Automotive through the chat button for application help.
