Idatalink

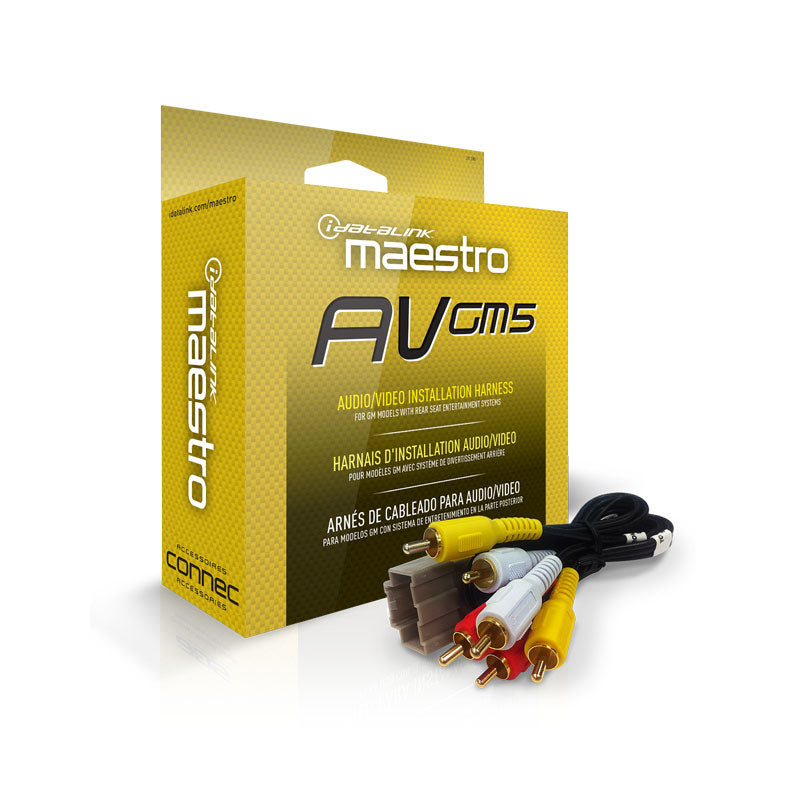

iDatalink Maestro HRN-AV-GM5 Rear-Seat Entertainment Retention Harness for Select GM Vehicles
iDatalink Maestro HRN-AV-GM5 Rear-Seat Entertainment Retention Harness for Select GM Vehicles
Couldn't load pickup availability
The iDatalink Maestro HRN-AV-GM5 Rear-Seat Entertainment Retention Harness for Select GM Vehicles is designed for select GM5-platform vehicles equipped with a supported factory rear-seat entertainment system. It gives you the connection needed for the supported installation without presenting the part as a complete system.
At a Glance
- Retains the supported factory rear-seat entertainment screen and A/V connection with an aftermarket radio
- Provides the required audio/video connections for the listed Maestro radio-replacement applications
- Requires the matching Maestro RR/RR2 interface and vehicle T-harness, sold separately
- The vehicle must be factory-equipped with the supported rear-seat entertainment system
Exact Vehicle Compatibility
Find your vehicle and factory radio configuration below. Your vehicle must also have the supported factory rear-seat entertainment system. If that equipment is not present, this harness does not apply.
| Make | Model | Years | Factory Radio / Equipment Qualifier |
|---|---|---|---|
| Buick | Enclave | 2008-2017 | With Factory Navigation Without Factory Navigation |
| Buick | Lucerne | 2006-2011 | With Factory Navigation Without Factory Navigation |
| Cadillac | DTS | 2006-2011 | With Factory Navigation Without Factory Navigation |
| Cadillac | Escalade | 2007-2014 | With Factory Navigation 2007-2008: Without Factory Navigation |
| Cadillac | Escalade ESV | 2007-2014 | With Factory Navigation 2007-2008: Without Factory Navigation |
| Cadillac | Escalade EXT | 2007-2014 | With Factory Navigation 2007-2008: Without Factory Navigation |
| Cadillac | SRX | 2007-2009 | All |
| Chevrolet | Avalanche | 2007-2013 |
2007-2011: With Factory Navigation Without Factory Navigation |
| Chevrolet | Equinox | 2007-2009 | With Factory Navigation Without Factory Navigation |
| Chevrolet | Express 1500 | 2008-2014 |
2008-2012: All 2013-2014: Without Factory Navigation |
| Chevrolet | Express 2500 | 2008-2024 |
2008-2012: All 2013-2024: Without Factory Navigation |
| Chevrolet | Express 3500 | 2013-2024 | Without Factory Navigation |
| Chevrolet | Express Conversion Van | 2013-2023 | All Radio Trims |
| Chevrolet | Impala | 2006-2013 | All |
| Chevrolet | Impala Limited | 2014-2016 | With Factory Navigation Without Factory Navigation |
| Chevrolet | Monte Carlo | 2006-2007 | All |
| Chevrolet | Silverado 1500 | 2007-2013 |
2007-2008: All 2009-2011: With Factory Navigation 2009-2013: Without Factory Navigation |
| Chevrolet | Silverado 2500 | 2007-2014 |
2007-2008: All 2009-2011: With Factory Navigation 2009-2014: Without Factory Navigation |
| Chevrolet | Silverado 3500 | 2007-2014 |
2007-2008: All 2009-2011: With Factory Navigation 2009-2014: Without Factory Navigation |
| Chevrolet | Suburban | 2007-2014 |
2007-2011: With Factory Navigation Without Factory Navigation |
| Chevrolet | Tahoe | 2007-2014 |
2007-2011: With Factory Navigation Without Factory Navigation |
| Chevrolet | Traverse | 2009-2017 | With Factory Navigation Without Factory Navigation |
| GMC | Acadia | 2007-2016 | With Factory Navigation Without Factory Navigation |
| GMC | Acadia Limited | 2017 | With Factory Navigation Without Factory Navigation |
| GMC | Savana 1500 | 2008-2014 |
2008-2012: All 2013-2014: Without Factory Navigation |
| GMC | Savana 2500 | 2013-2024 | Without Factory Navigation |
| GMC | Savana 3500 | 2013-2024 | Without Factory Navigation |
| GMC | Savana Conversion Van | 2013-2023 | All Radio Trims |
| GMC | Sierra | 2007-2011 | With Factory Navigation Without Factory Navigation |
| GMC | Sierra 1500 | 2012-2013 | Without Factory Navigation |
| GMC | Sierra 2500 | 2012-2014 | Without Factory Navigation |
| GMC | Sierra 3500 | 2012-2014 | Without Factory Navigation |
| GMC | Yukon | 2007-2014 |
2007-2011: With Factory Navigation Without Factory Navigation |
| GMC | Yukon XL | 2007-2014 |
2007-2011: With Factory Navigation Without Factory Navigation |
| Hummer | H2 | 2008-2009 | With Factory Navigation Without Factory Navigation |
| Pontiac | Torrent | 2007-2009 | All |
| Saturn | Outlook | 2007-2010 | With Factory Navigation Without Factory Navigation |
Compatibility & What You Need
Required: Maestro RR or Maestro RR2 and Maestro HRN-HRR-GM5 GM radio replacement T-harness, vehicle-specific programming, a compatible aftermarket radio with the required rear-panel A/V connections, and a supported factory rear-seat entertainment system.
Compatible & Related Products
- Maestro ADS-MRR radio replacement interface - sold separately; application-dependent
- Maestro ADS-MRR2 radio replacement interface - sold separately; application-dependent
- Maestro HRN-HRR-GM5 GM radio replacement T-harness - sold separately; application-dependent
Technical Specifications
| Specification | Details |
|---|---|
| Brand | iDatalink Maestro |
| Manufacturer part number | HRN-AV-GM5 |
| Product type | Factory rear-seat entertainment retention harness |
| System family | Maestro RR / RR2 radio replacement accessory |
| Primary application | select GM5-platform vehicles equipped with a supported factory rear-seat entertainment system |
What's Included
- One genuine iDatalink Maestro HRN-AV-GM5 product package
- Manufacturer-supplied components shown or listed for this part number
Fitment disclaimer: Compatibility is not determined by year and model alone. Verify the exact vehicle, trim, factory radio, navigation, amplifier/audio package, screen, camera or entertainment equipment, aftermarket radio, required interface, firmware, and accessories before ordering. Contact MCOR Automotive through the chat button for application help.
