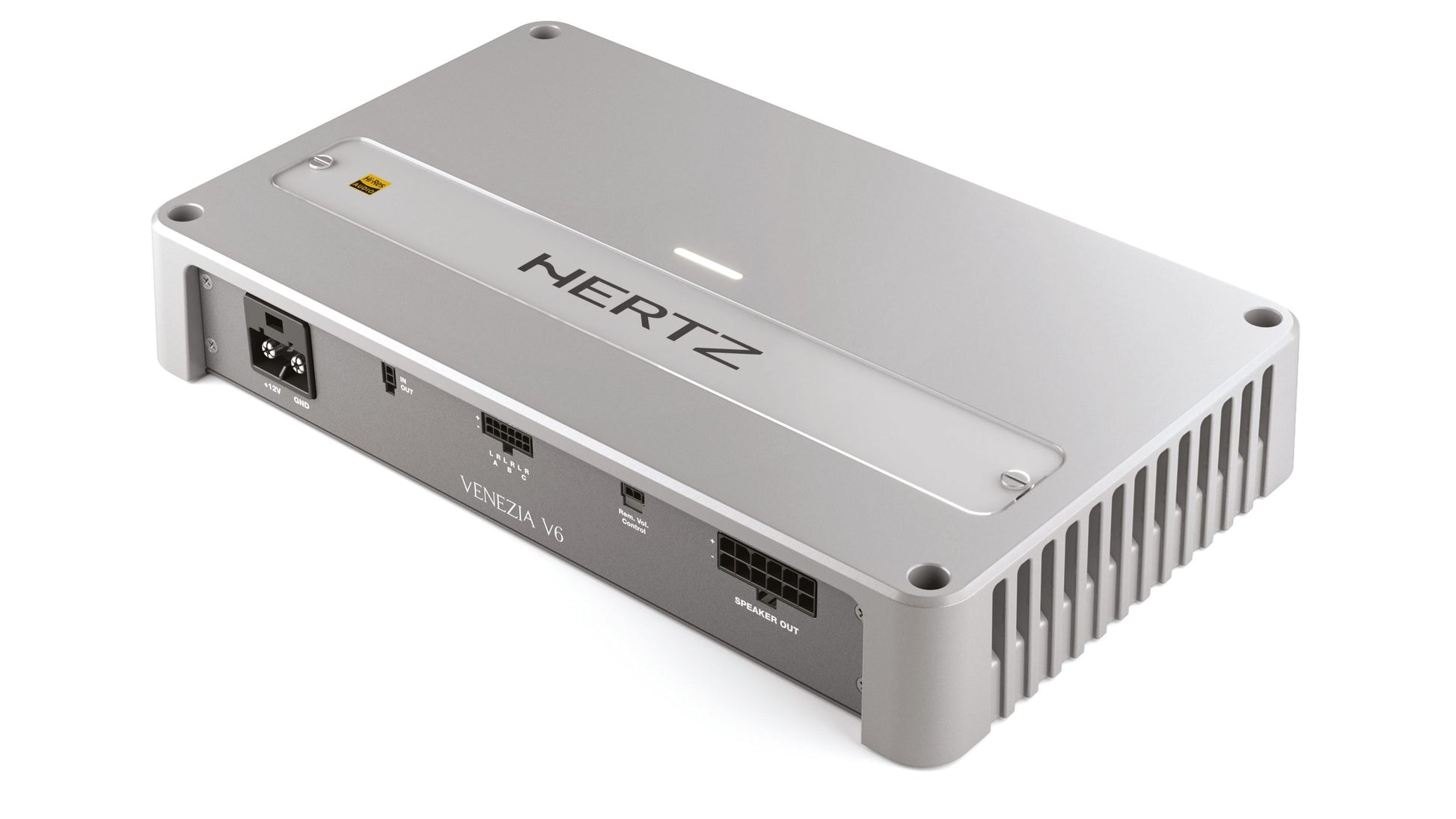

Hertz Venezia V6 6/5/4/3-Channel Marine Amplifier, 1740W RMS, Class-D

Hertz Venezia V6 is a six-channel marine amplifier engineered for high-output boat audio systems that require flexible channel configuration, high efficiency, and marine-specific durability. It uses Hertz Advanced Class-D technology and a fanless die-cast aluminum chassis to deliver strong output with reduced heat and efficient power use.

The Venezia V6 supports 6-channel, 5-channel, 4-channel, and 3-channel operation with bridgeable outputs for multi-speaker and subwoofer system layouts. It is engineered and tested for marine use, including UV, salt-fog, vibration, thermal shock, and temperature exposure, and carries IPX2 certification when installed vertically with connections facing downward.

Key Performance Features

• 6-channel marine amplifier with flexible 6/5/4/3-channel configuration
• 1740 watts total RMS power output
• 160W x 6 RMS at 4 ohms
• 290W x 6 RMS at 2 ohms
• Bridgeable output channels for subwoofer or dual-mono system design
• Advanced Class-D topology with high efficiency and reduced heat
• Hi-Res certified performance with extended bandwidth
• Marine-tested construction for UV, salt-fog, vibration, and thermal exposure
• Balanced fully differential inputs to reject noise and interference

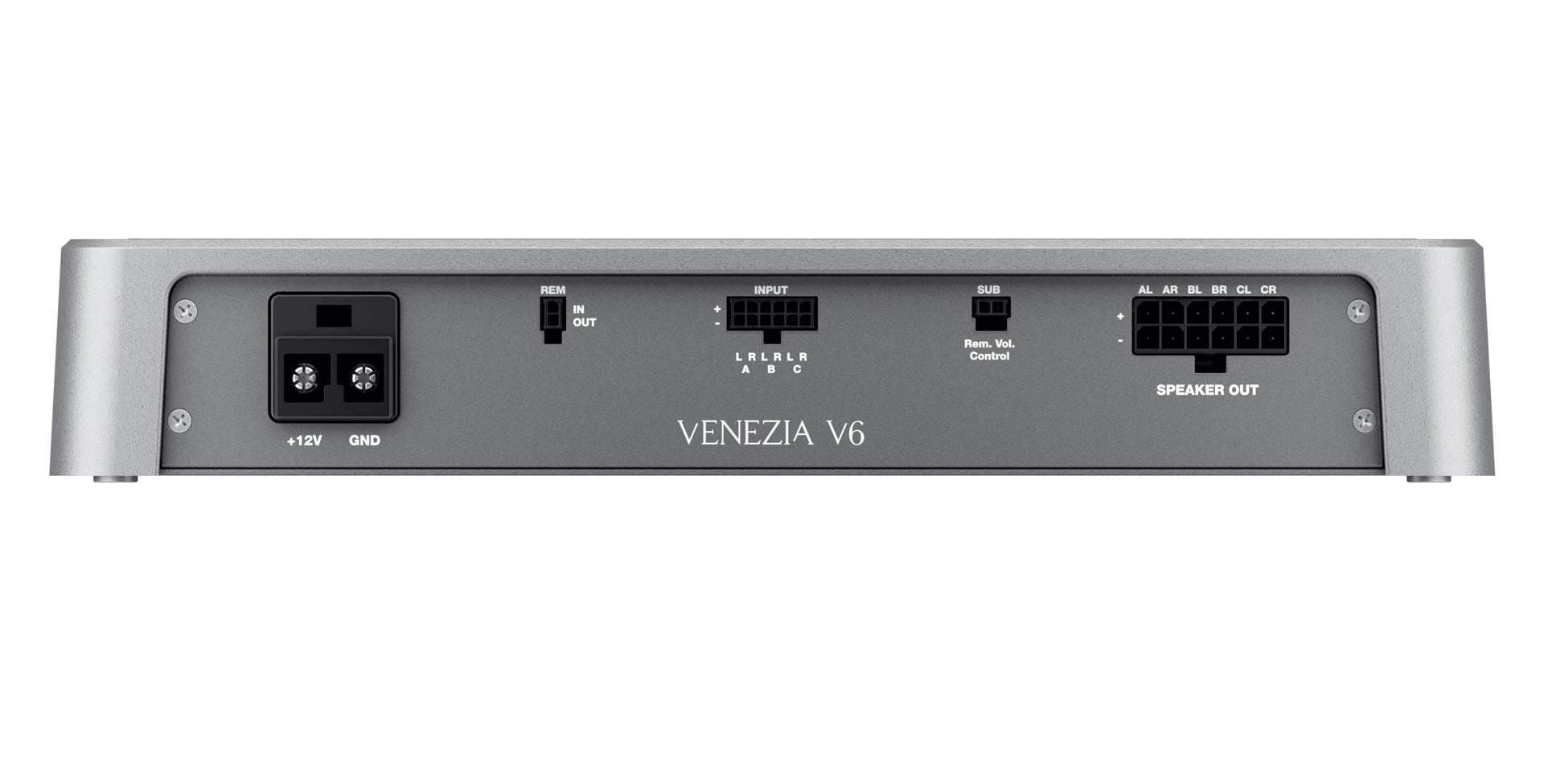

• Safe-Lock input, output, and power connections for secure installation

Power Output & Channel Configuration

• Amplifier Type: Class-D marine amplifier
• Channel Operation: 6-channel / 5-channel / 4-channel / 3-channel
• RMS Power @ 4 Ω (6-channel): 160 W x 6
• RMS Power @ 2 Ω (6-channel): 290 W x 6
• RMS Power @ 4 Ω (5-channel): 160 W x 4 + 580 W x 1
• RMS Power @ 2 Ω / 4 Ω (5-channel): 290 W x 4 + 580 W x 1
• RMS Power @ 4 Ω (4-channel): 160 W x 2 + 580 W x 2
• RMS Power @ 2 Ω / 4 Ω (4-channel): 290 W x 2 + 580 W x 2
• RMS Power @ 4 Ω (3-channel): 580 W x 3
• Total Power: 1740 W

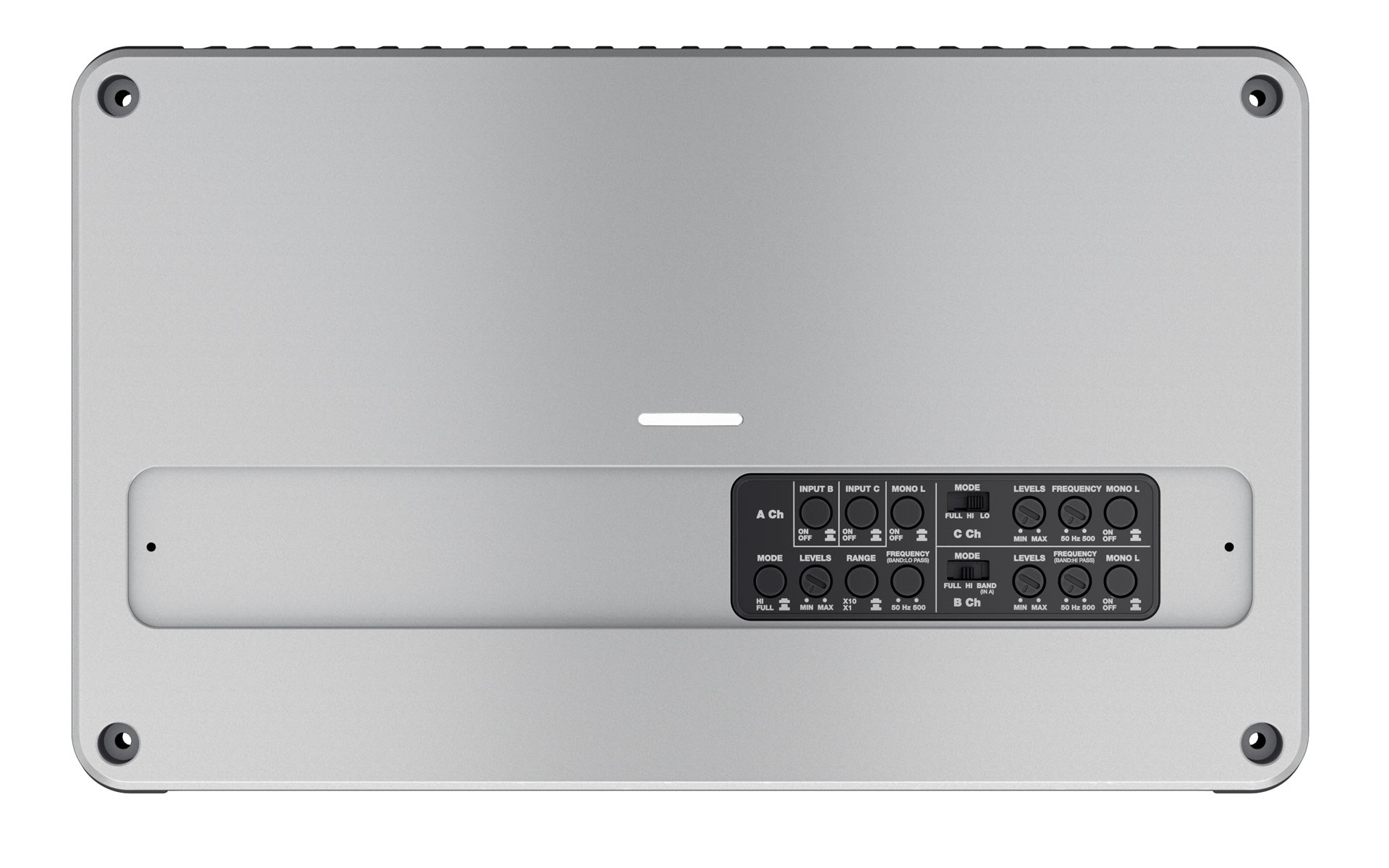

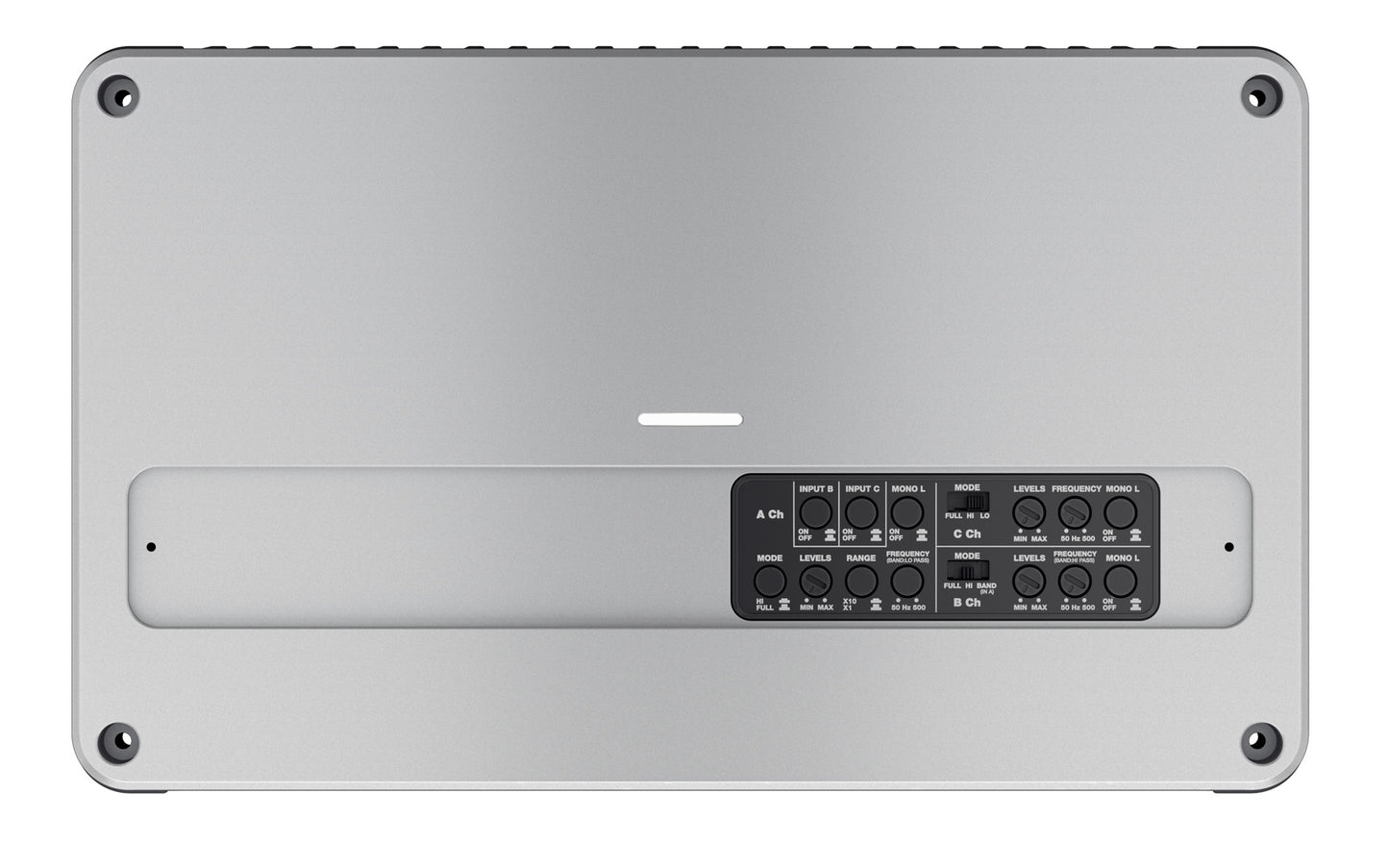

Inputs, Filters & Control

• Three channel-group preamp inputs: A, B, and C
• Adjustable crossovers for multiple system configurations
• Channel A high-pass filter: 50–500 Hz / 500 Hz–5 kHz at 12 dB/oct
• Channel B high-pass filter: 50–500 Hz at 12 dB/oct
• Channel B band-pass filter: 50–500 Hz / 500 Hz–5 kHz at 12 dB/oct
• Channel C high-pass filter: 50–500 Hz at 12 dB/oct
• Channel C low-pass filter: 50–500 Hz at 12 dB/oct
• Mono input mode on channels A, B, and C
• Compatible with optional Hertz HRC BM2 subwoofer remote volume control

Installation Use Cases

• Marine systems powering full-range speakers and subwoofers from one amplifier
• Boat audio systems needing bridgeable channels and flexible zone design
• Installations where compact footprint and fanless cooling are important
• Premium marine systems requiring high-output amplified sound with noise rejection
• Applications exposed to moisture, salt air, vibration, and temperature swings

Technical Specifications

• Brand: Hertz
• Series: Venezia
• Model: V6
• Product Type: 6-channel marine amplifier
• Amplifier Class: Class-D
• Total RMS Power: 1740 W
• Power Supply Voltage: 9–16 VDC
• Idle Current (Power ON/OFF): 1.8 A / 0.04 mA
• Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 75 A
• Remote In: 7–15 VDC, 1 mA
• THD (100 Hz @ 4 Ω): <0.06%
• Bandwidth: 10 Hz – 42 kHz
• Signal-to-Noise Ratio (A-weighted @ 1 V): 100 dB
• Damping Factor (100 Hz @ 4 Ω): 130
• Pre-In Sensitivity: 0.2–5 VRMS
• Pre-In Impedance: 10 kΩ
• Minimum Load Impedance (6-channel): 2 Ω
• IP Rating: IPX2
• Mounting Orientation for IPX2: Vertical with connections facing downward
• Height: 54 mm (2.12")
• Width: 330 mm (13")
• Depth: 200 mm (7.87")
• Additional Dimensions: 300 mm (11.18"), 170 mm (6.7")
• Weight: 3.72 kg (8.2 lb)

Identifiers & Packaging

• Manufacturer Part Number (MPN): VENEZIA V6
• UPC: 8018823138864
• Sold As: Single amplifier
• Quantity: 1 amplifier
