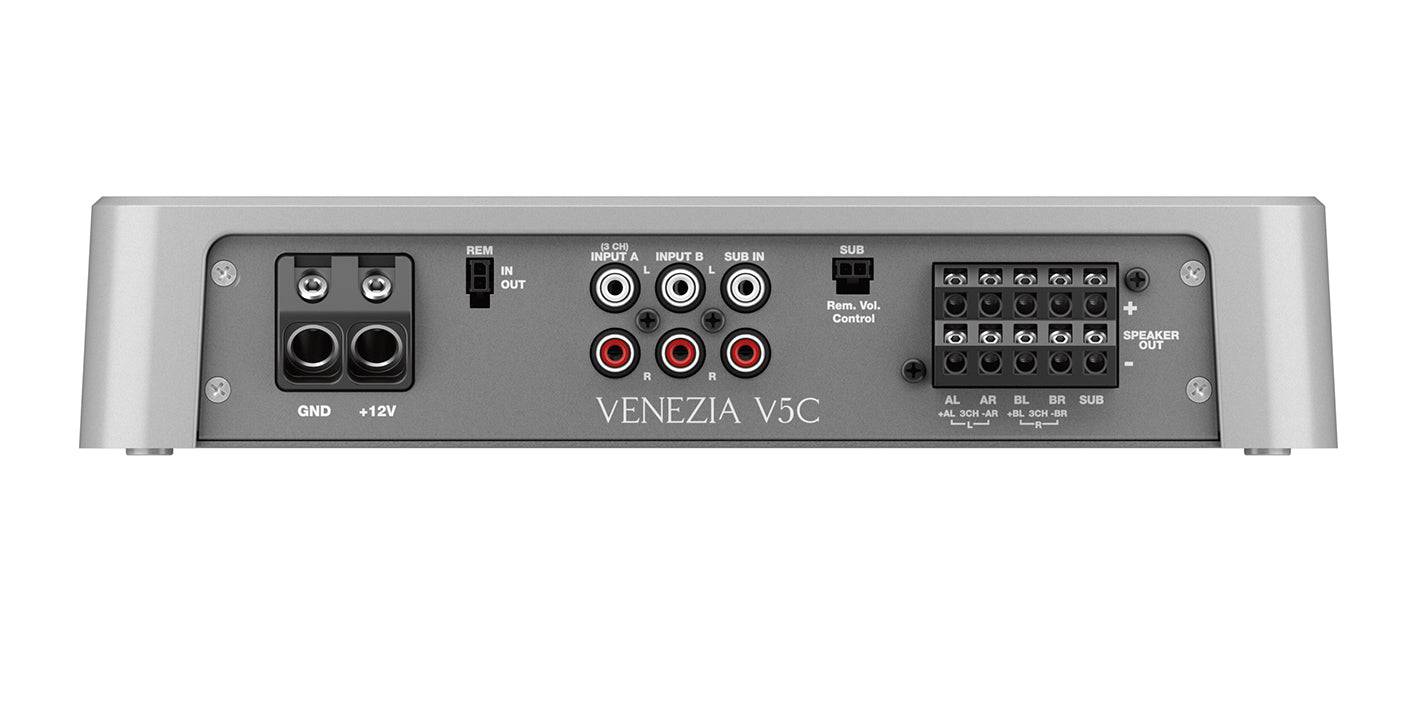

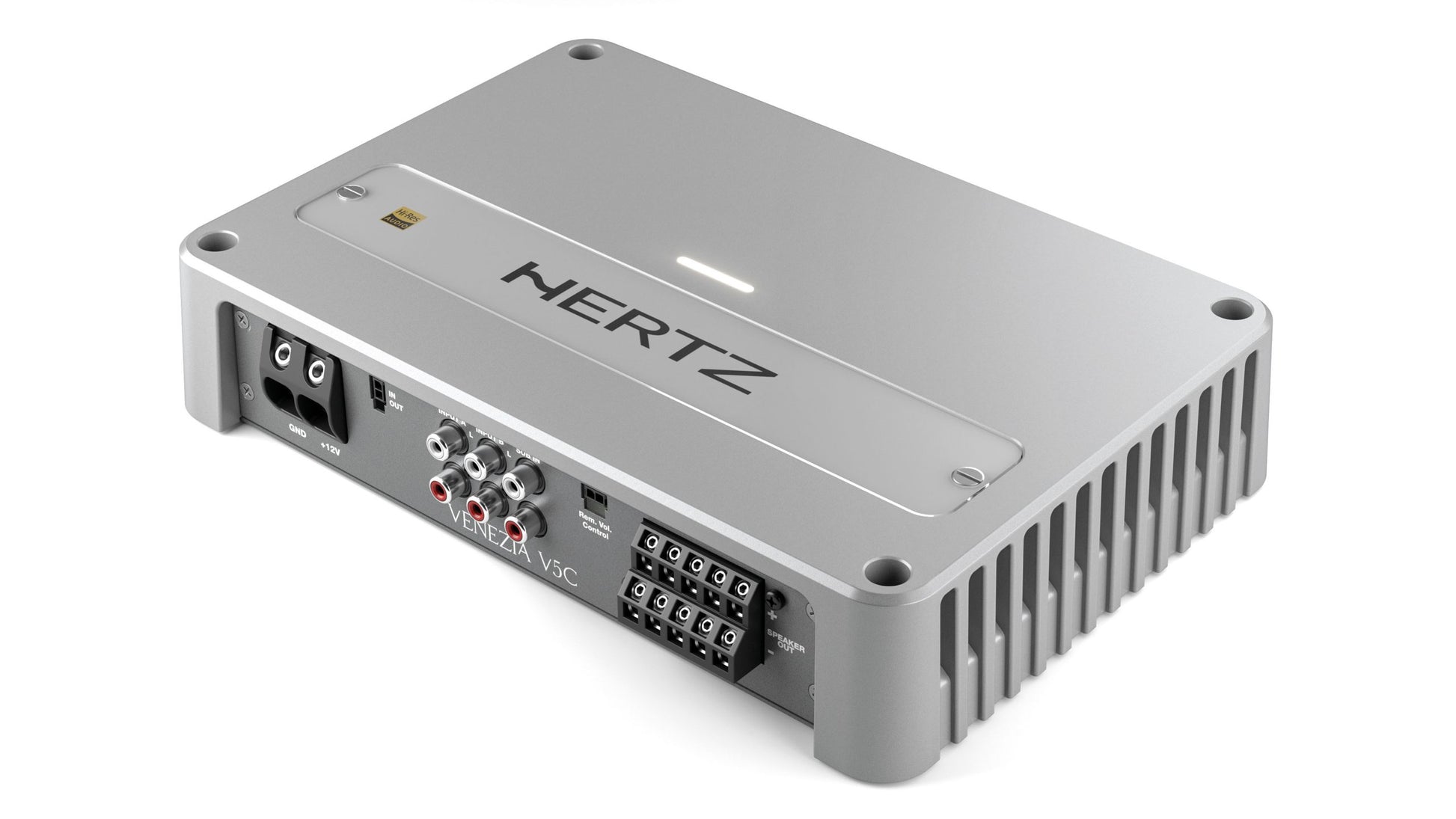

Hertz Venezia V5C Compact 5-Channel Marine Amplifier 1010W RMS Class-D

Hertz Venezia V5C is a compact five-channel marine amplifier designed for boat audio systems that need strong full-range speaker power, a dedicated subwoofer channel, and a reduced installation footprint. It uses Hertz Advanced Class-D technology with a fanless die-cast aluminum chassis for efficient output, lower operating temperature, and marine-specific durability.

The Venezia V5C supports 5-channel and 3-channel operation with bridgeable full-range channels for flexible speaker-and-subwoofer system design. It is engineered and tested for marine environments including UV exposure, salt fog, vibration, thermal shock, and temperature changes, and carries IPX2 certification when installed vertically with connections facing downward.

Key Performance Features

• Compact 5-channel marine amplifier with 5-channel and 3-channel configuration flexibility
• 1010 watts total RMS power output
• 80W x 4 RMS at 4 ohms plus 330W x 1 RMS at 4 ohms
• 115W x 4 RMS at 2 ohms plus 550W x 1 RMS at 2 ohms
• Advanced Class-D topology for high efficiency and reduced heat
• Hi-Res certified performance
• Marine-tested construction for UV, salt fog, vibration, and thermal exposure
• Balanced fully differential inputs help reject noise and interference

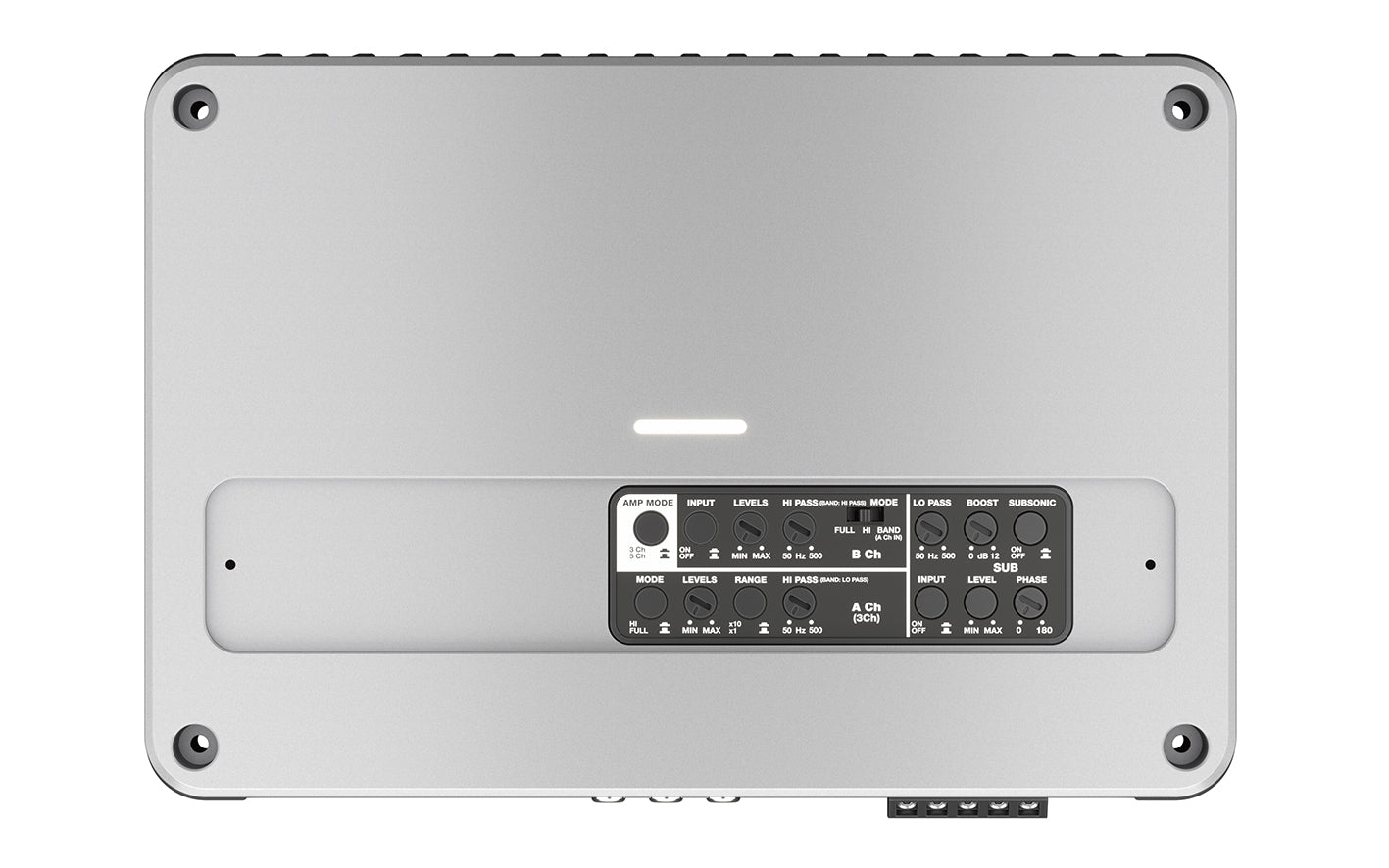

• Built-in crossover section under a protective panel for flexible tuning
• Short-circuit, overload, and thermal protection with auto-resetting

Power Output & Channel Configuration

• Amplifier Type: Class-D marine amplifier
• Channel Operation: 5-channel / 3-channel
• RMS Power @ 4 Ω (5-channel): 80 W x 4 + 330 W x 1
• RMS Power @ 2 Ω (5-channel): 115 W x 4 + 550 W x 1
• RMS Power @ 4 Ω (3-channel): 230 W x 2 + 330 W x 1
• RMS Power @ 4 Ω + 2 Ω (3-channel): 230 W x 2 + 550 W x 1
• Total Power: 1010 W

Inputs, Filters & Control

• Dedicated preamp inputs for A channel, B channel, and sub channel
• A channel high-pass filter: 50–500 Hz / 500 Hz–5 kHz at 12 dB/oct
• B channel high-pass filter: 50–500 Hz at 12 dB/oct
• B channel band-pass filter: 50–500 Hz / 500 Hz–5 kHz at 12 dB/oct
• Sub channel low-pass filter: 50–250 Hz at 24 dB/oct
• Variable phase adjustment: 0° to 180°
• Subsonic filter: 25 Hz at 24 dB/oct
• Bass boost at 50 Hz: 0 to 12 dB
• Compatible with optional Hertz HRC BM2 subwoofer remote volume control

Installation Use Cases

• Marine systems powering four speakers plus one subwoofer from one compact amplifier
• Boat audio systems needing reduced footprint with dedicated bass amplification
• Installations requiring bridgeable channels and flexible crossover tuning
• Premium marine systems where efficiency, durability, and low noise matter
• Applications exposed to moisture, salt air, vibration, and temperature swings

Technical Specifications

• Brand: Hertz
• Series: Venezia
• Model: V5C
• Product Type: 5-channel compact marine amplifier
• Amplifier Class: Class-D
• Total RMS Power: 1010 W
• Power Supply Voltage: 9–16 VDC
• Idle Current (Power ON/OFF): 1.7 A / 0.05 mA
• Consumption @ 1 Ω, 14.4 VDC (Max Musical Power): 47 A
• Remote In: 7–15 VDC, 1 mA
• THD (100 Hz @ 4 Ω): <0.05%
• Bandwidth: 10 Hz – 42 kHz
• Signal-to-Noise Ratio (A-weighted @ 1 V): 100 dB
• Damping Factor (100 Hz @ 4 Ω): >130
• Pre-In Sensitivity: 0.2–5 VRMS
• Pre-In Impedance: 10 kΩ
• Minimum Load Impedance: 2 Ω in 5-channel mode; 4 Ω + 4 Ω + 2 Ω in 3-channel mode
• Adjustable Crossovers: Yes
• IP Rating: IPX2
• Height: 54 mm (2.12")
• Width: 270 mm (10.6")
• Depth: 240 mm (9.44")
• Additional Dimensions: 185 mm (7.2"), 155 mm (6.1")
• Weight: 3.72 kg (8.2 lb)

Identifiers & Packaging

• Manufacturer Part Number (MPN): VENEZIA V5C
• UPC Code: 8018823139830
• Sold As: Single amplifier
• Quantity: 1 amplifier
