Hertz Venezia V5 5-Channel Marine Amplifier, 1700W RMS, Class-D

Hertz Venezia V5 is a five-channel marine amplifier designed for high-output boat audio systems that need strong full-range speaker power and a dedicated subwoofer channel in one chassis. It uses Hertz Advanced Class-D technology with a fanless die-cast aluminum heat-sink for efficient output and marine-ready durability.

The Venezia V5 supports 5-channel and 3-channel operation with bridgeable full-range channels for flexible speaker and subwoofer system design. It is engineered and tested for marine environments including UV, salt-fog, vibration, thermal shock, and temperature exposure, and carries IPX2 certification.

Key Performance Features

• 5-channel marine amplifier with flexible 5-channel or 3-channel configuration
• 1700 watts total RMS power output
• 130W x 4 RMS at 4 ohms plus 490W x 1 RMS at 4 ohms
• 220W x 4 RMS at 2 ohms plus 820W x 1 RMS at 2 ohms
• Bridgeable full-range channels for higher-output system layouts
• Advanced Class-D topology for high efficiency and reduced heat
• Hi-Res certified audio performance
• Marine-tested construction for UV, salt-fog, vibration, and thermal exposure
• Balanced fully differential inputs help reject noise and interference

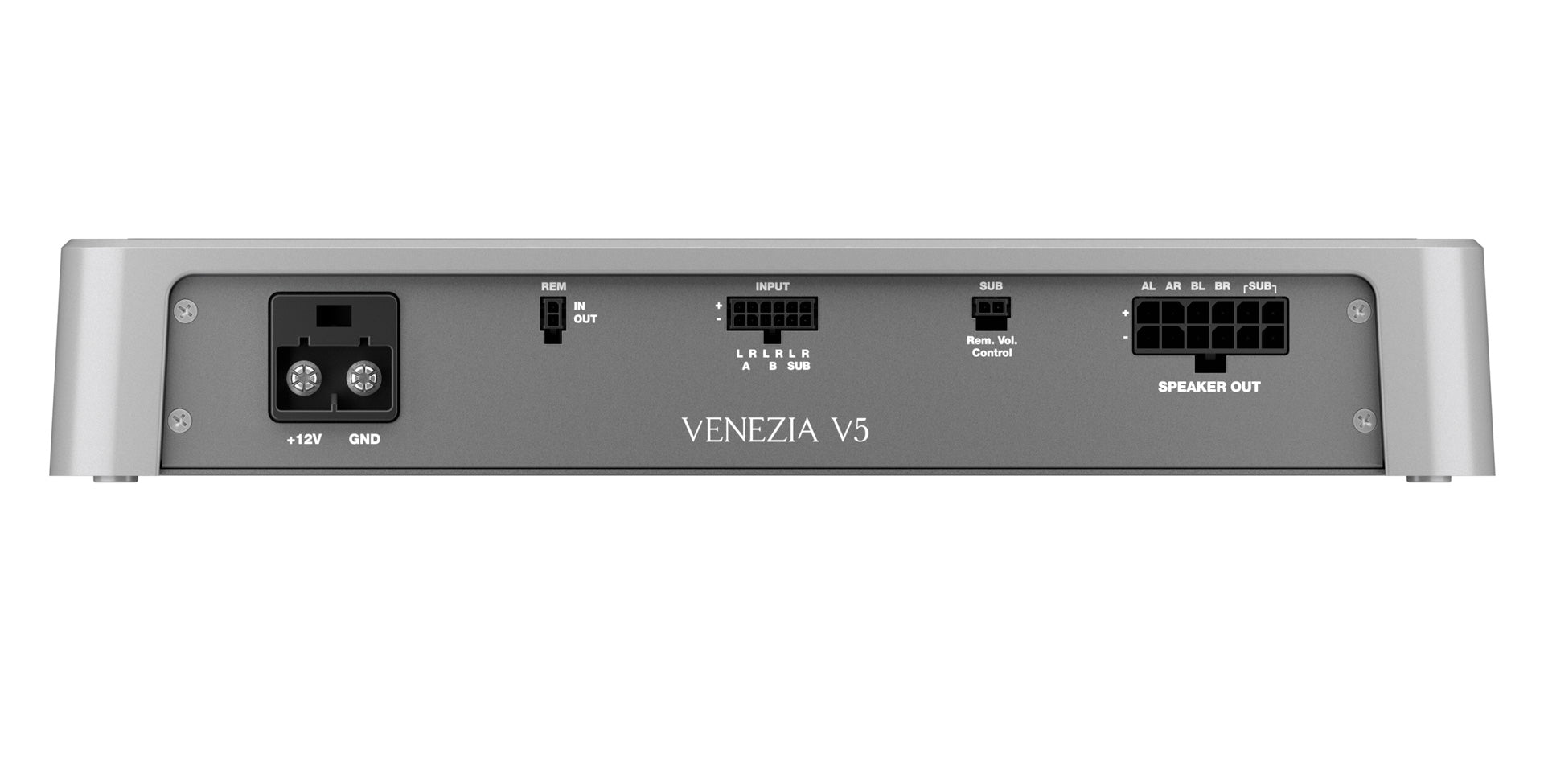

• Safe-Lock input, output, and power connections for secure installation

Power Output & Channel Configuration

• Amplifier Type: Class-D marine amplifier
• Channel Operation: 5-channel / 3-channel
• RMS Power @ 4 Ω (5-channel): 130 W x 4 + 490 W x 1
• RMS Power @ 2 Ω (5-channel): 220 W x 4 + 820 W x 1
• RMS Power @ 4 Ω (3-channel): 440 W x 2 + 490 W x 1
• RMS Power @ 4 Ω + 2 Ω (3-channel): 440 W x 2 + 820 W x 1
• Total Power: 1700 W

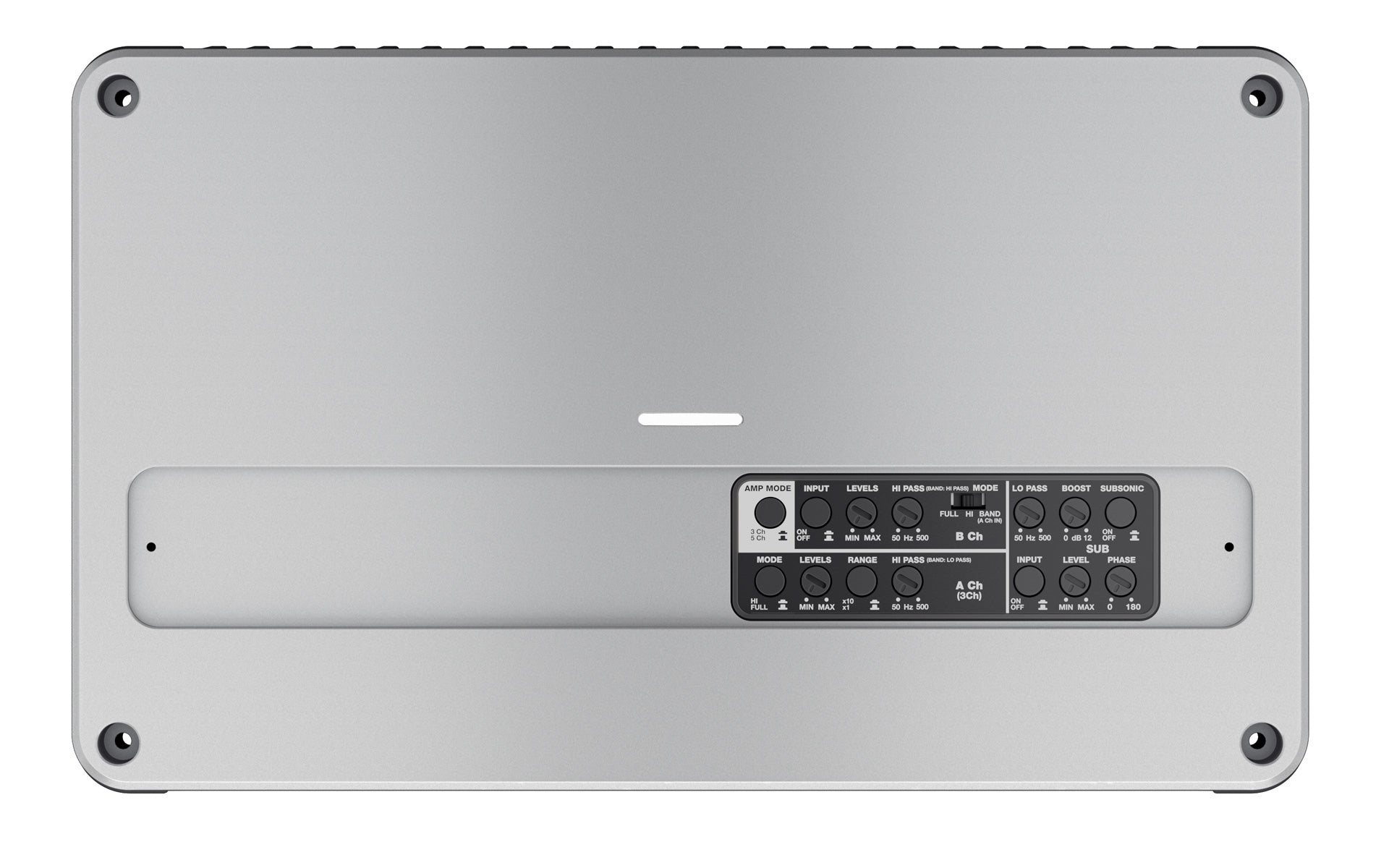

Inputs, Filters & Control

• Dedicated preamp inputs for A channel, B channel, and sub channel
• A channel high-pass filter: 50–500 Hz / 500 Hz–5 kHz at 12 dB/oct
• B channel high-pass filter: 50–500 Hz at 12 dB/oct
• B channel band-pass filter: 50–500 Hz / 500 Hz–5 kHz at 12 dB/oct
• Sub channel low-pass filter: 50–250 Hz at 24 dB/oct
• Subsonic filter: 25 Hz at 24 dB/oct
• Variable phase adjustment: 0° to 180°
• Bass boost at 50 Hz: 0 to 12 dB
• Compatible with optional Hertz HRC BM2 subwoofer remote volume control

Installation Use Cases

• Marine systems powering four speakers plus one subwoofer from a single amplifier
• Boat audio systems needing compact footprint with high total output
• Installations requiring bridgeable full-range channels and dedicated bass power
• Premium marine systems where efficiency, durability, and low noise matter
• Applications exposed to moisture, salt air, vibration, and temperature swings

Technical Specifications

• Brand: Hertz
• Series: Venezia
• Model: V5
• Product Type: 5-channel marine amplifier
• Amplifier Class: Class-D
• Total RMS Power: 1700 W
• Power Supply Voltage: 9–16 VDC
• Idle Current (Power ON/OFF): 1.8 A / 0.04 mA
• Consumption @ 1 Ω, 14.4 VDC (Max Musical Power): 70 A
• Remote In: 7–15 VDC, 1 mA
• THD (100 Hz @ 4 Ω): <0.05%
• Bandwidth: 10 Hz – 42 kHz
• Signal-to-Noise Ratio (A-weighted @ 1 V): 102 dB
• Damping Factor (100 Hz @ 4 Ω): 130
• Pre-In Sensitivity: 0.2–5 VRMS
• Pre-In Impedance: 10 kΩ
• Minimum Load Impedance: 2 Ω in 5-channel mode; 4 Ω + 4 Ω + 2 Ω in 3-channel mode
• Adjustable Crossovers: Yes
• IP Rating: IPX2
• Height: 54 mm (2.12")
• Width: 330 mm (13")
• Depth: 200 mm (7.87")
• Additional Dimensions: 300 mm (11.8"), 170 mm (6.7")
• Weight: 3.72 kg (8.2 lb)

Identifiers & Packaging

• Manufacturer Part Number (MPN): VENEZIA V5
• Sold As: Single amplifier
• Quantity: 1 amplifier
