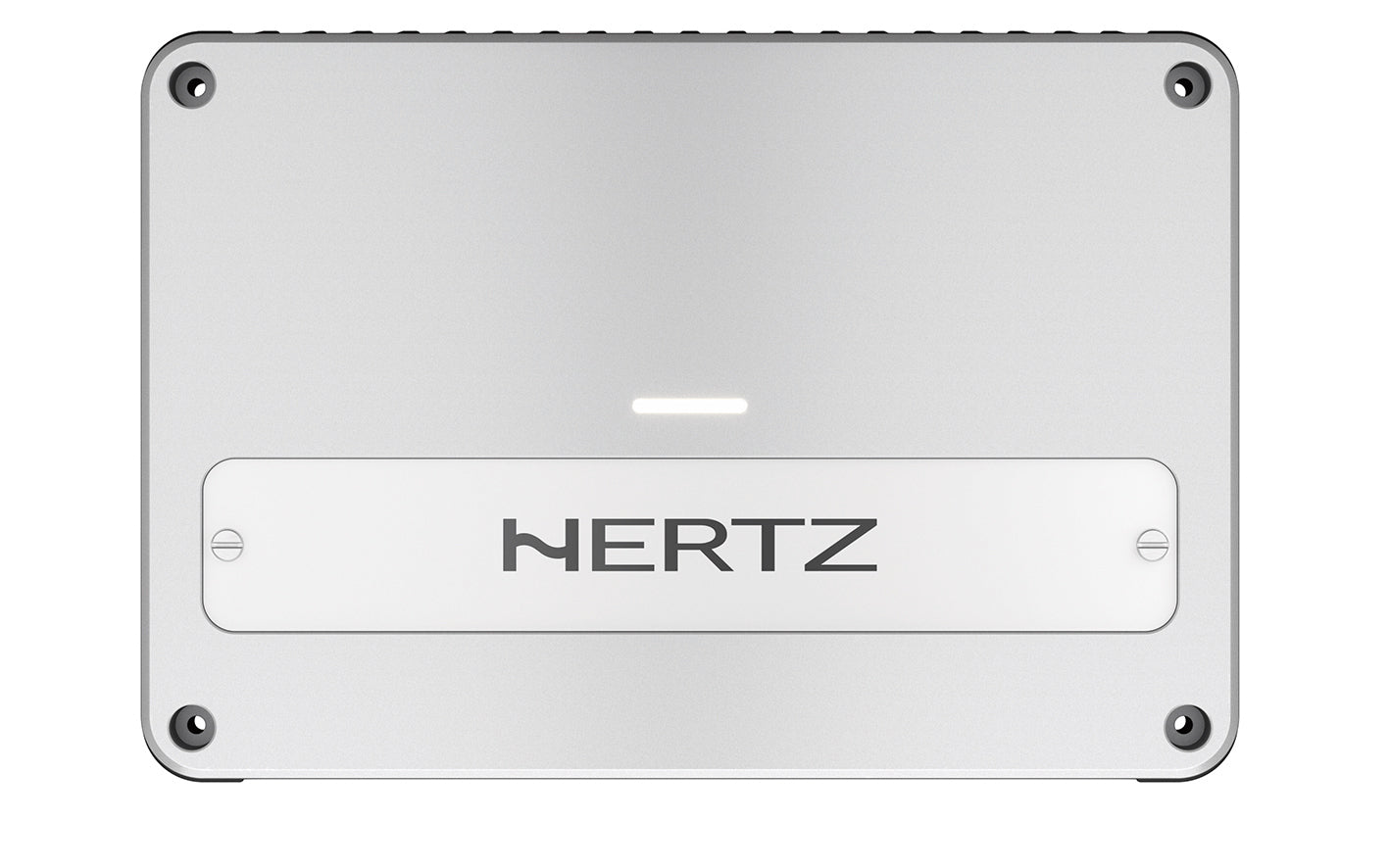

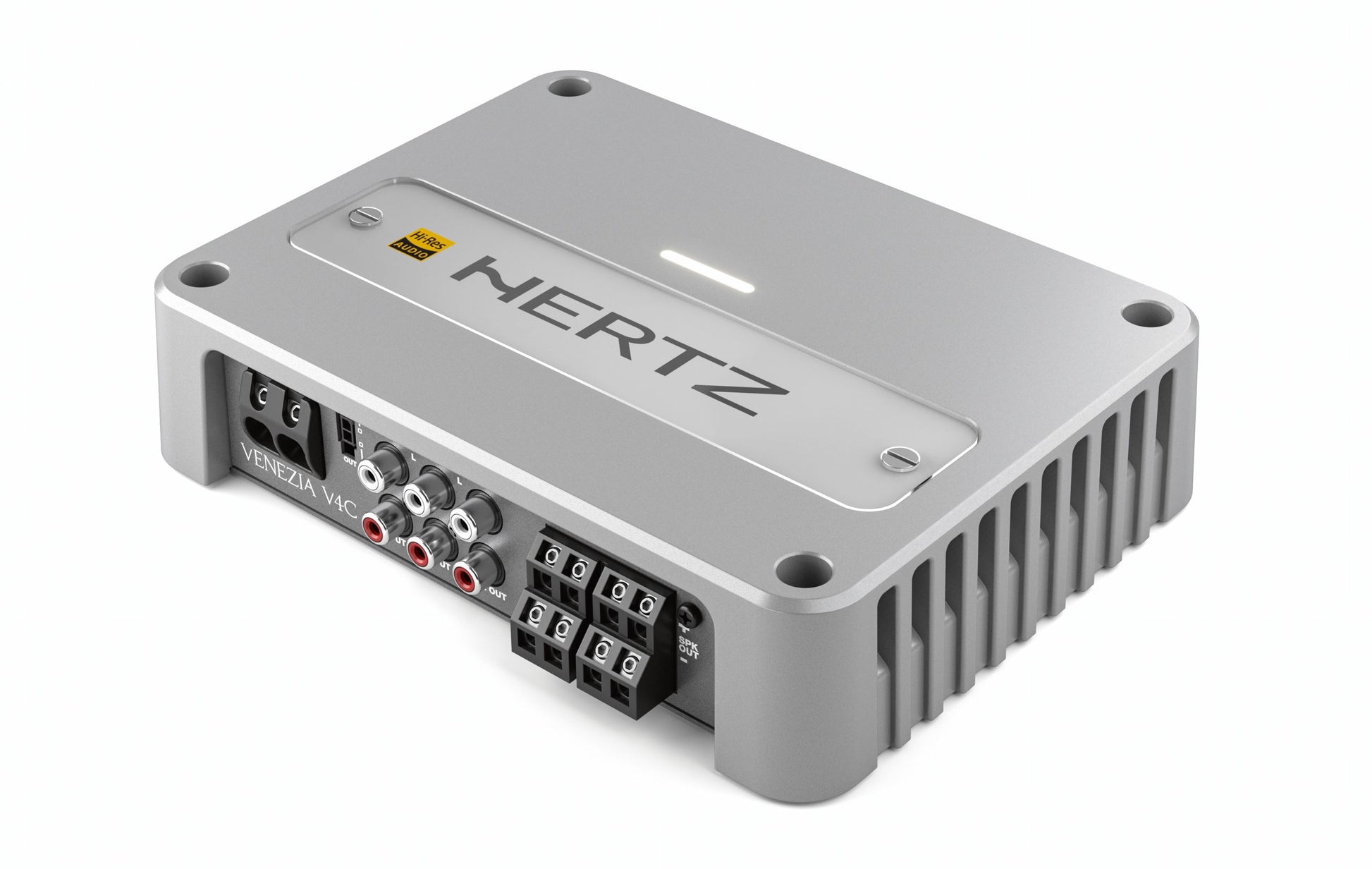

Hertz Venezia V4C 4-Channel Compact Marine Amplifier 760W RMS Class-D

Hertz Venezia V4C is a compact four-channel marine amplifier engineered for boat audio systems that need strong full-range speaker power, bridgeable flexibility, and a reduced installation footprint. It uses Hertz Advanced Class-D technology with a fanless die-cast aluminum chassis for efficient output and lower operating temperature in marine environments.

The Venezia V4C supports 4-channel, 3-channel, and 2-channel operation with bridgeable outputs for speaker-and-subwoofer system design. It is engineered and tested for marine environments including UV exposure, salt fog, vibration, thermal shock, and temperature changes, and carries IPX2 certification.

Key Performance Features

• Compact 4-channel marine amplifier with 4-channel, 3-channel, and 2-channel configuration flexibility
• 760 watts total RMS power output
• 110W x 4 RMS at 4 ohms
• 190W x 4 RMS at 2 ohms
• 380W x 2 RMS bridged at 4 ohms
• Advanced Class-D topology for high efficiency and reduced heat
• Hi-Res certified performance
• Marine-tested construction for UV, salt fog, vibration, and thermal exposure
• Balanced fully differential inputs help reject noise and interference

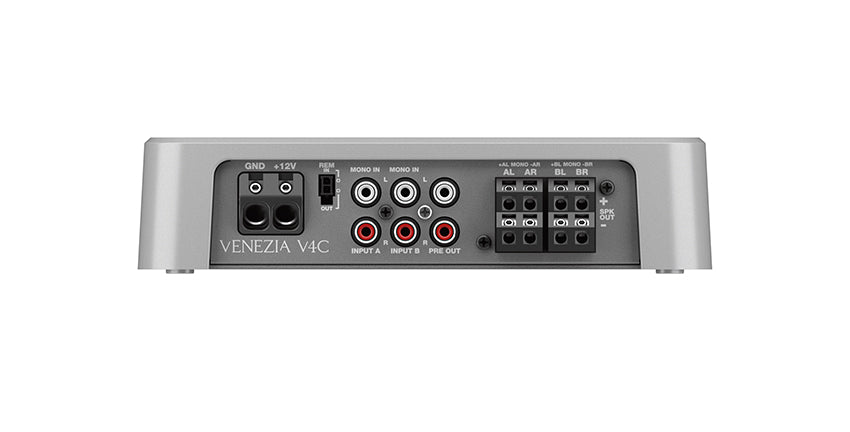

• Safe-Lock input, output, and power connections for secure installation

Power Output & Channel Configuration

• Amplifier Type: Class-D marine amplifier
• Channel Operation: 4-channel / 3-channel / 2-channel
• RMS Power @ 4 Ω (4-channel): 110 W x 4
• RMS Power @ 2 Ω (4-channel): 190 W x 4
• RMS Power @ 4 Ω (3-channel): 110 W x 2 + 380 W x 1
• RMS Power @ 2 Ω / 4 Ω (3-channel): 190 W x 2 + 380 W x 1
• RMS Power @ 4 Ω (2-channel bridged): 380 W x 2
• Total Power: 760 W

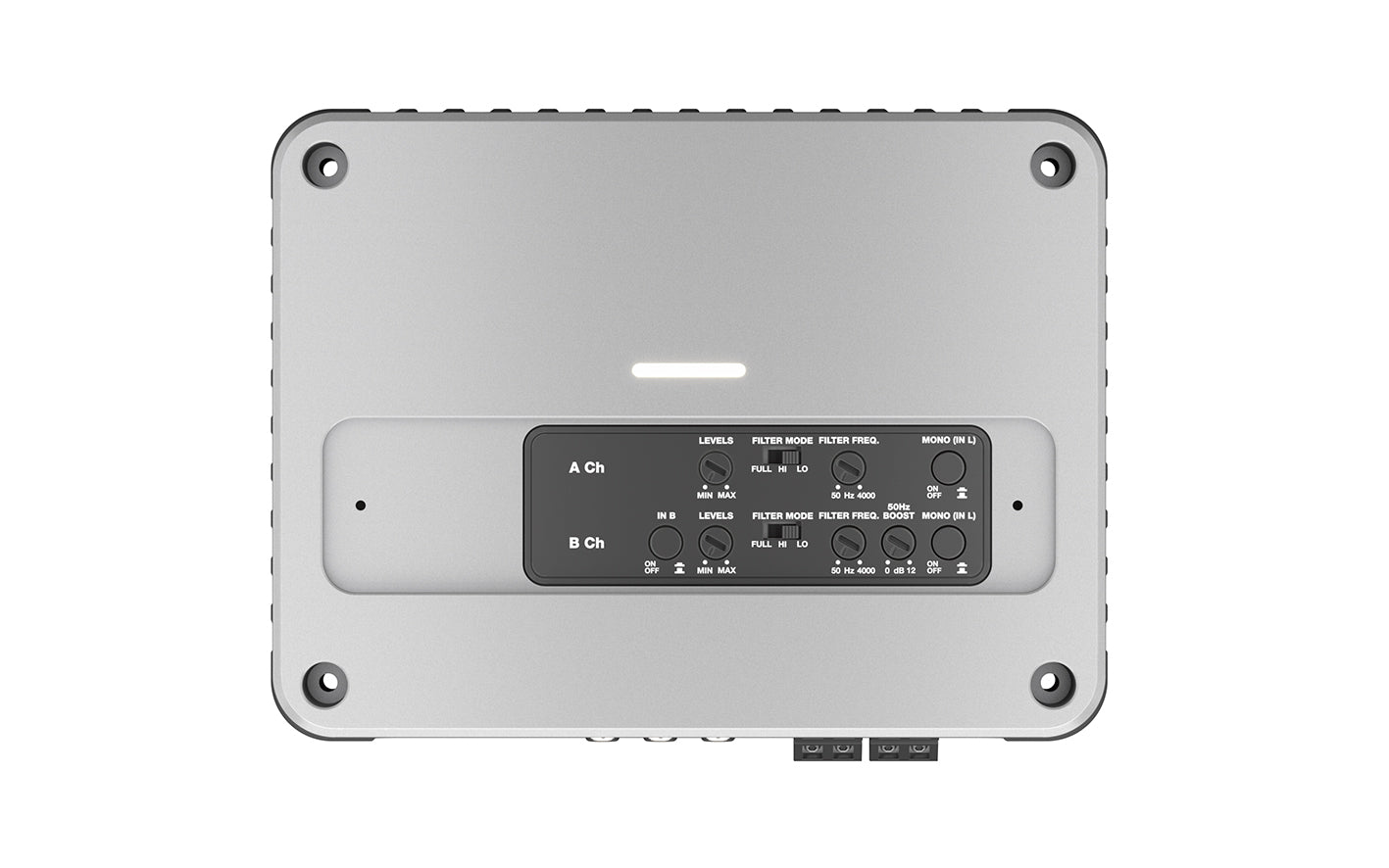

Inputs, Filters & Control

• Dedicated preamp inputs for A channel and B channel
• Channel A high-pass filter: 50–4,000 Hz at 12 dB/oct
• Channel A low-pass filter: 50–4,000 Hz at 12 dB/oct
• Channel B high-pass filter: 50–4,000 Hz at 12 dB/oct
• Channel B low-pass filter: 50–4,000 Hz at 12 dB/oct
• Mono input mode on channels A and B
• By-pass mode available
• Bass boost at 50 Hz: 0 to 12 dB
• Compatible with optional Hertz HRC BM2 remote volume control

Installation Use Cases

• Marine systems powering four full-range speakers from one compact amplifier
• Boat audio systems needing bridgeable channels for subwoofer duty
• Installations with limited mounting space
• Premium marine systems requiring efficient output with reduced heat
• Applications exposed to moisture, salt air, vibration, and temperature swings

Technical Specifications

• Brand: Hertz
• Series: Venezia
• Model: V4C
• Product Type: 4-channel compact marine amplifier
• Amplifier Class: Class-D
• Total RMS Power: 760 W
• Power Supply Voltage: 9–16 VDC
• Idle Current (Power ON/OFF): 1.3 A / 0.04 mA
• Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): 35 A
• Remote In: 7–15 VDC, 1 mA
• THD (100 Hz @ 4 Ω): <0.05%
• Bandwidth: 10 Hz – 42 kHz
• Signal-to-Noise Ratio (A-weighted @ 1 V): 102 dB
• Damping Factor (100 Hz @ 4 Ω): 130
• Pre-In Sensitivity: 0.2–5 VRMS
• Pre-In Impedance: 10 kΩ
• Minimum Load Impedance: 2 Ω stereo / 4 Ω bridged
• Adjustable Crossovers: Yes
• IP Rating: IPX2
• Height: 54 mm (2.12")
• Width: 270 mm (10.63")
• Depth: 240 mm (9.45")
• Additional Dimensions: 185 mm (7.28"), 155 mm (6.10")
• Weight: 2.66 kg (5.77 lb)

Identifiers & Packaging

• Manufacturer Part Number (MPN): VENEZIA V4C
• Sold As: Single amplifier
• Quantity: 1 amplifier
