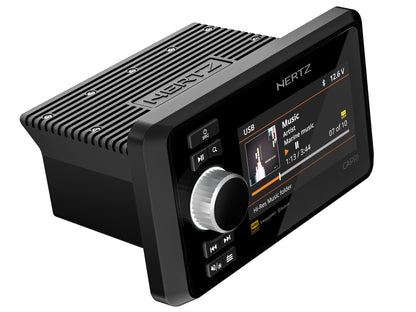

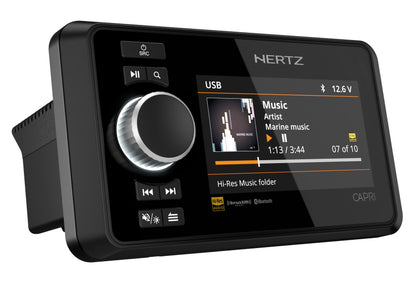

Hertz CAPRI H100 4.3" Color Marine Digital Media Receiver with 4-Zone Audio Control

Hertz CAPRI H100 is a marine-grade digital media receiver designed for premium boat audio systems requiring modern source support, high-resolution audio capability, and independent multi-zone control. It features a 4.3-inch color TFT IPS display with an IP67-rated front panel built for marine environments.

The CAPRI H100 supports four independently controlled audio zones with dedicated RCA outputs and subwoofer outputs for each zone. It integrates Bluetooth audio streaming, AM/FM tuner, USB playback, AUX input, and digital audio connectivity, making it suitable for boats using external amplifiers, multiple listening areas, and expanded control accessories.

Key Performance Features

• Marine digital media receiver with IP67-rated front panel

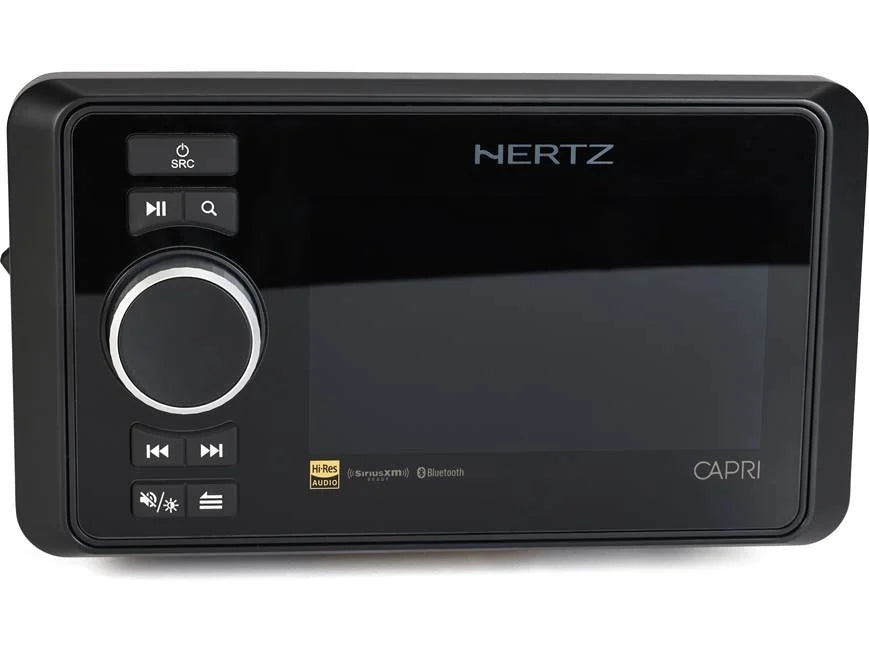

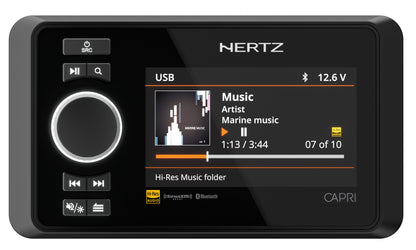

• 4.3-inch color TFT IPS display for clear on-boat visibility
• Independent control of four audio zones
• Built-in Class-D amplifier rated at 4 x 70W peak at 4 ohms
• Bluetooth audio streaming and AM/FM radio
• USB audio playback and auxiliary input
• S/PDIF digital input and digital output for advanced system integration
• 8-band custom equalizer for each zone with selectable presets
• Dedicated subwoofer RCA outputs for each zone
• Camera input and battery voltage gauge support

Audio Output

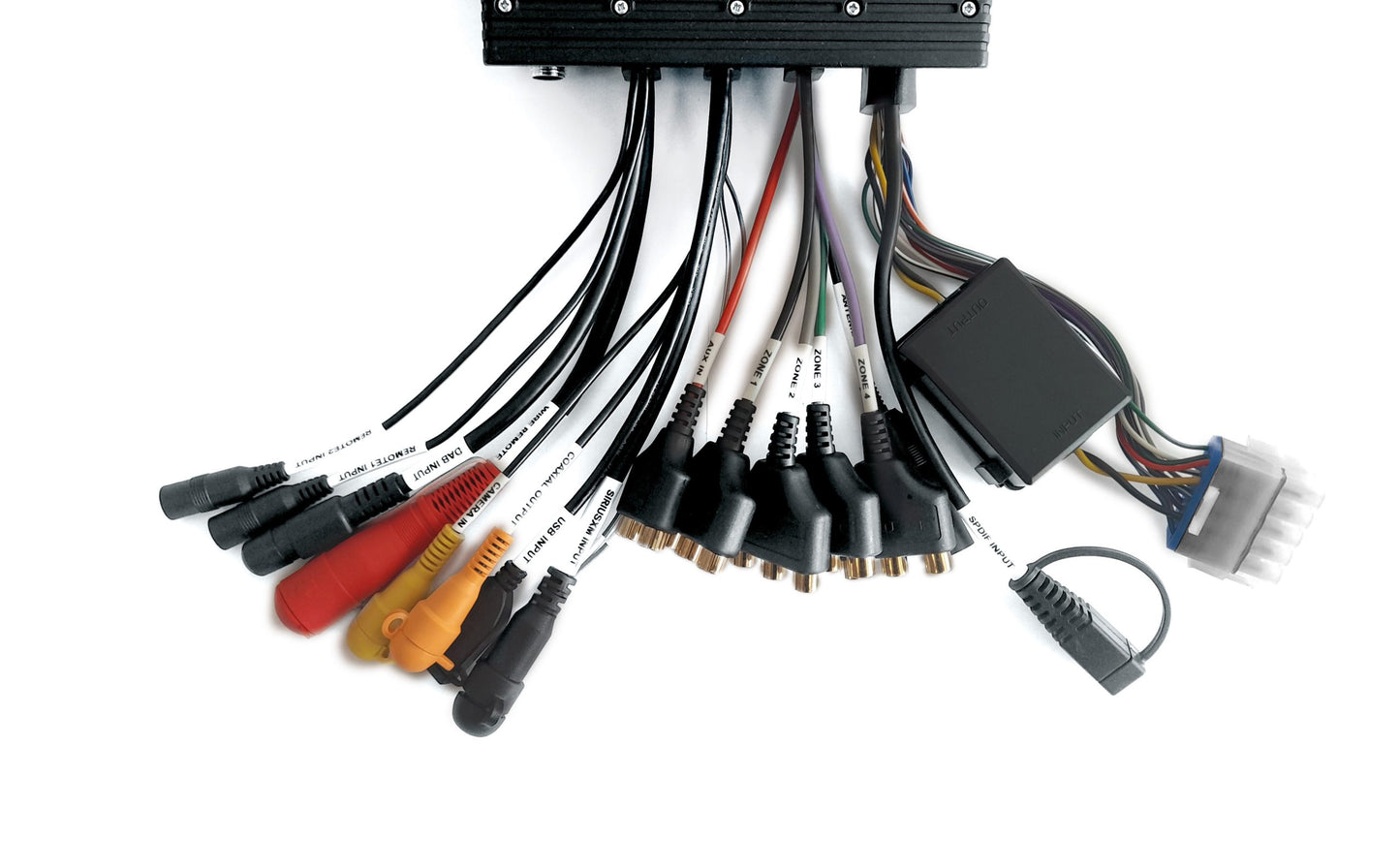

• Built-in amplifier: Class-D, 4 x 70W peak at 4 Ω
• Line outputs: 4 stereo RCA zone outputs, one per zone
• High-pass filter: All / 60 / 80 / 100 Hz
• Subwoofer outputs: 4 RCA subwoofer outputs
• Low-pass filter: All / 60 / 80 / 100 Hz
• Equalization: 8-band custom EQ for each zone
• EQ presets: 8

Inputs & Control

• Bluetooth audio streaming
• AM/FM tuner
• USB input
• AUX input (RCA, 1 x L+R)
• S/PDIF digital input via Toslink (24-bit/96 kHz)
• S/PDIF digital output via coaxial (24-bit/96 kHz)
• Camera input
• Compatible with Hertz Marine Control app
• Compatible with optional CAPRI remote control and accessory ecosystem

Installation Use Cases

• Premium marine audio systems with multiple listening zones
• Boats using external amplifiers and dedicated subwoofers
• Helm installations needing a sealed front-panel media receiver
• Marine systems requiring digital audio expansion and advanced zone tuning
• Installations where app control and accessory integration are desired

Technical Specifications

• Brand: Hertz
• Model: CAPRI H100
• Product Type: Marine digital media receiver
• Display: 4.3" color TFT IPS
• Front Panel IP Rating: IP67
• Audio Zones: 4
• Amplifier Type: Class-D
• Peak Power at 4 Ω: 4 x 70 W
• Bluetooth: Yes
• AM/FM Tuner: Yes
• USB: Yes
• AUX Input: Yes, RCA 1 x L+R
• Line Outputs: 4 x L+R RCA, one per zone
• Subwoofer Outputs: 4 x RCA
• S/PDIF Digital Input: Toslink, 24-bit/96 kHz
• S/PDIF Digital Output: Coaxial, 24-bit/96 kHz
• Camera Input: Yes
• Battery Voltage Gauge: Yes
• Custom Equalizer: 8 bands for each zone
• EQ Presets: 8

Identifiers & Packaging

• Manufacturer Part Number (MPN): CAPRI H100
• UPC: 8018823141239
• Sold As: Single marine receiver
• Quantity: 1 receiver

Why Buy From MCOR Automotive

• Authorized retailer for the brands we sell
• Marine and 12V system integration experience
• Accurate product data and expert support for source unit, amplifier, and zone-control system planning



  A	178.5 - 7.023 (mm - in.)
  B	101 - 3.57 (mm - in.)
  C	104 - 4.09 (mm - in.)
  D	31 - 1.22 (mm - in.)
  E	60 - 2.36 (mm - in.)
