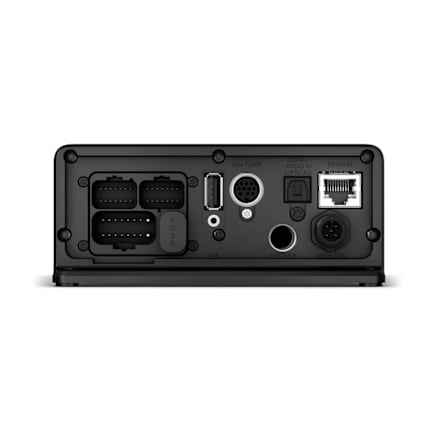

Fusion Apollo MS-WB675 4-zone hideaway marine stereo — 010-02346-50
Fusion Apollo MS-WB675 4-zone hideaway marine stereo — 010-02346-50
Regular price
$549.99 USD
Regular price
Sale price
$549.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Fusion Apollo MS-WB675 4-zone hideaway marine stereo — Keep the helm uncluttered while putting a four-zone Fusion source unit behind the scenes. Plan the control interface before choosing this hideaway receiver.
Why choose this model
- Four-zone audio control with Fusion DSP
- Wired Ethernet and NMEA 2000 connectivity
- Bluetooth, USB, AUX and optical audio inputs
- Supports compatible ERX and NRX wired remotes
- Four amplified channels across two zones
- IPX2 enclosure: install in a protected location, not an exposed splash area
Specifications and product identity
| Manufacturer part number | 010-02346-50 |
|---|---|
| UPC | 753759300159 |
| Item condition | New |
| Dimension | 5.1" x 5.1" x 2.2" (130 x 130 x 56 mm) |
| Water Rating | IPX2 (when properly installed) |
| Current (Max) | 15 A |
| Power Input | 10.8 - 16 VDC |
| Rated Power Output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |
| Warranty | 3years |
| Auxiliary Inputs (Rca) | 1 |
| Ethernet Ports | 1 |
| Usb 2.0 Ports | 1 |
| Speaker Connections | 4 (2 zone amplified) |
| Rca Pre-Out (Left, Right And Subwoofer) | 4 zones (requires external amplification) |
| Line Out | 4 (L + R per zone, requires external amplification) |
| Subwoofer Out | 4 (1 mono output per zone, requires external amplification) |
Compatibility and installation planning
- Confirm mounting cutout, rear clearance, system voltage and network requirements before ordering. Water ratings depend on correct installation.
- Speakers, external amplifiers, antennas and optional network equipment are separate unless explicitly listed below.
- AirPlay/network streaming requires an appropriately configured compatible network; this model does not include built-in Wi-Fi.
What’s included
- Fusion MS-WB675 marine hideaway stereo
- Four 8-gauge, self-tapping screws
- Power and speaker wiring harness
- Auxiliary-in, line-out and subwoofer-out wiring harness
- Line-out and subwoofer-out wiring harness
- 6 ft (2 meter) NMEA 2000 drop cable
- Documentation
Related products and system add-ons
Sold separately. Check the compatibility notes above and each linked product before adding accessories.
- Fusion XS Series Marine Speakers, 6.5" 200-Watt Peak Classic Marine Speakers (Pair)
- Fusion Marine Speaker Cables, 16 AWG (1.3 sq mm), 25 ft (7.62 m) Cable
- Fusion Stealth Antenna
- Fusion Apollo MS-ERX400 Wired Remote with Ethernet Connectivity
- Fusion Apollo 4-Channel Marine Amplifier
- Explore the Fusion marine audio collection
Build the right system with MCOR
Need help matching the receiver, speakers, amplifier or installation accessories? Contact MCOR with your existing equipment model numbers and installation details before ordering.
