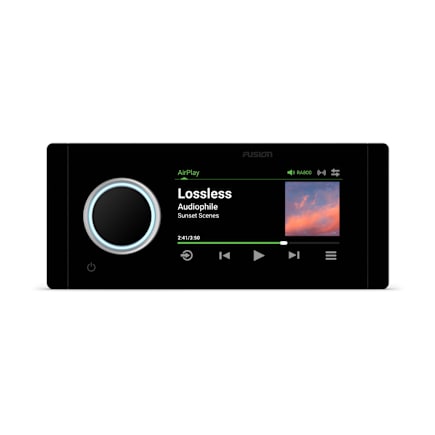

Fusion Apollo MS-RA800 4-zone touchscreen marine stereo — 010-02937-00
Fusion Apollo MS-RA800 4-zone touchscreen marine stereo — 010-02937-00
Regular price
$999.99 USD
Regular price
Sale price
$999.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Fusion Apollo MS-RA800 4-zone touchscreen marine stereo — High-resolution music, a responsive glass touchscreen, and four-zone control make the RA800 a strong starting point for an expandable boat audio system.
Why choose this model
- 4.3-inch capacitive touchscreen with edge-to-edge glass
- Built-in Wi-Fi and Apple AirPlay 2 for compatible streaming sources
- Class-D internal amplifier: 40 W RMS x 4 at 14.4 V, 4 ohms, less than 1% THD
- Four audio zones; two zones have amplified speaker outputs, while additional zones require external amplification

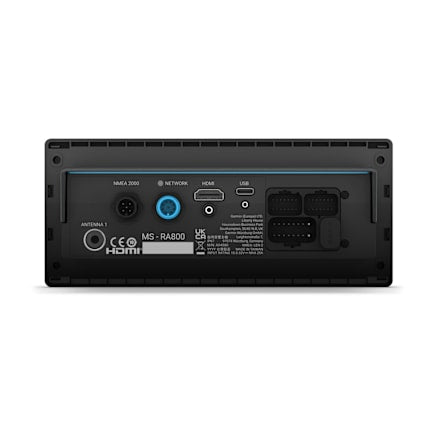

- USB-C, HDMI ARC, Ethernet and NMEA 2000 connectivity
- IPX6/IPX7 front panel when properly installed; IPX3 rear protection
Specifications and product identity
| Manufacturer part number | 010-02937-00 |
|---|---|
| UPC | 753759330361 |
| Item condition | New |
| Warranty | 3 years |
| Physical Dimensions (Height) | 3.23" (82 mm) |
| Physical Dimensions (Width) | 7.56" (192 mm) |
| Physical Dimensions (Depth) | 4.7" (119.4 mm) |
| Control Surface Dust/Water Rating (When Properly Installed) | IPX6 and IPX7 |
| Rear Dust/Water Rating (When Properly Installed) | IPX3 |
| Current Draw (Max) | 25 A at 14.4 V; 15 A at 28.8 V |
| Rated Continuous (Rms) Power (14.4 V Input @ 4 Ohm < 1% Thd) | 40 W x 4 |
| Power Input | 10.8 to 32 VDC |
| Display Size | 4.3" (109 mm) |
| Display Resolution | 800 x 480 |
| Auxiliary Inputs (Rca) | 2 |
| Ethernet Ports | 1 |
| Usb 2.0 Ports | 1 (USB-C) |
| Speaker Connections | 4 (2 zone amplified) |
Compatibility and installation planning
- Confirm mounting cutout, rear clearance, system voltage and network requirements before ordering. Water ratings depend on correct installation.
- Speakers, external amplifiers, antennas and optional network equipment are separate unless explicitly listed below.
What’s included
- Fusion Apollo MS-RA800 marine stereo
- Mounting gasket
- Four 8-gauge self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out and subwoofer-out wiring harnesses
- 6 ft (2 m) drop cable for the NMEA 2000 network
- Dust cover
- Documentation
Related products and system add-ons
Sold separately. Check the compatibility notes above and each linked product before adding accessories.
- Fusion XS Series Marine Speakers, 6.5" 200-Watt Peak Classic Marine Speakers (Pair)
- Fusion Marine Speaker Cables, 16 AWG (1.3 sq mm), 25 ft (7.62 m) Cable
- Fusion Stealth Antenna
- Fusion Apollo MS-ERX400 Wired Remote with Ethernet Connectivity
- Fusion Apollo 4-Channel Marine Amplifier
- Explore the Fusion marine audio collection
Build the right system with MCOR
Need help matching the receiver, speakers, amplifier or installation accessories? Contact MCOR with your existing equipment model numbers and installation details before ordering.
