Fusion Apollo MS-RA770 4-zone Wi-Fi marine stereo — 010-01905-00
Fusion Apollo MS-RA770 4-zone Wi-Fi marine stereo — 010-01905-00
Regular price
$799.99 USD
Regular price
Sale price
$799.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Before you order
Buy with the right details confirmed
✓
Review the application and system requirements
Confirm the size, power, connections, and included or separately required parts described on this page.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Fusion Apollo MS-RA770 4-zone Wi-Fi marine stereo — Control separate listening areas from one touchscreen and share audio across a compatible Apollo network with the RA770.
Why choose this model
- Four audio zones with separate line/subwoofer outputs
- Built-in Wi-Fi, AirPlay 2 and wired Ethernet networking
- Fusion DSP configuration through the Garmin Audio app
- Bluetooth, USB, two AUX inputs and optical input
- Four amplified speaker channels across two zones; other zones need external amplifiers
- SiriusXM-ready; compatible tuner and subscription sold separately
Specifications and product identity
| Manufacturer part number | 010-01905-00 |
|---|---|
| UPC | 753759198251 |
| Item condition | New |
| Water Rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Current (Max) | 15 A |
| Power Input | 10.8 - 16 VDC |
| Rated Power Output (4 Ohm) | 26 watts RMS x 4 @ 14.4 V input < 10% THD |

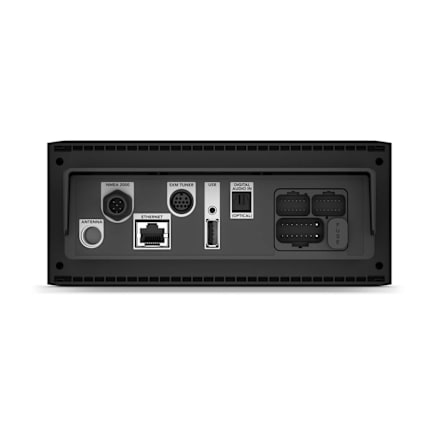

| Auxiliary Inputs (Rca) | 2 |
| Ethernet Ports | 1 |
| Usb 2.0 Ports | 1 |
| Speaker Connections | 4 (2 zone amplified) |
| Rca Pre-Out (Left, Right And Subwoofer) | 4 zones (requires external amplification) |
| Line Out | 4 (L + R per zone, requires external amplification) |
| Subwoofer Out | 4 (1 mono output per zone, requires external amplification) |
Compatibility and installation planning
- Confirm mounting cutout, rear clearance, system voltage and network requirements before ordering. Water ratings depend on correct installation.
- Speakers, external amplifiers, antennas and optional network equipment are separate unless explicitly listed below.
What’s included
- Fusion MS-RA770 marine stereo
- Mounting gasket
- Four 8-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- 6 ft (2 meter) NMEA 2000 drop cable
- Dust cover
- Documentation
