Firstech FTI-TLK40 Remote Start T-Harness for Toyota, Scion & Pontiac 40-Bit Key-Start Vehicles
Firstech FTI-TLK40 Remote Start T-Harness for Toyota, Scion & Pontiac 40-Bit Key-Start Vehicles
Couldn't load pickup availability

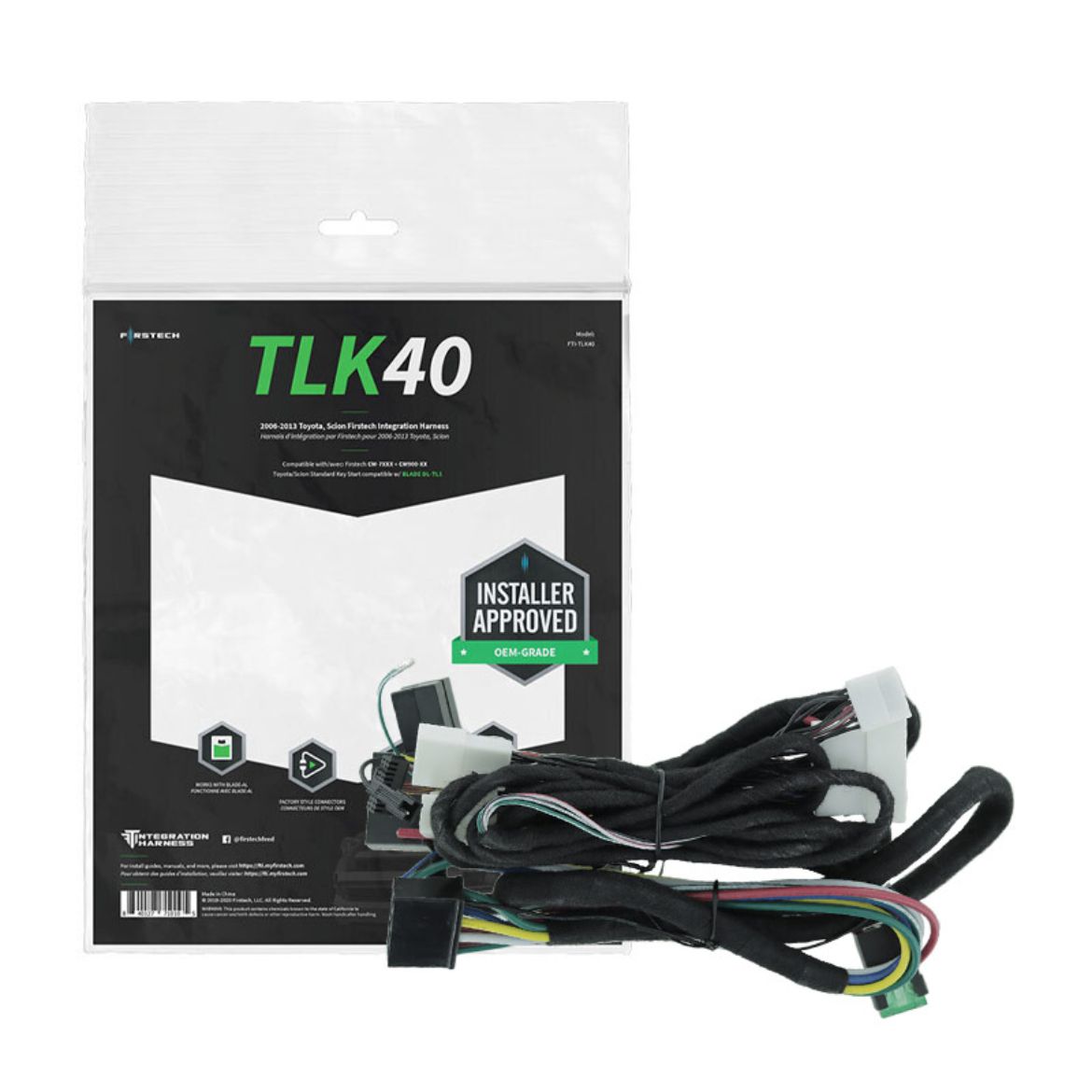

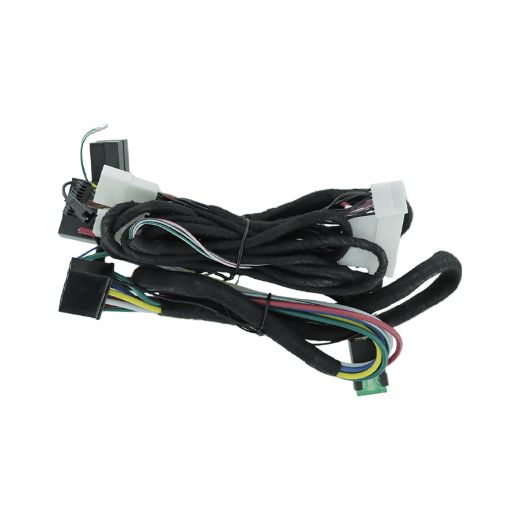

Firstech FTI-TLK40 is a vehicle-specific remote-start T-harness for supported Toyota, Scion & Pontiac 40-bit key-start vehicles applications. It connects supported factory ignition wiring to a compatible Firstech controller with OEM-style connectors, reducing the amount of direct vehicle wiring required.
At a Glance
- Vehicle-specific remote-start installation harness with OEM-style connectors
- Designed for Pontiac, Scion, Toyota applications listed below
- Uses DL-TL1 vehicle firmware
- Works with supported Firstech CM7, CM9, and CMX-series controllers
- Requires a separately sold BLADE-AL bypass module and compatible controller
- Professional installation and vehicle-specific programming are required
Exact Vehicle Compatibility
Find your vehicle and key configuration below. The make, model, year, transmission, key type, and factory-equipment details must match the same row.
| Make | Model | Years | Key type / equipment qualifier |
|---|---|---|---|
| Pontiac | Vibe | 2009-2010 | 40-bit standard key; automatic; DL-TL1 |
| Scion | xB | 2008-2010 | 40-bit standard key; automatic; DL-TL1 |
| Scion | xD | 2008-2010 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | Camry | 2007-2011 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | Corolla | 2009-2010 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | Highlander | 2008-2010 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | Matrix | 2009-2010 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | RAV4 | 2006-2010 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | Sequoia | 2008-2010 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | Tundra | 2007-2010 | 40-bit standard key; automatic; DL-TL1 |
| Toyota | Yaris | 2006-2010 | 40-bit standard key; automatic; DL-TL1 |
Compatibility & What You Need
This harness is one part of a complete remote-start system. It requires a compatible Firstech controller, BLADE-AL bypass module, DL-TL1 firmware, required safety inputs, and professional configuration. Remote controls, antenna, telematics, and installation are sold separately unless included in another package.
Technical Specifications
| Brand | Firstech |
|---|---|
| Manufacturer part number | FTI-TLK40 |
| Product type | Vehicle-specific remote-start T-harness |
| Firmware family | DL-TL1 |
| Compatible controller families | CM7, CM9, and CMX series |
| Required bypass module | BLADE-AL, sold separately |
| UPC | 840127710105 |
What's Included

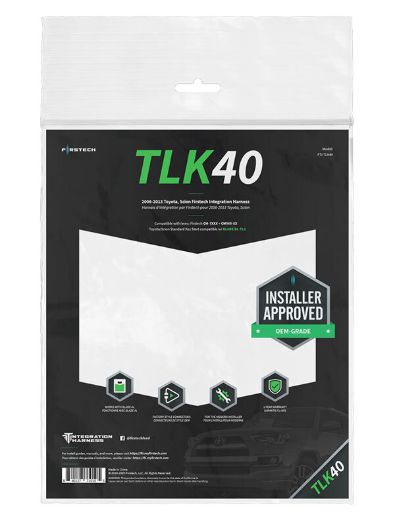

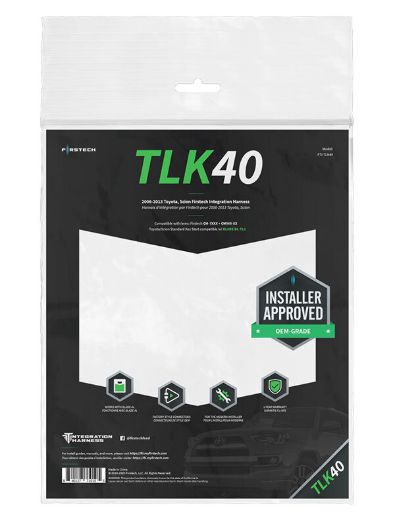

- One genuine Firstech FTI-TLK40 vehicle-specific T-harness package
- Controller, BLADE-AL, RF kit, telematics hardware, firmware setup, and installation are not included
Fitment disclaimer: Vehicle compatibility can change with trim, ignition system, transmission, factory options, firmware, and installation method. If any vehicle detail differs from the row above, contact MCOR Automotive before ordering.
