EchoMaster RVC-W3 Wireless AHD/CVBS Trailer Camera and Receiver Kit
EchoMaster RVC-W3 Wireless AHD/CVBS Trailer Camera and Receiver Kit
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Add a trailer camera without a long video cable between trailer and cab. The receiver supports a second compatible camera and selectable viewing layouts while the camera obtains power from the trailer-light circuit.
At a Glance
- Wireless camera and receiver
- Receiver supports two cameras
- Individual or split-screen viewing
- AHD/CVBS selectable video
- Compatible additional camera: RVC-W3-C
Compatibility & Installation Requirements
Requires a compatible camera display and a suitable trailer power connection. Wireless range depends on obstructions and installation.
Select AHD only when the receiving display explicitly supports this camera resolution. CVBS is the standard-definition alternative where specified. An RCA connector alone does not establish AHD support, and HEIGH10 capability depends on the exact hardware revision. Confirm camera power, cable connectors and trigger wiring before installation. The second camera and monitor are separate. Wireless transmission does not eliminate power wiring.

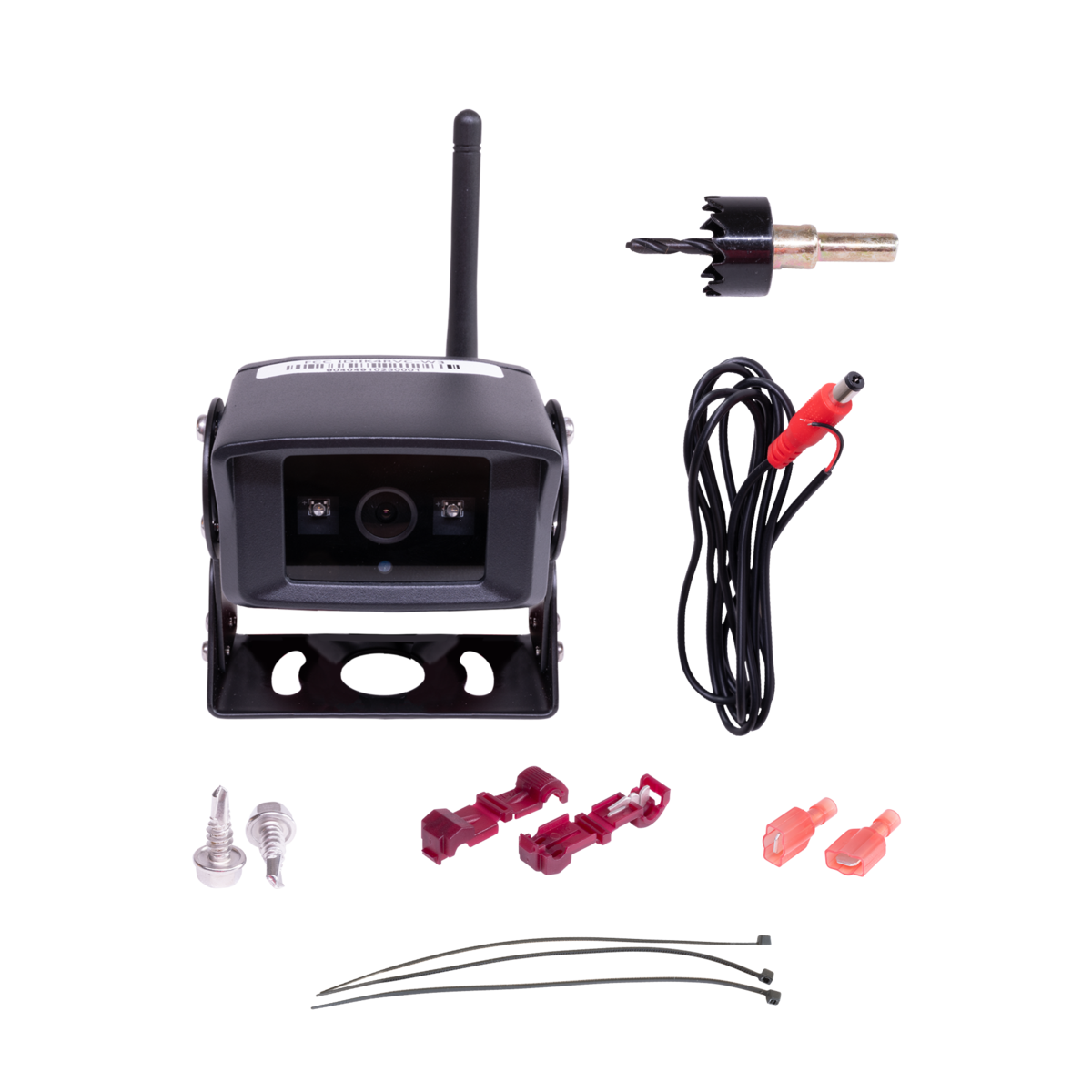

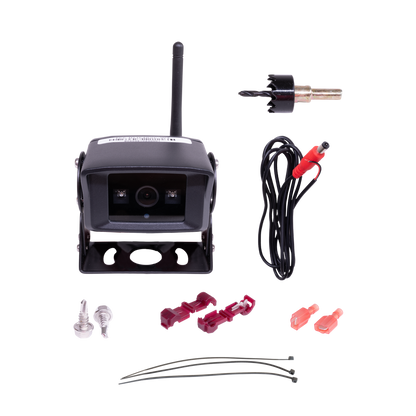

Included Equipment

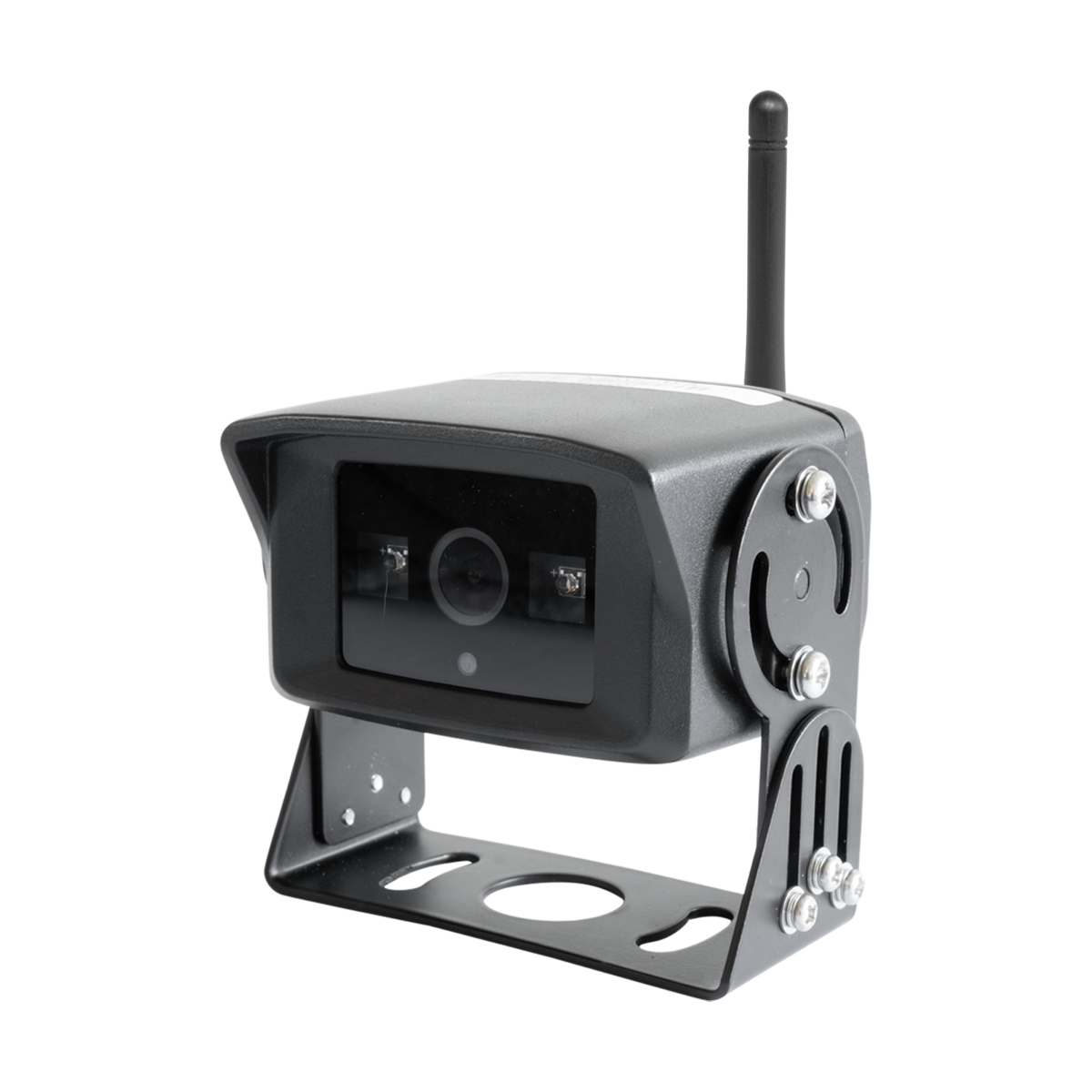

- RVC-W3 wireless trailer camera

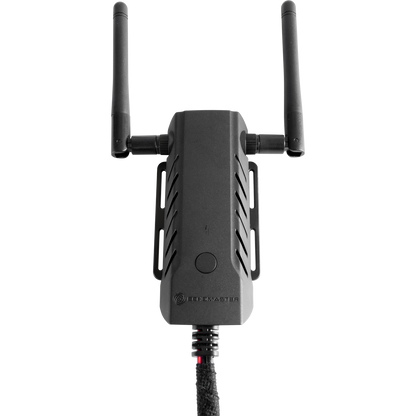

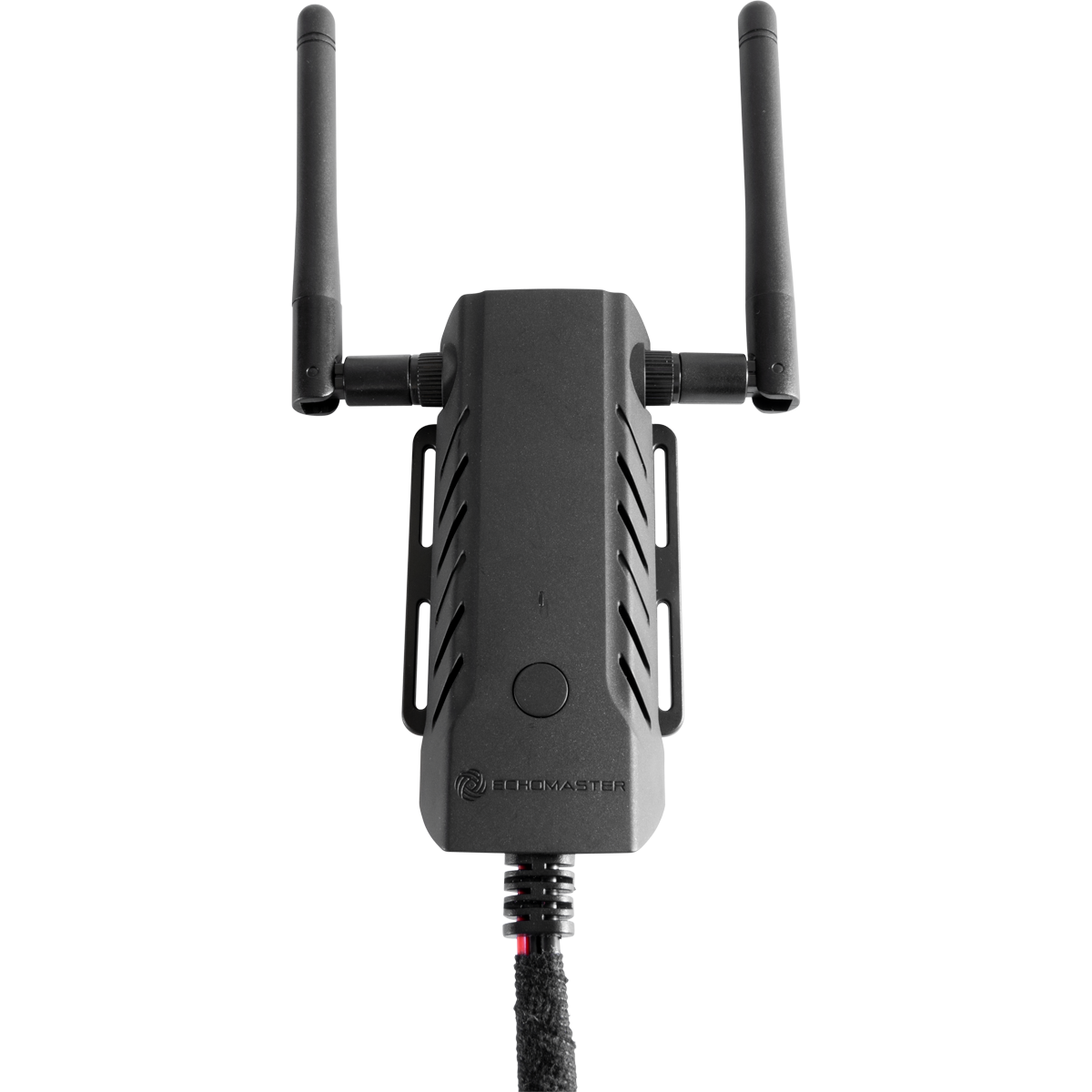

- Receiver
Technical Specifications
| Brand | EchoMaster |
|---|---|
| Model | RVC-W3 |
| UPC | 609098904049 |
| Sold as | One product or kit as described |
| Camera video | 720p AHD, selectable CVBS |
| Wireless band | 2.4 GHz |
| Published wireless range | Up to 85 ft unobstructed |
| Camera environmental rating | IP68 |
| Supported cameras | Two on the receiver; additional camera separate |
Manufacturer Resources & Warranty
Three-year manufacturer warranty, subject to terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
