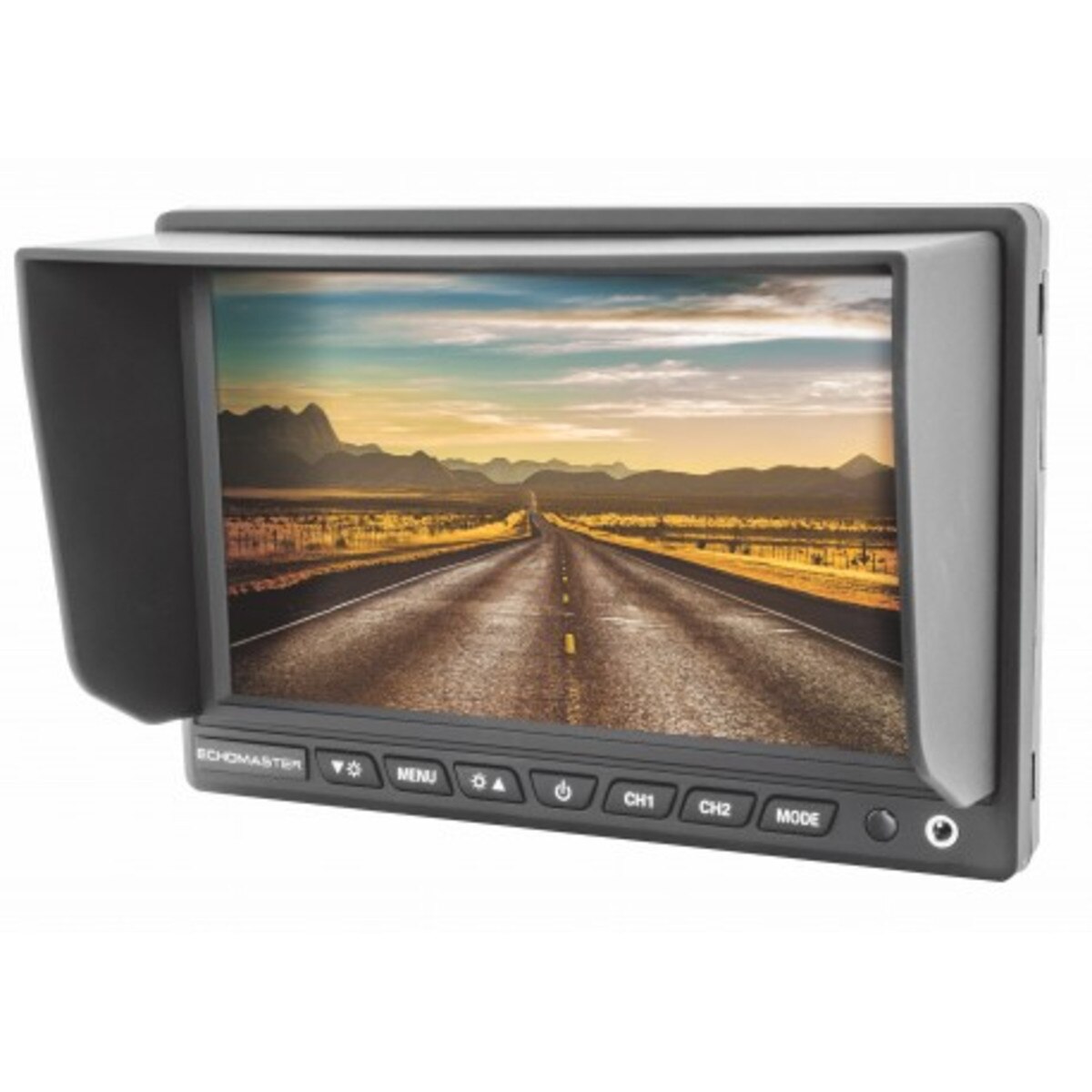

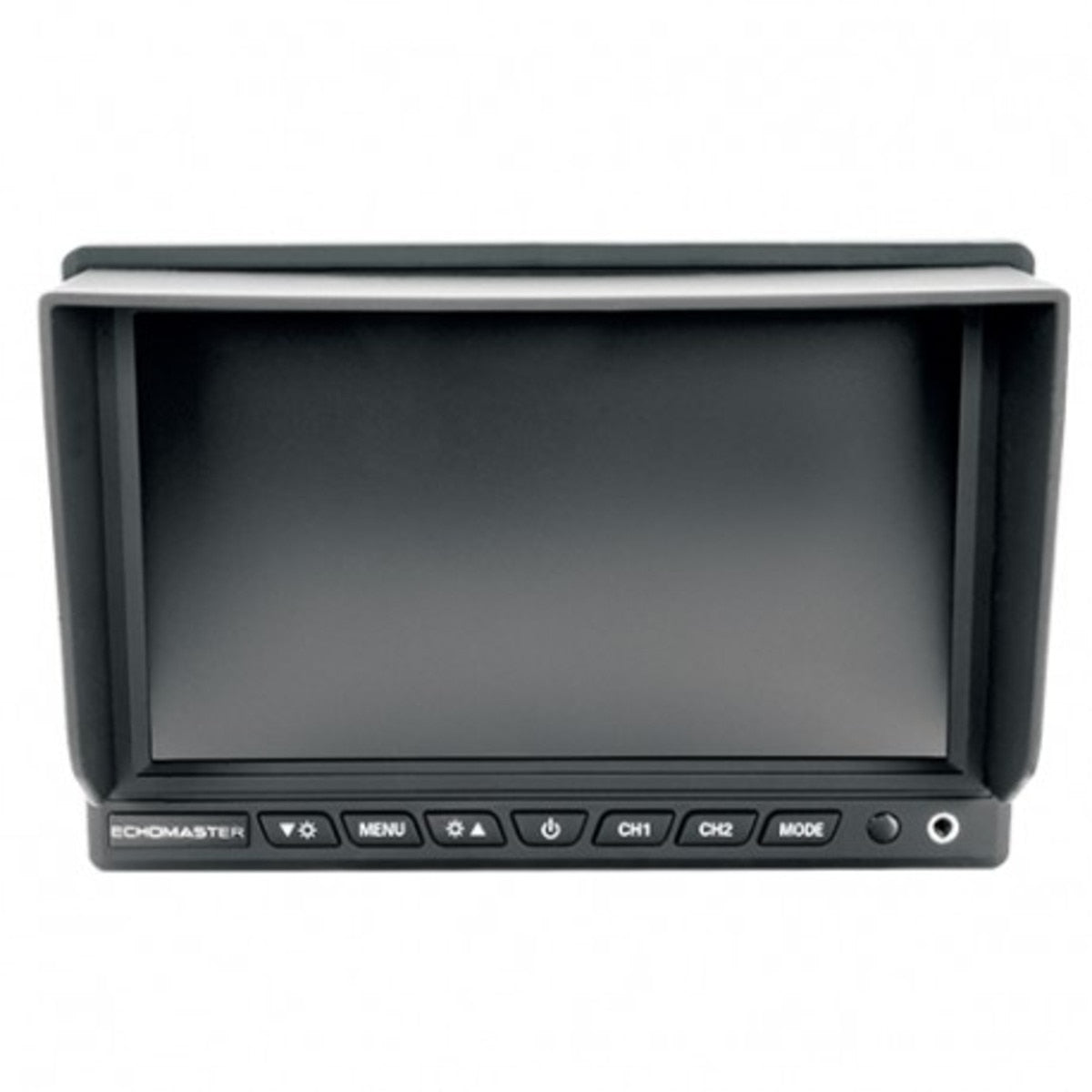

EchoMaster PMON-7022-AHD 7-Inch Two-Input AHD/CVBS Monitor
EchoMaster PMON-7022-AHD 7-Inch Two-Input AHD/CVBS Monitor
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Build a dedicated camera viewing station for a truck, bus or RV. This 7-inch monitor accepts compatible AHD and standard-definition camera signals with dedicated inputs for the planned camera layout.
At a Glance
- 7-inch display
- Supports 720p AHD and CVBS
- Remote control supplied
- Two trigger inputs
- One audio input
Compatibility & Installation Requirements
Cameras are separate. Verify each camera signal, connector and power requirement; higher-resolution AHD formats are not implied.
Check mounting space, visibility and cable routing. Additional camera-adapter or extension harnesses may be needed for the planned camera count.

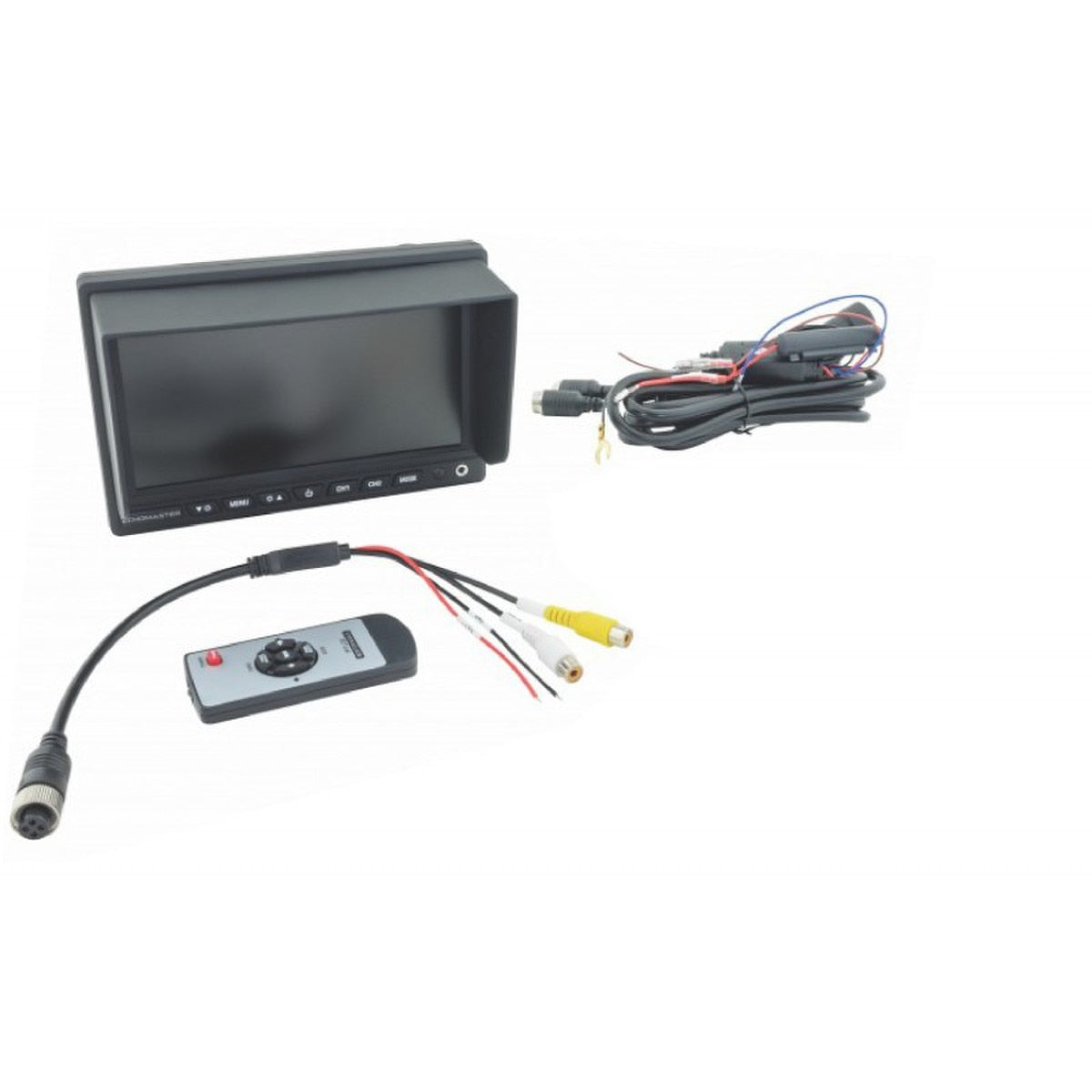

Included Equipment
- Monitor and stand
- Main harness
- Camera-adapter harness
- Sunshade
- Remote control
- Installation hardware
- User manual
Technical Specifications
| Brand | EchoMaster |
|---|---|
| Model | PMON-7022-AHD |
| UPC | 609098831604 |
| Sold as | One product or kit as described |
| Display | 7 inches, 16:9 |
| Video inputs | Two |
| Supported video | Up to 720p AHD / CVBS |
| Multi-view capability | No split-screen function |
Manufacturer Resources
Help Choosing Your Setup
Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
