EchoMaster PHDCAMJW AHD/CVBS Spare-Tire Camera for 2007–2018 Wrangler JK

Add a rear camera around the Wrangler JK spare tire with an adjustable coated-steel bracket. Selectable AHD or CVBS output allows the camera signal to be matched to the supported display.

At a Glance

• Selectable video resolution
• Selectable parking guides
• Selectable mirrored or normal image

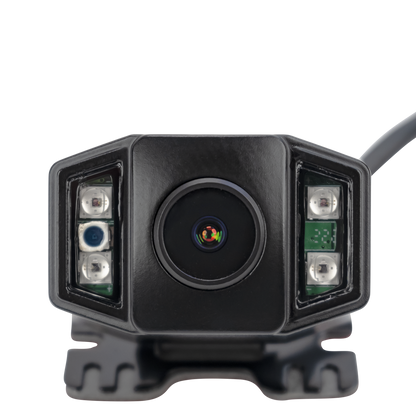

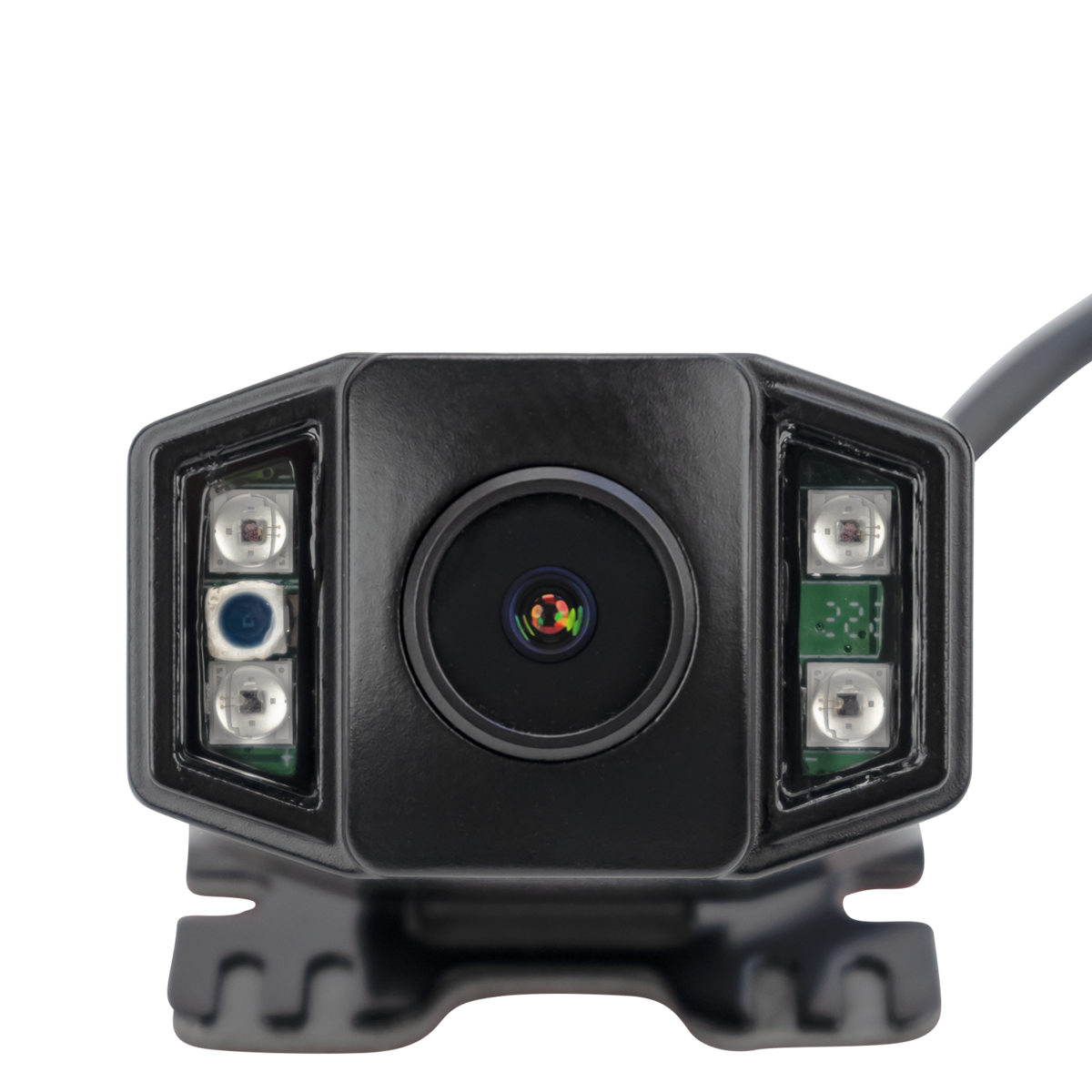

• Four infrared LEDs

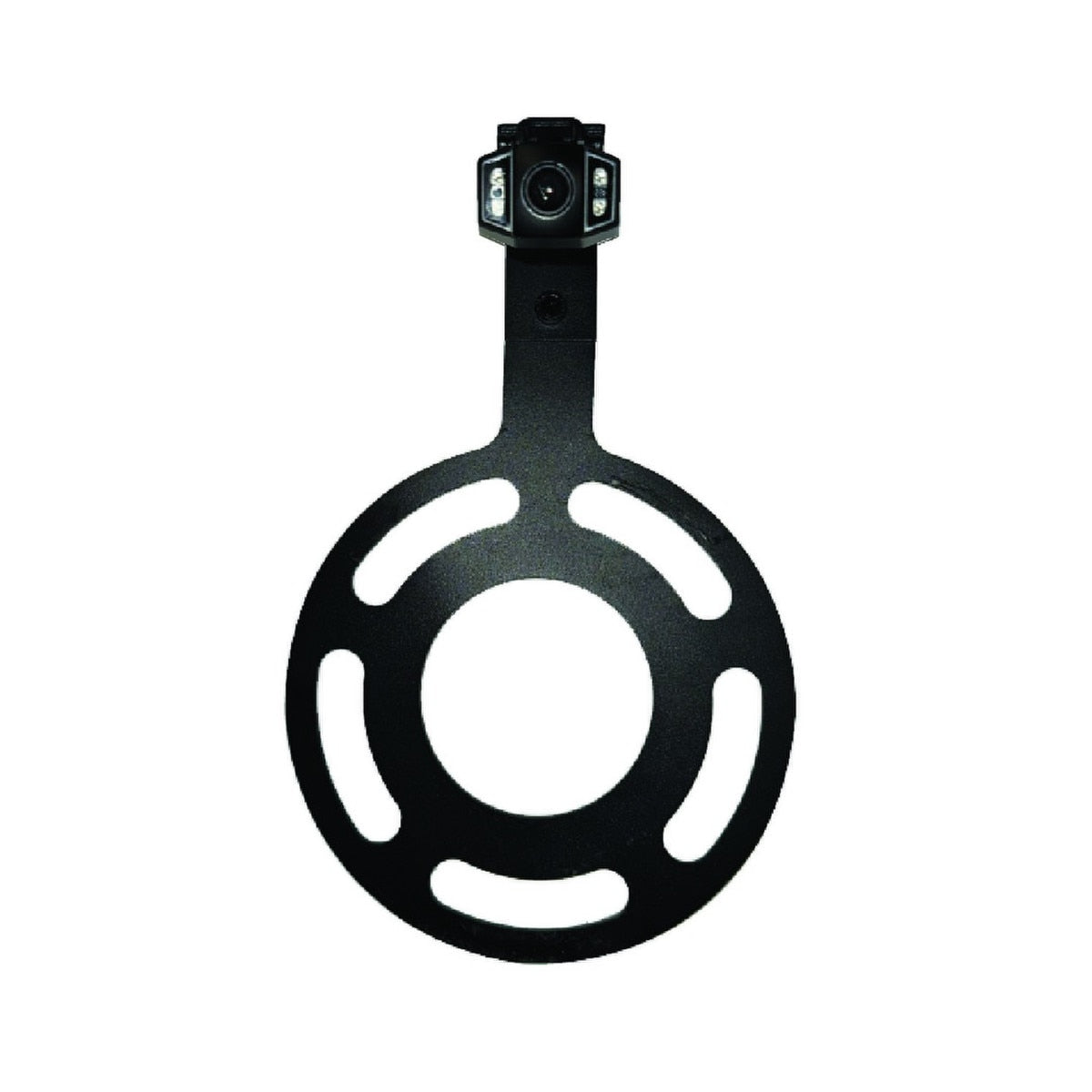

• Adjustable 12-gauge steel spare-tire bracket

Compatibility & Installation Requirements

2007–2018 Jeep Wrangler JK. Check spare-wheel opening, tire clearance and exact display hardware.

Select AHD only when the receiving display explicitly supports this camera resolution. CVBS is the standard-definition alternative where specified. An RCA connector alone does not establish AHD support, and HEIGH10 capability depends on the exact hardware revision. Confirm camera power, cable connectors and trigger wiring before installation. Factory-radio integration, where needed, is separate.

Included Equipment

• Camera
• 20 ft camera extension cable
• Power/video adapter

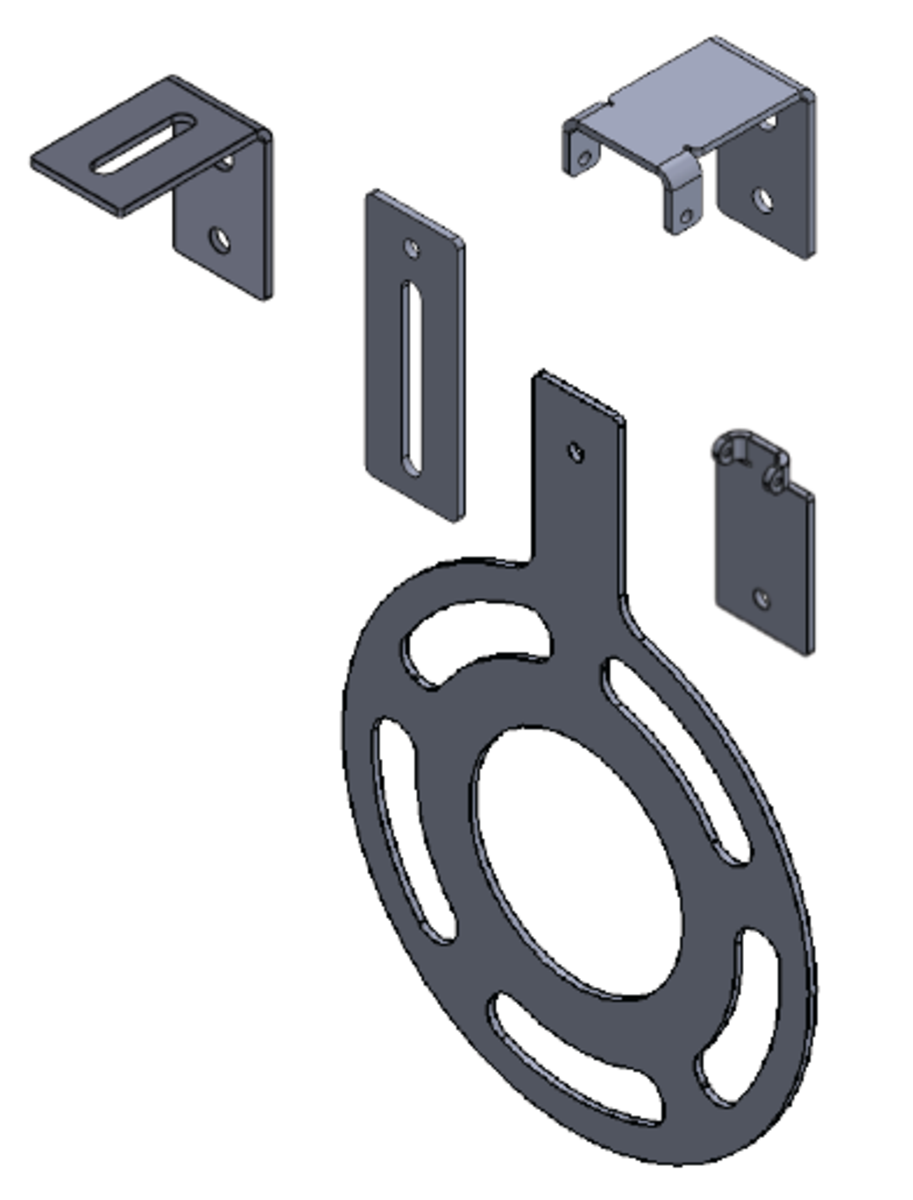

• Wheel bracket, riser and camera mounting pieces
• Mounting bolts and washers
• Warranty card

Technical Specifications

Manufacturer Resources & Warranty

• PHDCAM10U Manual.pdf

Three-year US manufacturer warranty, subject to terms.

Help Choosing Your Setup

Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
