EchoMaster PHD220 AHD/CVBS Bullet Flush-Mount Camera
EchoMaster PHD220 AHD/CVBS Bullet Flush-Mount Camera
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Add a compact front or rear view with selectable AHD or standard-definition video. The flush-mount design suits a discreet installation in an appropriate panel.
At a Glance
- Selectable video resolution
- Selectable parking guides
- Selectable mirrored or normal image
- Flush-mount bullet housing
Compatibility & Installation Requirements
Custom installation with a suitable drilled mounting location.
Select AHD only when the receiving display explicitly supports this camera resolution. CVBS is the standard-definition alternative where specified. An RCA connector alone does not establish AHD support, and HEIGH10 capability depends on the exact hardware revision. Confirm camera power, cable connectors and trigger wiring before installation. Factory-radio integration, where needed, is separate.
Included Equipment

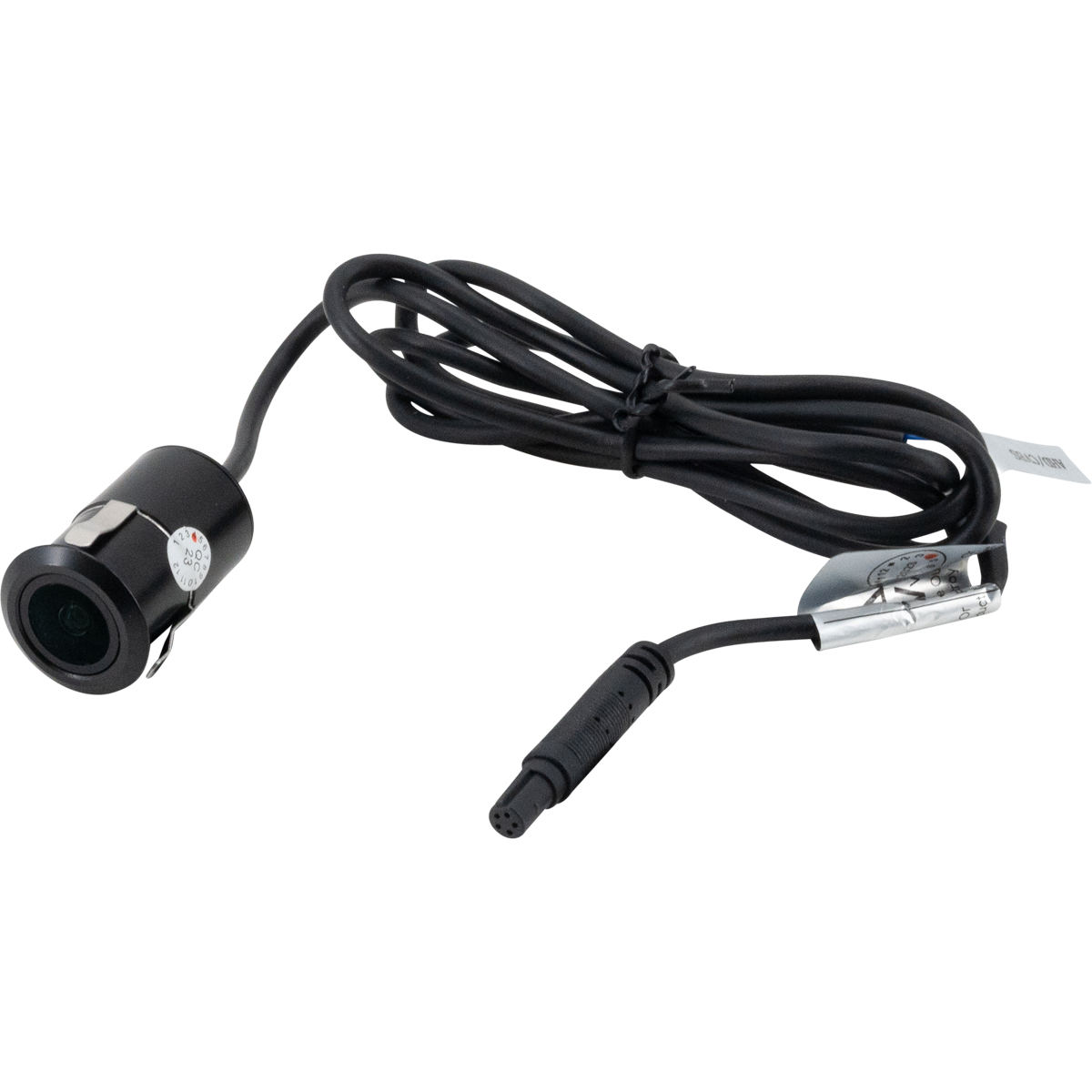

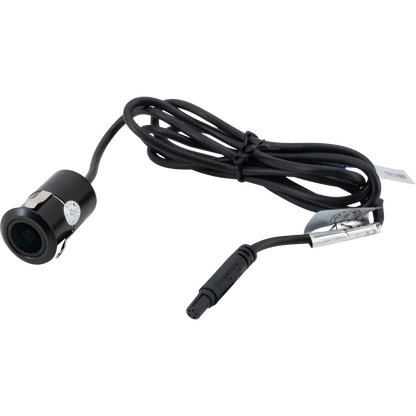

- Camera
- Mounting hardware

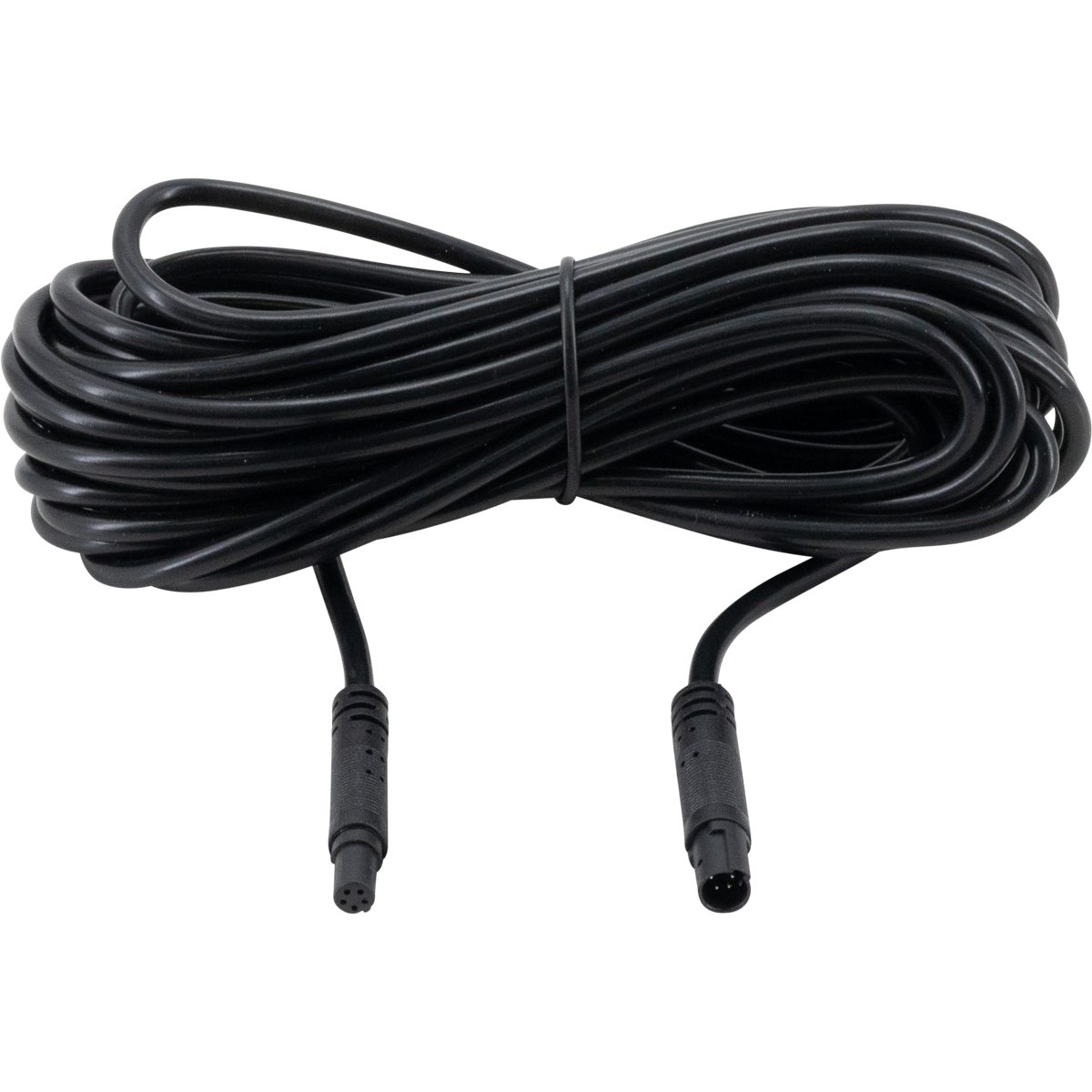

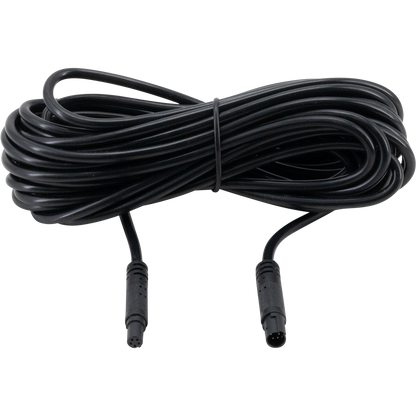

- 20 ft extension cable
- Hole saw
- Warranty card
Technical Specifications
| Brand | EchoMaster |
|---|---|
| Model | PHD220 |
| UPC | 609098903820 |
| Sold as | One product or kit as described |
| Video output | 720p AHD / manufacturer-described 480p CVBS |
| Sensor | 1/4-inch CMOS |
| Minimum illumination | 0.1 lux |
| Viewing angle | 170° |
| Environmental rating | IP67 |

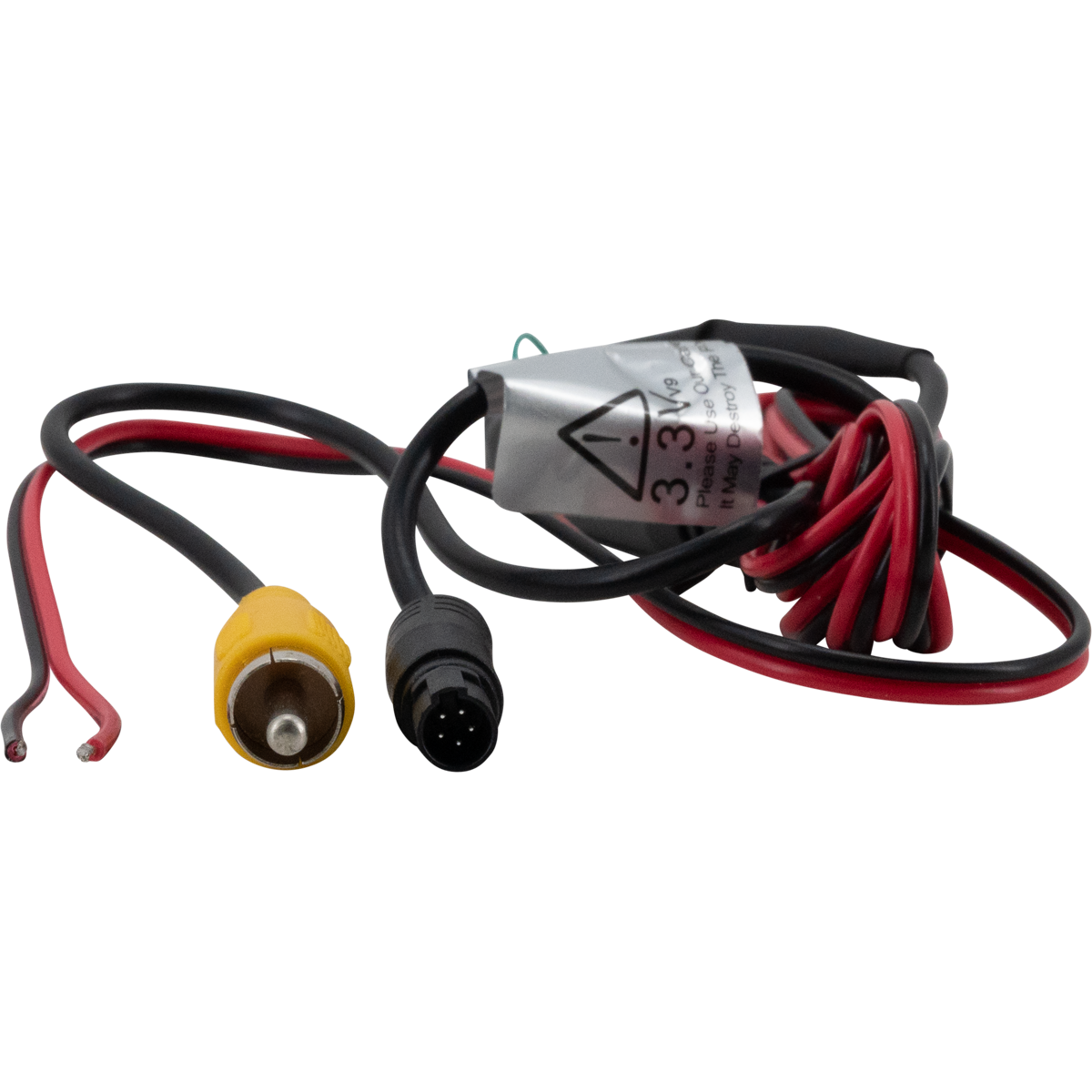

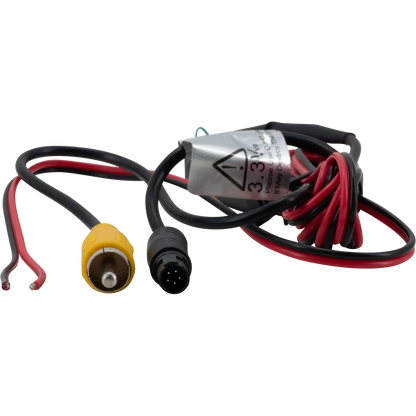

| Camera connector | EchoMaster 5-pin with appropriate adapter |
| Extension cable | 20 ft |
Manufacturer Resources & Warranty
Three-year US manufacturer warranty, subject to terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
