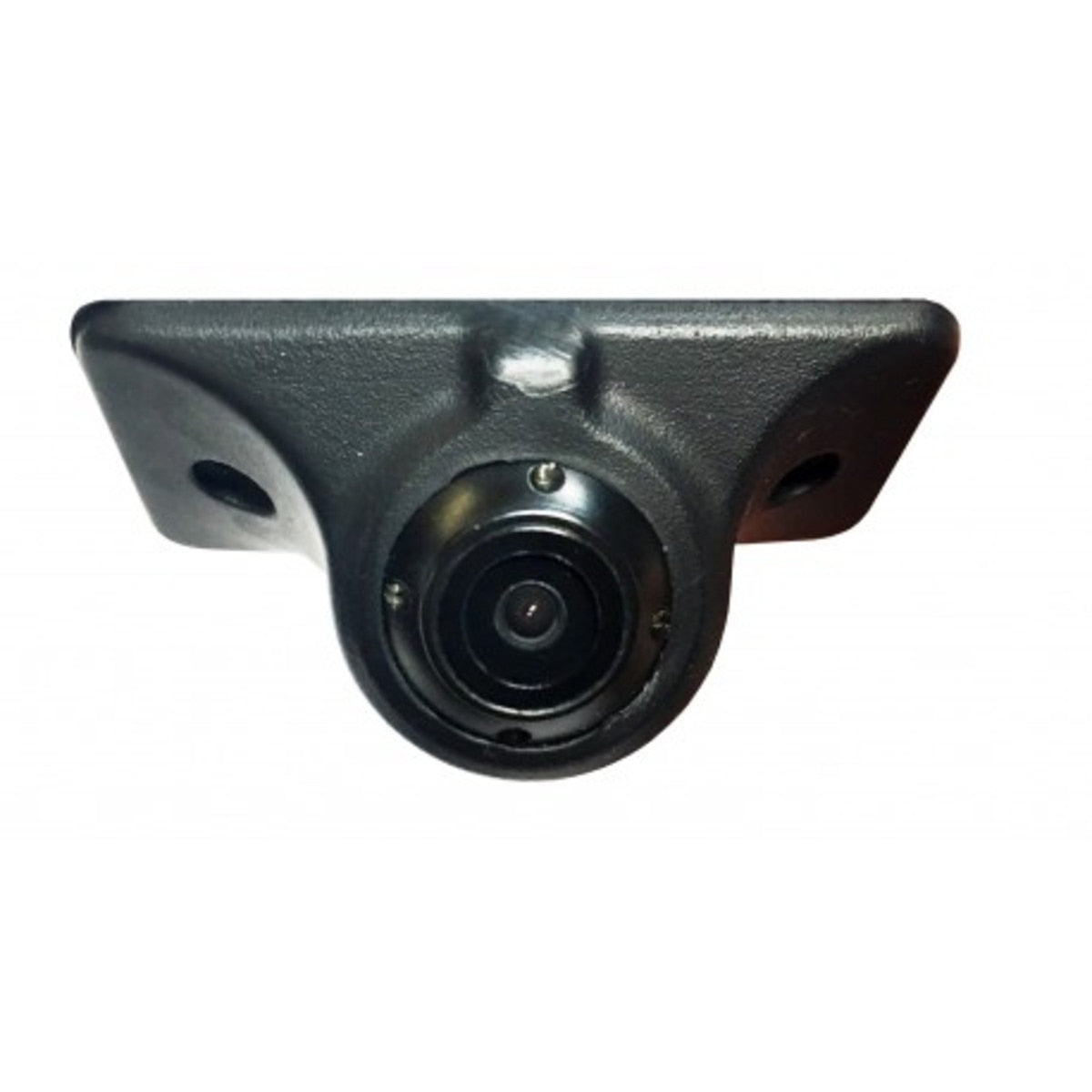

EchoMaster PCAM-BS1-N Self-Adhesive Side Blind-Spot Camera
EchoMaster PCAM-BS1-N Self-Adhesive Side Blind-Spot Camera
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

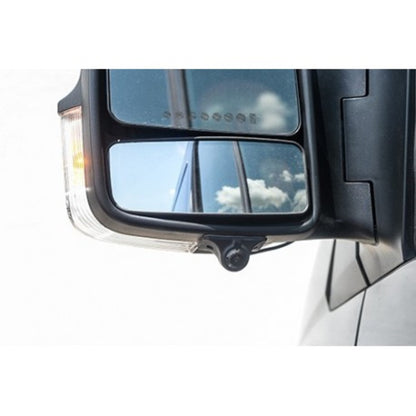

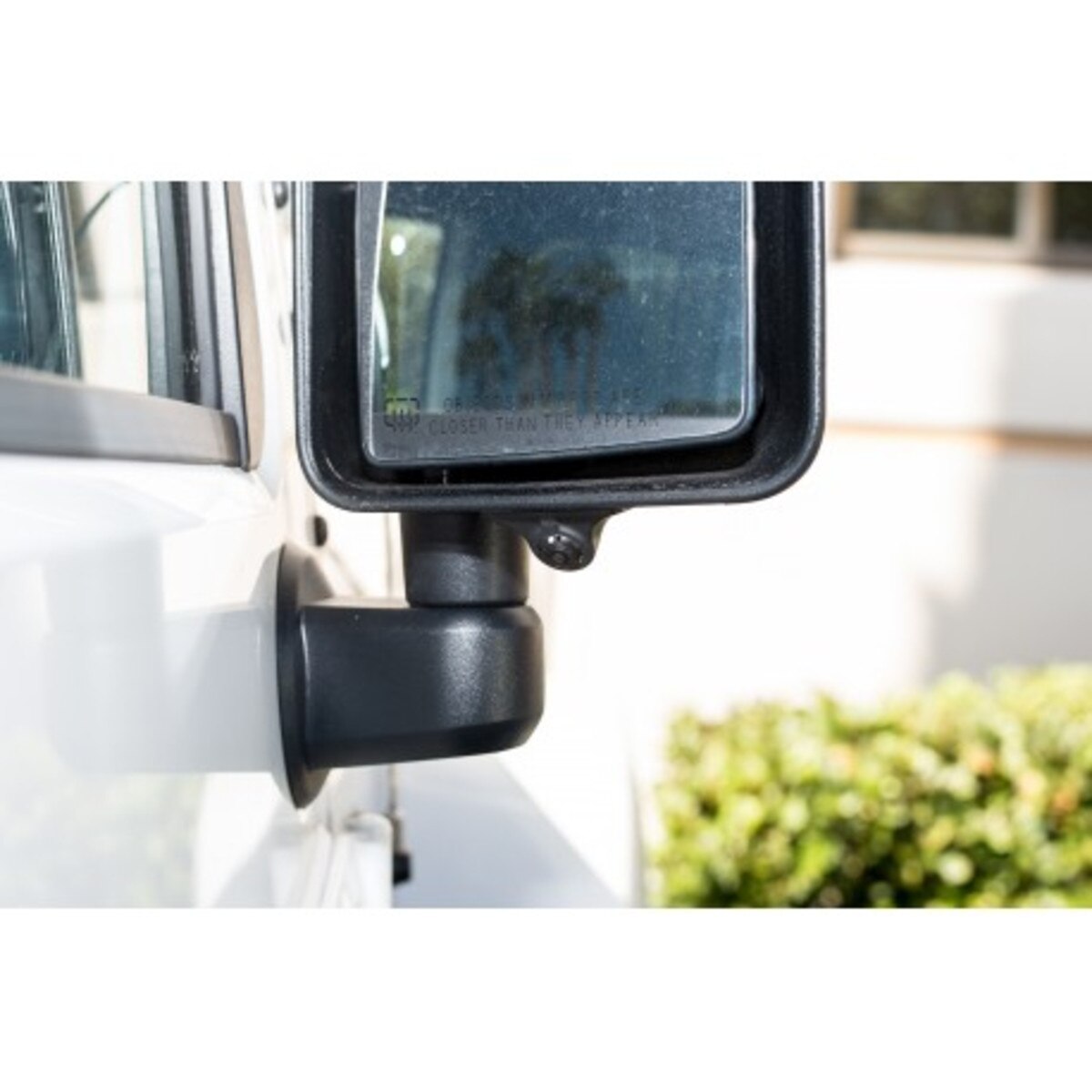

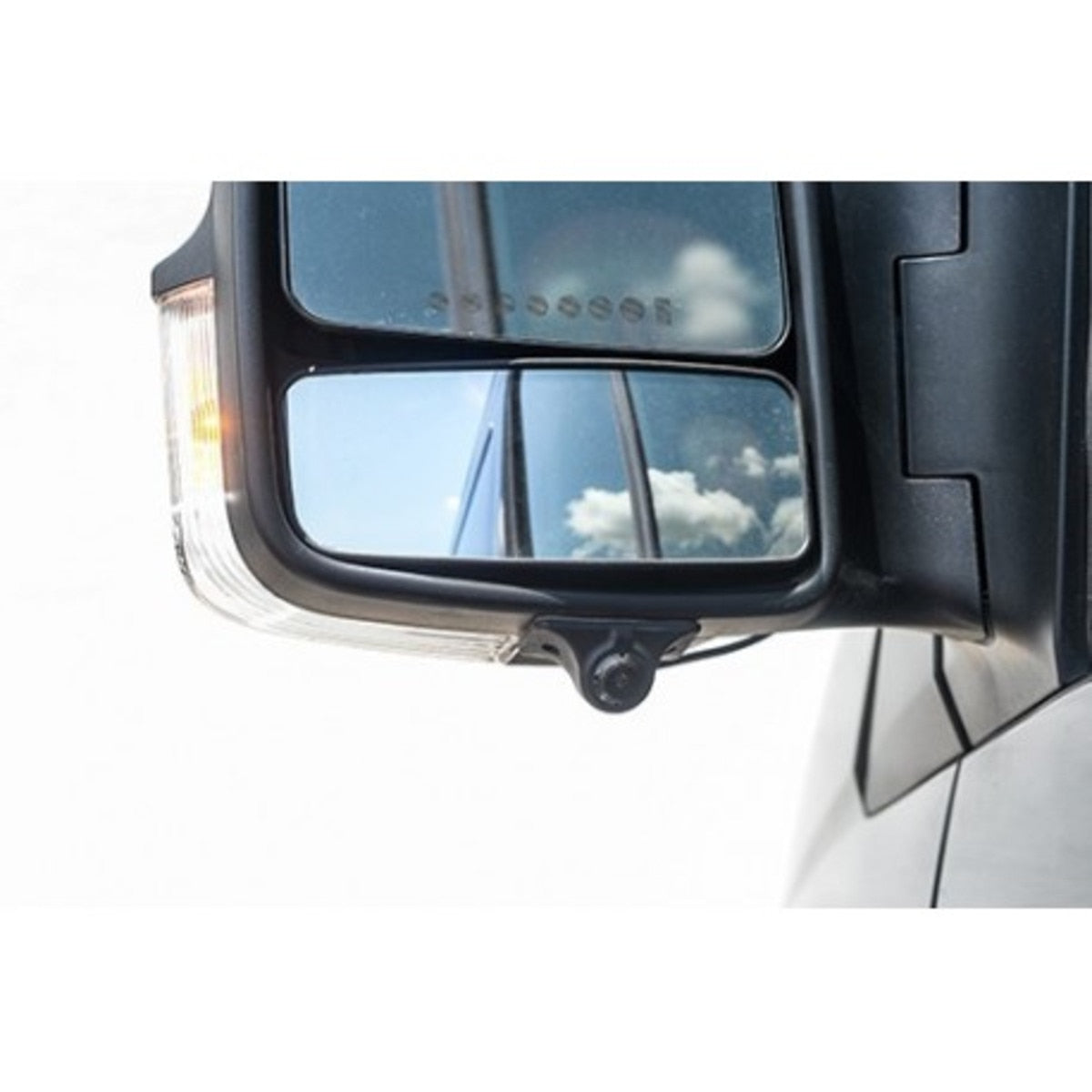

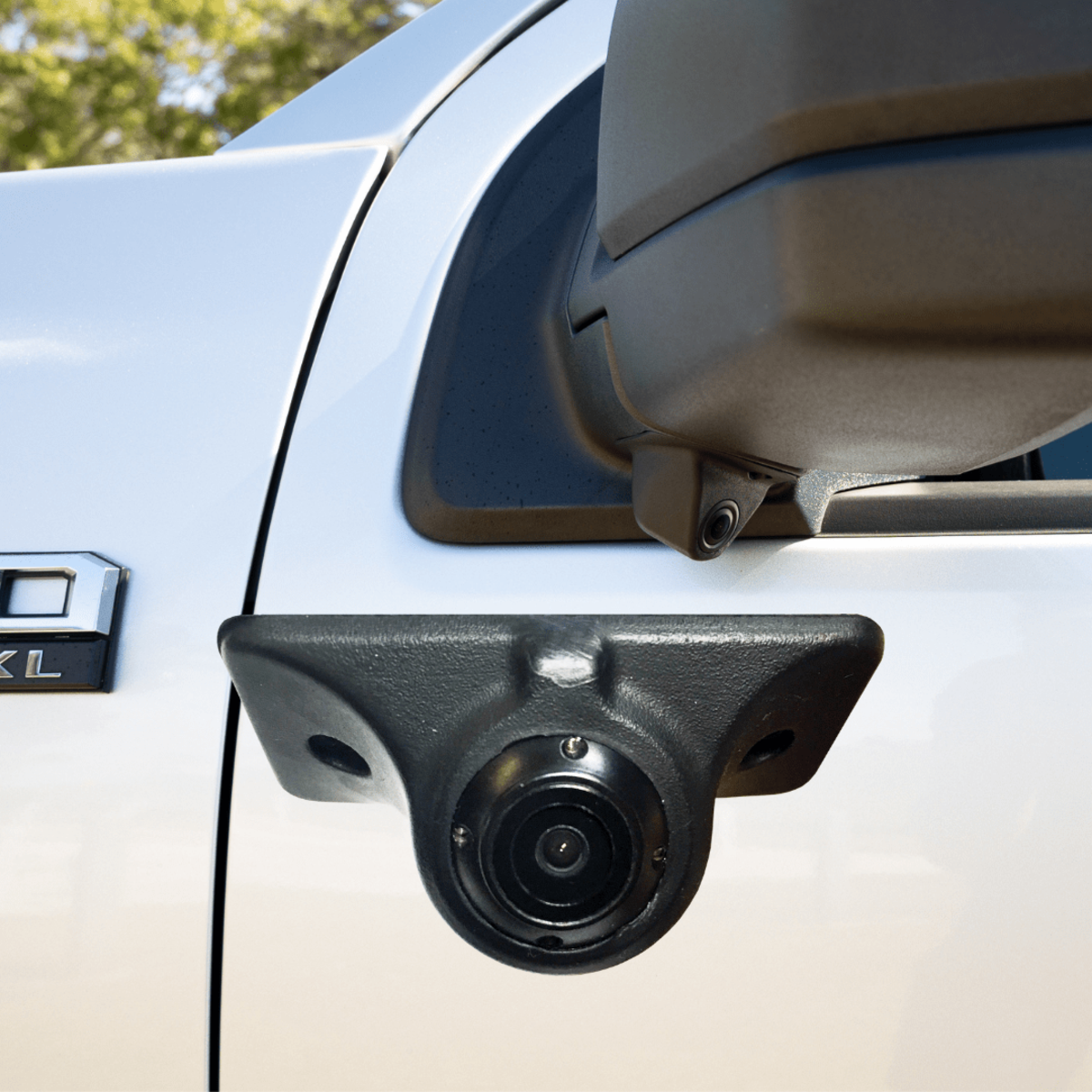

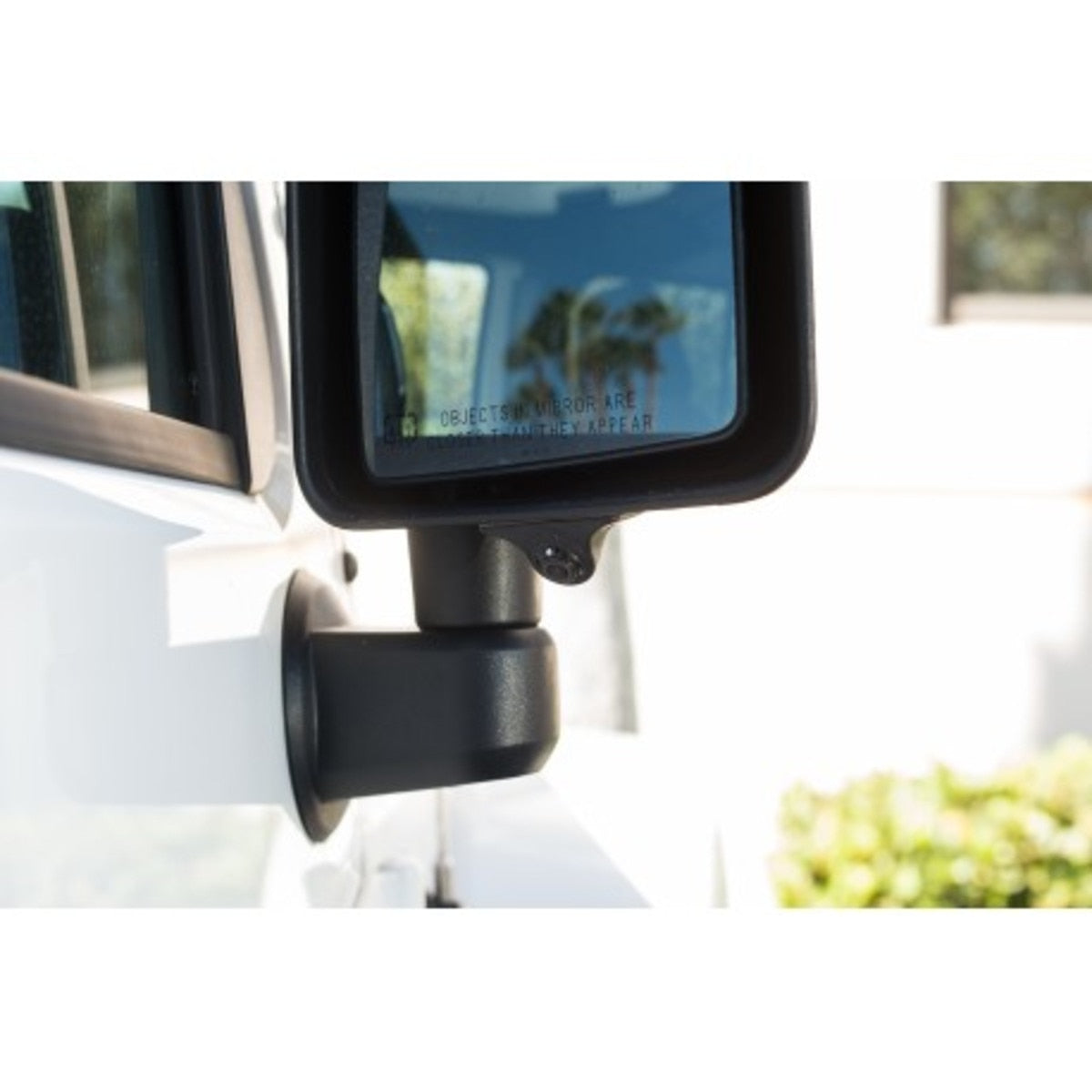

Add a side view beneath a suitable exterior mirror using a compact adhesive-mounted camera. Its narrower viewing angle concentrates on the area beside the vehicle.
At a Glance
- Self-adhesive flexible mounting housing
- Selectable image orientation
- Selectable parking lines
Compatibility & Installation Requirements
Confirm the mirror underside, surface condition, viewing angle and signal compatibility. This individual model is not advertised as the two-camera BS1-NSET package.
Requires a compatible camera display or radio, a suitable mounting location, and correctly connected power, ground and video wiring. A factory radio may require a separate integration interface. Match the camera signal and voltage requirements before installation; physical mounting flexibility does not mean direct plug-and-play compatibility with every vehicle. Professional installation is recommended. Turn-signal-triggered operation requires suitable switching and trigger wiring; a switcher is not included by this individual camera listing.
Included Equipment
- PCAM-BS1-N side camera
Technical Specifications
| Brand | EchoMaster |
|---|---|
| Model | PCAM-BS1-N |
| UPC | 686981088185 |
| Sold as | One product or kit as described |
| Sensor | 1/4-inch CMOS |
| Minimum illumination | 0.1 lux |
| Viewing angle | 80° |
| Environmental rating | IP67 |
| Image orientation | Mirrored or normal, selectable |
Manufacturer Resources
Help Choosing Your Setup
Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
