EchoMaster PCAM-820-AHD Mini Dome AHD/CVBS Camera
EchoMaster PCAM-820-AHD Mini Dome AHD/CVBS Camera
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

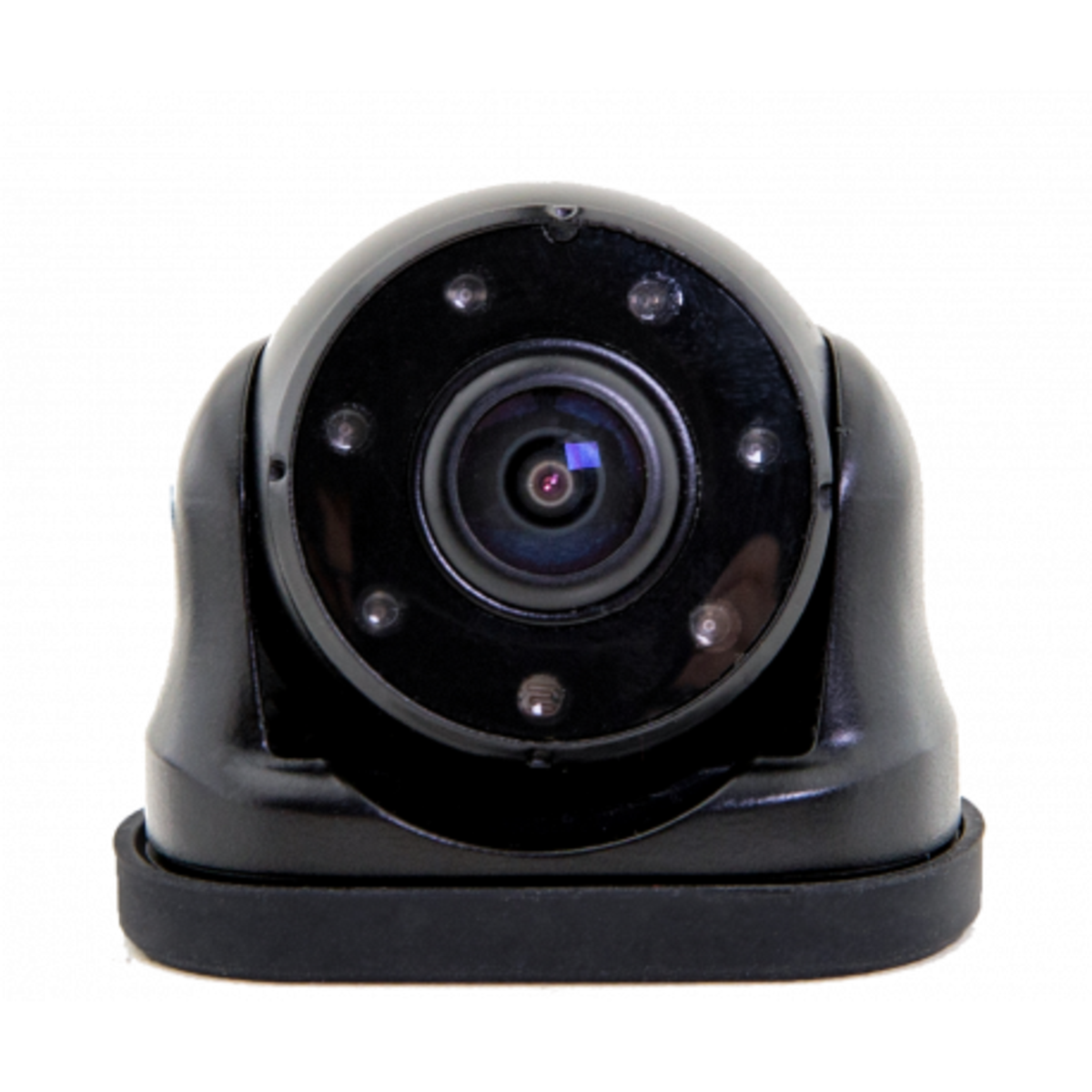

Install a compact dome camera with selectable AHD or CVBS output. Its microphone and selectable image orientation support a planned vehicle monitoring setup.
At a Glance
- 720p AHD camera
- Aluminum-alloy housing
- Infrared night vision
- Built-in microphone
- AHD/CVBS selectable output
Compatibility & Installation Requirements
Requires a display and cabling compatible with the stated video signal.
Select AHD only when the receiving display explicitly supports this camera resolution. CVBS is the standard-definition alternative where specified. An RCA connector alone does not establish AHD support, and HEIGH10 capability depends on the exact hardware revision. Confirm camera power, cable connectors and trigger wiring before installation. Extension harness is not included; select a suitable GXE-series cable.
Included Equipment
- Camera

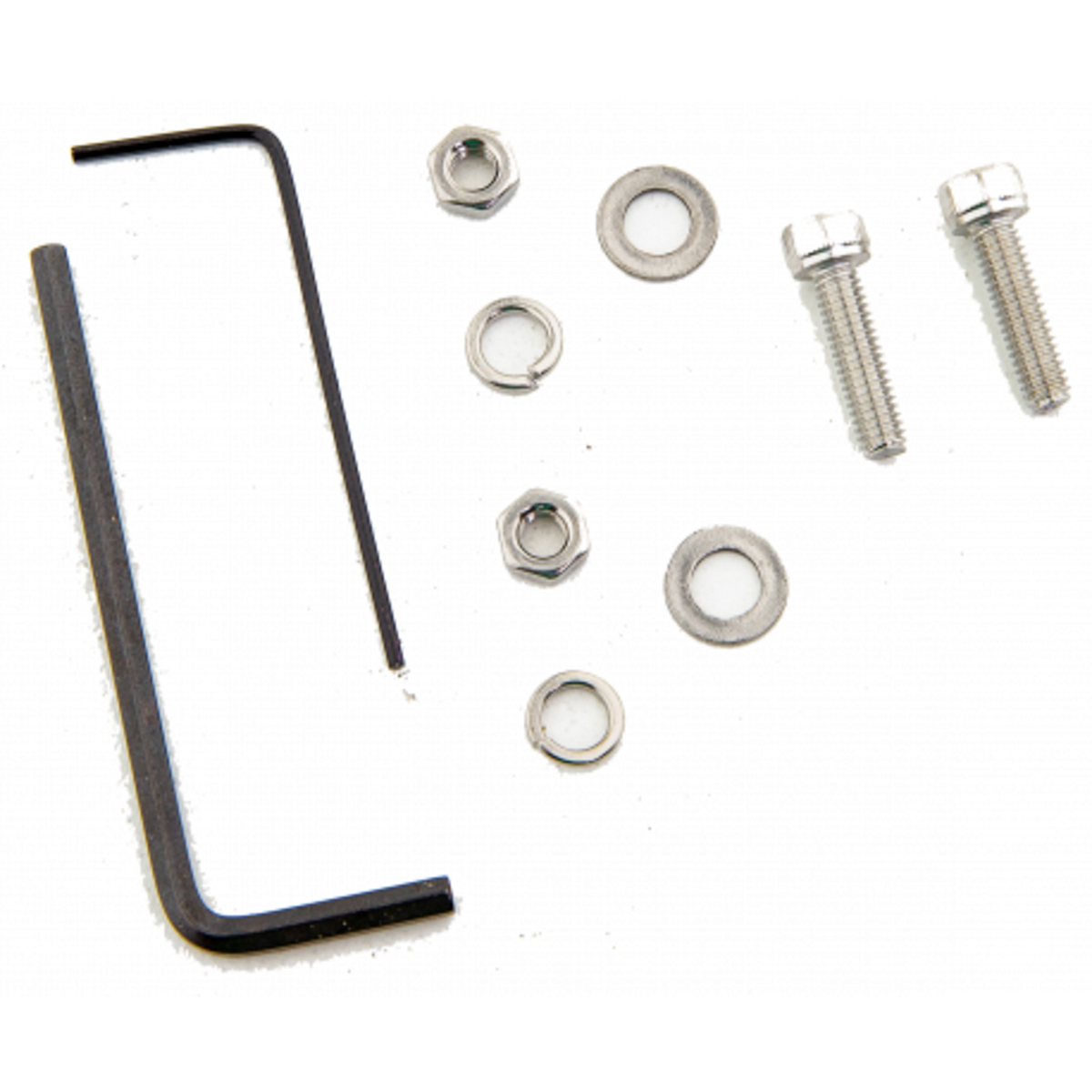

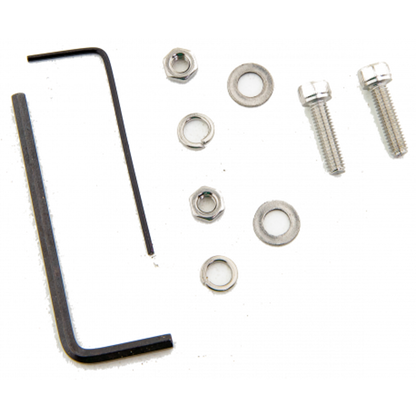

- Installation hardware
- User manual
Technical Specifications
| Brand | EchoMaster |
|---|---|
| Model | PCAM-820-AHD |
| UPC | 609098831505 |
| Sold as | One product or kit as described |
| Sensor | 1/3-inch CMOS |
| Video output | AHD / CVBS selectable |
| Environmental rating | IP67 |
Manufacturer Resources & Warranty
Three-year manufacturer warranty, subject to terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
