EchoMaster K104U PHDCAM10U Camera and 4.3-Inch Mirror Monitor Kit
EchoMaster K104U PHDCAM10U Camera and 4.3-Inch Mirror Monitor Kit
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy
Add a rear-camera display without replacing the main radio. K104U pairs a PHDCAM10U camera with a PMM-43-PL replacement mirror monitor for a coordinated camera-and-screen installation.
At a Glance
- PHDCAM10U camera and PMM-43-PL mirror
- 4.3-inch mirror display
- Dual mirror video inputs
- Camera has four infrared emitters
- Reverse-trigger input
Compatibility & Installation Requirements
Universal installation with a compatible mirror mount. Set the camera output to the format supported by the included mirror; selectable AHD output on the camera does not establish that the mirror displays AHD.
Verify the windshield mirror mount and any required vehicle adapter before ordering. Replacing the original mirror removes its built-in functions, which may include compass, temperature, HomeLink or OnStar controls. Retention of those functions is not included unless specifically stated. Professional installation is recommended.
Included Equipment

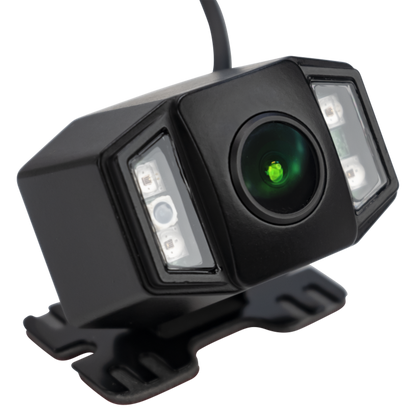

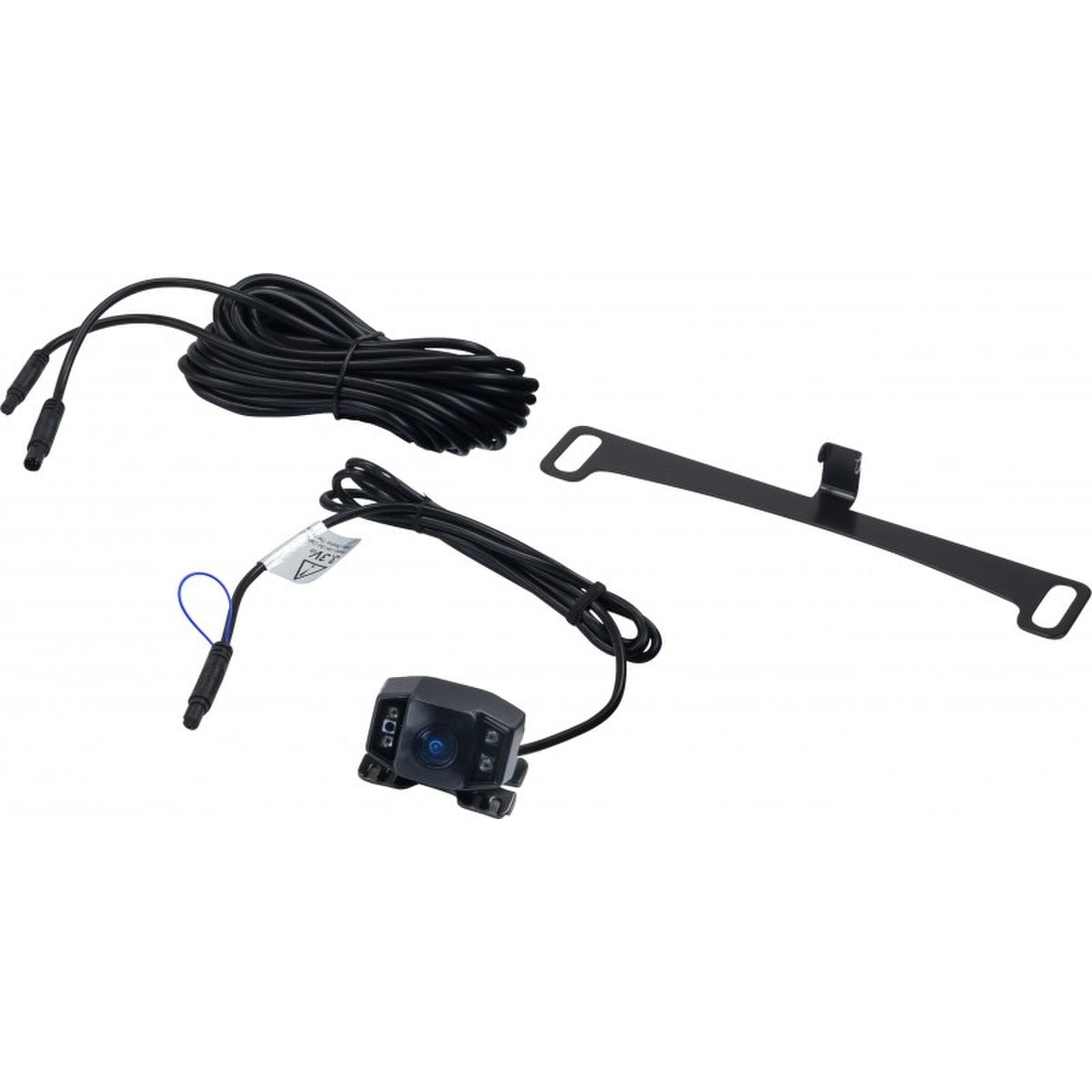

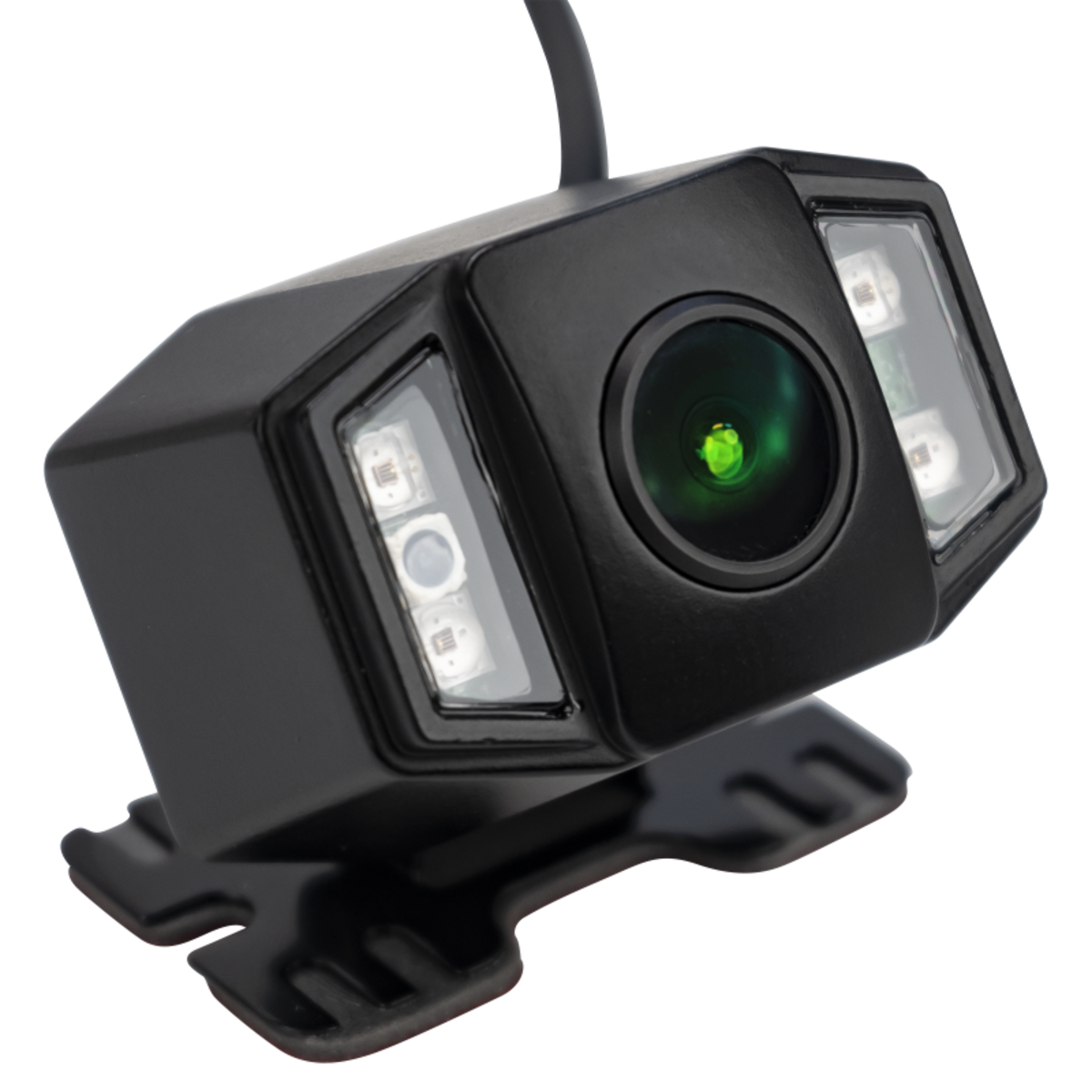

- PHDCAM10U camera with supplied camera mounting and cable equipment

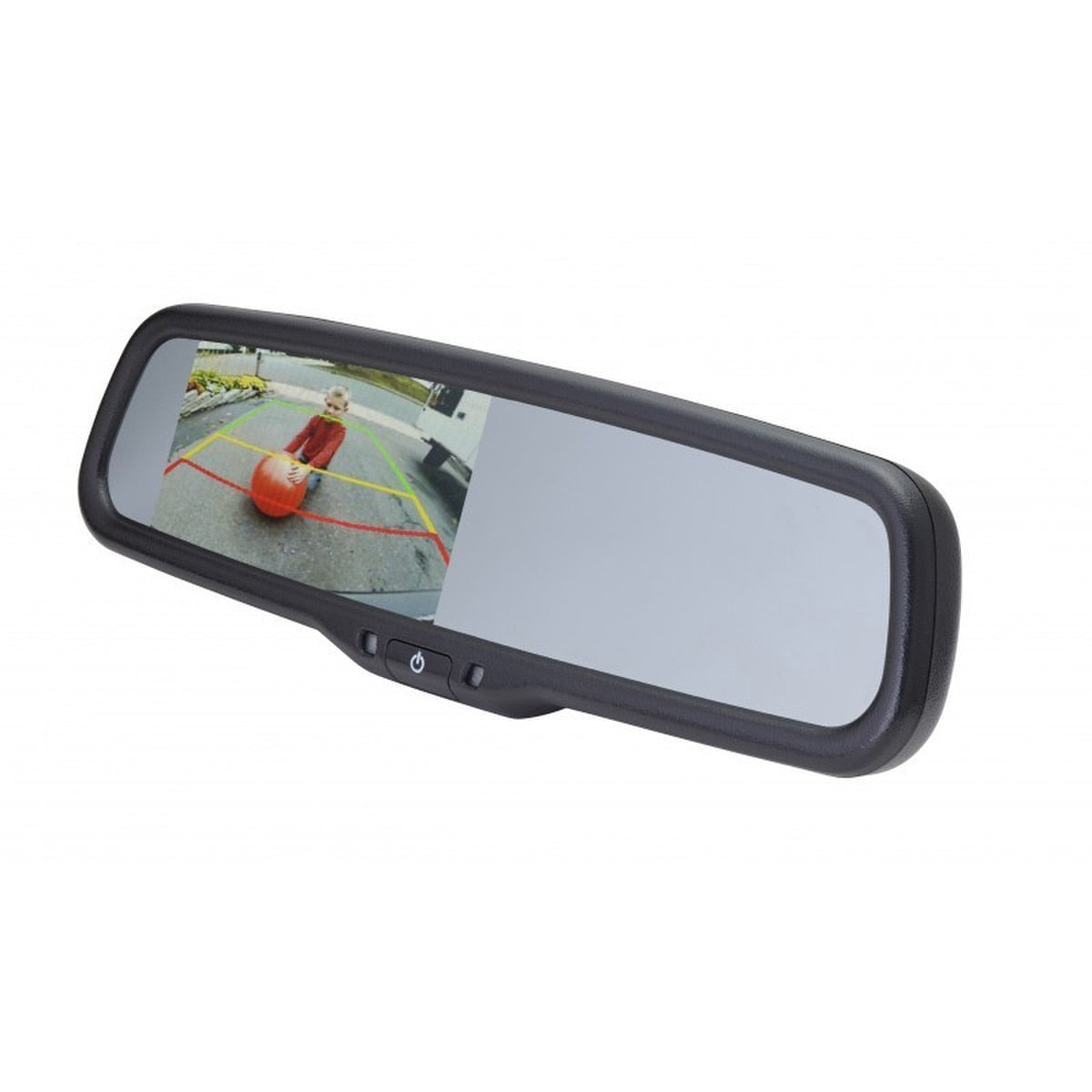

- PMM-43-PL mirror monitor
- Remote control
Technical Specifications
| Brand | EchoMaster |
|---|---|
| Model | K104U |
| UPC | 609098903271 |
| Sold as | One product or kit as described |
| Mirror model | PMM-43-PL |
| Camera model | PHDCAM10U |
| Display size | 4.3 inches |
| Camera cable | 20 ft |
| Camera environmental rating | IP67 |
| Camera image | Mirrored or normal, selectable |
Manufacturer Resources & Warranty
Three-year camera warranty as described by the manufacturer; mirror coverage is governed by its separate product terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
