EchoMaster HDBJL Dual Side Camera Kit for Select Wrangler JL and Gladiator JT
EchoMaster HDBJL Dual Side Camera Kit for Select Wrangler JL and Gladiator JT
Couldn't load pickup availability
Buy with the right details confirmed
Confirm the size, power, connections, and included or separately required parts described on this page.
Professional installation is recommended for this product.
- Authorized retailer New, authentic product from MCOR Automotive.
- Fast U.S. shipping Review shipping details
- Expert help since 2004 Ask MCOR before you order
- Clear return terms Review the return policy

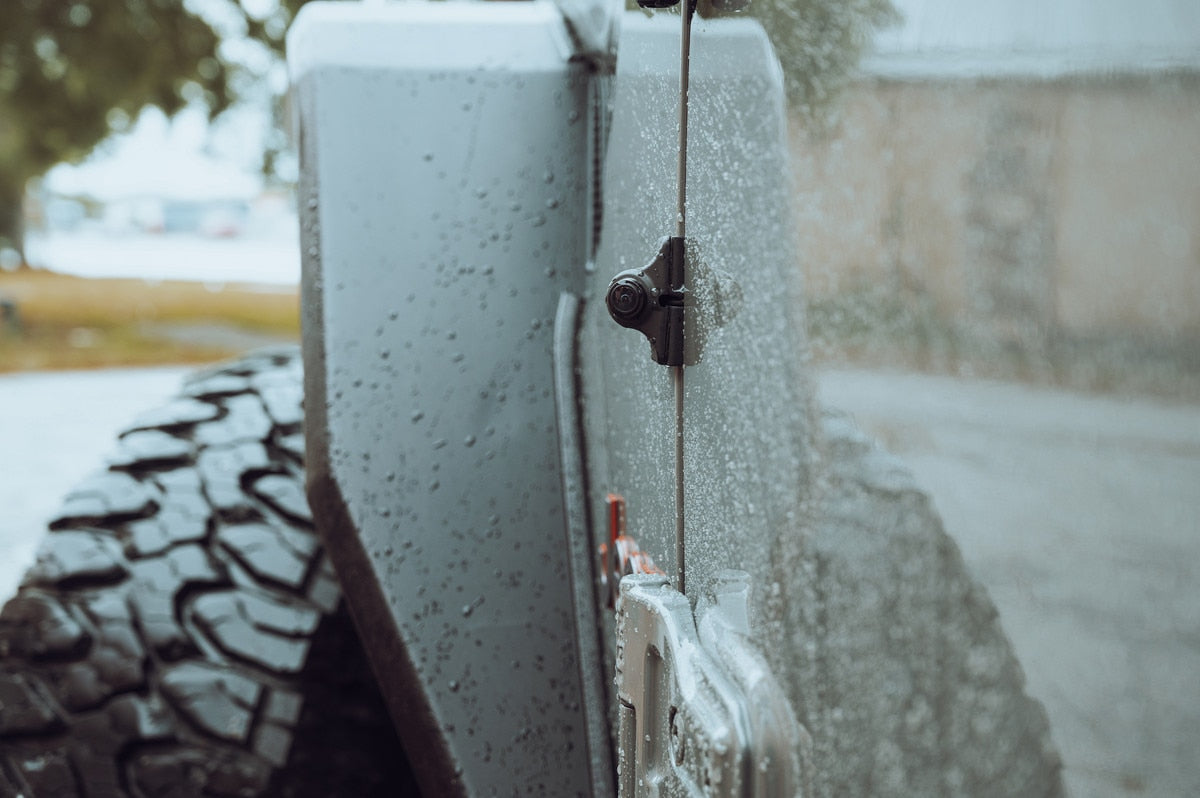

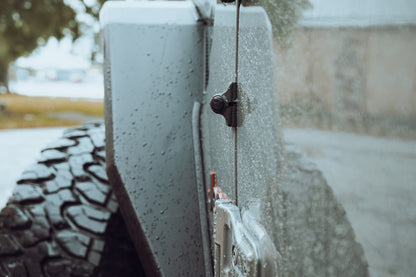

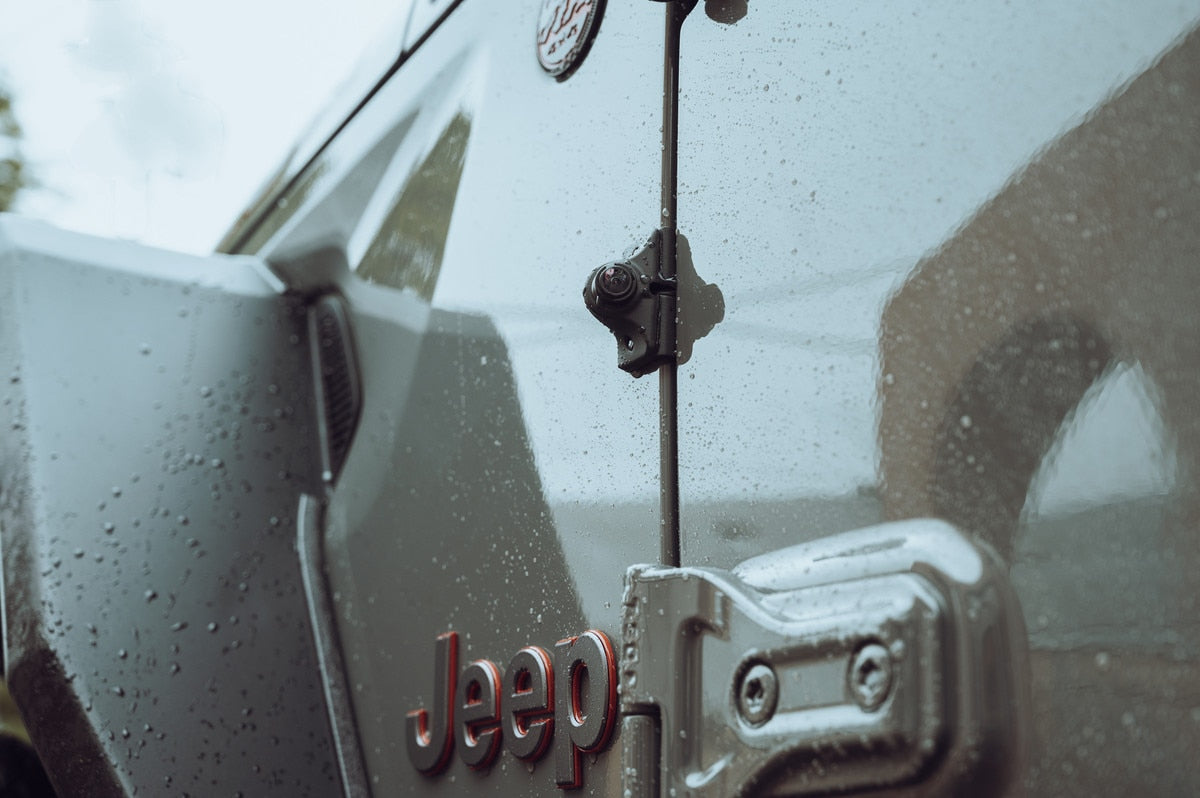

Keep the side-camera views mounted to the Jeep when the doors are removed. Two body-mounted cameras provide selectable AHD or standard-definition output for a compatible display and switching setup.
At a Glance

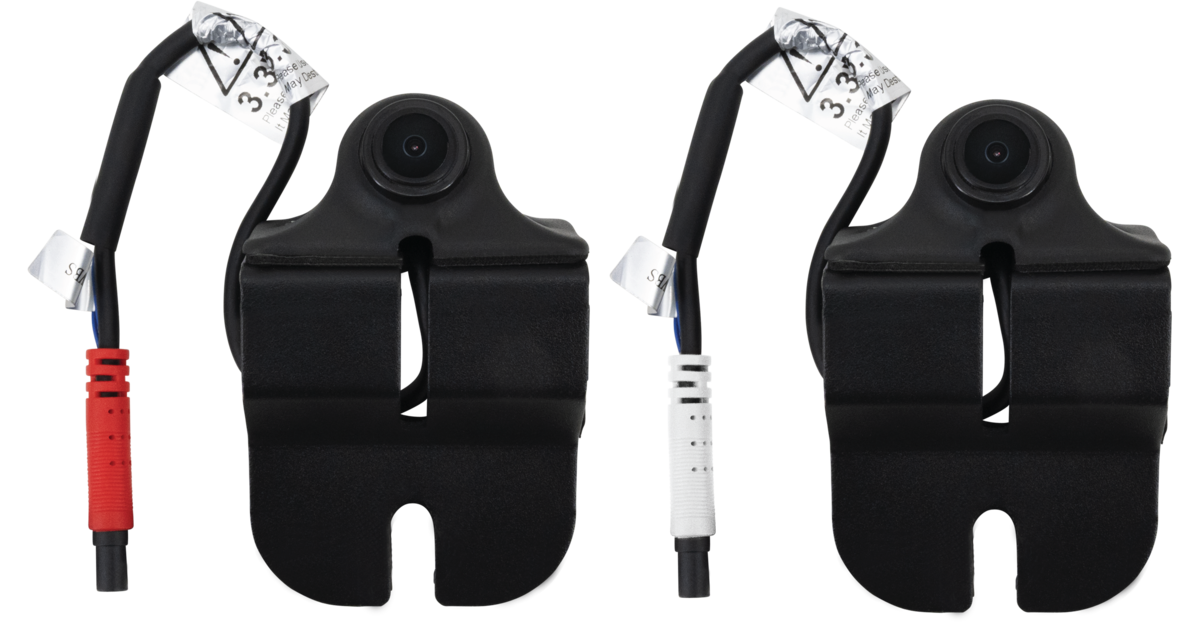

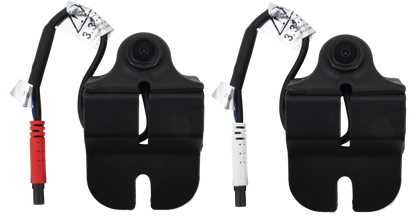

- Two cameras with foam-backed mounting brackets
- Can be used with doors on or off
- Selectable AHD/CVBS video
- Selectable image orientation and parking lines
Compatibility & Installation Requirements
Manufacturer application table lists 2018–2023 Wrangler JL and 2021–2023 Gladiator. Confirm any other model year before purchase.
Select AHD only when the receiving display explicitly supports this camera resolution. CVBS is the standard-definition alternative where specified. An RCA connector alone does not establish AHD support, and HEIGH10 capability depends on the exact hardware revision. Confirm camera power, cable connectors and trigger wiring before installation. AVS41 switching hardware is required for the manufacturer-described external composite-monitor arrangement and is not included. Confirm any factory radio integration separately.
Included Equipment
- Two blind-spot cameras
- Two mounting brackets
- Two camera-extension cables
- Two power/video adapters
- Camera-angle adjustment tool
- Warranty card
Technical Specifications
| Brand | EchoMaster |
|---|---|
| Model | HDBJL |
| UPC | 609098902816 |
| Sold as | One product or kit as described |
| Camera quantity | Two |
| Video output | 720p AHD / manufacturer-described 480p CVBS |
| Viewing angle | 80° |
| Minimum illumination | 0.1 lux |
| Environmental rating | IP67 |
Manufacturer Resources & Warranty
Three-year manufacturer warranty, subject to terms.
Help Choosing Your Setup
Tell MCOR Automotive your vehicle year, make, model and current radio or camera display. Contact us for help checking the mounting, signal compatibility and installation parts before ordering.
