Kenwood DMX8709S 6.8" Touch Screen Car Stereo-Wireless Apple CarPlay, Android Auto + CMOS-240U Backup Camera

The Kenwood DMX8709-240U bundle pairs the high-performance DMX8709S 6.8" digital multimedia receiver with the CMOS-240U low-profile rear-view camera. This system is designed for drivers who demand seamless smartphone integration and enhanced safety without sacrificing aesthetics. The DMX8709S features a vibrant capacitive touchscreen that provides wireless control for Apple CarPlay and Android Auto, while the included CMOS-240U camera offers a wide-angle view for safer reversing, mounted discreetly using the provided license plate bracket. Built with Kenwood’s high-quality internal audio components and 4.0V gold-plated preamp outputs, this bundle serves as a premium foundation for any modern vehicle audio system.

Key Features

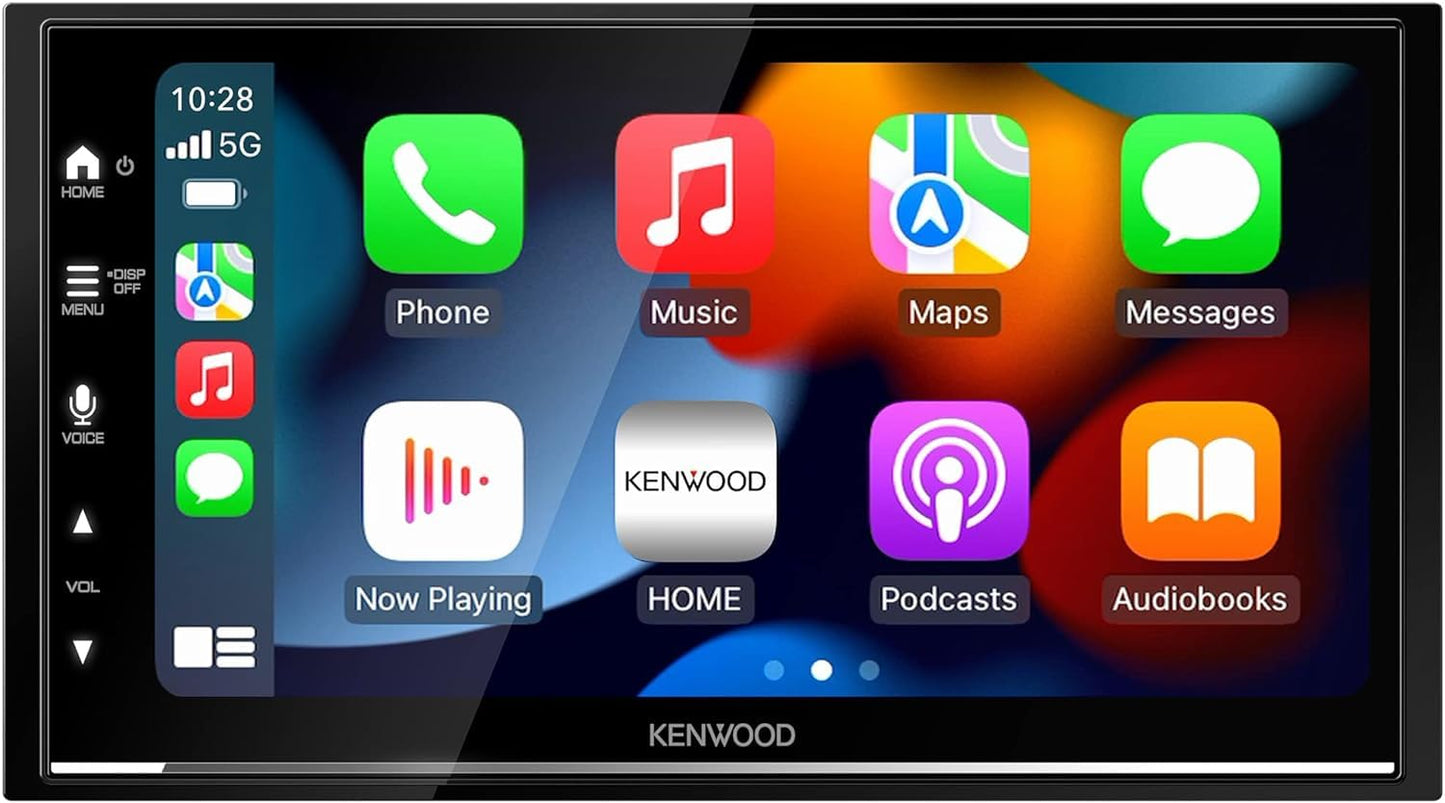

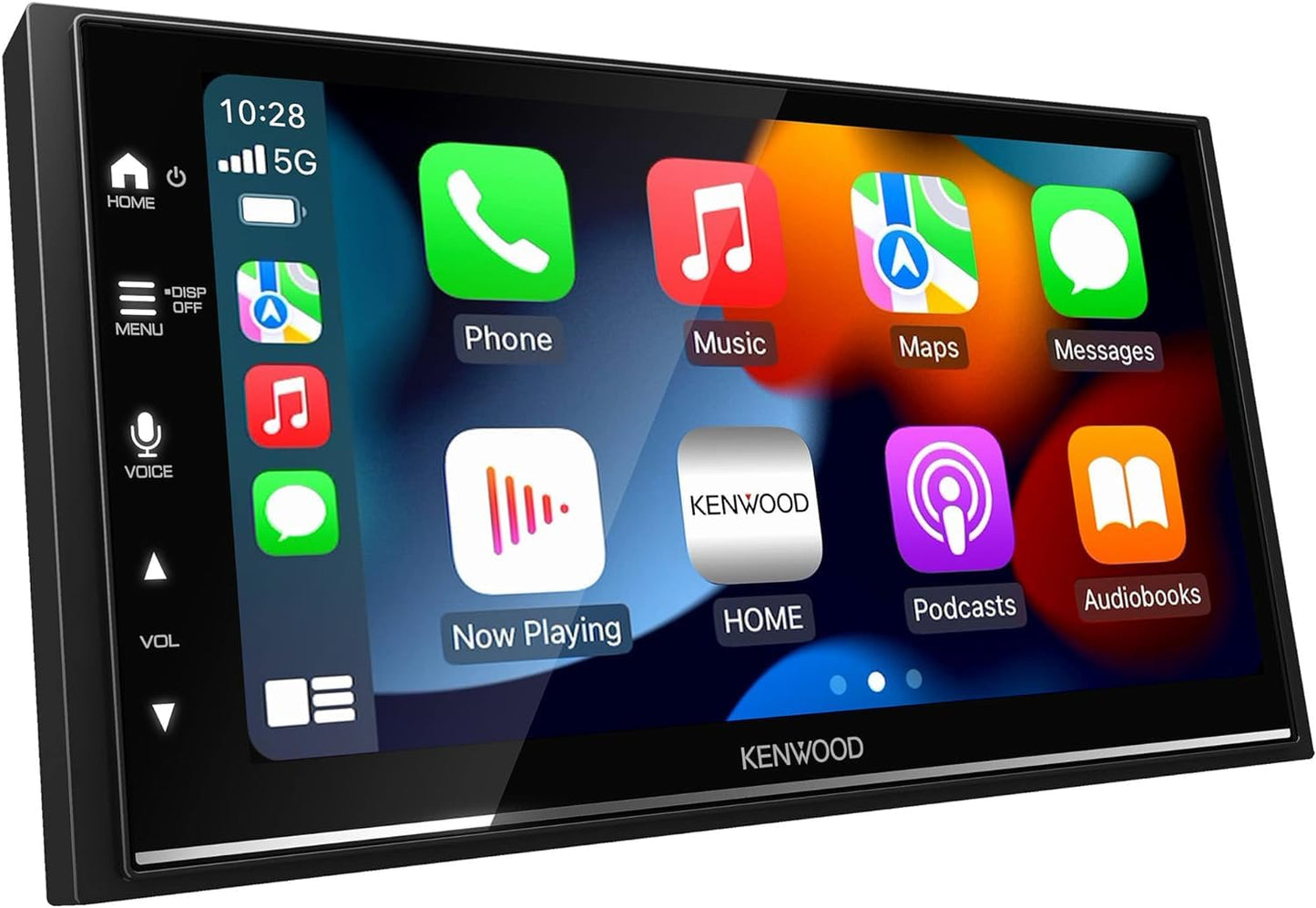

• 6.8" Capacitive touchscreen display
• Wireless and wired Apple CarPlay
• Wireless and wired Android Auto

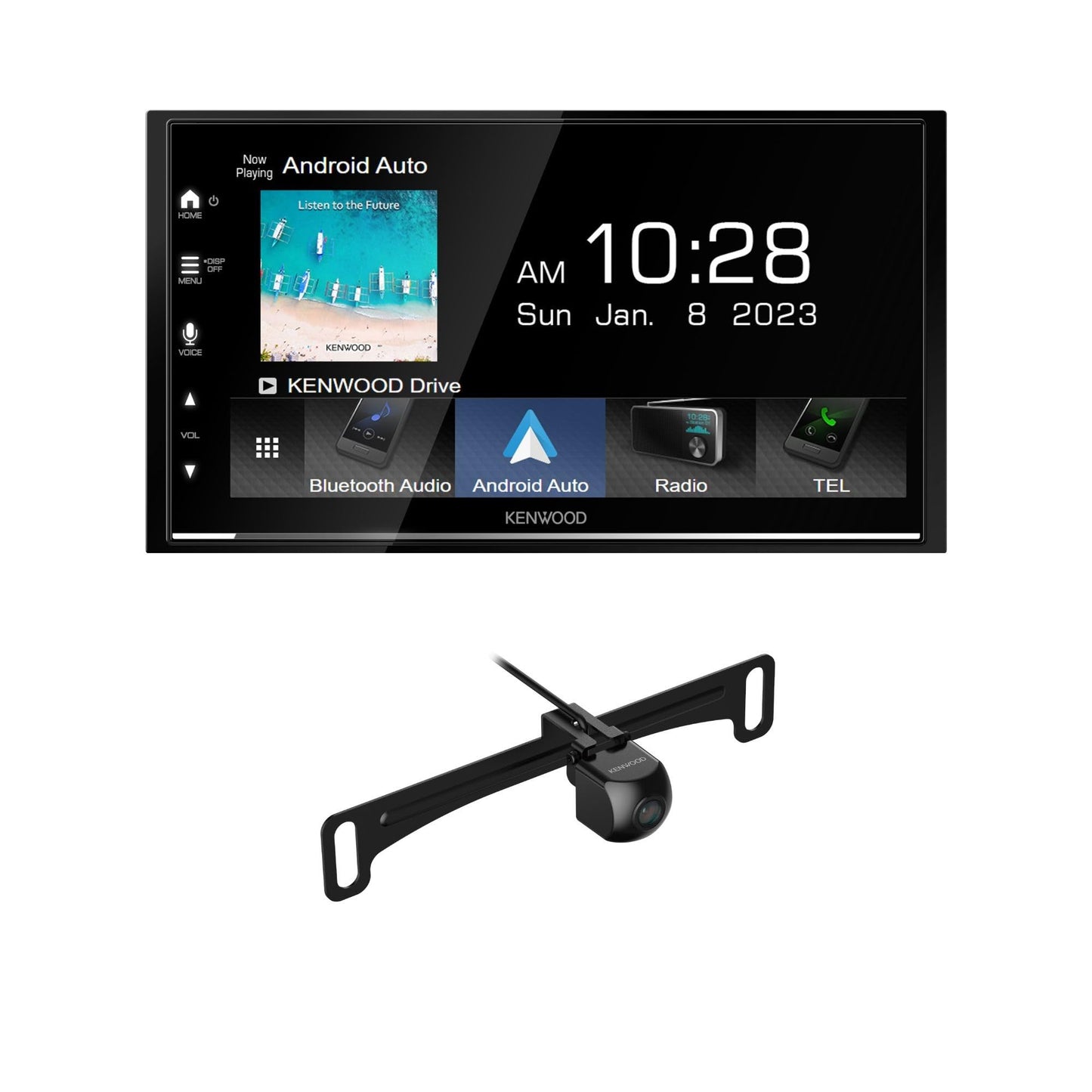

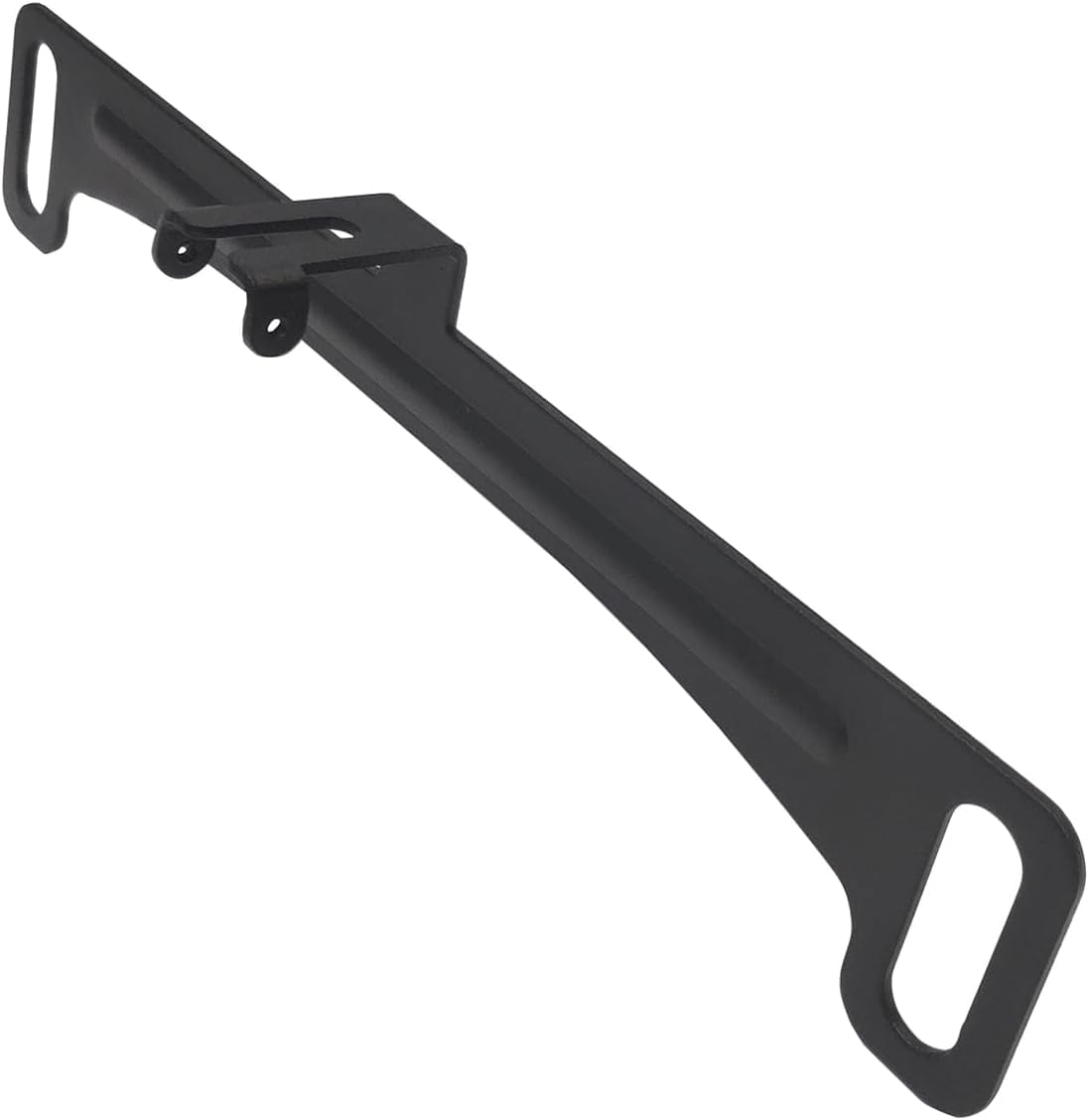

• Included CMOS-240U low-profile backup camera with license plate bracket
• Built-in Bluetooth for dual phone pairing and audio streaming
• USB Mirroring for select Android devices via Wi-Fi
• 13-band EQ and digital time alignment
• 3 pairs of 4.0V gold-plated RCA preamp outputs
• 3 camera inputs for comprehensive vehicle monitoring

Connectivity & Integration

• Apple CarPlay: Wireless and wired connection support
• Android Auto: Wireless and wired connection support
• Bluetooth: Dual phone connection for hands-free calling and high-quality audio streaming
• Wireless Mirroring: Compatible with select Android devices via Wi-Fi
• USB: Rear USB port with 1.5A rapid charging

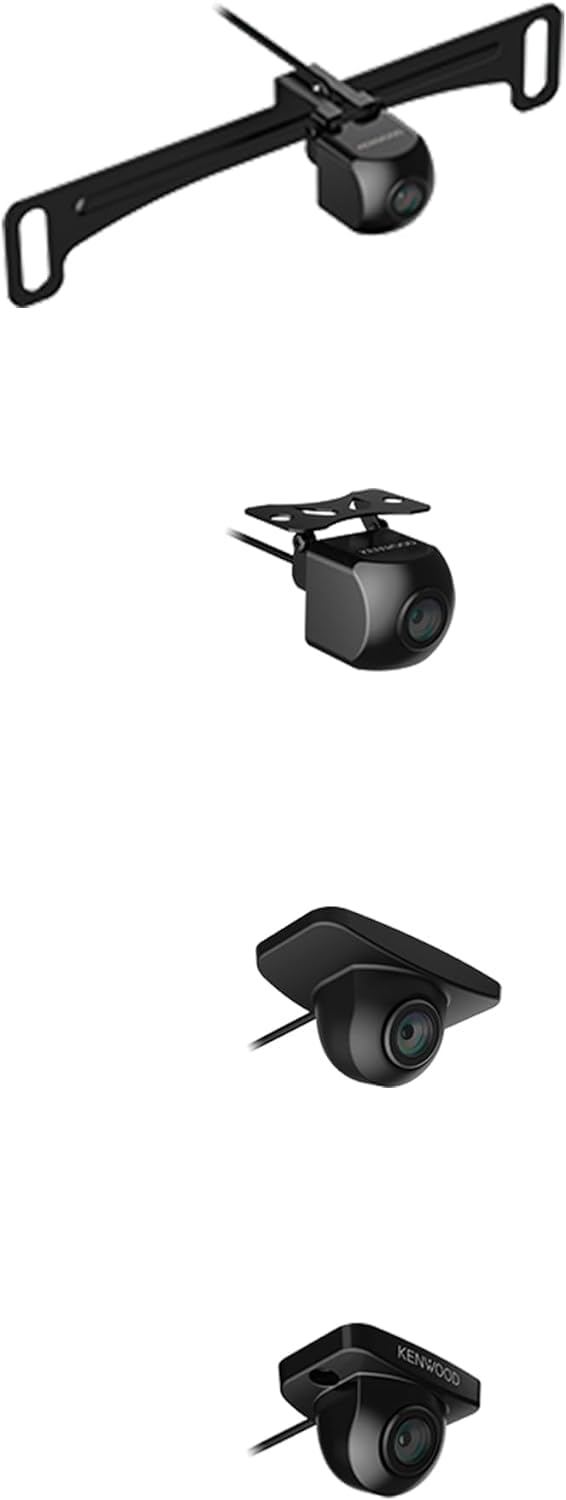

• Cameras: 3 camera inputs; supports the included CMOS-240U plus front and side camera options
• SiriusXM: SiriusXM Radio Ready (optional tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band graphic equalizer with digital time alignment
• 3 pairs of 4.0V gold-plated RCA preamp outputs (Front, Rear, Subwoofer)
• High-Resolution Audio Wireless (LDAC) support for compatible devices
• Independent 3-way crossover network for advanced system tuning
• Drive EQ and advanced digital signal processing (DSP)
• Built-in internal amplifier: 22 Watts RMS / 50 Watts Peak x 4 channels

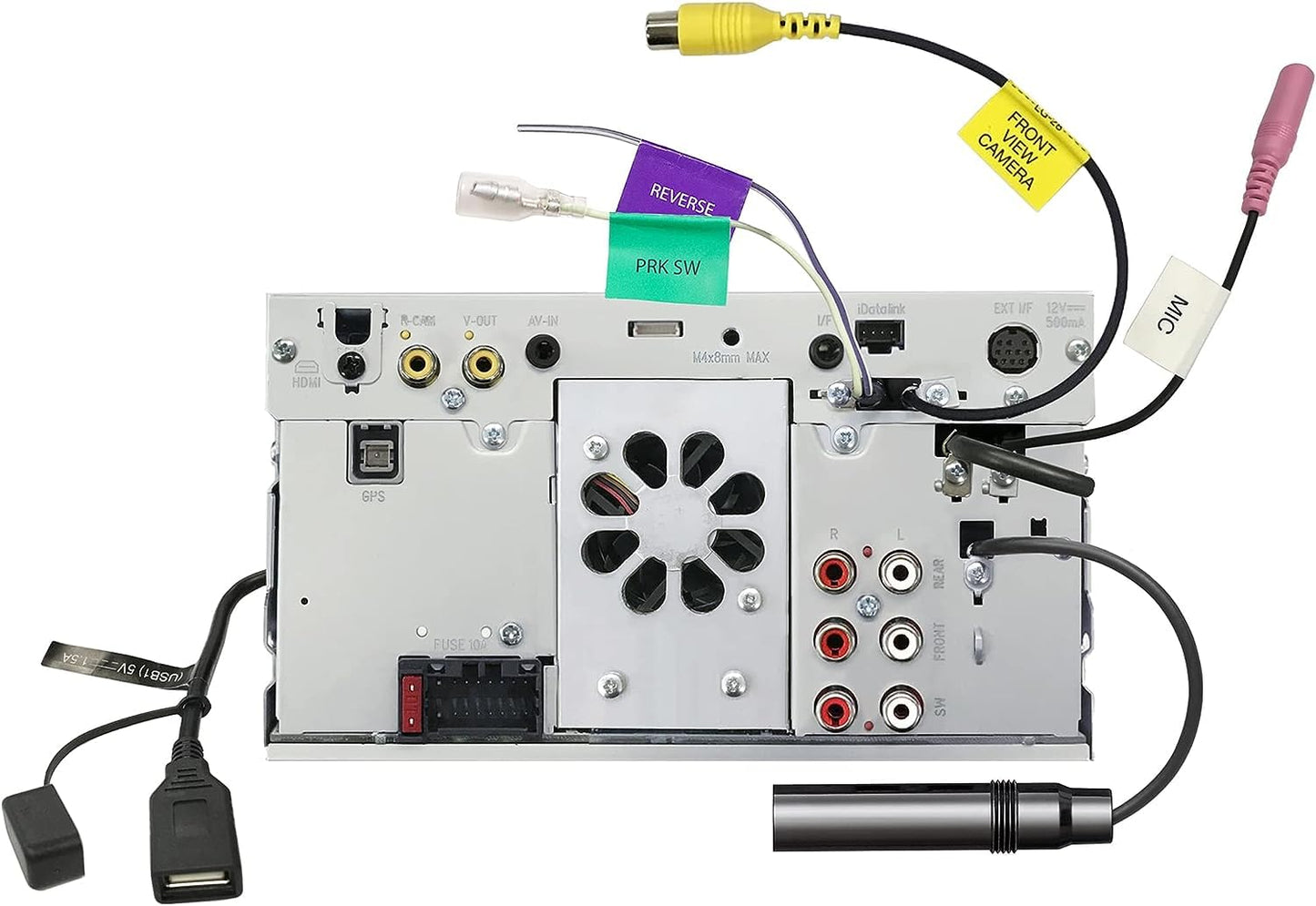

Installation & Fitment Notes

• Chassis Type: Double-DIN
• Short Chassis Design: 2.95" (75mm) mounting depth for flexible installation in shallow dashes
• Parking brake connection required for video playback and advanced setup menus
• Factory Integration: iDatalink Maestro RR/RR2 ready for retaining steering wheel controls and displaying vehicle data (module required; vehicle dependent)
• Dash kits, wiring harnesses, and antenna adapters are vehicle-specific and sold separately

Technical Specifications

• Receiver Model: DMX8709S
• Screen Size: 6.8" Capacitive
• Smartphone Integration: Wireless/Wired CarPlay and Android Auto
• Preamp Voltage: 4.0 Volts
• Camera Model: CMOS-240U
• Camera Sensor: 1/3.6" Color CMOS
• Chassis Depth: 75mm (2-15/16")

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX8709-240U
• UPC: 019048241214
• Sold As: Each
• Included Components: DMX8709S receiver, CMOS-240U camera, license plate bracket, GPS antenna, microphone, wiring harness, and mounting hardware
