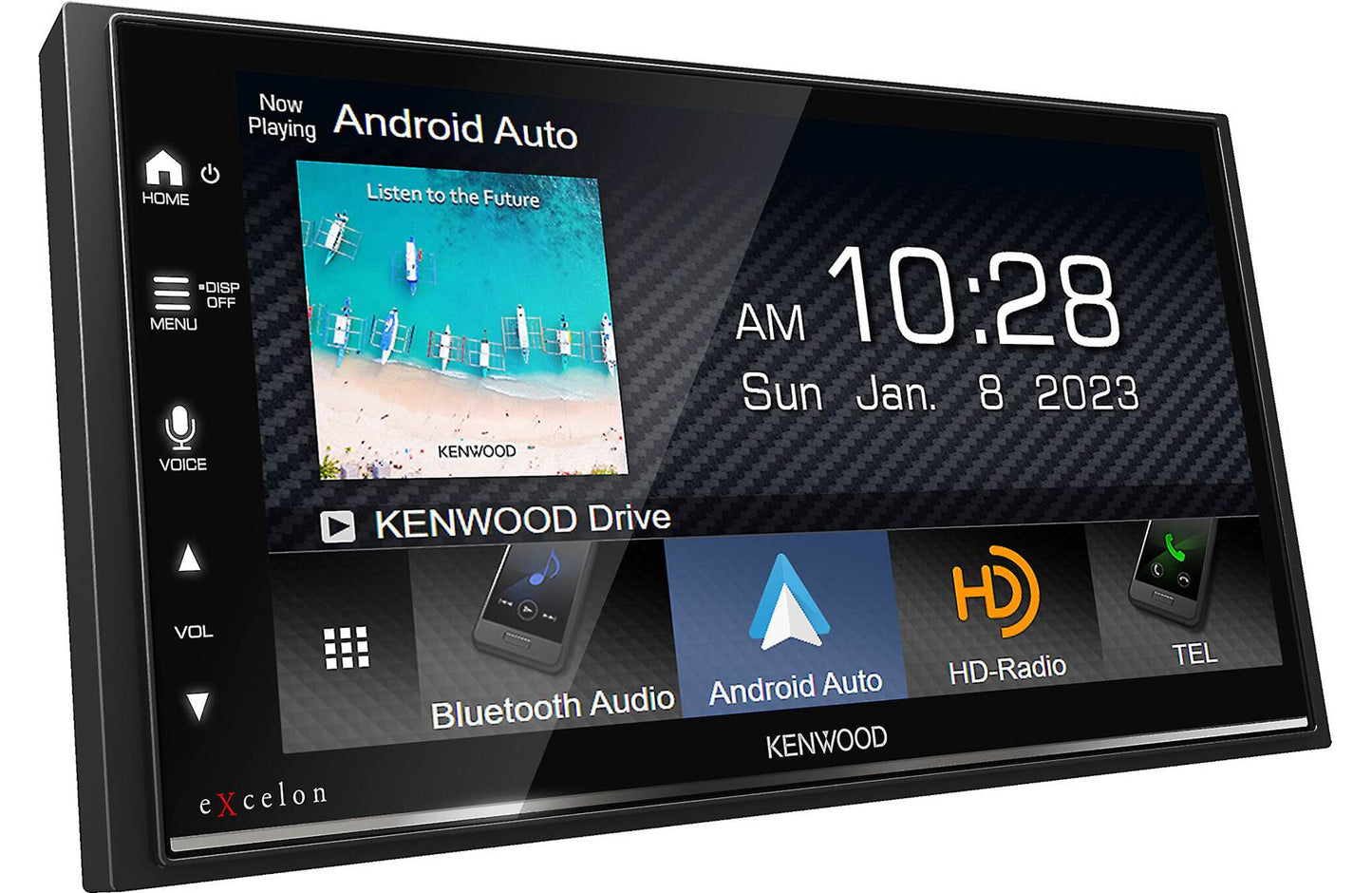

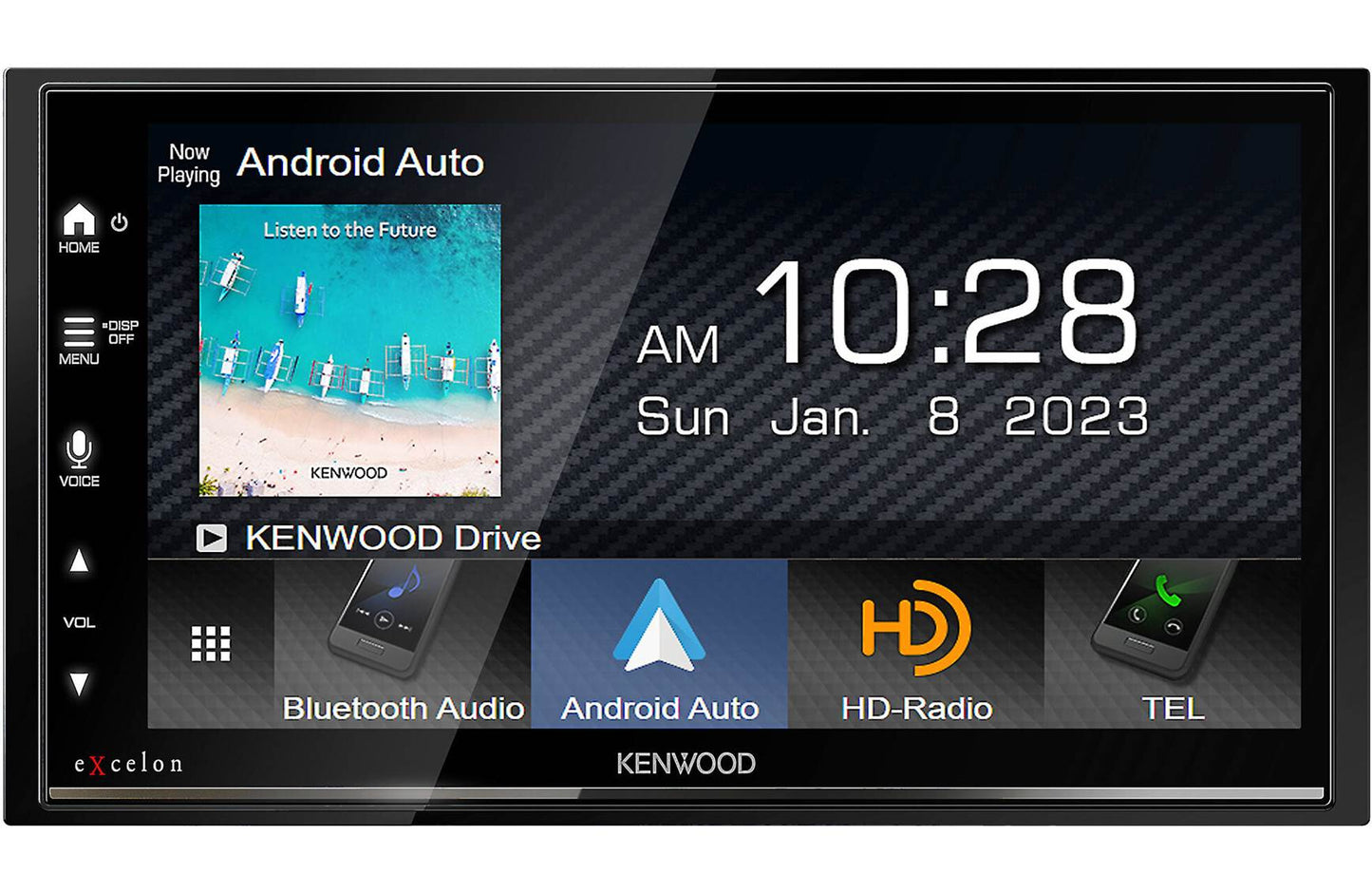

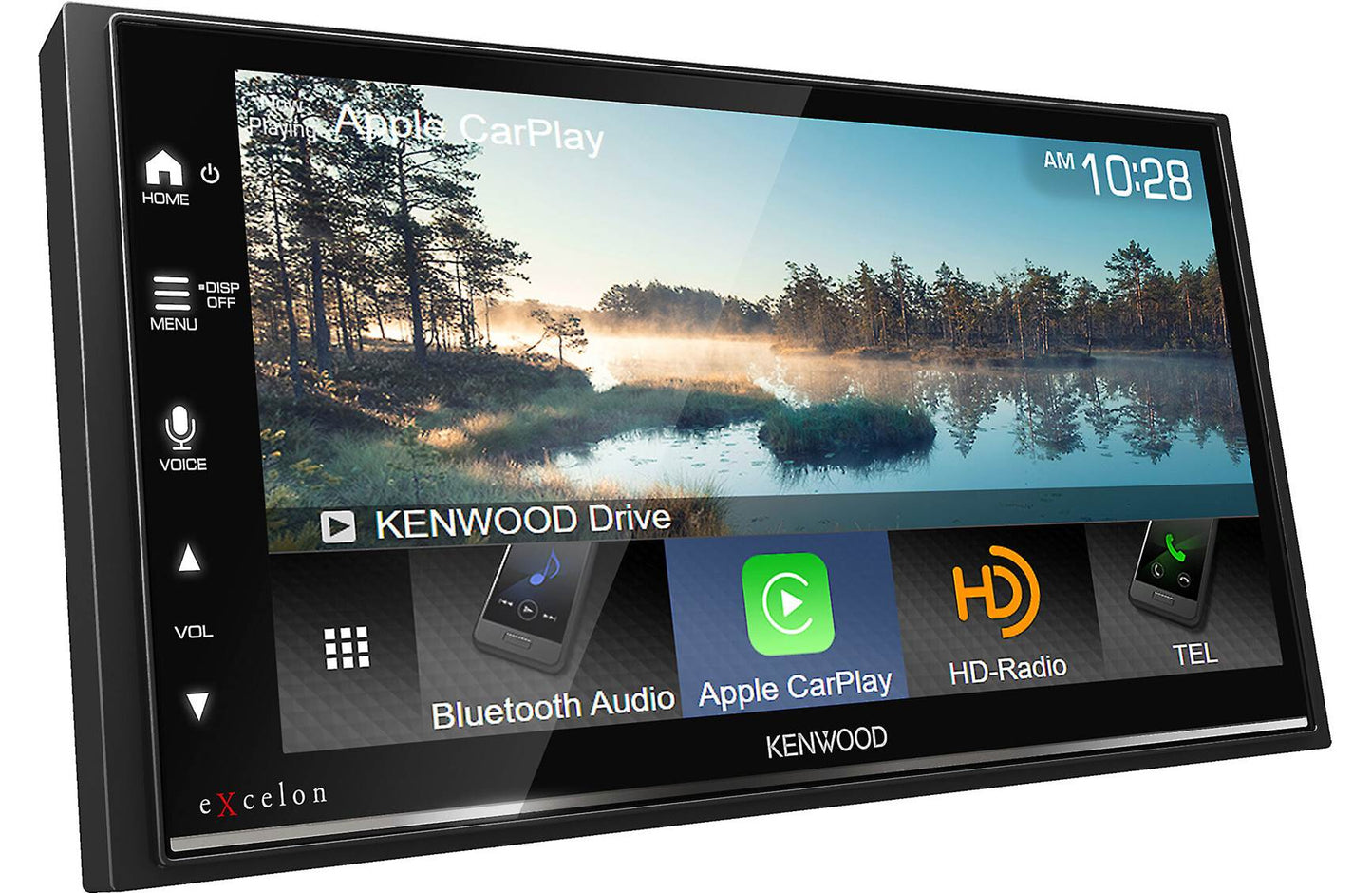

Kenwood eXcelon DMX809S 6.75″ Digital Multimedia Receiver with Wireless CarPlay, Android Auto, HD Radio + CMOS-230 Low-Profile Backup Camera

This Kenwood eXcelon DMX809-230 bundle pairs the DMX809S 6.8″ capacitive touchscreen digital multimedia receiver with the CMOS-230 low-profile backup camera to modernize a factory radio with reliable wireless smartphone control and a clean, wide-angle rear camera view.

It’s built for vehicles where you want correct integration, fast touchscreen operation, HD Radio, and real signal control for aftermarket amplification (vehicle/system dependent).

Key Features

• 6.8″ WVGA monitor with capacitive touch panel (Kenwood spec: 6.75″ picture size)

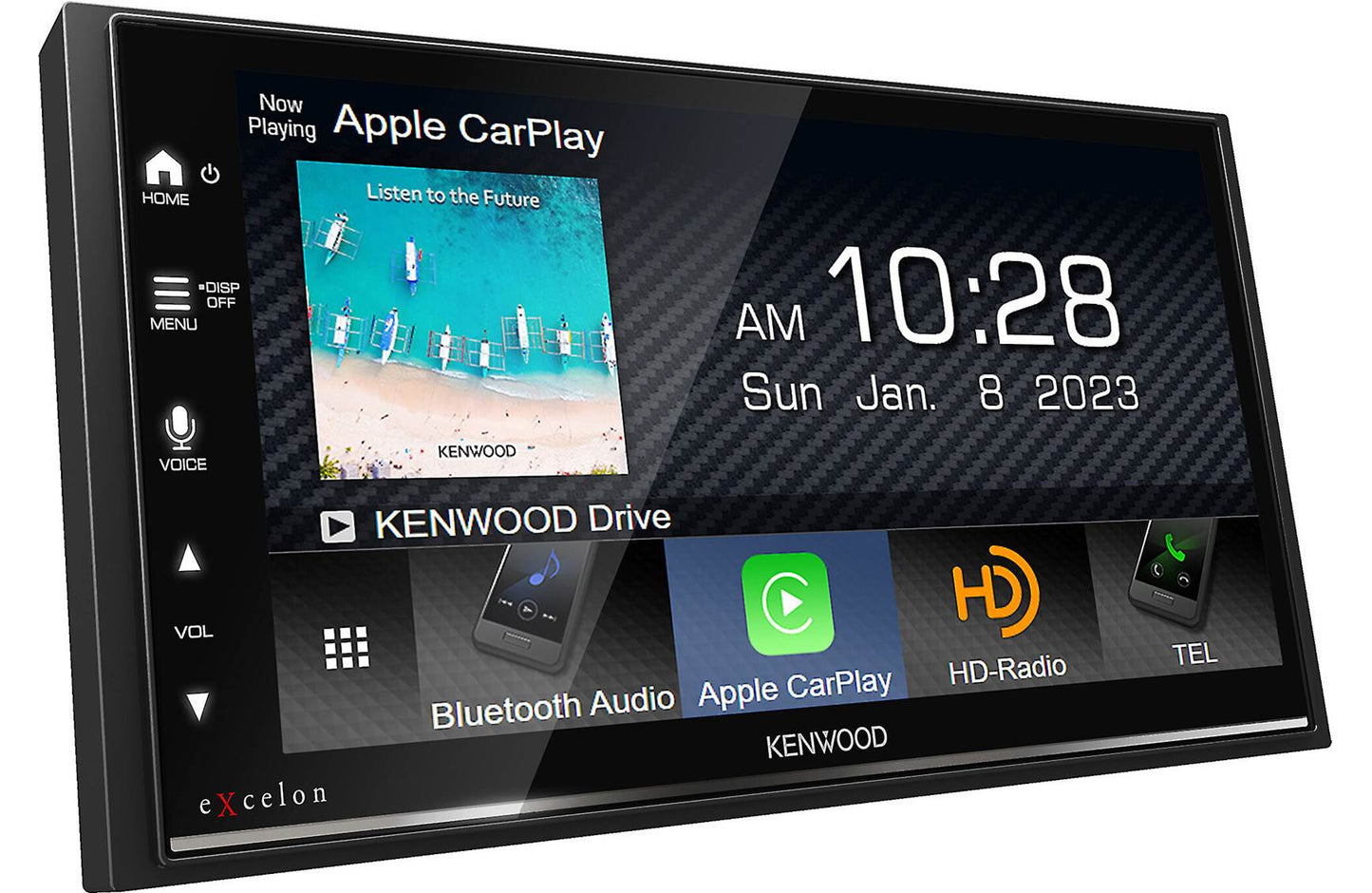

• Wireless and wired Apple CarPlay

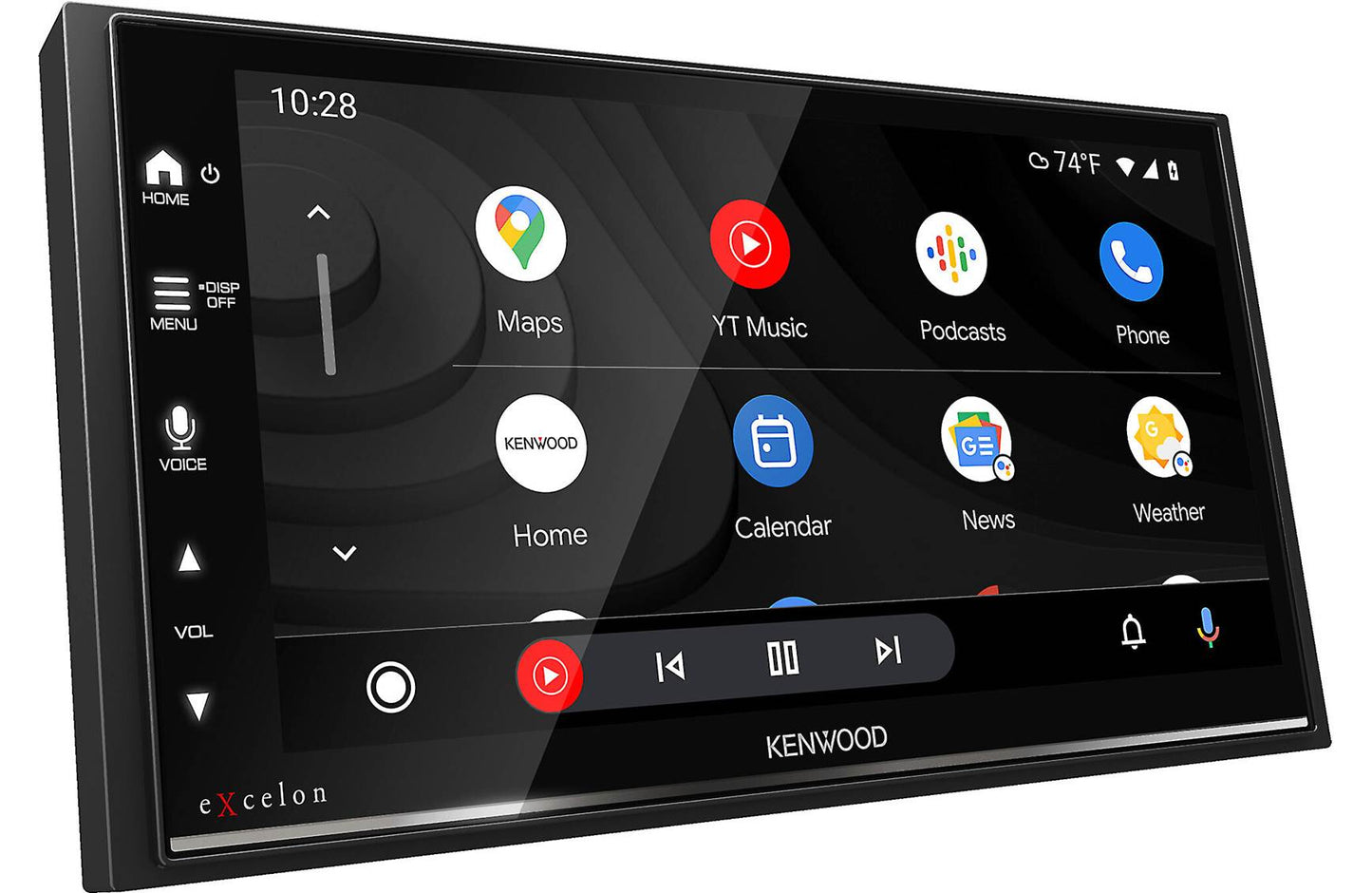

• Wireless and wired Android Auto
• USB Mirroring for Android (requires compatible device/app)
• Built-in HD Radio tuner
• 13-band EQ and digital time alignment
• 3 preamp outputs (5.0V)
• 3 camera inputs
• Short chassis design: 2-15/16″ (75mm) depth
• Included CMOS-230 camera with license-plate mounting attachment

Connectivity & Integration

• Apple CarPlay: Wireless and wired
• Android Auto: Wireless and wired
• Android mirroring: USB Mirroring for Android (compatible devices)
• Bluetooth: Built-in for hands-free calling and audio streaming
• HDMI input: Supported (optional KCA-HD200 cable sold separately)
• Cameras: 3 camera inputs for front/rear/aux configurations (triggering and switching are install-dependent)
• SiriusXM: SiriusXM Radio Ready (tuner required): SXV300V1 SiriusXM Tuner

Audio & System Control

• 13-band EQ for system tuning
• Digital time alignment for staging and imaging control
• 3 pairs of RCA preamp outputs (5.0V) for clean signal to external amplifiers
• Built-in amplifier: 22W RMS x 4 (50W max x 4)
• Drive EQ road-noise compensation

Installation & Fitment Notes

• Chassis type: Double-DIN (in-dash)
• Short chassis: 2-15/16″ (75mm) depth for improved fitment behind the dash
• Parking brake connection required to access certain settings and video functions
• Factory integration: iDatalink Maestro RR/RR2 support for retaining compatible factory features and displaying supported vehicle data (module/adapter required; vehicle dependent)
• Dash kits, wiring interfaces, antenna adapters, and vehicle-specific integration components are required and sold separately
• Camera mounting position and reverse trigger strategy are vehicle- and install-dependent

Technical Specifications

• Receiver model: DMX809S
• Screen: 6.8″ WVGA capacitive; picture size 6.75″ (diagonal)
• Smartphone integration: Wireless/wired Apple CarPlay; wireless/wired Android Auto
• HD Radio: Built-in
• USB: USB 2.0 Type-A
• Wi-Fi: Dual-band (2.4GHz / 5GHz)
• Bluetooth: Version 5.0
• Preamp outputs: 3 preouts, 5.0V
• Camera inputs: 3
• Chassis depth: 2-15/16″ (75mm)
• Disc support: No CD/DVD mechanism
• Camera sensor: 1/3.6″ color CMOS, effective approx. 330,000 pixels
• Camera angle of view: Horizontal approx. 128° / Vertical approx. 103°
• Camera design: Waterproof
• Camera dimensions (WxHxD): 15/16″ x 15/16″ x 15/16″ (23.4 x 23.4 x 23.9mm)

Identifiers & Packaging

• Manufacturer Part Number (MPN): DMX809-230
• UPC: 019048236647
• Sold As: Each
• Included Components: DMX809S receiver (retail packaged), CMOS-230 camera with license-plate mounting attachment (retail packaged), documentation (per manufacturer packaging)

Why Buy From MCOR Automotive

• Kenwood Preferred Retailer (online and in-store)
• Specialists in vehicle-specific integration (dash kits, interfaces, and factory-feature retention)
• Support for selecting the right parts and planning a clean, reliable install

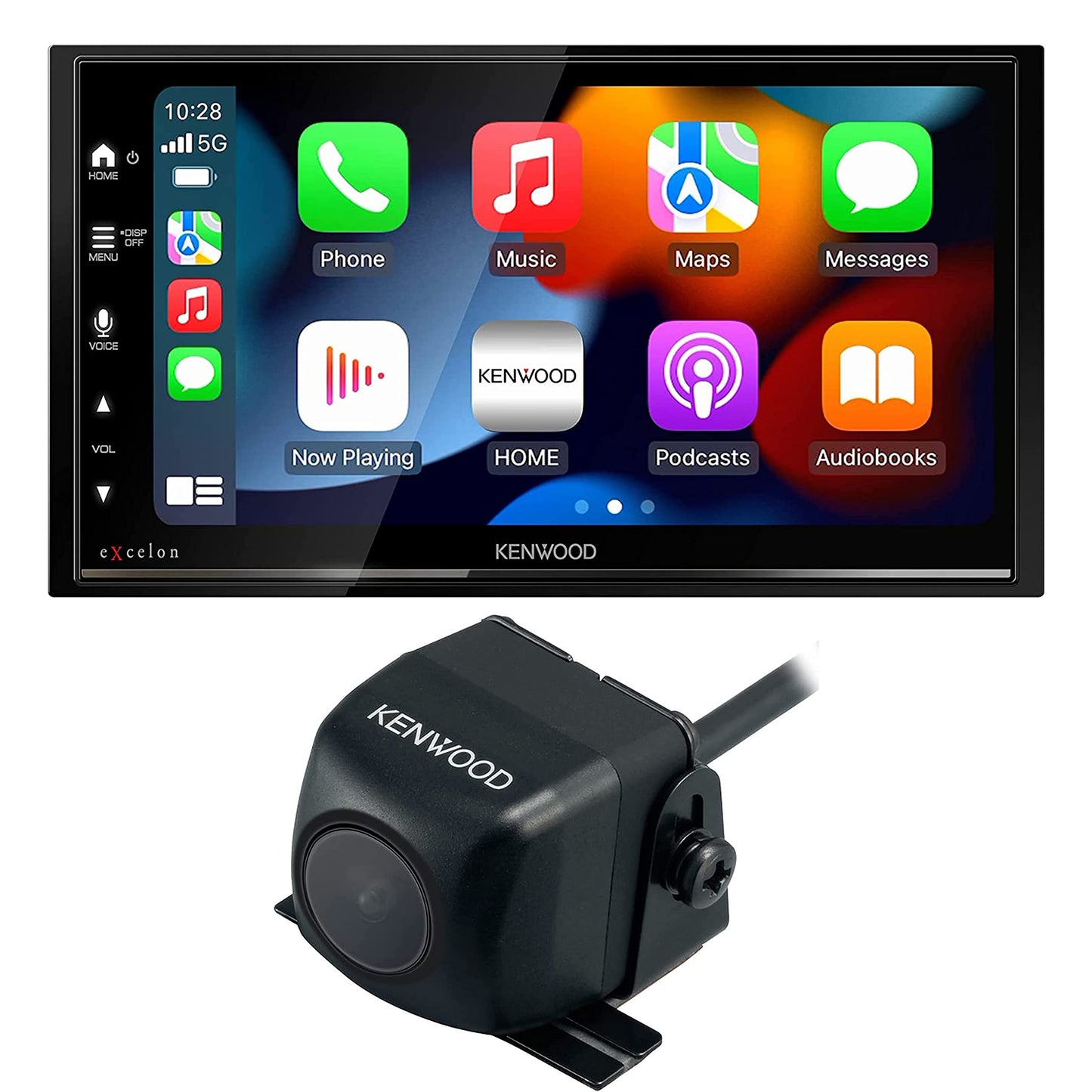

What's Included

• Kenwood DMX809S receiver
• CMOS-230 rear-view camera

Bundle Benefit

This Kenwood bundle pairs the radio with a compatible Kenwood backup camera, making it easier to build a complete receiver-and-camera upgrade in one purchase. Vehicle-specific installation parts may still be required.

Vehicle Fitment & Installation Notes

• Most vehicles require additional installation parts when replacing the factory radio. Depending on the vehicle, you may need a dash kit, wiring harness, antenna adapter, steering wheel control interface, factory amplifier integration module, or other vehicle-specific parts.
• Vehicle-specific installation parts are sold separately unless included in the bundle.
• Use the MCOR Automotive Vehicle Fit Guide to help identify required parts for your vehicle, or contact MCOR Automotive through the chat button for help building the correct vehicle-specific install package.
• Do not assume universal fitment. Radio fitment and retained factory features depend on the vehicle, trim, factory audio system, and required installation interfaces.

Authorized Kenwood Retailer

MCOR Automotive is an authorized Kenwood retailer for online and in-store sales. Products sold by MCOR Automotive are genuine and eligible for applicable manufacturer warranty coverage.
